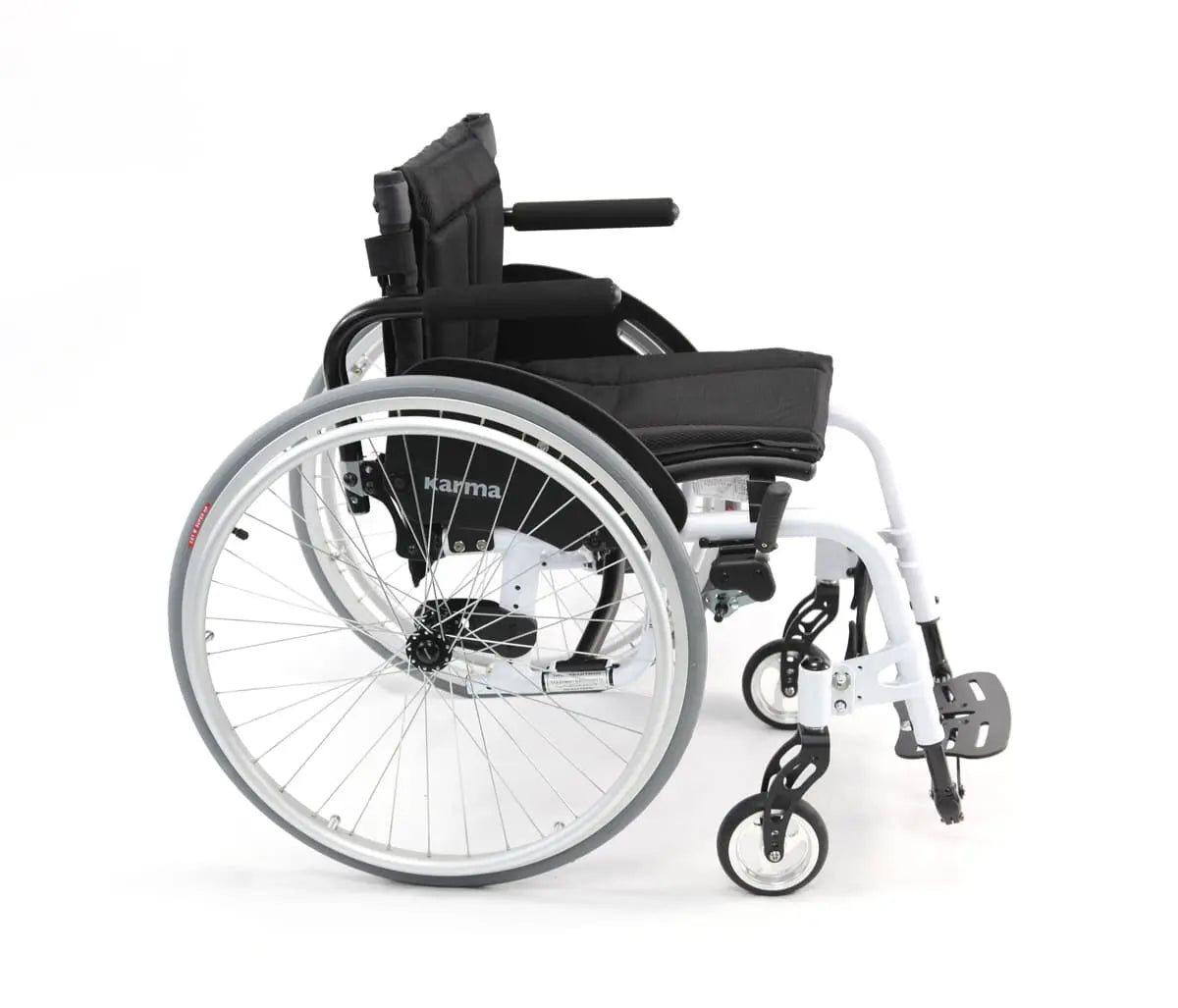

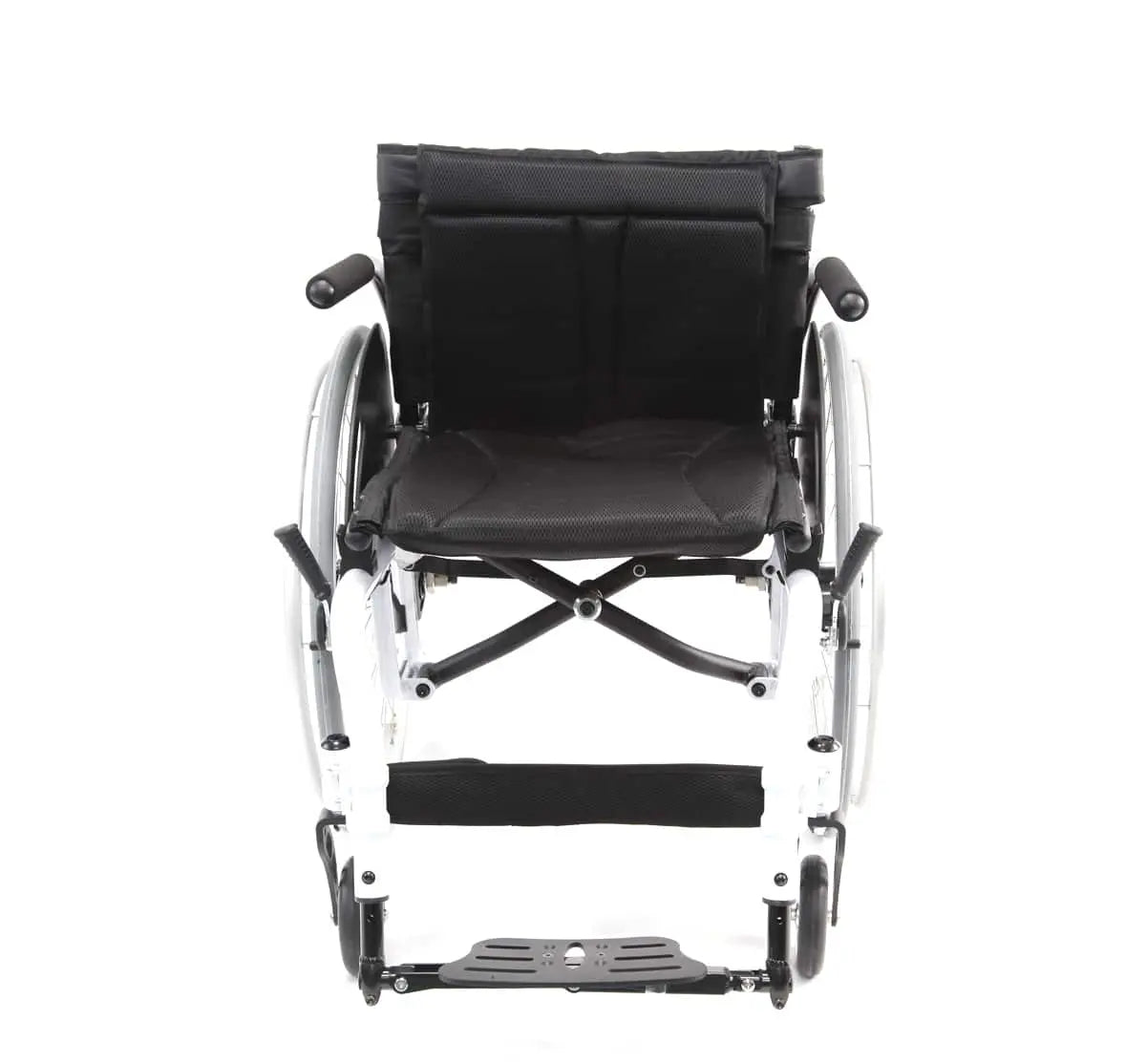

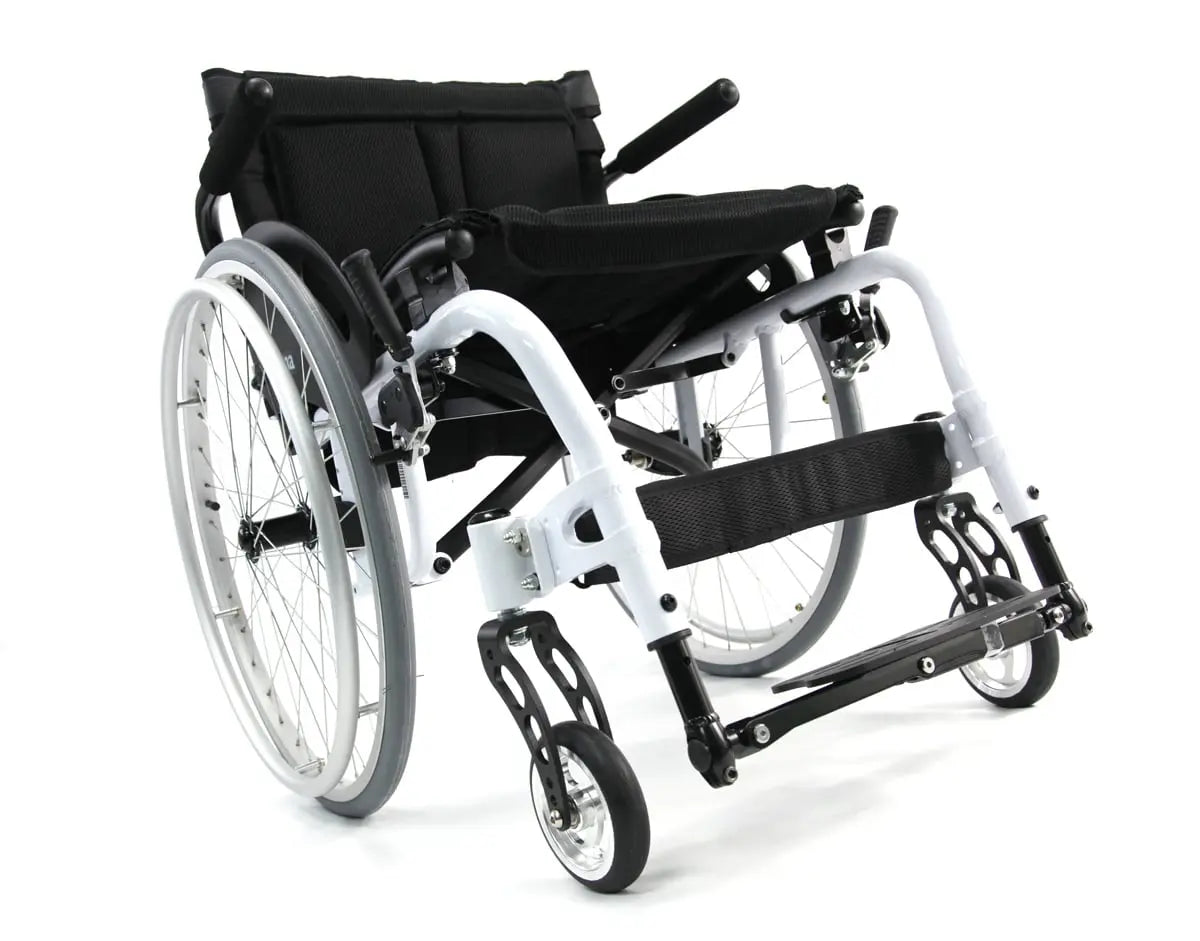

Karman S-ATX-1616WT S-Ergo ATX Active Ergonomic Wheelchair 16"x16" Aspen White
Karman S-ATX-1616WT Ultra-Lightweight Active Wheelchair with Ergonomic "S" Seat, 16"x16" Adjustable Depth and Rigid Folding Frame for Superior Agility in Aspen White
The new ATX is ideal for all those who want to ride through life boldly. Thanks to outstanding agility and rigidity of the unique multi-geometrical extruded cross bars. Special features of this “extreme design” include a compact dimensions with rigid structure. Foot plate angles are fully adjustable allowing the legs to be positioned at any desired angle. The is the result of years of research and development. The unique tubes, welding, and components are precisely optimized to achieve the highest strength to weight ratio. Every frame is adjusted by our master tech to your order specification. We can now improve sufficient stability for larger and stronger users while avoiding excess weight for smaller and lighter users. The S-ERGO ATX transfers your energy to the street with ultimate style, comfort, and expression.
Features:
- Ergonomic active wheelchair design with patented "S" shaped seat for pressure relief and better posture
- Folding frame with rigid collapsing mechanism for easy transport and storage
- Frame weight of only 15.4 lbs for ultra-lightweight maneuverability
- Removable swing-away footrests for convenient transfers
- Fully adjustable foot plate angles for customized leg positioning
- Multi-geometrical extruded cross bars for outstanding agility and rigidity
- Compact dimensions with rigid structure for active use
- Optimized tubes, welding, and components for the highest strength-to-weight ratio
- Custom frame adjustment by master tech to order specifications
- Breathable mesh upholstery that's durable, easy to clean, and supportive
Specifications:
| Specification | Details |
|---|---|
| Seat Width | 16" |
| Seat Depth | 16" |
| Back Height | 16" |
| Seat to Floor Height | 19" |
| Overall Open Width | 24" |
| Overall Closed Width | 12" |
| Overall Height | 36" |
| Overall Length w/ Riggings | 40" |
| Weight (Frame) | 15.4 lbs |
| Weight Capacity | 250 lbs |
| Frame Material | Powder-Coated Aluminum, Aspen White |
| Upholstery | Breathable Mesh Nylon |
| Front Casters | 8" Solid |
| Rear Wheels | 24" Spoked with Solid Tires |
| Armrests | Fixed Padded Desk-Length |
| Footrests | Removable Swing-Away Adjustable |
| Brakes | Push-to-Lock |
| Warranty | 3-Year Limited |
| Shipping Weight | 38 lbs |
| Carton Dimensions | 38" x 16" x 32" |
| UPC | 617237606112 |
| HCPCS Code | K0005 |
