SCILOGEX 18200745 PTFE Chemical Diaphragm Resistant Vacuum Pump
25% off

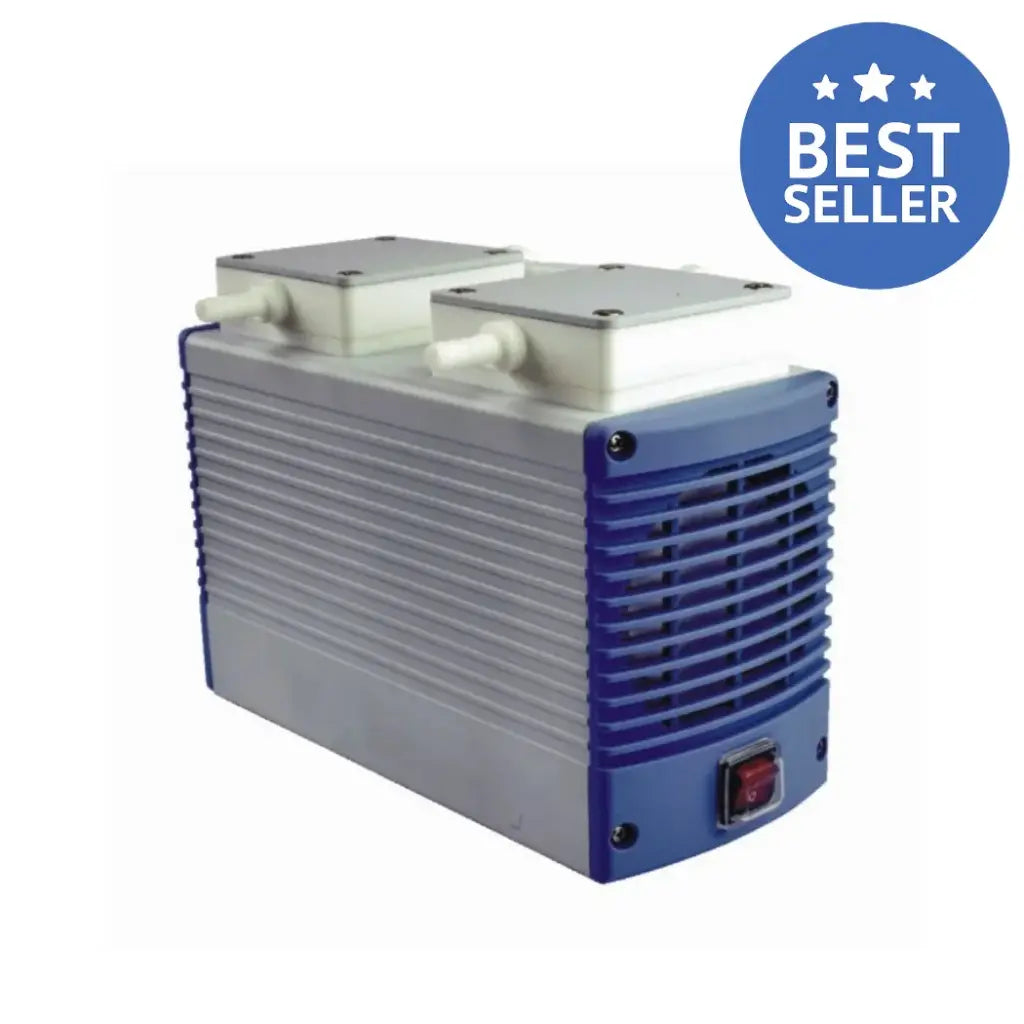

SCILOGEX 18200745 PTFE Chemical Diaphragm Resistant Vacuum Pump
SCILOGEX 18200745 PTFE Chemical Resistant Diaphragm Vacuum Pump for Rotary Evaporators & Filtration, 20 LPM Flow
SCILOGEX’s 18200745 PTFE Chemical Resistant Vacuum Pump is a durable, oil-free diaphragm pump for chemical-duty applications in rotary evaporators, filtration, gel drying, and SPE, with all wetted parts in PTFE for acid/alkali/organic vapor resistance. The squeeze-casting aluminum case with anti-rust treatment and thermal protection auto-stops on overheat. Compact (11" x 4" x 8", 15 lbs) with low noise (50 dB), it delivers 20 LPM flow and 10 mbar vacuum. Optional SCILOGEX 400 regulator/moisture trap available. Made in China with a 2-year warranty for reliable, low-maintenance lab use.
Features:
- Acid, alkali, and organic vapor resistant PTFE wetted parts for safe corrosive chemical handling
- Thermal protection device automatically stops on overheat and resumes when cooled
- Compact size and space-saving design for easy benchtop integration
- Low noise level at 50 dB for quiet lab operation
- Oil-free diaphragm design lowers cost and maintenance time
- Various filtration applications, including gel drying, blotting after electrophoresis, centrifugal evaporator, and SPE
- CE approved for electrical safety and compliance
- Optional accessory: SCILOGEX 400 vacuum regulator/moisture trap with gauge and valve
Specifications:
| Specification | Details |
|---|---|
| Maximum Power Consumption | 90W (110V); 95W (220V) |
| Maximum Current | 1.3A (110V); 0.6A (220V) |
| Maximum Flow Rate | 20 LPM (110V); 18 LPM (220V) |
| Maximum Vacuum | 10 mbar |
| Maximum Pressure | 30 psi |
| Motor Rotation | 1700 rpm (110V); 1450 rpm (220V) |
| Capacitor | 8µF/250V (110V); 4µF/400V (220V) |
| Horsepower | 1/6 HP |
| Poles | 4P |
| Net Weight | 15 lbs (7 kg) |
| Gross Weight | 16 lbs (7.4 kg) |
| Dimensions (L x W x H) | 11" x 4" x 8" (280 x 112 x 210 mm) |
| Port Thread | 5/16" |
| Noise Level | 50 dB |
| Voltage/Frequency | 100-120V/220-240V, 50/60 Hz, US Plug |
| Warranty | 2-Year Limited |
| Compliance | CE Approved |
| HS Code | N/A |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCILOGEX 410 PTFE Chemical Vacuum Pump | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
