SCILOGEX 401011010009 SCI-UV1000 Spectrophotometer Series 190-1100nm with Lamp Options
SCILOGEX 401011010009 SCI-UV1000 Spectrophotometer Series 190-1100nm with Lamp Options
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?

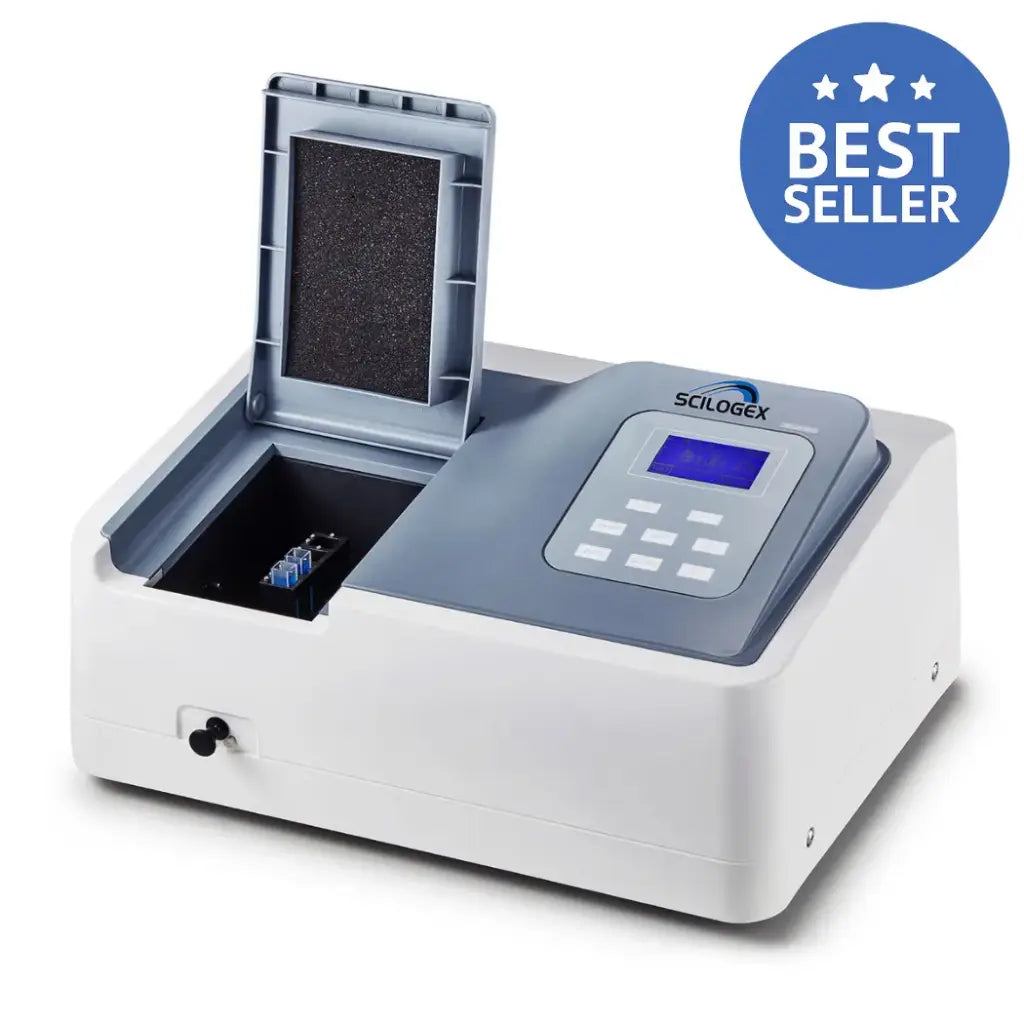

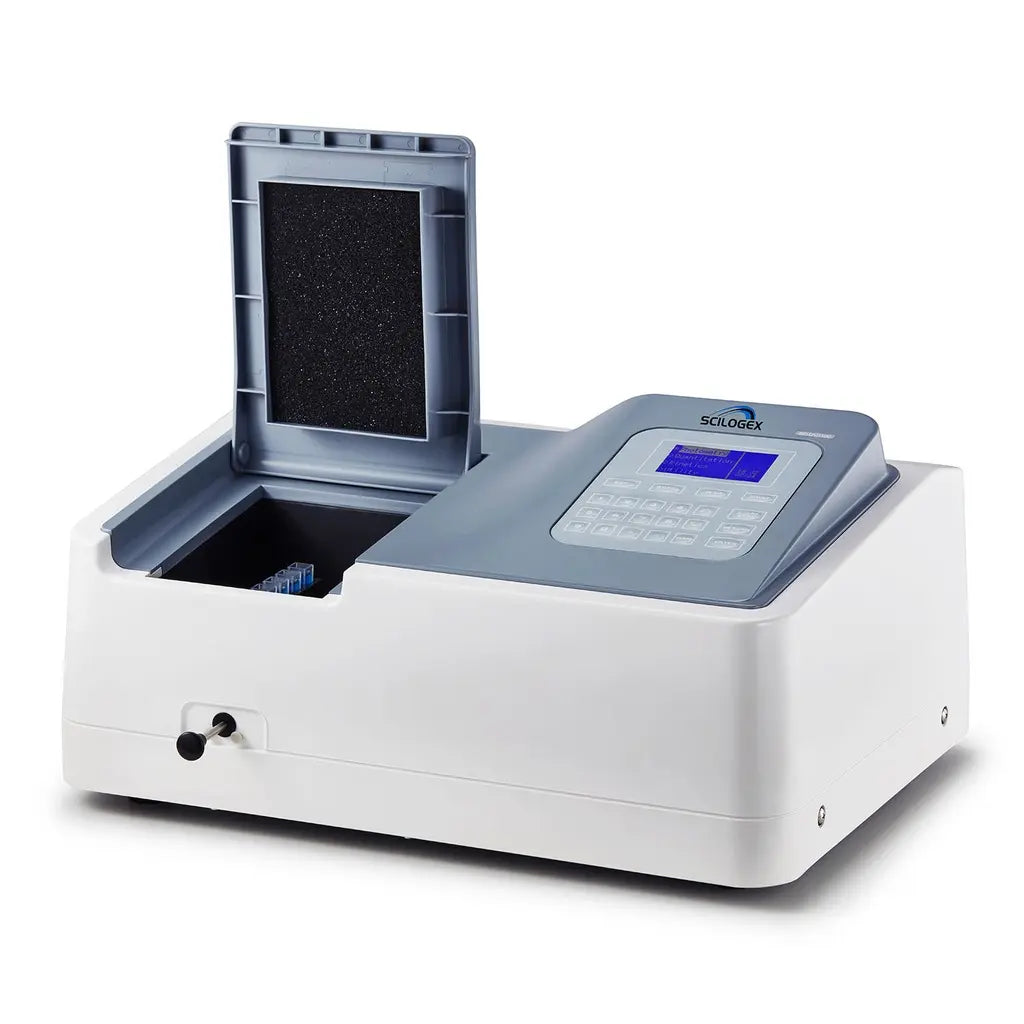

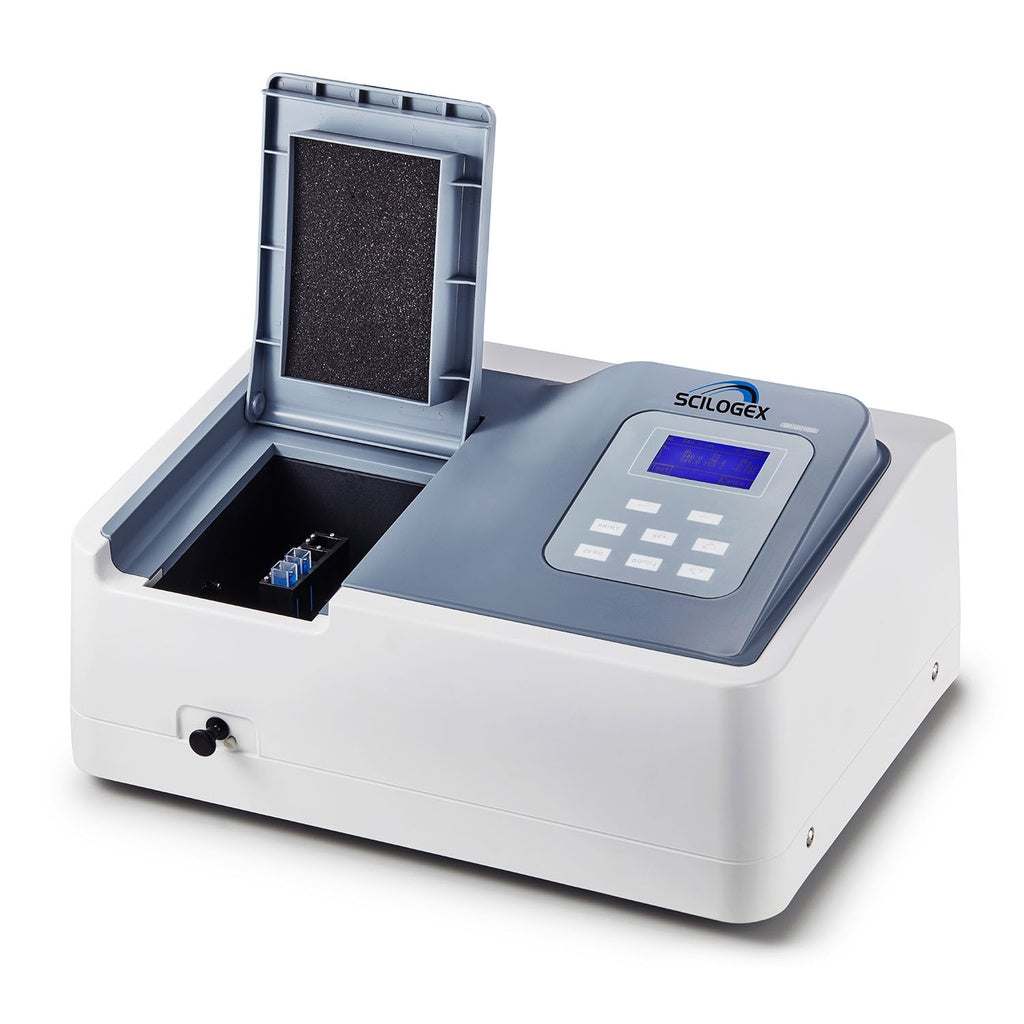

SCILOGEX 401011010009 SCI UV-Vis Spectrophotometer Series with Tungsten/Deuterium Lamps for Lab Analysis, 110/220V/50/60Hz US Plug
SCILOGEX’s SCI UV-Vis Spectrophotometer Series is a versatile lineup of single-beam and double-beam UV-Vis instruments for precise absorbance/transmittance measurements in molecular biology, chemistry, pharma, and environmental labs, covering 190-1100nm wavelengths with tungsten or tungsten/deuterium lamps. Choose from UV models (SCI-UV1000/1100) for full UV-Vis range with dual lamps or V models (SCI-V1000/1100) for visible range with tungsten lamp. Each includes 4 x 3.5ml glass cuvettes (UV models also include 2 x quartz) for DNA/protein quantification, enzyme assays, and quality control. User-friendly interfaces with 80W power efficiency ensure stable, accurate readings. Compact (approx. 15" x 12" x 6", 10 kg), with USB for PC integration and optional software. Made in China with a 2-year warranty for reliable, high-resolution performance in research workflows.
Features:
- 190-1100nm (UV models) or 320-1000nm (V models) wavelength range with tungsten or tungsten/deuterium lamps for broad UV-Vis coverage
- UV models (SCI-UV1000/1100) for full-spectrum analysis with dual lamps; V models (SCI-V1000/1100) for cost-effective visible range
- Photodiode detector for fast scanning and high sensitivity (up to 3.0 A absorbance)
- Tungsten lamp for visible light; deuterium for UV extension in UV models
- Includes 4 x 3.5ml glass cuvettes (UV models: +2 x 3.5ml quartz) for immediate use
- User-friendly keypad/LCD interface with quantitative, kinetics, and multi-wavelength modes
- USB port for data export and PC software control (optional)
- 10mm pathlength cuvette holder with optional micro-volume accessories
- Compact, portable design for benchtop or field use
- cTUVus/CE marked for lab safety; over-voltage protection
Specifications:
| Specification | Details |
|---|---|
| Wavelength Range | 190-1100 nm (UV Models); 320-1000 nm (V Models) |
| Light Source | Tungsten Lamp (All); Deuterium Lamp (UV Models) |
| Detector | Photodiode |
| Absorbance Range | -0.3 to 3.0 A |
| Photometric Accuracy | ±0.5% T at 1T |
| Stray Light | <0.05% T at 220nm/340nm |
| Stability | ±0.001 A/h at 500nm |
| Cuvettes Included | 4 x 3.5ml Glass (All); +2 x 3.5ml Quartz (UV Models) |
| Power Requirements | 110/220V, 50/60 Hz, 80W, US Plug |
| Dimensions (Approx.) | 15" x 12" x 6" |
| Weight | 10 kg |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 9027.30.4040 |
| Country of Origin | China (CN) |
Variants:
| Variant | Description | SKU |
|---|---|---|
| SCI-UV1000 | SCI-UV1000 Spectrophotometer 200~1000nm, Tungsten & Deuterium Lamp, with Cuvettes | 401011010009 |
| SCI-UV1100 | SCI-UV1100 Spectrophotometer 190~1100nm, Tungsten & Deuterium Lamp, with Cuvettes | 401012010009 |
| SCI-V1000 | SCI-V1000 Spectrophotometer 325~1000nm, Tungsten Lamp, with Glass Cuvettes | 401021010009 |
| SCI-V1100 | SCI-V1100 Spectrophotometer 320~1100nm, Tungsten Lamp, with Glass Cuvettes | 401022010009 |
Contents:
| Description | Quantity |
|---|---|
| Selected SCI UV-Vis Spectrophotometer Unit (UV or V Model) | 1 |
| Power Cord (US Plug) | 1 |
| User Manual & Software CD | 1 |
General Information:
- Wavelength Range: 190-1100 nm (UV models) for full UV-Vis coverage in absorbance/transmittance measurements.
- Bandwidth Options: 1mm for high-resolution spectral analysis; 2mm for routine scanning.
- Beam Type: Single-beam for cost-effective use; double-beam for baseline-corrected accuracy in kinetics/multi-sample tests.
- Detector: Photodiode array for fast, sensitive readings up to 3.0 A absorbance.
- Light Source: Tungsten halogen with automatic switching for seamless operation.
- Modes: Quantitative, kinetics, wavelength scan, multi-wavelength for diverse lab needs.
- USB Connectivity: For data export and PC software control (optional).
- Cuvette Holder: 10mm pathlength standard; micro-volume accessories available.
- Permissible Ambient: 5-40°C, 80% RH; IP20 protection class.
