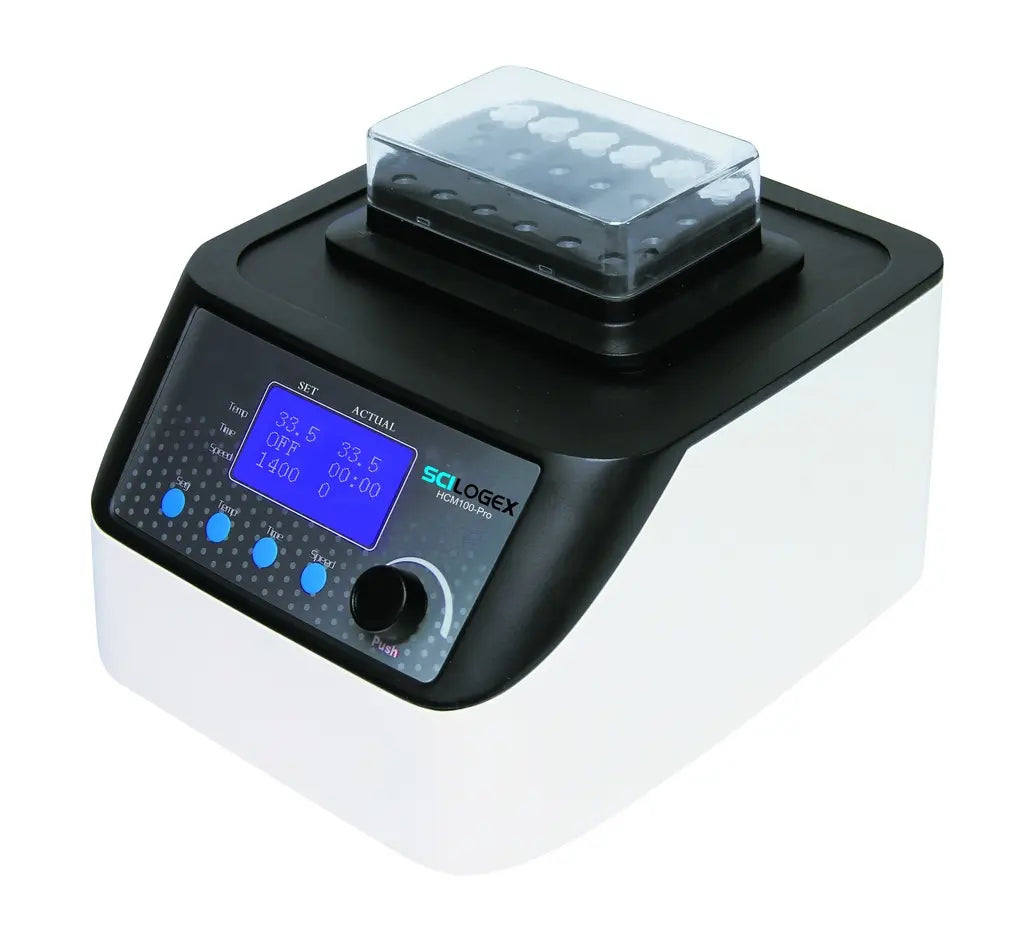

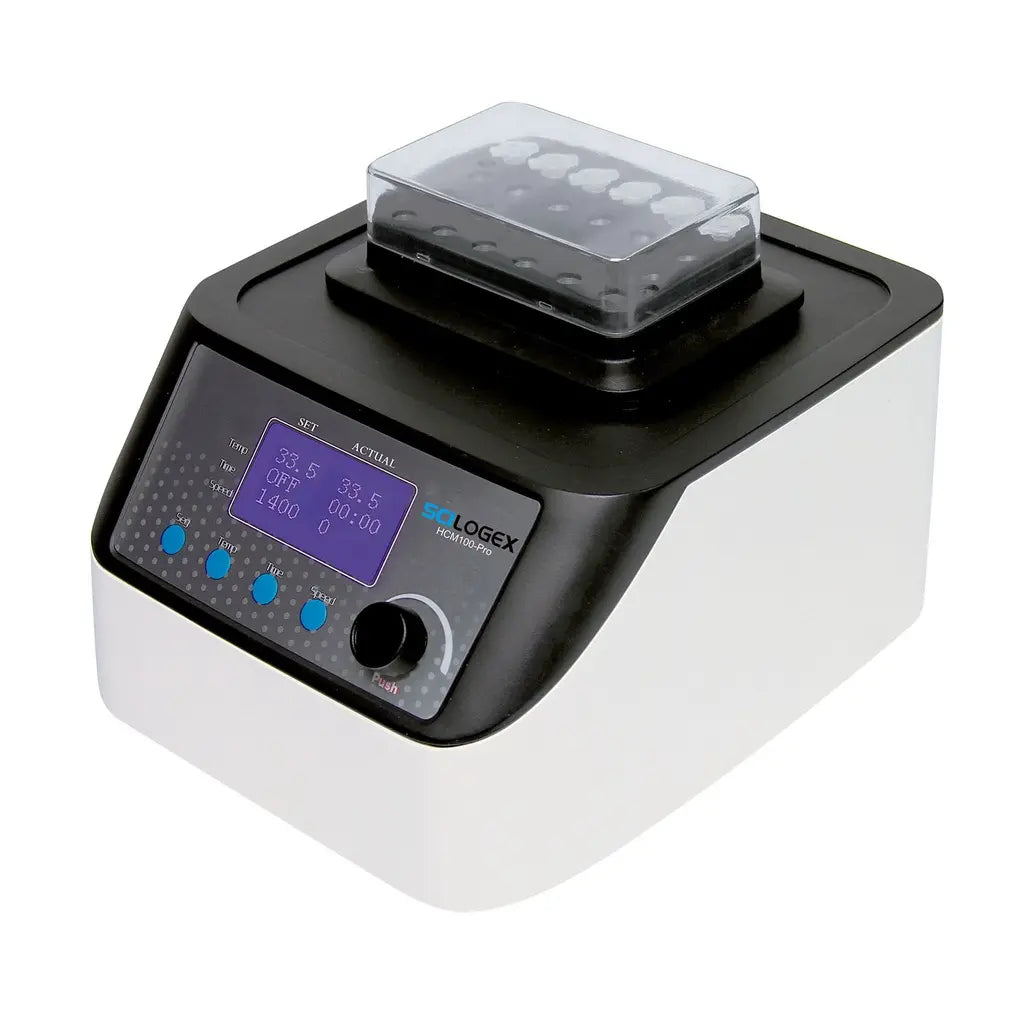

SCILOGEX 521412009999 SCI-100HM-Pro LCD Digital Thermal Mixer with Function Options
SCILOGEX 521412009999 SCI-100HM-Pro LCD Digital Thermal Mixer with Function Options
SCILOGEX 521412009999 SCI-100HM-Pro LCD Digital Thermal Mixer with Heating/Mixing, Cooling & Dry-Bath Variants for Lab Incubation
SCILOGEX’s 521412009999 SCI-100HM-Pro LCD Digital Thermal Mixer is a versatile, programmable thermal device for precise heating (up to 100°C), cooling (to 25°C below ambient), and mixing (300-1500 rpm) in molecular biology, clinical, and industrial labs, supporting gene synthesis, enzyme reactions, bacterial growth, and more. Choose from heating/mixing, full heating/cooling/mixing, or dry-bath models with TFT display for real-time speed/temperature/time monitoring, ±0.5°C accuracy, and 9 programs. Includes FREE block (select at checkout) for tubes (0.5-50mL) or plates. Over-temperature protection and automatic block recognition ensure safety. Compact (8 x 10 inch footprint, 7.3kg); made in China with 2-year warranty for reliable, space-saving performance.
Features:
- Excellent mixing with 300-1500 rpm orbit (3mm) for uniform agitation in tubes/plates
- Easy-to-read TFT display with programmable functions including pre-heating and ramping
- Stable and wide range of speed adjustment with real-time target/actual values
- Precise temperature control for heating (room temp. to 100°C) with ±0.5°C accuracy/uniformity
- Real-time display of speed, temperature, and time for intuitive operation
- Over-temperature safety protection (150°C) prevents sample damage
- Various blocks for common tube sizes (0.5-50mL), 96/384-well plates, and PCR 0.2mL plates
- Compatible with various tubes; automatic block recognition and flexible adapter selection
- cTUVus approved and CE marked for electrical safety
- Made in China for cost-effective, lab-grade durability compliant with standards
Specifications:
| Specification | Details |
|---|---|
| Functions | Heating & Mixing (Base); Heating, Cooling & Mixing (Variant); Heating & Cooling Dry-Bath (Variant) |
| Temperature Range | Heating: Room Temp. - 100°C; Cooling: Room Temp. to 25°C Below (Variants) |
| Temperature Accuracy | ±0.5°C at 20–45°C |
| Temperature Uniformity | Max ±0.5°C at 20–45°C |
| Max Heating Rate | 5.5°C/min |
| Mixing Frequency | 300-1500 rpm (3mm Orbit) |
| Screen | TFT |
| Programs | 9 Programmable |
| Overheating Protection | 150°C |
| Adapter Block Material | Aluminum (FREE Block Included) |
| Voltage/Frequency | 100–240V, 50/60 Hz, US Plug |
| Power Consumption | 200W |
| Dimensions (W x D x H) | 7.9" x 9.3" x 4.7" (200 x 235 x 120 mm) |
| Weight | 7.3 kg |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
Variants:
| Variant | Description | SKU |
|---|---|---|
| Heating & Mixing | SCI-100HM-Pro LCD Digital Thermal Mixer with Heating & Mixing | 521412009999 |
| Heating, Cooling & Mixing | SCI-100HCM-Pro LCD Digital Thermal Mixer with Heating, Cooling & Mixing | 521312009999 |

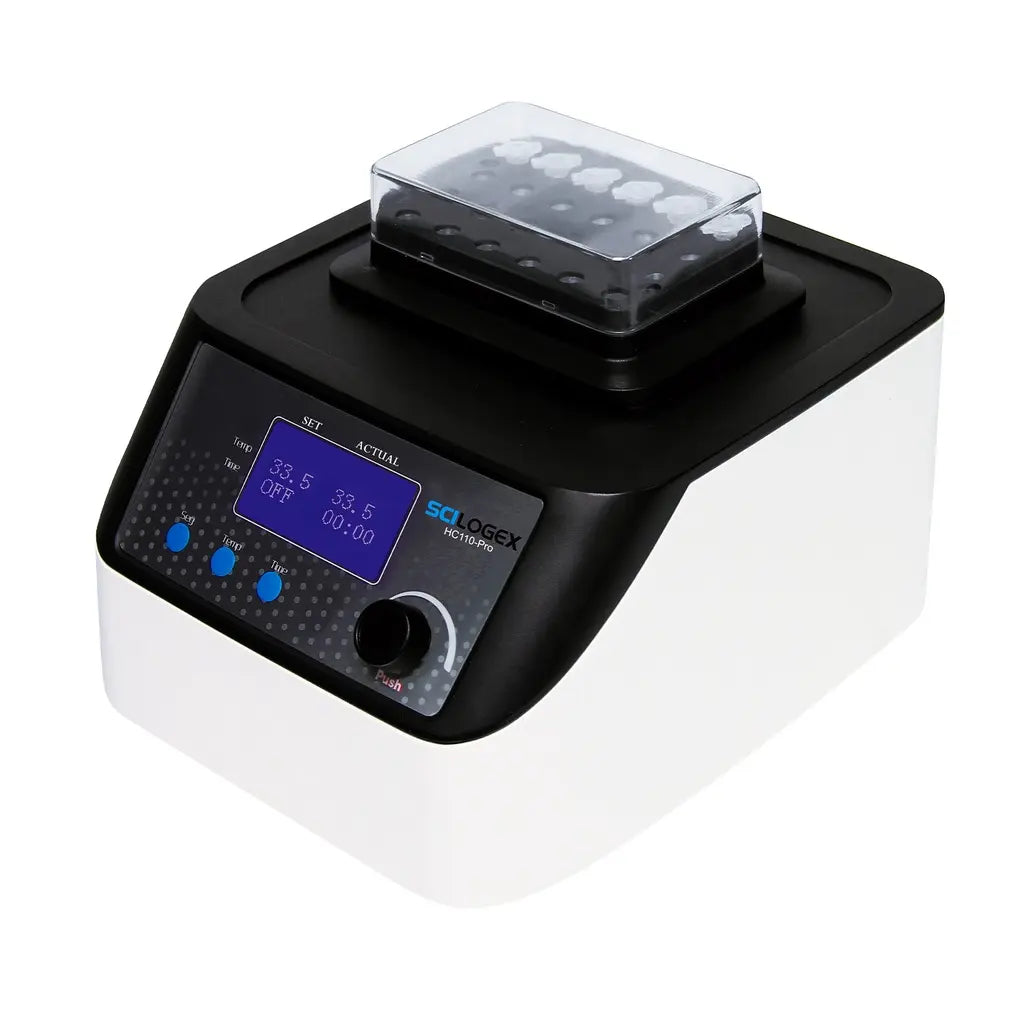

| Heating & Cooling Dry-Bath | SCI-110HC-Pro LCD Digital Thermal Dry-Bath with Heating & Cooling | 521212009999 |
Contents:
| Description | Quantity |
|---|---|
| Selected SCI-100HM-Pro LCD Digital Thermal Mixer Unit | 1 |
| Clear Lid | 1 |
| FREE Aluminum Block (Select at Checkout) | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- Temperature Uniformity: Max ±0.5°C at 20–45°C for consistent results.
- Max Heating Rate: 5.5°C/min for rapid setup.
- Programmable Functions: 9 programs with pre-heating and ramping for automated workflows.
- Block Compatibility: Aluminum blocks for 0.5-50mL tubes, 96/384-well plates, PCR 0.2mL plates.
- Automatic Block Recognition: Flexible adapter selection for various tubes/plates.
- Permissible Ambient: 5-40°C, 80% RH; IP21 protection class.
