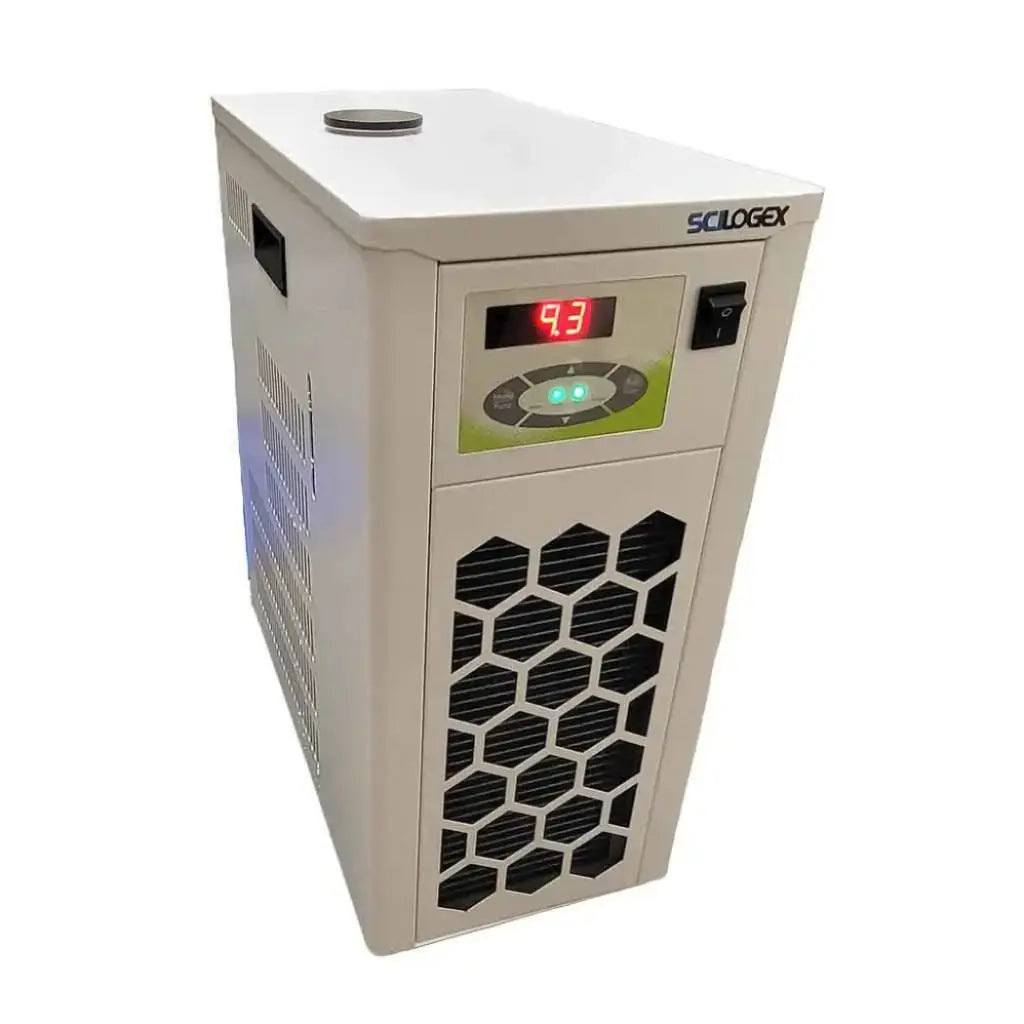

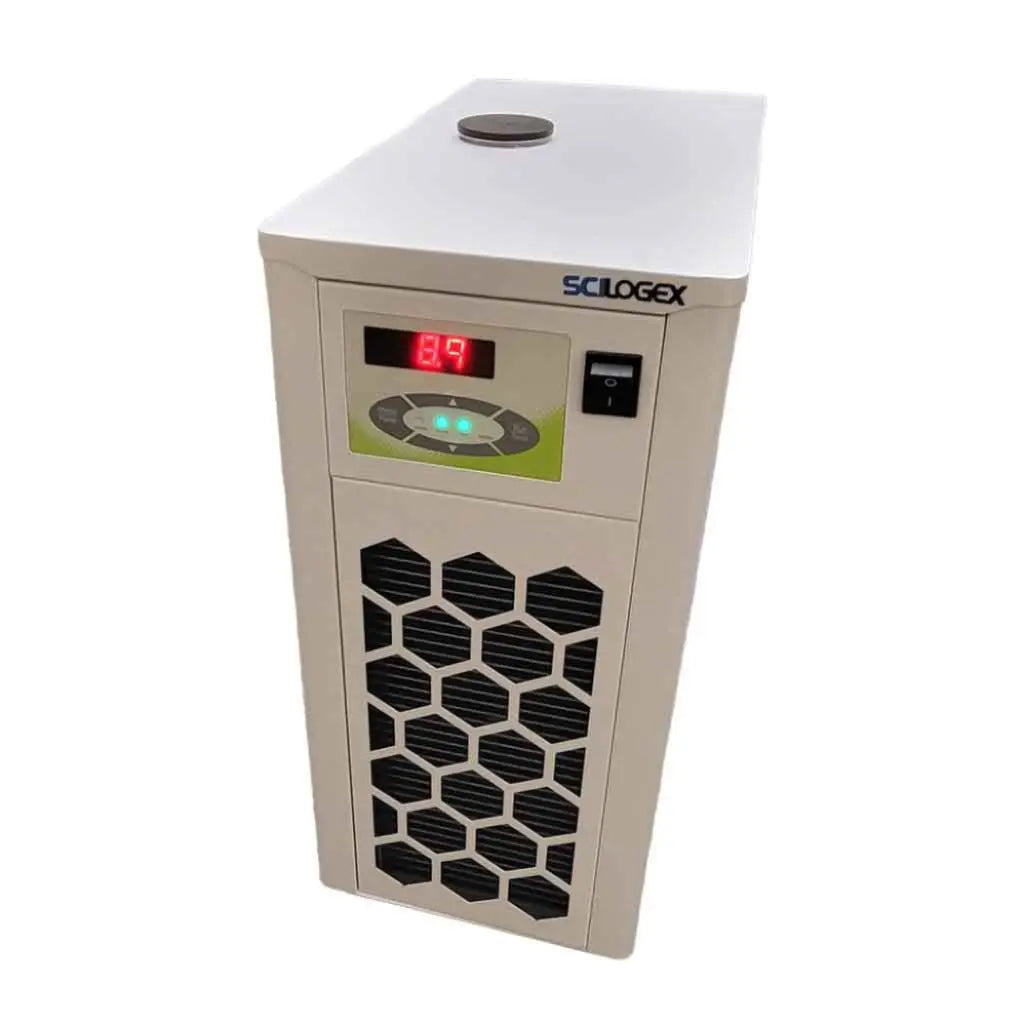

SCILOGEX 60321002209 SCIP5-Mini LED Digital Recirculating Chiller with 4.5L Reservoir for Lab Cooling Applications

SCILOGEX’s 60321002209 SCIP5-Mini LED Recirculating Chiller is a compact, high-accuracy cooling system for precise temperature control in molecular biology, chemistry, and industrial labs, offering a range from -20°C to ambient with ±0.3°C accuracy (0-20°C typical) and 0.1°C adjustment. Ideal for cold trap experiments, sample preservation, and temperature-sensitive reactions, it features a large 4.5L open reservoir for easy filling, built-in PT1000 sensor for PID control, and crystal-clear LED display switching between set and actual temperatures. The integrated drain outlet and water outlet simplify maintenance, while the R290 refrigerant compressor ensures eco-friendly, efficient cooling. User-friendly panel with protections against short circuit, over-current, overload, and delayed start makes it reliable for benchtop or fume hood use. Made in China with a 2-year warranty for durable, low-maintenance performance in demanding workflows.

Features:

  • Temperature range from -20°C to room temperature with 0.1°C adjustment accuracy
  • PID temperature control with built-in PT1000 sensor for high accuracy (±0.3°C at 0-20°C typical)
  • Crystal-clear LED display switches between set and actual temperatures for easy monitoring
  • Entire unit protected against short circuit, over-current, overload, and delayed start for safety
  • Integrated design of drain outlet and water outlet allows easy drainage and filling
  • Compressor employs state-of-the-art R290 environment-friendly refrigerant for efficient cooling
  • Liquid pathway made of stainless steel or high-quality corrosion-resistant material
  • User-friendly operating panel for simple setup and control
  • Large-volume open reservoir supports cold trap experiments and easy access
  • Made in China for cost-effective, lab-grade durability compliant with standards

Specifications:

Specification Details
Model 60321002209 SCIP5-Mini LED Recirculating Chiller
Temperature Range -20°C to Room Temperature
Temperature Adjustment Accuracy 0.1°C
Temperature Control Accuracy ±0.3°C (0-20°C Typical)
Reservoir Capacity 4.5L
Temperature Adjustment Range -30°C to 30°C
Temperature Display LED (Set/Actual)
Type of Temperature Sensor PT1000
Compressor Refrigerant R290
Circulating Pump Throughput 22 L/min
Circulating Pump Head 6m
Pump Pressure 0.3 bar
Pump Suction 0.2 bar
Power 700W
Maximum Overall Dimensions 8.7" x 16.5" x 19.5" (220 x 420 x 495 mm)
Weight 30 kg
Power Supply 110V, 60Hz, US Plug
Operating Environment 10-40°C, RH ≤80% (Altitude ≤2000m)
Warranty 2-Year Limited
Compliance cTUVus Approved, CE Marked
HS Code 8419.19.0060
Country of Origin China (CN)
UPC/Barcode 094393614883

Contents:

Description Quantity
SCIP5-Mini LED Recirculating Chiller Unit 1
Power Cord (US Plug) 1
User Manual 1
