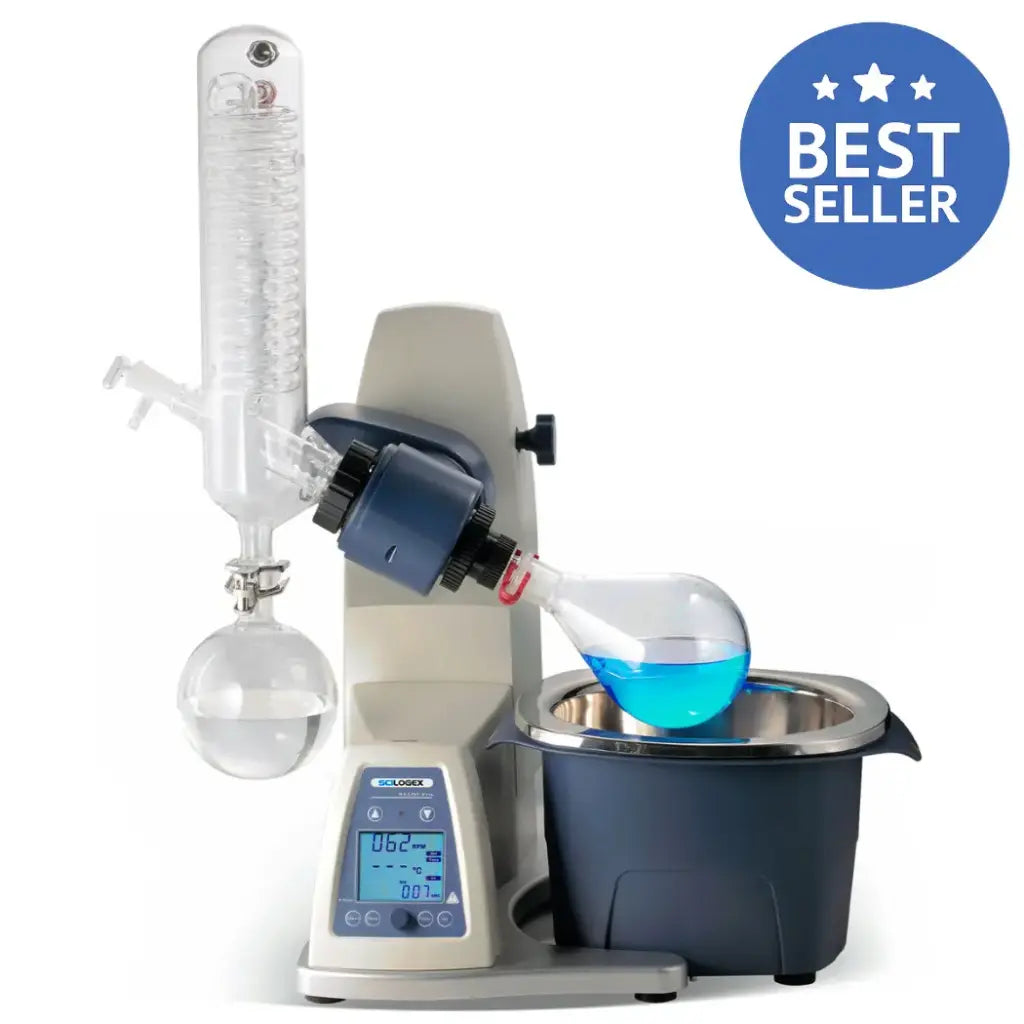

SCILOGEX 611132019999 SCI100-Pro 5L Rotary Evaporator with Vertical Coiled Condenser
SCILOGEX 611132019999 SCI100-Pro 5L Rotary Evaporator with Vertical Coiled Condenser
SCILOGEX 611132019999 SCI100-Pro LED Digital Rotary Evaporator with Motorized Lift for Efficient Solvent Evaporation & Distillation
SCILOGEX’s 611132019999 SCI100-Pro LED Digital Rotary Evaporator is a precision-engineered lab instrument for gentle, efficient solvent removal in chemical, pharma, and research applications, featuring a 5L heating bath (room temp. to 180°C ±1°C accuracy), vertical coiled condenser (1700cm² cooling surface), and 1000ml evaporating/receiving flasks (NS 24/40 & KS 35/20). With digital LCD display for rotation speed (20-280 rpm) and temperature, motorized lift with automatic safety release during power failure, and interval clockwise/anti-clockwise operation for drying, it ensures optimal distillation. Overheating protection (220°C), timer, and RS232 remote function (PC control/data transmission) enhance safety and workflow. Chemical-resistant PTFE seals and patented pressure springs provide leak-free performance. Ideal for evaporation, concentration, and purification; made in China with a 2-year warranty for reliable, high-vacuum-compatible lab use.
Features:
- Digital LCD display for real-time monitoring of rotation speed (20-280 rpm) and heating temperature (room temp. to 180°C)
- 5L heating bath with independent control and ±1°C accuracy for precise, uniform evaporation
- Patented vertical coiled condenser (1700cm² surface) with excellent cooling effect for efficient recovery
- Motorized lift with automatic release to safe position in case of power failure
- Interval operation in clockwise/anti-clockwise directions for enhanced drying and solvent removal
- Overheating protection at 220°C and timer function (1-999 min) for safe, automated processes
- Chemical-resistant PTFE seals and patented double spring sealing ring for leak-proof, durable performance
- RS232 remote function for PC control and data transmission (free software available)
- Quick-release connectors and ejection mechanism for effortless flask removal and cleaning
- cTUVus approved for UL/CSA safety; IP20 protection class
Specifications:
| Specification | Details |
|---|---|
| Model | 611132019999 SCI100-Pro Rotary Evaporator |
| Evaporating Flask | 1000ml NS 24/40 |
| Receiving Flask | 1000ml KS 35/20 |
| Heating Bath | 5L (Room Temp. - 180°C, ±1°C Accuracy) |
| Condenser Type | Vertical Coiled (1700cm² Surface) |
| Speed Range | 20-280 rpm |
| Display | LCD (Speed & Temperature) |
| Lift Mechanism | Motorized with Automatic Safety Release |
| Operation Modes | Continuous/Interval (Clockwise/Anti-Clockwise) |
| Safety Features | Overheating Protection (220°C), Timer |
| Remote Control | RS232 (PC Control/Data Transmission) |
| Seals | PTFE with Patented Pressure Springs |
| Dimensions (D x W x H) | 18.3" x 18.4" x 23" (465 x 467 x 583 mm) |
| Weight | 15 kg |
| Voltage/Frequency | 110V, 60 Hz, US Plug |
| Power Consumption | 1400W |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-40-0000 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI100-Pro LED Digital Rotary Evaporator Unit | 1 |
| 5L Heating Bath | 1 |
| Vertical Coiled Condenser | 1 |
| 1000ml Evaporating Flask (NS 24/40) | 1 |
| 1000ml Receiving Flask (KS 35/20) | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
