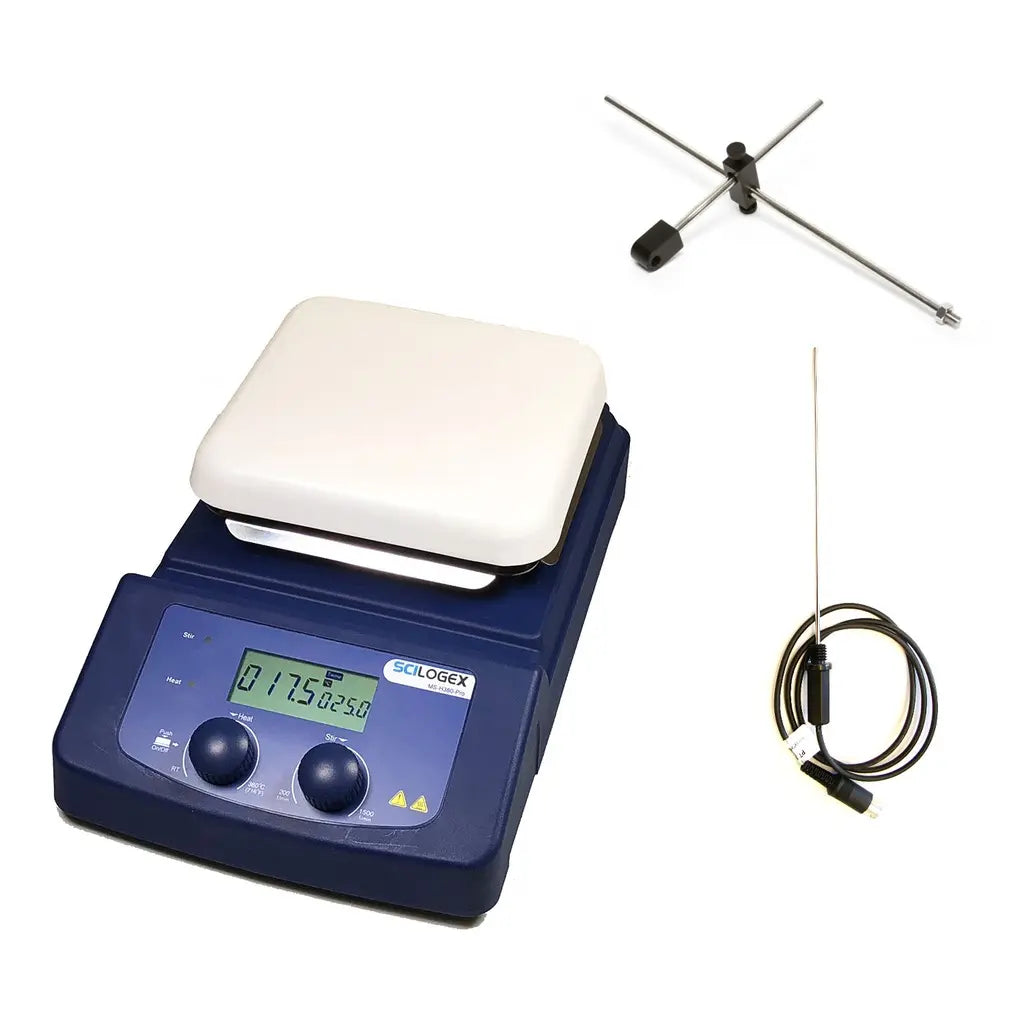

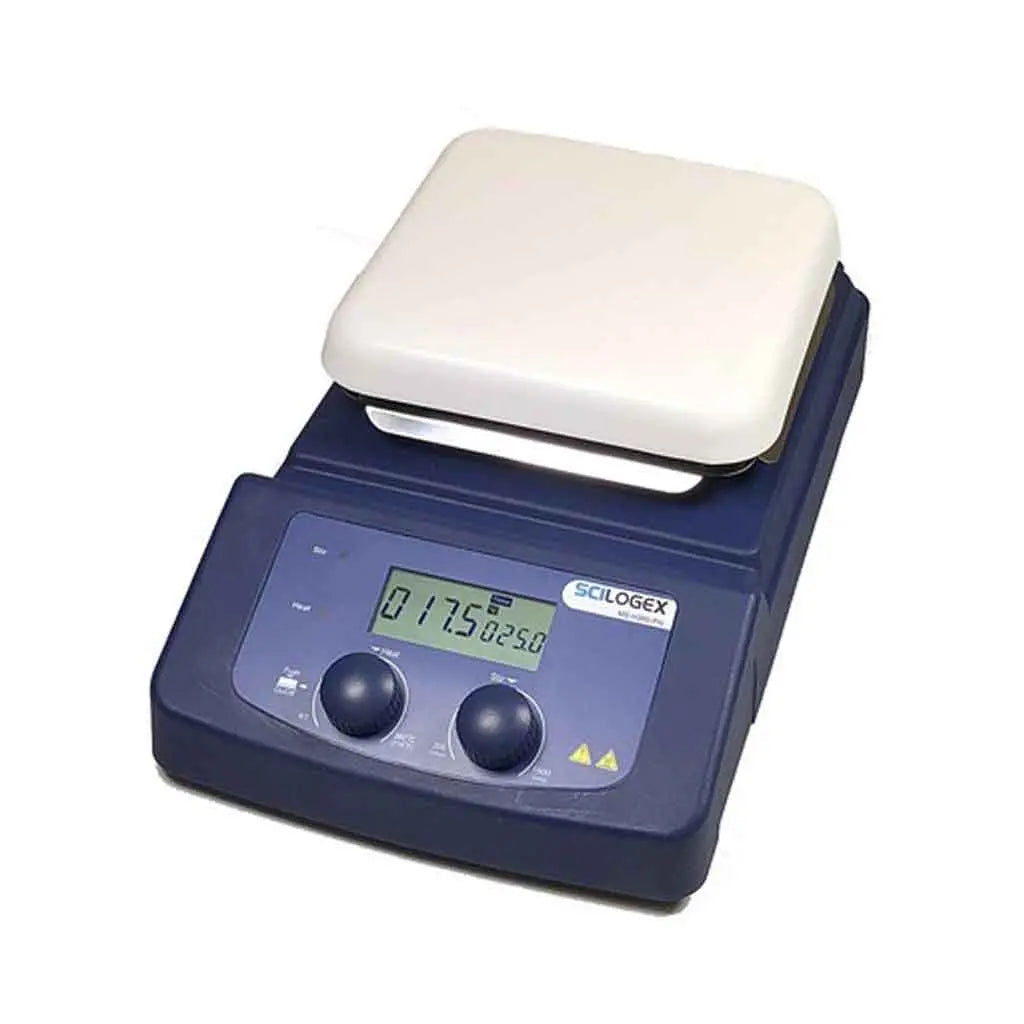

SCILOGEX 80302611159999 SCI380HS-Pro LCD Digital Hotplate Stirrer, 380°C Max.
SCILOGEX 80302611159999 SCI380HS-Pro LCD Digital Hotplate Stirrer, 380°C Max.
SCILOGEX 80302611159999 SCI380HS-Pro 5.5" x 5.5" LCD Digital Magnetic Hotplate Stirrer with Ceramic Plate for Lab Heating & Mixing up to 5L, 100-120V/60Hz US Plug
SCILOGEX’s 80302611159999 SCI380HS-Pro LCD Digital Hotplate Stirrer is a compact, economically priced lab device for simultaneous heating (up to 380°C) and stirring (up to 1500 rpm) of liquids in beakers, flasks, or vessels up to 5L, ideal for chemistry, biology, and industrial applications like solution preparation, extraction, and cell culture maintenance. Featuring a chemically resistant aluminum cover with ceramic coating (140x140mm work plate), it includes digital speed/temperature control with ±1°C accuracy, brushless DC motor for maintenance-free operation, and external PT1000 sensor compatibility for precise medium monitoring. The high-resolution LCD displays actual values, with overheat protection (420°C) and hot warning above 50°C. Power-efficient at 510W, it's perfect for educational or research labs. Includes a free 50mm L x 5mm Dia. magnetic stir bar. Made in China with a 2-year warranty for reliable, uniform performance.
Features:
- Heat only, stir only, or combined heat/stir functions for versatile lab workflows
- Digital temperature control up to 380°C (room temp. +5°C start) with ±1°C accuracy and LCD real-time display
- Digital speed control (20-1500 rpm) maintains constant rate under load changes
- Brushless DC motor (2.4W input, 1.8W output) ensures quiet, vibration-free, maintenance-free operation
- Ceramic-coated aluminum work plate (5.5" x 5.5") for chemical resistance and immediate heat transfer

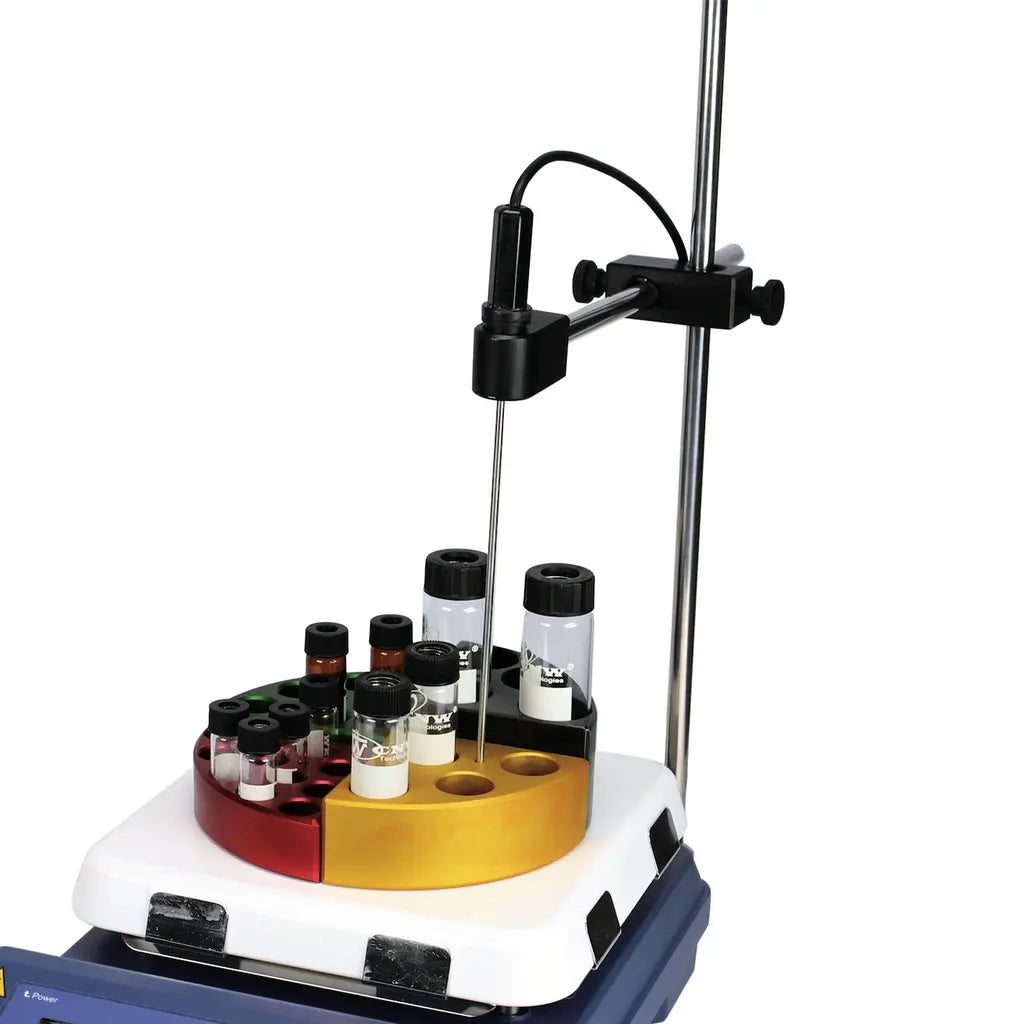

- External temperature control via PT1000 sensor (accuracy ±0.5°C) for precise medium monitoring
- Safety features: Overheat protection (420°C), hot warning sign (>50°C), and IP21 rating against spills
- Single stirring position with 5L max capacity (H2O) and 50mm magnetic bar support
- cTUVus approved for UL/CSA safety; compatible with accessories like reaction vessels
Specifications:
| Specification | Details |
|---|---|
| Model | 80302611159999 SCI380HS-Pro Hotplate Stirrer |
| Work Plate Dimension | 140 x 140 mm (5.5" x 5.5") |
| Work Plate Material | Aluminum Cover with Ceramic Coating |
| Motor Type | Brushless DC (2.4W Input, 1.8W Output) |
| Power Consumption | 510W |
| Heating Output | 500W |
| Voltage/Frequency | 100-120V, 60Hz, US Plug |
| Stirring Capacity | Up to 5L (H2O) |
| Max Magnetic Bar | 50mm Length |
| Speed Range | 20-1500 rpm |
| Temperature Range | Room Temp. +5°C - 380°C |
| Temperature Accuracy | ±1°C |
| External Sensor | PT1000 (Accuracy ±0.5°C) |
| Overheat Protection | 420°C |
| Dimensions (W x D x H) | 12.6" x 7.1" x 4.3" (320 x 180 x 108 mm) |
| Weight | 2.2 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI380HS-Pro LCD Digital Hotplate Stirrer Unit | 1 |
| 50mm L x 5mm Dia. Magnetic Stir Bar | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
