SCILOGEX 811121029999 SCI340-HS Analog Hotplate Magnetic Stirrer with Ceramic Plate for Lab Heating & Mixing up to 20L, 100-240V/50/60Hz US Plug

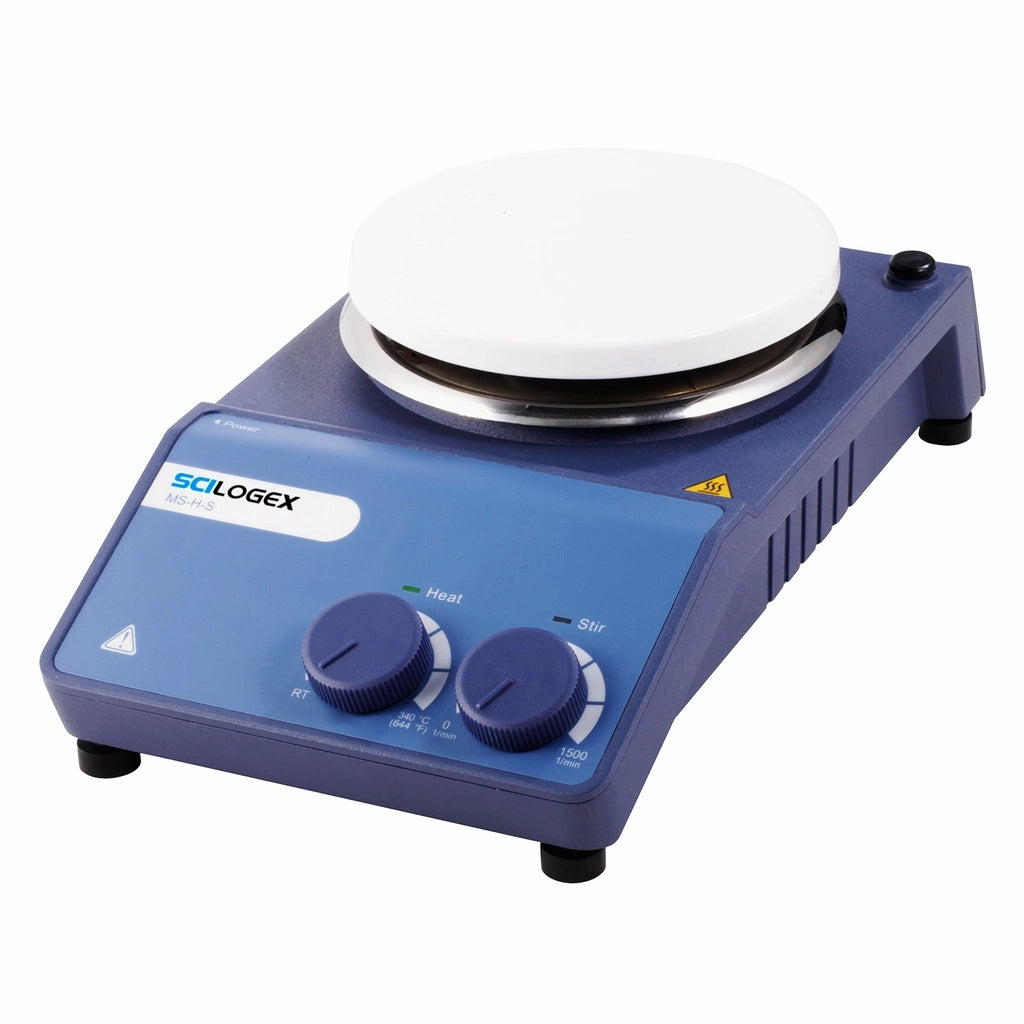

SCILOGEX’s 811121029999 SCI340-HS Circular-top Analog Hotplate Stirrer is a durable, analog-controlled lab device for simultaneous heating (up to 340°C) and stirring (up to 1500 rpm) of liquids in beakers, flasks, or vessels up to 20L, ideal for chemistry, biology, and industrial applications like solution preparation, extraction, and cell culture maintenance. Featuring a stainless steel work plate with ceramic coating (Ø135mm) for chemical resistance and uniform heat distribution, it includes electronic speed control for consistent performance under load, a brushless DC motor (18W input, 10W output) for quiet operation, and high magnetic adhesion for reliable stirring bars (up to 80mm). Safety circuits provide overheating protection (±0.5°C accuracy), with IP42 rating against spills. Power-efficient at 530W, it's perfect for educational or research labs. Made in China with a 2-year warranty for reliable, maintenance-free performance.
Features:
- Electronic speed control maintains constant 50-1500 rpm even during load changes for precise mixing
- Low-heat temperature stability with max 340°C range and ±0.5°C accuracy for safe, uniform heating
- Maintenance-free brushless DC motor (18W input, 10W output) ensures quiet, vibration-free operation
- Stainless steel work plate with ceramic coating (Ø135mm) provides excellent chemical resistance and easy cleaning
- High magnetic adhesion supports stirring bars up to 80mm length for effective vortex in 20L vessels
- Safety circuits with over-temperature protection prevent hazards during extended use
- Wide accessory compatibility for customized setups like PT1000 sensors or reaction vessels
- cTUVus approved for UL/CSA safety; IP42 protection against dust/splashes
Specifications:
| Specification | Details |
|---|---|
| Model | 811121029999 SCI340-HS Hotplate Stirrer |
| Work Plate Diameter | Ø135mm (Stainless Steel with Ceramic Coating) |
| Motor Type | Brushless DC (18W Input, 10W Output) |
| Power Consumption | 530W |
| Heating Output | 500W |
| Voltage/Frequency | 100-120V/200-240V, 50/60 Hz, US Plug |
| Stirring Capacity | Up to 20L (H2O) |
| Max Magnetic Bar | 80mm Length |
| Speed Range | 50-1500 rpm |
| Temperature Range | Room Temp. - 340°C |
| Temperature Accuracy | ±0.5°C |
| Dimensions (W x D x H) | 6.3" x 11" x 3.3" (160 x 280 x 85 mm) |
| Weight | 2.8 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP42 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI340-HS Analog Hotplate Stirrer Unit | 1 |
| Power Cable (US Plug) | 1 |
| User Manual | 1 |
