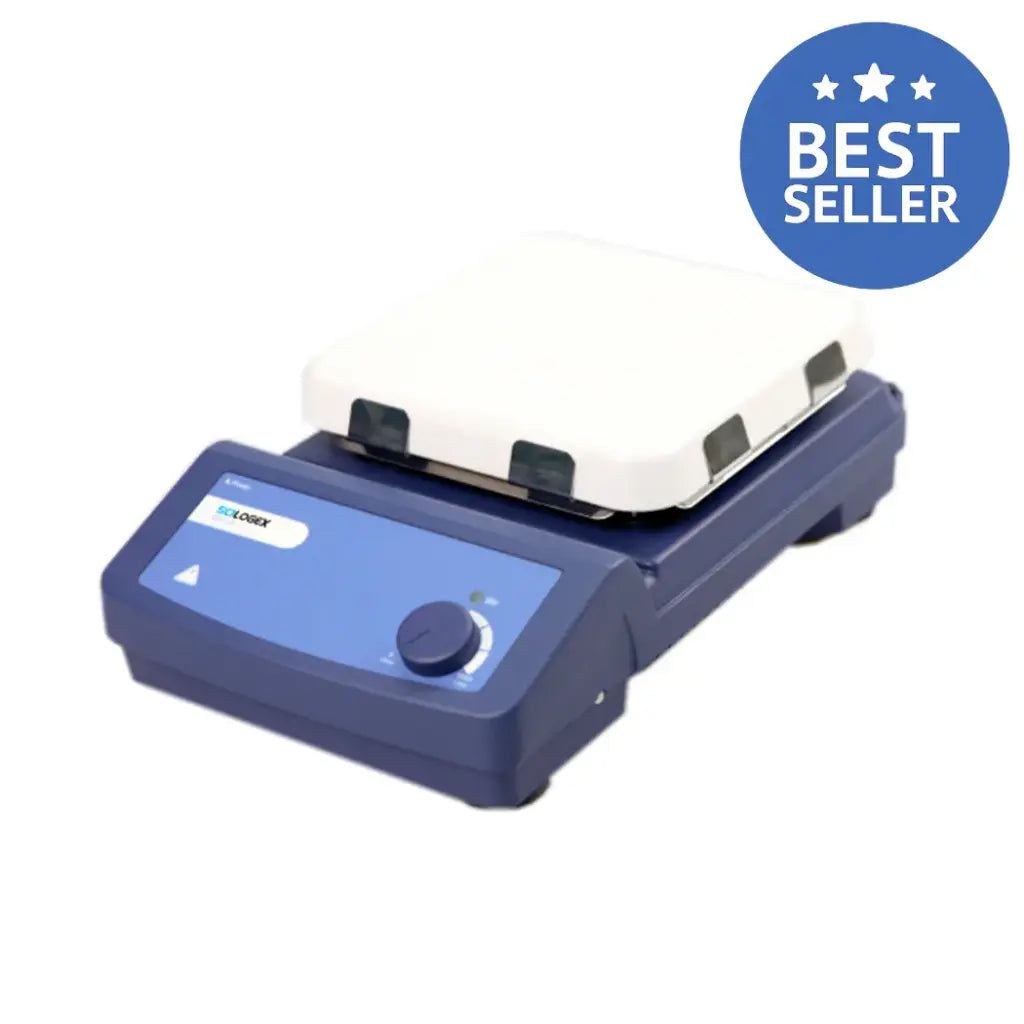

SCILOGEX 813211009999 SCI7-S Analog Magnetic Stirrer Ceramic Plate
SCILOGEX 813211009999 SCI7-S Analog Magnetic Stirrer Ceramic Plate
SCILOGEX 813211009999 SCI7-S Analog 7" Square Magnetic Stirrer with Ceramic Plate for Lab Mixing up to 20L, 110V/60Hz US Plug
SCILOGEX’s 813211009999 SCI7-S Analog Magnetic Stirrer is a reliable, analog-controlled lab mixer for stirring liquids in beakers, flasks, or vessels up to 20L, ideal for chemistry, biology, and industrial applications like solution preparation, extraction, and cell culture maintenance. Featuring a durable porcelain enamel ceramic plate (Ø135mm) for chemical resistance and even distribution, it offers smooth speed control from 0-1500 rpm with an external rotor brushless motor for quiet, vibration-free operation. The compact 11" x 6.3" x 3.3" design fits tight benches, with IP42 protection against spills and a 130W power rating for efficient performance. Easy-to-use knobs for stirring, plus accessories like stirring bars (10-25mm) Made in China with stainless steel/porcelain enamel construction for longevity; 2-year warranty for lab-grade reliability.
Features:
- Analog speed control knob for precise 0-1500 rpm stirring, suitable for low-viscosity to medium solutions
- Porcelain enamel ceramic hotplate (Ø135mm) resists chemicals and provides uniform surface for vessels
- External rotor brushless motor (15W input, 1.5W output) ensures quiet, maintenance-free operation without overheating
- Compatible with stirring bars (10-25mm x 6-8mm) for effective vortex formation in vessels up to 20L
- IP42-rated housing protects against dust and splashes; overheat protection up to 350°C for safety
- Simple ON/OFF mains switch and LED indicators for power/stirring status
- Optional accessories: Carrier plates and quarter vessels (4-40ml) for precise reaction control
- Compact and lightweight (2.8 kg) for easy portability in educational or research labs
Specifications:
| Specification | Details |
|---|---|
| Model | 813211009999 SCI7-S Analog Magnetic Stirrer |
| Speed Range | 0-1500 rpm |
| Stirring Capacity | Up to 20L (H2O) |
| Hotplate Diameter | Ø135mm (Porcelain Enamel) |
| Motor Type | External Rotor Brushless (15W Input, 1.5W Output) |
| Power Consumption | 130W |
| Dimensions (L x W x H) | 11" x 6.3" x 3.3" (280 x 160 x 85 mm) |
| Weight | 2.8 kg |
| Power Requirements | 100-120V / 200-240V, 50/60 Hz, US Plug |
| Protection Class | IP42 |
| Ambient Temperature | 5-40°C (80% Humidity) |
| Warranty | 2-Year Limited |
| Compliance | EN 61010-1, UL 3101-1, CAN/CSA C22.2 No. 1010.1; EMC EN 61326-1 |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
| UPC/Barcode | 762539929565 |
Contents:
| Description | Quantity |
|---|---|
| SCI7-S Analog Magnetic Stirrer Unit | 1 |
| Stirring Bar (e.g., 20mm x 8mm) | 1 |
| Power Cable (US Plug) | 1 |
| User Manual | 1 |
