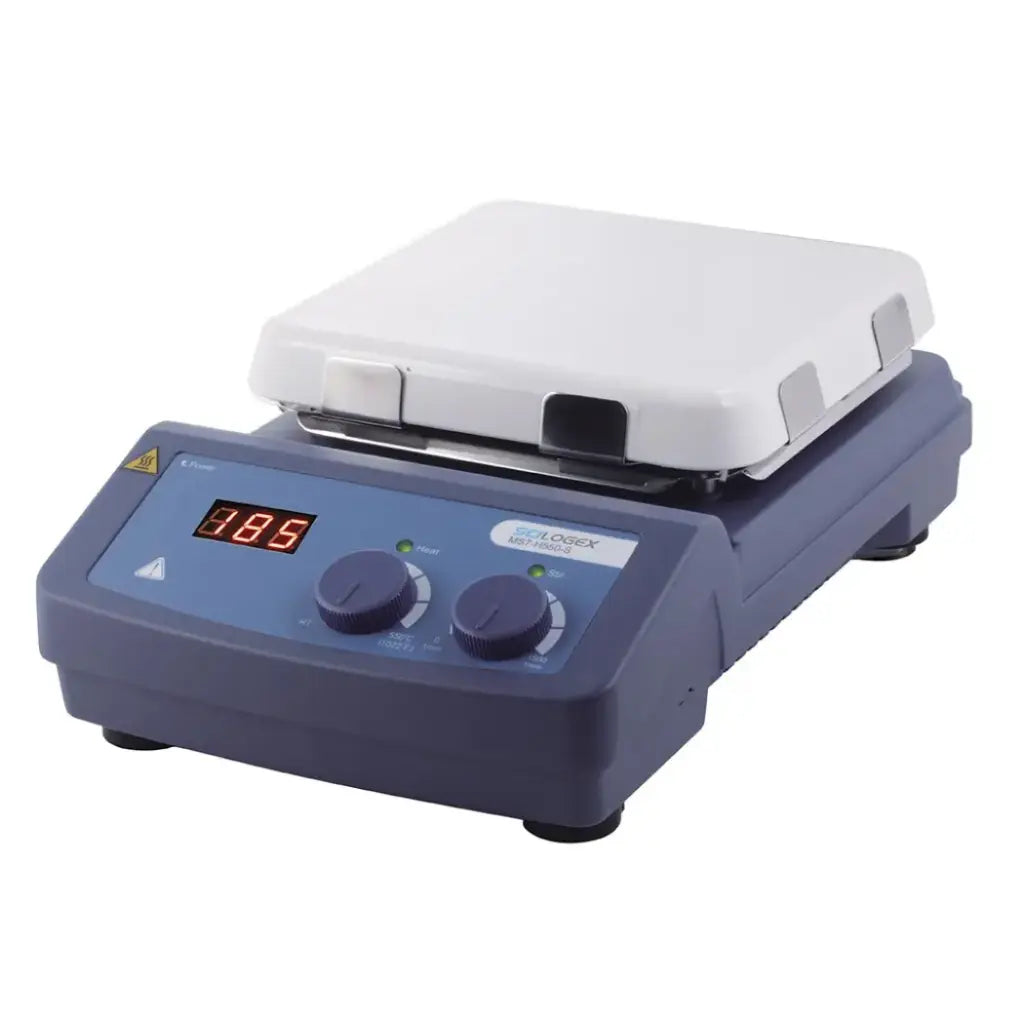

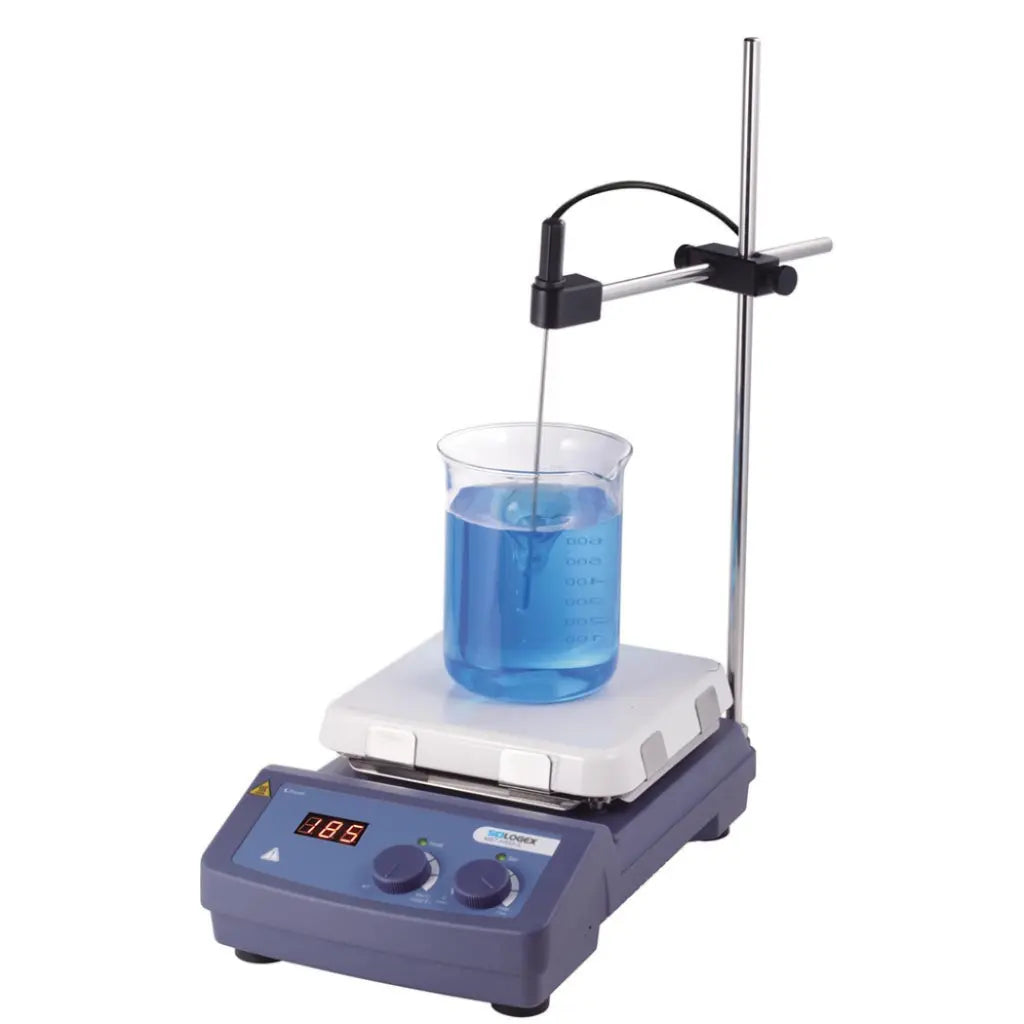

SCILOGEX 813221009999 SCI550-S LED Digital 7" x 7" Magnetic Hotplate Stirrer with Ceramic-Glass Plate for Lab Heating & Mixing up to 10L, 110V/50/60Hz US Plug
SCILOGEX’s 813221009999 SCI550-S LED Digital Hotplate Stirrer is a reliable, LED-controlled lab device for simultaneous heating (up to 550°C) and stirring (up to 1500 rpm) of liquids in beakers, flasks, or vessels up to 10L, ideal for chemical synthesis, physical/chemical analysis, biopharmaceuticals, and more. Featuring a chemically resistant glass ceramic work plate (184x184mm) for uniform heat transfer, it includes LED temperature display with ±10°C accuracy, shaded pole motor for consistent speed (200-1500 rpm), and external PT1000 sensor compatibility (bundle option) for ±0.2°C medium monitoring. Safety features include overheat protection (580°C) and "HOT" warning (>50°C). Power-efficient at 1030W, it's perfect for research labs. Made in China with a 2-year warranty for reliable, uniform performance.
Features:
- LED display for precise monitoring of temperature with real-time readout
- Wide speed range of 200-1500 rpm for versatile mixing applications
- Heat only, stir only, or combined heat/stir functions for flexible workflows
- Max heating plate temperature 550°C with low temperature stability
- Electronic speed control maintains constant rate even during load changes
- External temperature control via PT1000 sensor (bundle option) with ±0.2°C accuracy
- High magnetic adhesion supports stirring bars up to 80mm length
- "HOT" warning flashes if work plate >50°C, even when off
- cTUVus approved for UL/CSA safety; IP21 protection against spills
Specifications:
| Specification | Details |
|---|---|
| Model | 813221009999 SCI550-S Hotplate Stirrer |
| Work Plate Dimension | 184 x 184 mm (7" x 7") |
| Work Plate Material | Glass Ceramic |
| Motor Type | Shaded Pole (15W Input, 1.5W Output) |
| Power Consumption | 1030W |
| Heating Output | 1000W |
| Voltage/Frequency | 110V, 50/60 Hz, US Plug |
| Stirring Capacity | Up to 10L (H2O) |
| Max Magnetic Bar | 80mm Length |
| Speed Range | 200-1500 rpm |
| Temperature Range | Room Temp. - 550°C (5°C Increment) |
| Temperature Accuracy | ±10°C |
| External Sensor | PT1000 (Accuracy ±0.2°C, Bundle Option) |
| Overheat Protection | 580°C |
| Dimensions (W x D x H) | 8.5" x 14.2" x 4.4" (215 x 360 x 112 mm) |
| Weight | 4.5 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
| UPC/Barcode | 094393613565 (Standard); 762539930110 (Bundle) |
Contents:
| Description | Quantity |
|---|---|
| SCI550-S LED Digital Hotplate Stirrer Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- LED Display: Precise monitoring of temperature with real-time readout.
- Wide Speed Range: 200-1500 rpm for versatile mixing.
- Heat/Stir Functions: Heat only, stir only, or combined for flexible use.
- Max Heating: Plate temperature up to 550°C with low temperature stability.
- Electronic Speed Control: Constant speed during load changes.
- External Temperature Control: PT1000 sensor (bundle) with ±0.2°C accuracy.
- High Magnetic Adhesion: Supports stirring bars up to 80mm.
- "HOT" Warning: Flashes if work plate >50°C, even when off.
- Permissible Ambient: 5-40°C, 80% RH; IP21 protection class.
- Comparable to: Globe GHS-550HS.
