SCILOGEX 813223009999 SCI550-Pro LCD Digital 7" x 7" Magnetic Hotplate Stirrer with Ceramic-Glass Plate for Lab Heating & Mixing up to 20L, 110V/50/60Hz US Plug
SCILOGEX’s 813223009999 SCI550-Pro LCD Digital Hotplate Stirrer is a technically advanced, PID-controlled lab device for simultaneous heating (up to 550°C) and stirring (up to 1500 rpm) of liquids in beakers, flasks, or vessels up to 20L, ideal for chemical synthesis, physical/chemical analysis, biopharmaceuticals, and more. Featuring a chemically resistant glass ceramic work plate (184x184mm) for uniform heat transfer, it includes independent back-lit LCD displays for heat/stir, digital speed/temperature control (±1°C accuracy <100°C, ±1% >100°C), brushless DC motor for maintenance-free operation, and RS232 for PC control/data transmission. External PT1000 sensor (optional bundle) enables ±0.2°C medium monitoring. Safety features include overheat protection (580°C) and "HOT" warning (>50°C). Power-efficient at 1050W, it's perfect for research labs. Made in China with a 2-year warranty for reliable, high-precision performance.
Features:
- Heat only, stir only, or combined functions with max 550°C heating and 1500 rpm stirring for versatile workflows
- Independent back-lit LCD displays for real-time heat/stir monitoring with PID controller for stable temperature
- Glass ceramic work plate (7" x 7") provides excellent chemical resistance and efficient heat transfer
- Brushless DC motor (18W input, 10W output) ensures long-life, quiet operation without sparks
- Digital speed control (100-1500 rpm resolution ±1 rpm) maintains constant rate under load
- External PT1000 sensor compatibility (bundle option) for ±0.2°C accurate medium temperature control

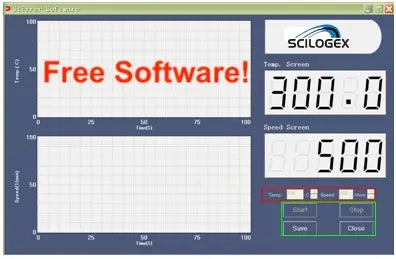

- RS232 interface for remote PC control and data logging in advanced setups
- Safety: Overheat protection (580°C), "HOT" warning (>50°C), IP21 rating against spills
- Single stirring position with 20L max capacity (H2O) and 80mm magnetic bar support
- cTUVus approved for UL/CSA; compatible with accessories like PT1000 stand
Specifications:
| Specification | Details |
|---|---|
| Model | 813223009999 SCI550-Pro Hotplate Stirrer |
| Work Plate Dimension | 184 x 184 mm (7" x 7") |
| Work Plate Material | Glass Ceramic |
| Motor Type | Brushless DC (18W Input, 10W Output) |
| Power Consumption | 1050W |
| Heating Output | 1000W |
| Voltage/Frequency | 110V, 50/60 Hz, US Plug |
| Stirring Capacity | Up to 20L (H2O) |
| Max Magnetic Bar | 80mm Length |
| Speed Range | 100-1500 rpm (±1 rpm Resolution) |
| Temperature Range | Room Temp. - 550°C |
| Temperature Accuracy | ±1°C (<100°C); ±1% (>100°C) |
| External Sensor | PT1000 (Accuracy ±0.2°C, Bundle Option) |
| Overheat Protection | 580°C |
| Dimensions (W x D x H) | 8.5" x 14.2" x 4.4" (215 x 360 x 112 mm) |
| Weight | 5.3 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Data Connector | RS232 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8419-50-5000 |
| Country of Origin | China (CN) |
| UPC/Barcode | 094393613558 (Standard); 762539930103 (Bundle) |
Contents:
| Description | Quantity |
|---|---|
| SCI550-Pro LCD Digital Hotplate Stirrer Unit | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
