SCILOGEX 822000049999 SCI-M Analog Microplate Mixer, 100-1500rpm
SCILOGEX 822000049999 SCI-M Analog Microplate Mixer, 100-1500rpm
SCILOGEX 822000049999 SCI-M Analog Microplate Mixer for 96-Well Plates & Tubes with Orbital Shaking up to 1500rpm, 100-240V/50/60Hz US Plug

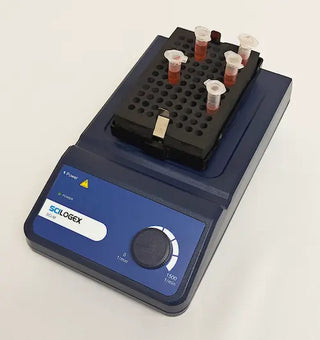

SCILOGEX’s 822000049999 SCI-M Analog Microplate Mixer is a compact, high-speed orbital shaker for mixing microplates, PCR tubes, or 0.5/2.0ml tubes in life sciences labs, including microbiology, cell/molecular biology, immunology, and biotechnology. With a 4.5mm orbital diameter and speed range of 100-1500rpm (single plate) or 100-1000rpm (double plate), it delivers true vortexing for uniform mixing in 96-well plates. Now includes a foam PCR/0.5/2.0ml tube adapter for versatility. The maintenance-free brushless DC motor (18W input, 10W output) ensures quiet, reliable operation up to 0.5kg load, with IP21 protection against spills. Space-saving (260x150x80mm, 3kg) for benchtop use; made in China with a 2-year warranty for durable, fume-hood-compatible performance in research workflows.
Features:
- Wide speed range (100-1500rpm single plate, 100-1000rpm double) for effective vortexing and uniform mixing in microplates or tubes
- Includes foam PCR/0.5/2.0ml tube adapter for versatile applications beyond plates
- Long-life, quiet brushless DC motor for maintenance-free, vibration-free operation
- Orbital shaking movement (4.5mm diameter) supports 0.5kg max load for stable, efficient mixing
- Optional adapters available for tube shaking or custom setups
- IP21 protection class against dust and splashes for lab safety
- cTUVus approved for UL/CSA standards; compact design for easy storage/portability
- Made in China for cost-effective, lab-grade reliability compliant with biotech standards
Specifications:
| Specification | Details |
|---|---|
| Model | 822000049999 SCI-M Analog Microplate Mixer |
| Shaking Movement | Orbital (4.5mm Diameter) |
| Max Shaking Weight | 0.5 kg (with Accessory) |
| Motor Type | Brushless DC (18W Input, 10W Output) |
| Speed Range | Single Microplate: 100-1500rpm; Double: 100-1000rpm |
| Speed Display | Scale |
| Voltage/Frequency | 100-240V, 50/60 Hz, US Plug |
| Power Consumption | 20W |
| Dimensions (L x W x H) | 10.2" x 5.9" x 3.1" (260 x 150 x 80 mm) |
| Weight | 3 kg |
| Ambient Conditions | 5-40°C, 80% RH |
| Protection Class | IP21 |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
| UPC/Barcode | 094393614623 |
Contents:
| Description | Quantity |
|---|---|
| SCI-M Analog Microplate Mixer Unit | 1 |
| Foam PCR/0.5/2.0ml Tube Adapter | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
