SCILOGEX 840303019999 SCI10-Pro Overhead Digital Stirrer, 10L Capacity
SCILOGEX 840303019999 SCI10-Pro Overhead Digital Stirrer, 10L Capacity

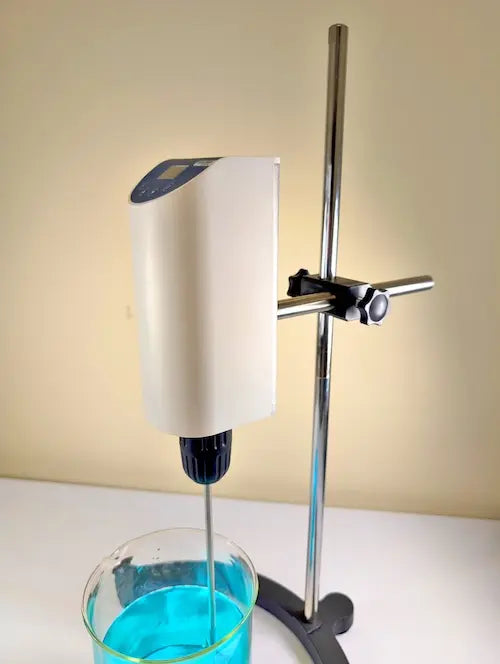

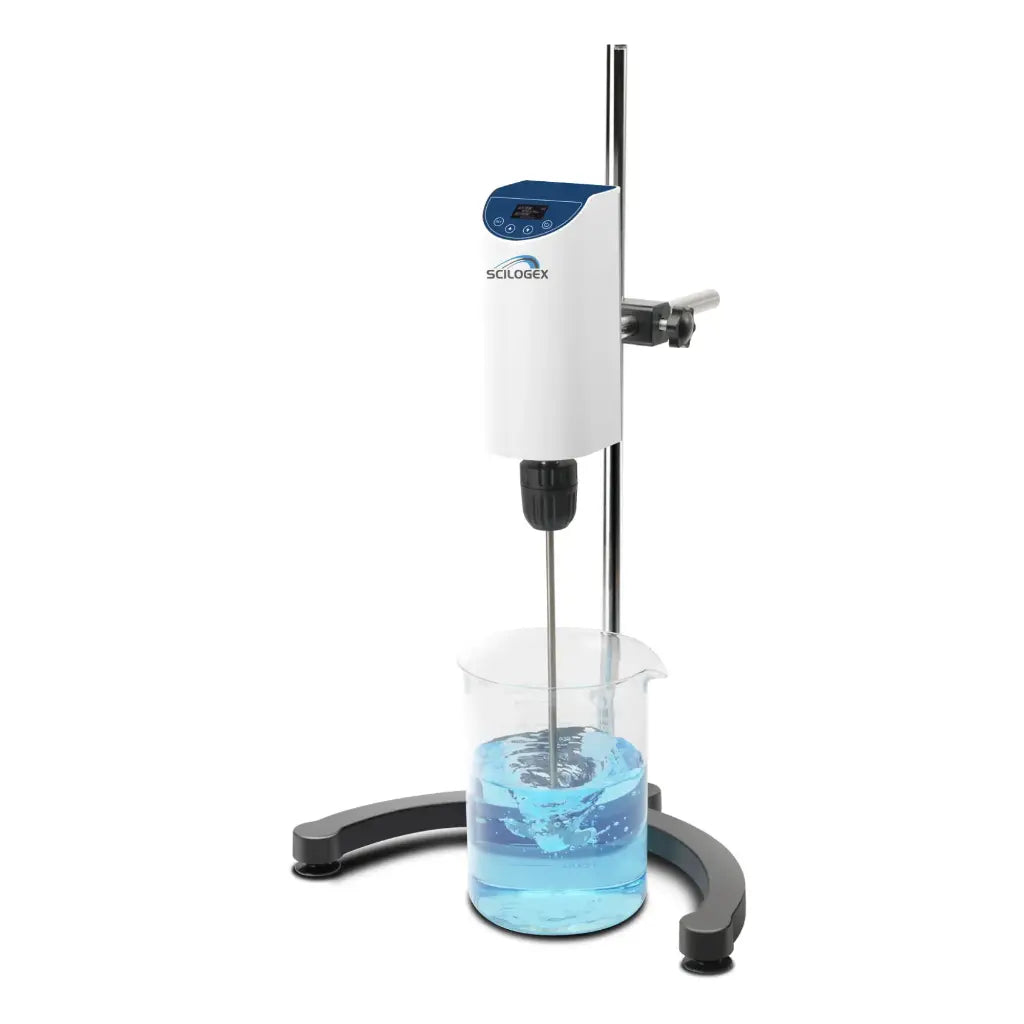

SCILOGEX 840303019999 SCI10-Pro LCD Digital Overhead Stirrer with Stand, Paddle & PTFE Stirrers for 10L Lab Mixing, 100-220V/50/60Hz US Plug
SCILOGEX’s 840303019999 SCI10-Pro Overhead Digital Stirrer is a precise, microprocessor-controlled lab mixer for low-viscosity samples in chemical synthesis, drug development, physical/chemical analysis, food/beverage testing, cosmetics, and more, handling up to 10L with constant speed (200-2500 rpm resolution ±1 rpm) even under load changes. This package includes the drive motor, H-600 stand, steel paddle-stirrer, PTFE centrifugal-stirrer, and silicone chuck protector for safe, versatile mixing. Features anti-spill slow start-up, torque trend display for viscosity monitoring, over-torque protection, and brushless DC motor for maintenance-free operation. Keyless chuck fits 0.5-10mm rods; ideal for fume hoods with IP21 protection. Made in China with a 2-year warranty for reliable, high-precision performance in research workflows.
Features:
- Accurate microprocessor stirring speed control guarantees speed precision with ±1 rpm resolution
- Anti-spill microprocessor control slow start-up prevents accidental spillage and splashing
- Through-shaft design allows easy adjustment of impeller positions for optimal mixing
- Brushless DC motor for long life and maintenance-free operation
- Provides constant speed even with changes in viscosities of the samples
- Over-torque protection automatically stops the motor to prevent damage
- Safety circuits enable safe stop in anti-stall or overload conditions
- Pass-through stirrer rods accepted with keyless chuck for quick changes (0.5-10mm diameter)
- cTUVus approved for UL/CSA safety; IP21 protection class
Specifications:
| Specification | Details |
|---|---|
| Model | 840303019999 SCI10-Pro Overhead Stirrer |
| Capacity | Up to 10L (H2O) |
| Speed Range | 200-2500 rpm (±1 rpm Resolution) |
| Speed Increase/Decrease | 50 rpm |
| Viscosity Max | 5,000 mPas |
| Motor Type | Brushless DC |
| Max Torque | 20 Ncm |
| Chuck Diameter | 0.5-10mm |
| Dimensions (W x H x D) | Approx. 14.7" x 9.4" x 24.5" (373 x 238 x 623 mm) |
| Motor Rating | Input 45W, Output 35W |
| Weight | 4.8 kg |
| Voltage/Frequency | 100-220V, 50/60 Hz, US Plug |
| Power Consumption | 50W |
| Safety Features | Over-Torque Protection, Anti-Spill Slow Start |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | China (CN) |
Contents:
| Description | Quantity |
|---|---|
| SCI10-Pro LED Digital Overhead Stirrer Drive Motor | 1 |
| H-600 Stand | 1 |

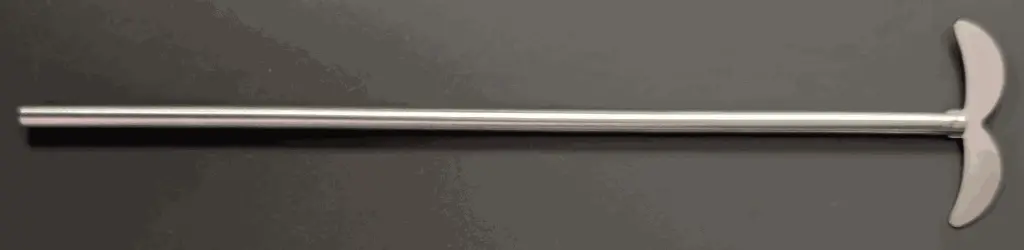

| Steel Paddle-Stirrer | 1 |

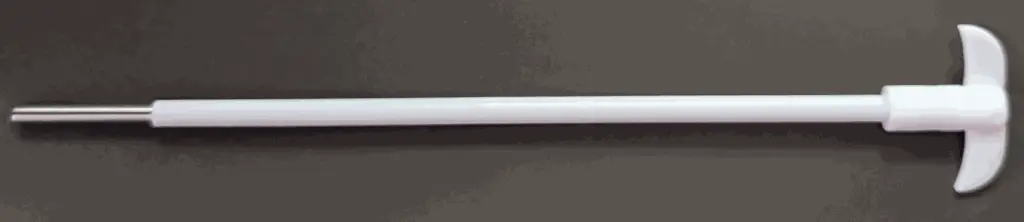

| PTFE Centrifugal-Stirrer | 1 |
| Silicone Chuck Protector | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
General Information:
- Maximum Stirring Capacity: 10L for viscous samples up to 5,000 mPas.
- Speed Range: 200-2500 rpm with ±1 rpm resolution and 50 rpm increment/decrement.
- Brushless DC Motor: 45W input, 35W output for maintenance-free reliability.
- Through-Shaft Design: Easy impeller position adjustment.
- Permissible Ambient: 5-40°C, 80% RH; IP21 protection class.
- Applications: Chemical synthesis, drug synthesis, food testing, cosmetics, adhesives, polymers.
