Scilogex 850101019999 D160 Homogenizer Package with 5mm Generator for 0.1-50ml Volumes
Scilogex 850101019999 D160 Homogenizer Package with 5mm Generator for 0.1-50ml Volumes

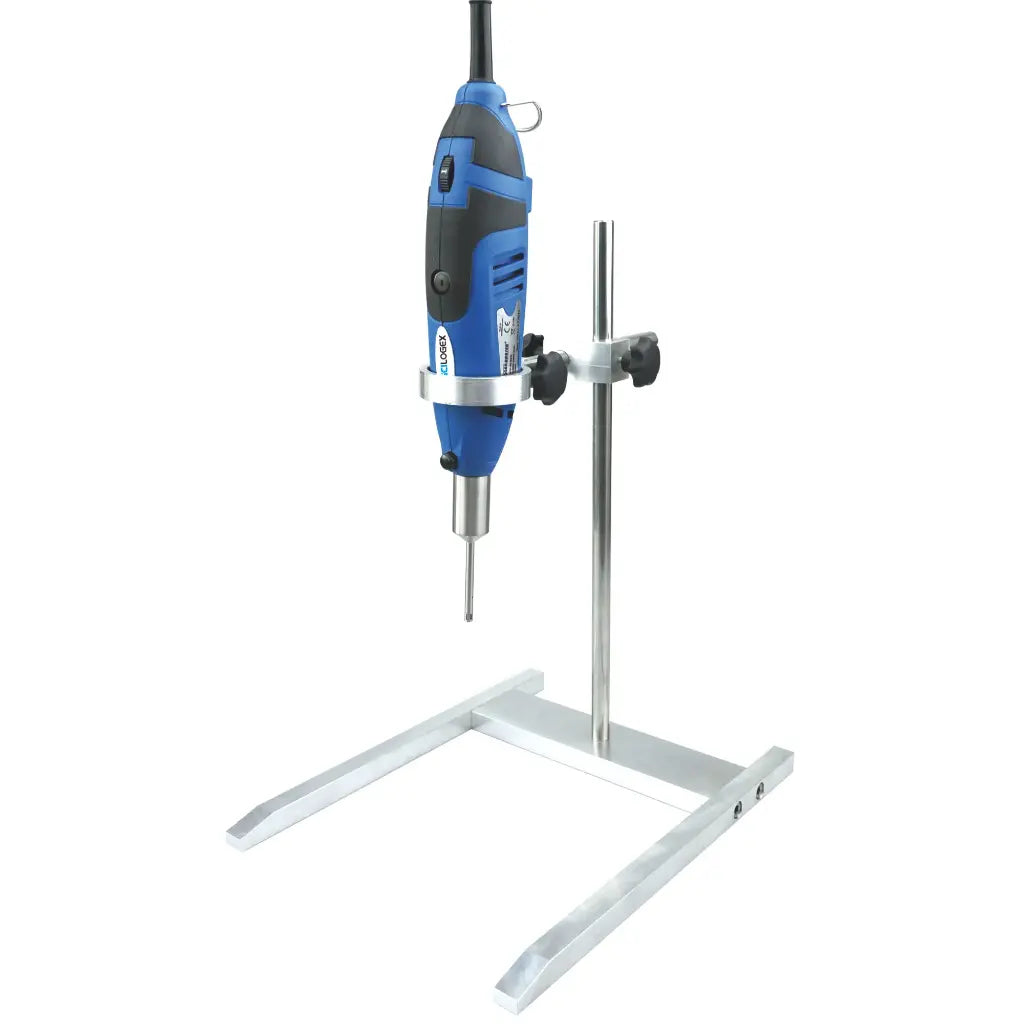

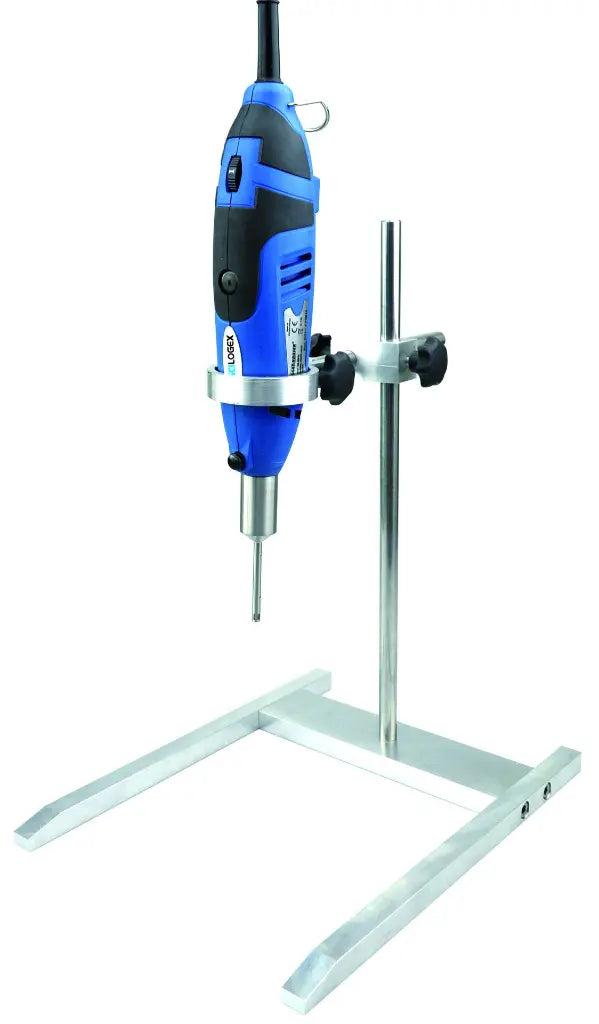

SCILOGEX 850101019999 D160 Hand-Held High-Speed Disperser/Homogenizer Package with Drive Motor, DS-160/5 5mm Generator & H-370 Stand for Lab Sample Disruption
SCILOGEX’s 850101019999 D160 Homogenizer Package is a high-performance, hand-held rotor/stator dispersing instrument for biotechnology, clinical medicine, and lab applications, ideal for cell disruption, tissue homogenization, and solid/liquid media processing in volumes from 0.1-50 mL. This package includes the D-160 drive motor, DS-160/5 5mm diameter generator with flat head-open slot and 50mm immersion length for efficient mixing, and H-370 stand for stable operation. Designed for safety and ease, it features disassemblable shafts for quick cleaning, no assembly required for immediate use, and safeguards against dry running or electrical hazards. The 110V, 60Hz US plug model ensures compatibility with standard lab power; lightweight at 2.5 lbs, it's perfect for fume hoods or portable setups. Made in Malaysia with a 2-year warranty for reliable, fume-hood-compatible performance in research protocols.
Features:

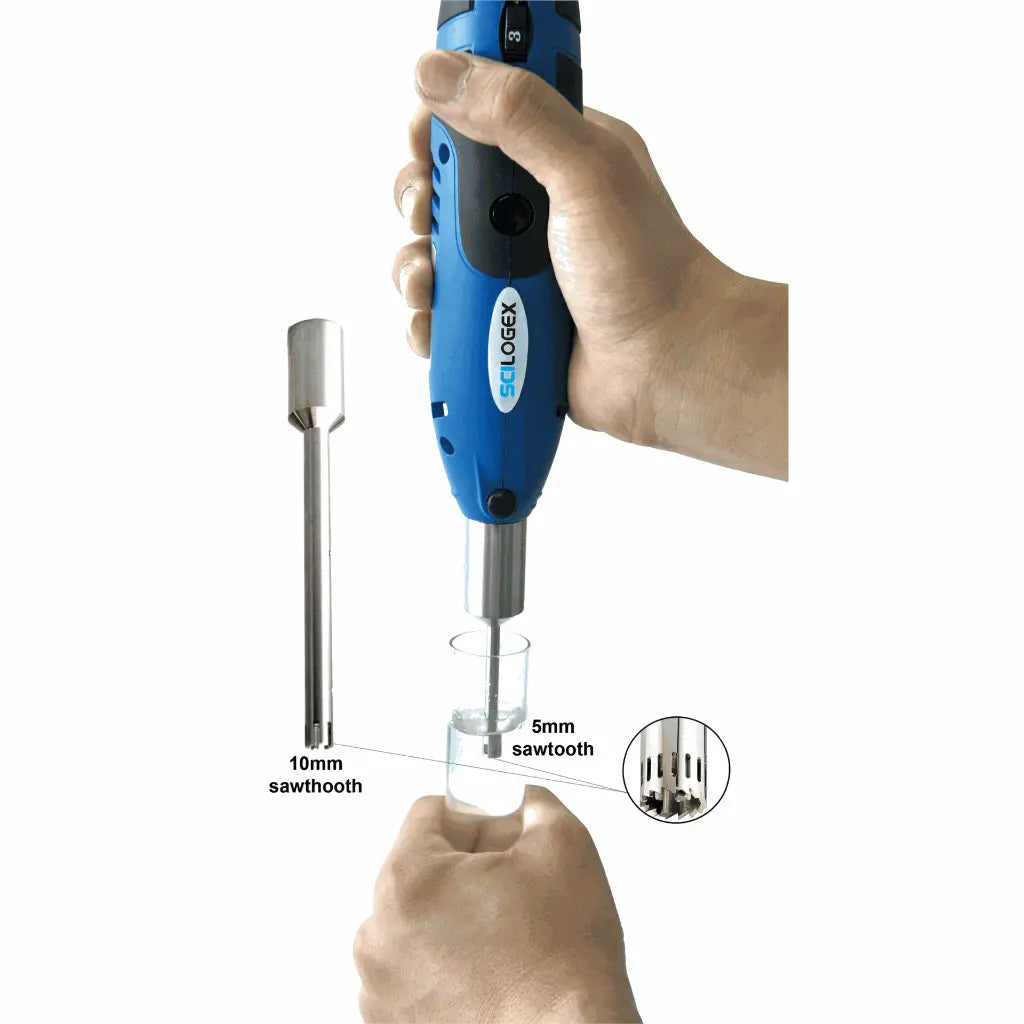

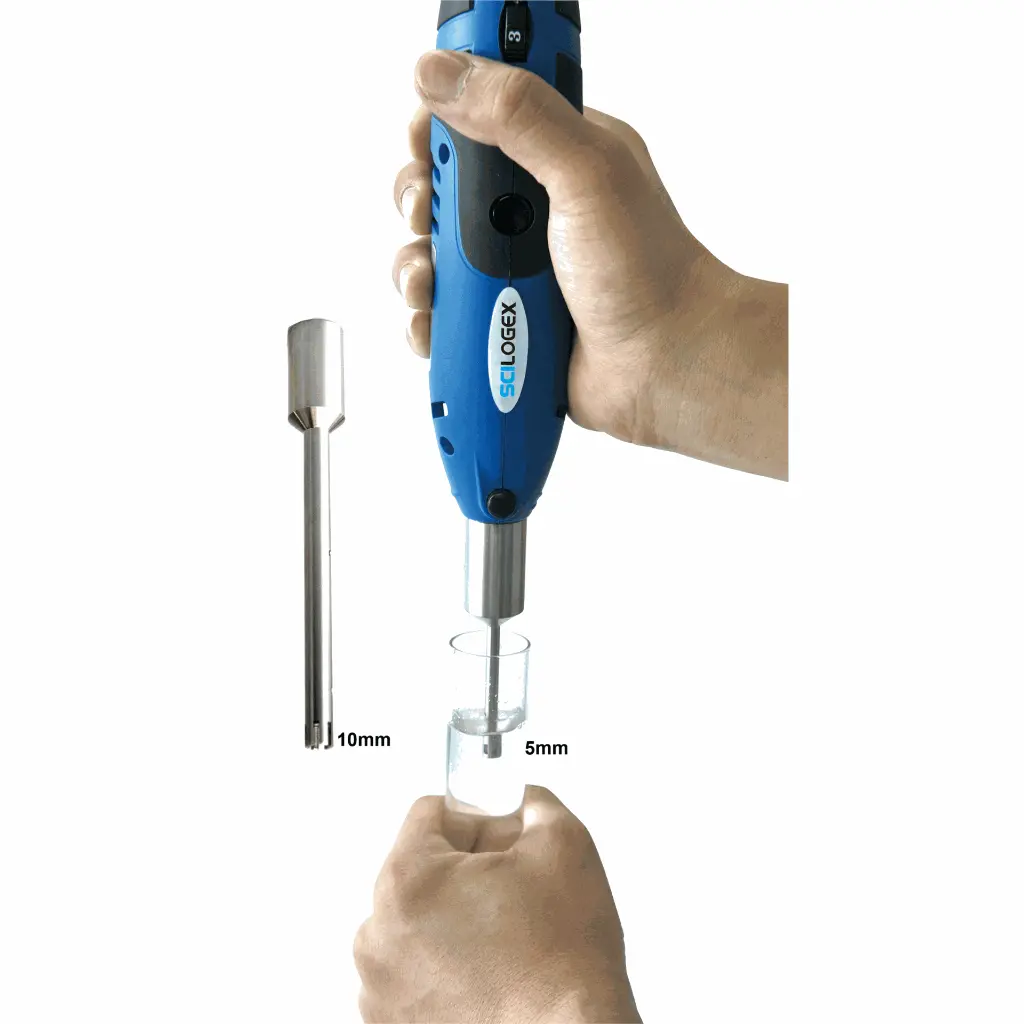

- High-speed rotor/stator technology for effective dispersing and homogenization in volumes 0.1-50 mL (with 5mm shaft) or 1-250 mL (with 10mm shafts, optional)
- Disassemblable shaft and rotor/stator for easy cleaning and maintenance; completely assembled for immediate use upon delivery
- Safety safeguards: No dry running (liquid cools/lubricates bearing), fume hood compatibility, and warnings against electrical immersion or hazardous use
- Ergonomic hand-held design for lab safety; programmable for continuous operation, reaching fineness in minutes without excessive heat
- Compatible with optional dispersing shafts; recommended for fume hoods with flammable liquids
- cTUVus approved and CE marked for electrical safety in biotech/human/veterinary/clinical labs
- Compact and portable for disruption of cells or tissue in fume hoods or portable setups
- Made in Malaysia for durable, lab-grade construction compliant with safety standards
Specifications:
| Specification | Details |
|---|---|
| Model | 850101019999 D160 Homogenizer Package |
| Capacity | 0.1-50 mL (5mm Shaft); 1-250 mL (10mm Optional) |
| Generator | DS-160/5 5mm Dia., Flat Head-Open Slot, 50mm Immersion Length |
| Drive Motor | D-160 Hand-Held Disperser |
| Stand | H-370 |
| Power Requirements | 110V, 60Hz, US Plug |
| Weight | 2.5 lbs (1.13 kg) |
| Dimensions | Approx. 12" L x 6" W x 8" H |
| Operation | Continuous (Fineness in Minutes) |
| Safety Features | No Dry Running, Fume Hood Compatible, Electrical Safeguards |
| Warranty | 2-Year Limited |
| Compliance | cTUVus Approved, CE Marked |
| HS Code | 8479.82.0080 |
| Country of Origin | Malaysia (MY) |
| UPC/Barcode | 094393614326 |
Contents:
| Description | Quantity |
|---|---|
| D-160 Drive Motor | 1 |
| DS-160/5 5mm Generator (Assembled) | 1 |
| H-370 Stand | 1 |
| Power Cord (US Plug) | 1 |
| User Manual | 1 |
