Stirling Ultracold SU105UE Compact Ultra-Low Temperature Freezer, 3.7 cu.ft, -86°C to -20°C, High Performance

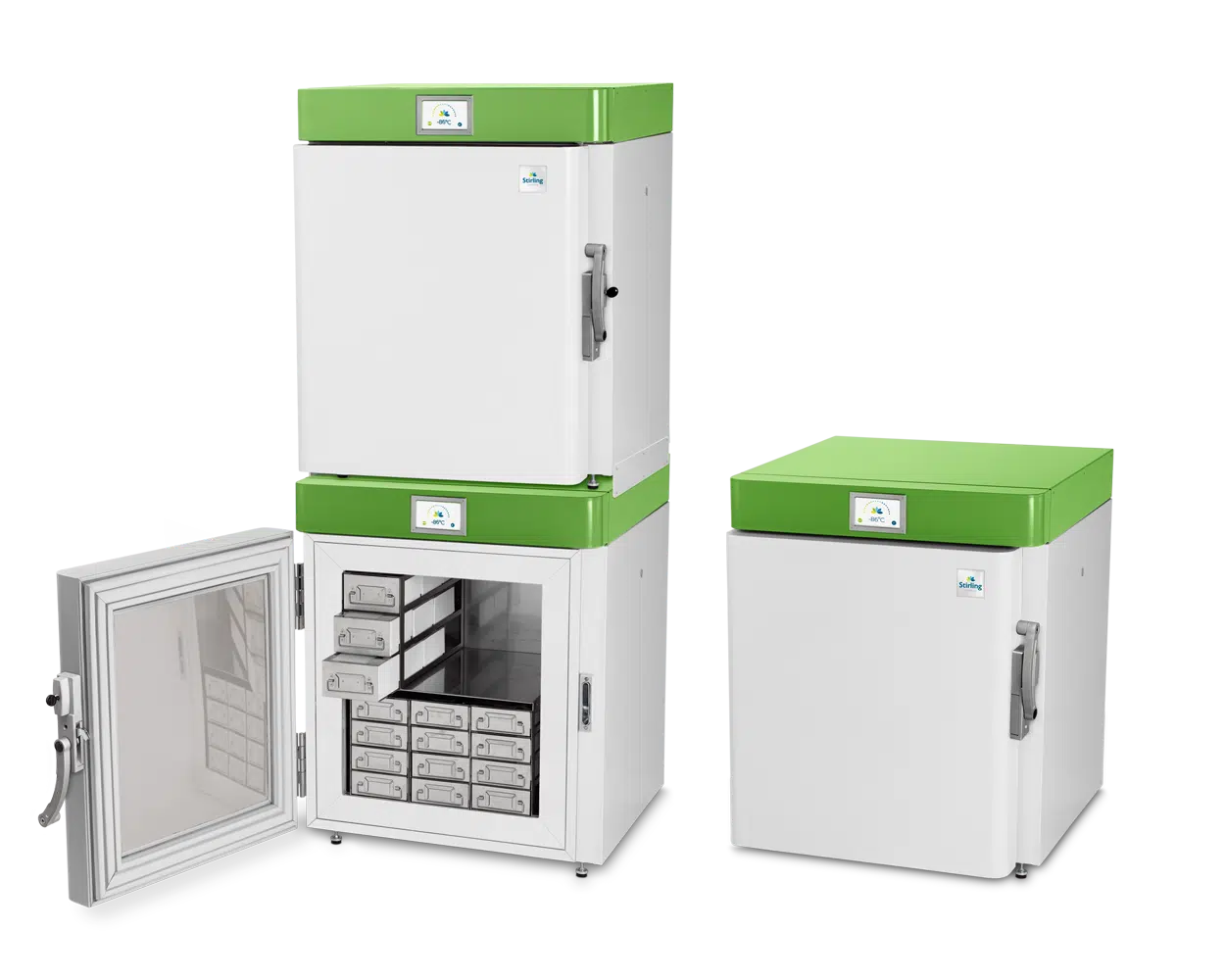

The Stirling Ultracold SU105UE undercounter ultra-low temperature (ULT) freezer is ideal for bench-side personal storage or for use in areas where larger-volume ULTs are not suitable. This space-saving freezer delivers full-performance ULT storage for benchtop, stacked or undercounter configurations. Boasting the widest temperature range in the industry, the SU105UE undercounter ULT lab freezer is perfect for warming up samples and biologics in stages. It’s the ideal solution to optimize your laboratory floor plan, offering:
- A space-saving design that doesn’t compromise storage capacity
- A wide temperature range for transitioning biological materials to warmer temperatures
- Secure, personalized storage in clinical settings
Features:
- Designed for ultra-low power consumption and maximal energy savings
- Virtually eliminates any need for maintenance with breakthrough Stirling free-piston engine
- Provides secure individual storage that is convenient to the benchtop
- Uses 100% natural refrigerants for reduced climate impact
- Industry-leading 7-year warranty for engine and thermosiphon, with two years of included parts and labor coverage*
*Labor warranty coverage only available in the U.S. and Canada
Specifications:
- Application: Storage of general (non-flammable) laboratory materials
- Storage Volume: 105 liters (3.7 cu.ft.)
- Storage Capacity: 72 standard 2” boxes in optional racks, available separately
- Temperature Range: -86°C to -20°C, adjustable to 1°C increments
- Electric Power†: 100V to 240V (±10%) at either 50 or 60 Hz
- Power Cord: Multiple options are available.
- Maximum Power: 300 watts (3 amps @120V, 1.5 amps
- (Current): @240V (±10%) at either 50 or 60 Hz
- Auto-Voltage Capability: 100V to 240V, 50 or 60 Hz
- Electric Supply Rating: 15 amp or greater grounded circuit
- Certification/Agency Listing: CE, cULus
- Noise: Advanced noise abatement, <48 dB(A) at 1 meter
- Indoor/Outdoor: Use Indoor use only
- Application: Non-corrosive, non-flammable
- Environment: non-explosive
- Ambient Operating Temp: 5°C to 35°C (41°F to 95°F)
Dimensions and Construction:
- Interior: (H x D x W) 533 x 432 x 457 mm / (21 x 17 x 18 in.)
- Exterior: (H x D x W) 864 x 711 x 686 mm / (34 x 28 x 27 in.)
- Net Weight: Empty 100 kg (220 lbs.)
- Shipping (H x D x W): 1079.5 x 838.2 x 838.2 mm / (42.5 x 33 x 33 in.)
- Shipping Weight: 121 kg (266 lbs.)
- Insulation: High performance vacuum insulated panels and polyurethane foam using Ecomate® environmentally friendly, SNAP-compliant blowing agent
- Gasket Heater: User programmable duty cycle
- Shelves: 1 stainless steel, fixed position (removable)
