Summit ACR1012GLHD 24" Wide Upright Medical Refrigerator, Automatic Defrost, 9.88 cu.ft.
EQTemp introduces a new series of affordable, specialty medical refrigeration solutions for healthcare facilities seeking specialized cold storage.

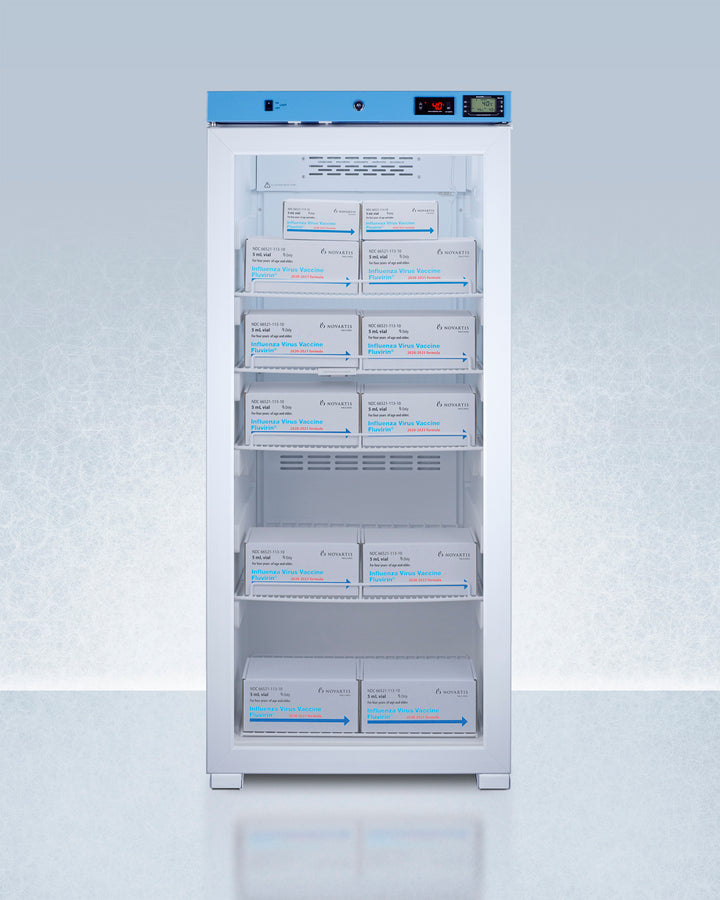

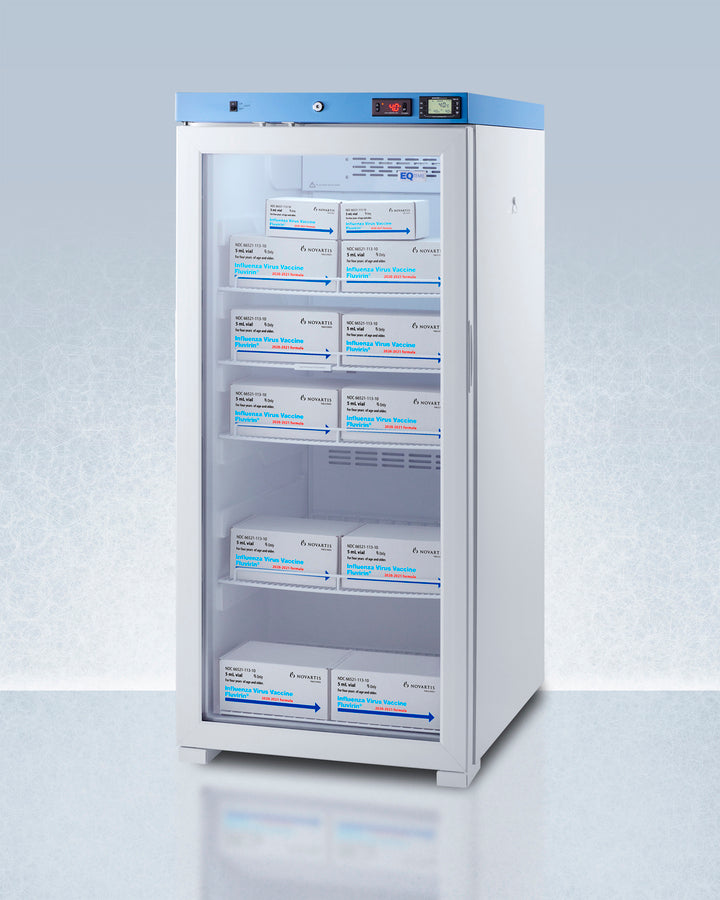

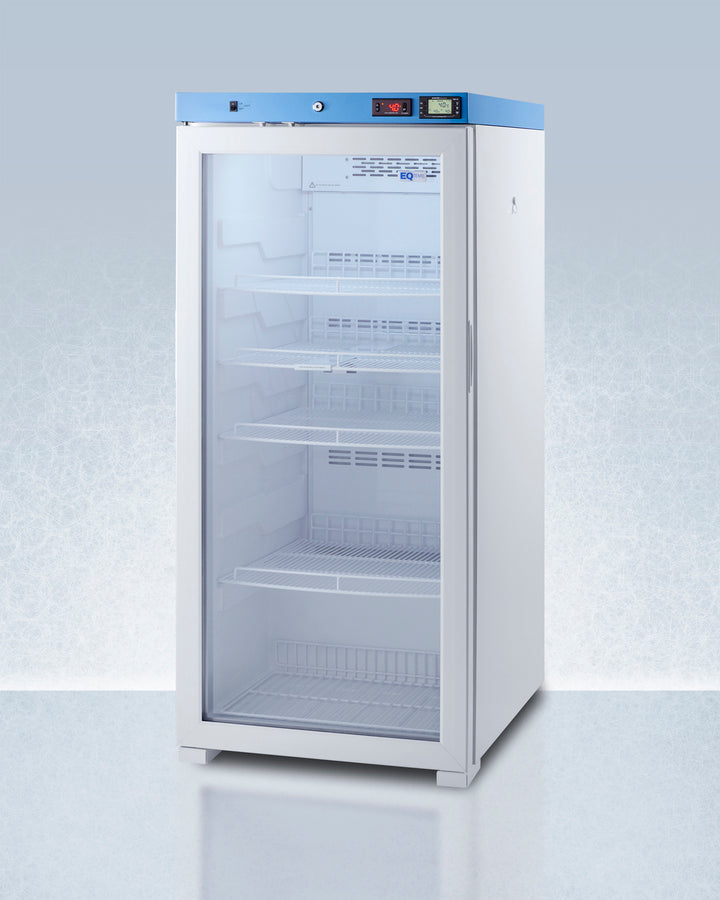

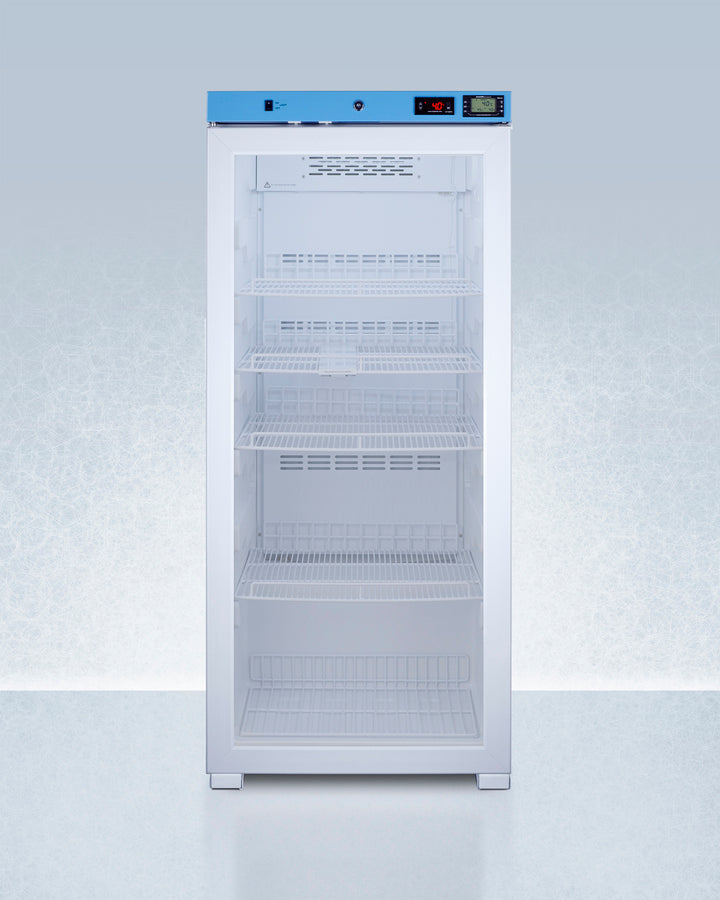

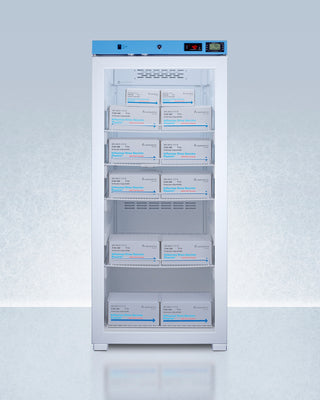

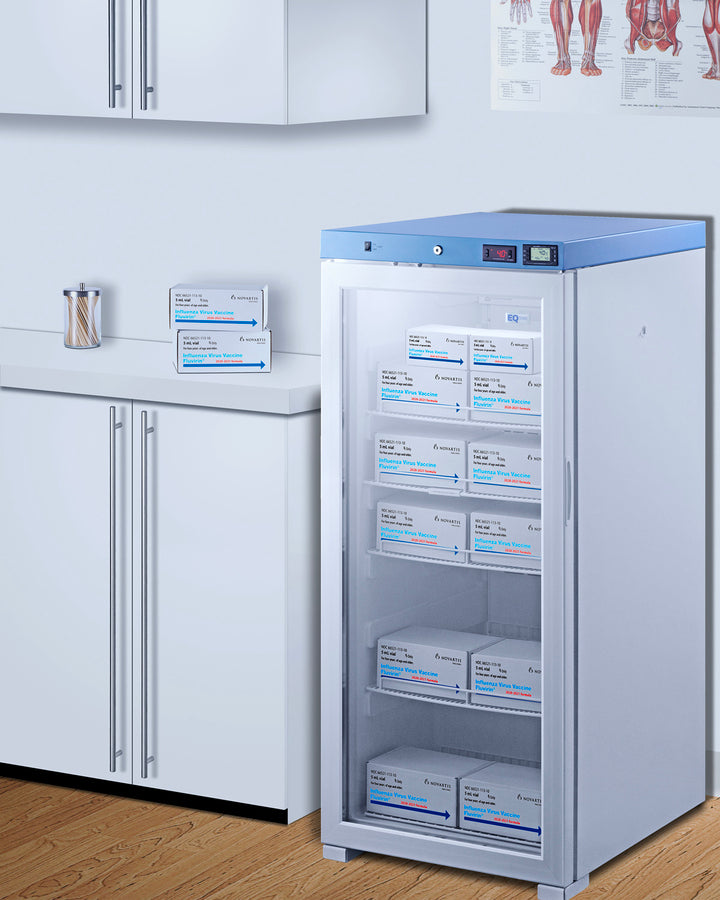

Model ACR1012GLHD is an upright 9.88 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

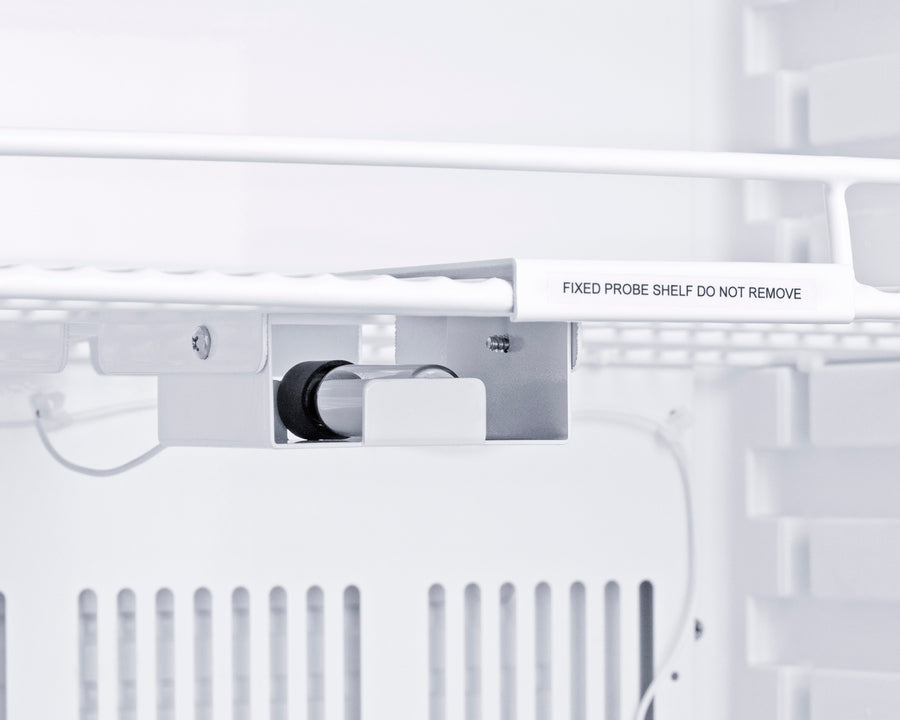

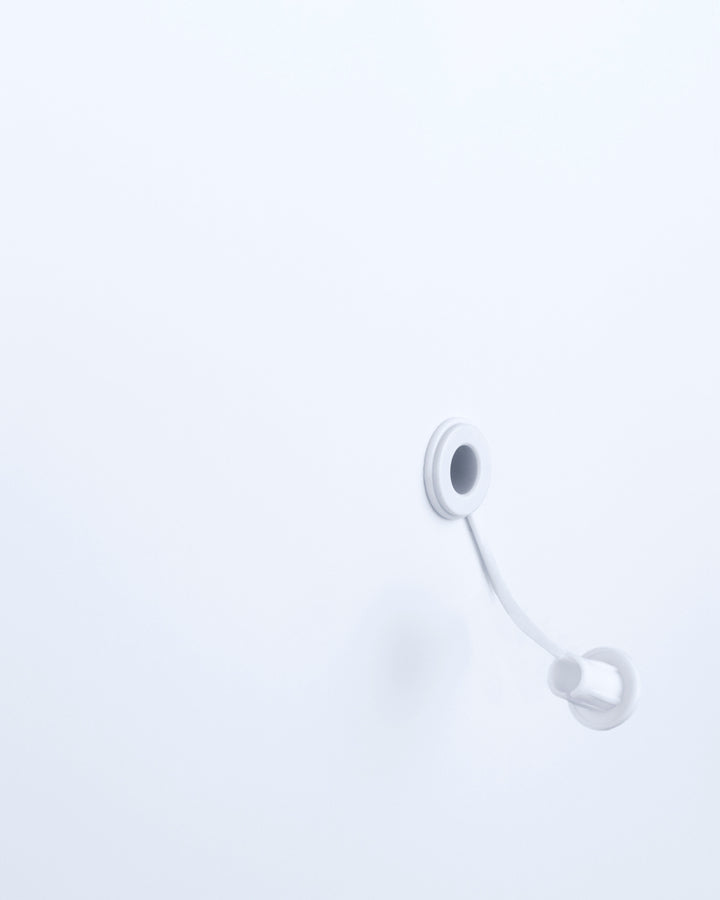

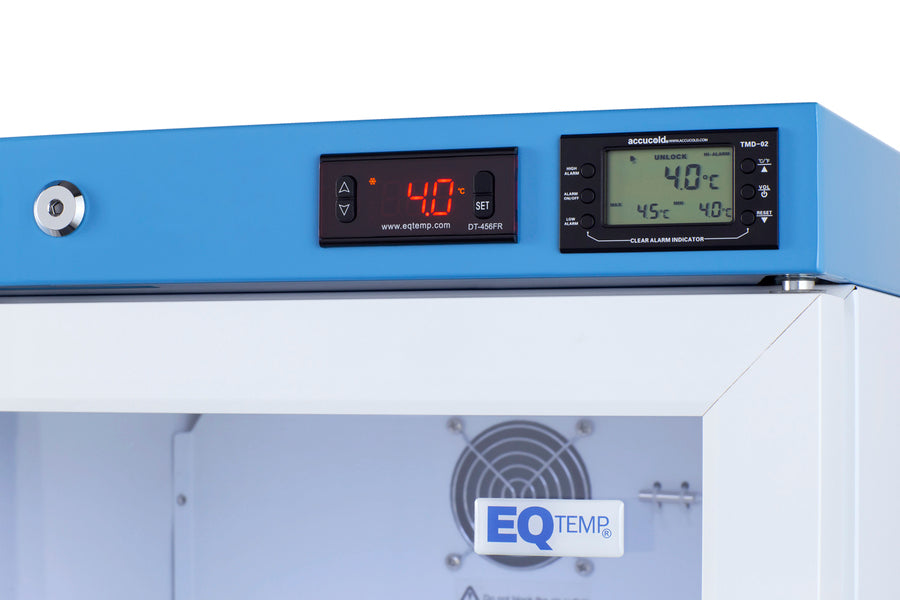

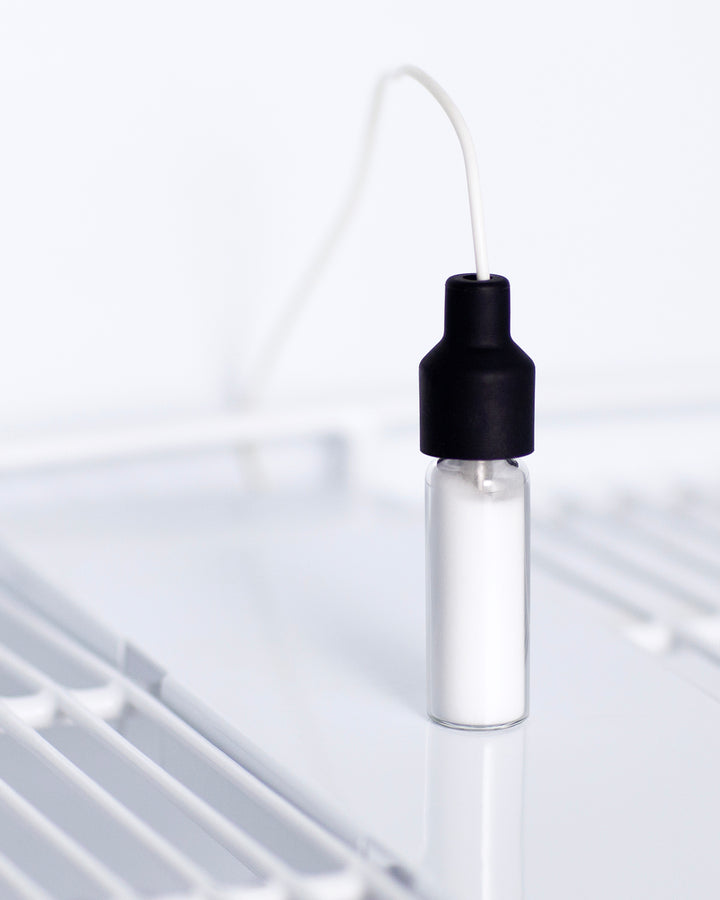

The ACR1012GLHD includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

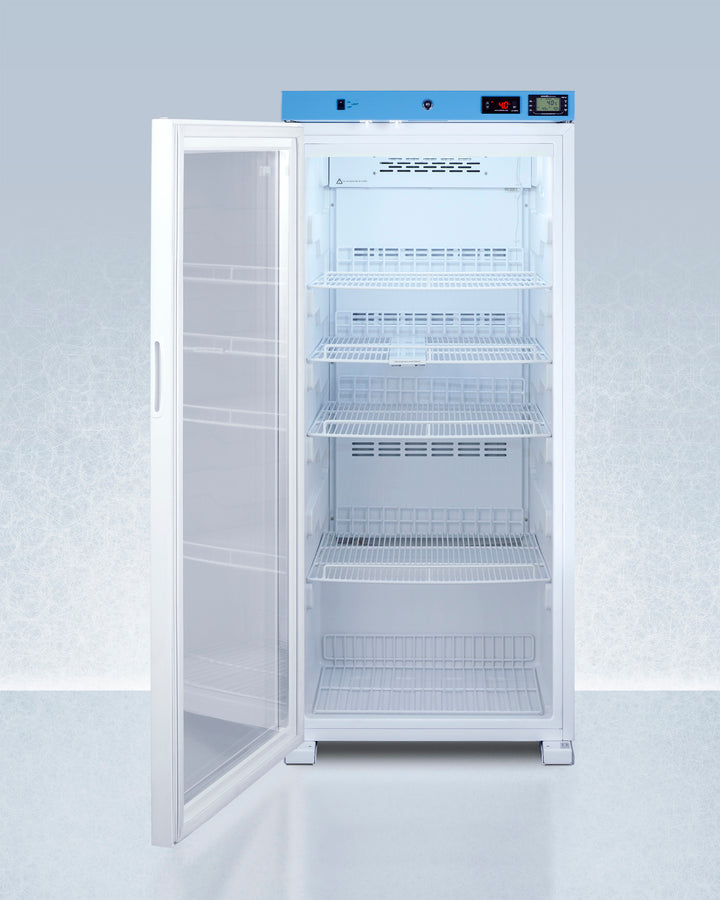

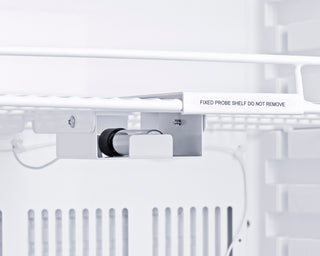

The interior includes one wire shelf in the center to hold the temperature probe, as well as four additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.

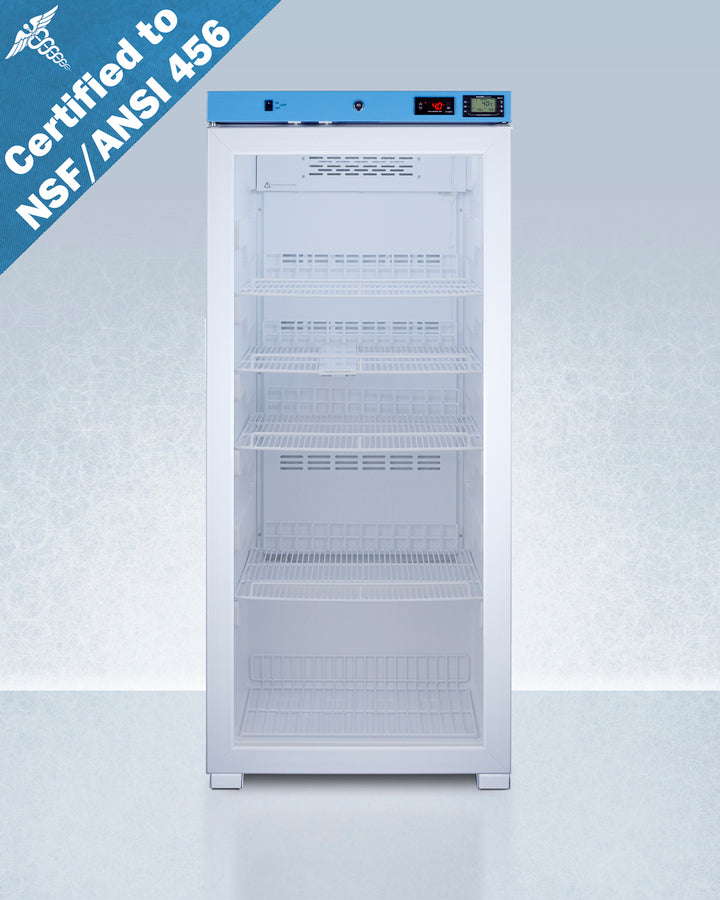

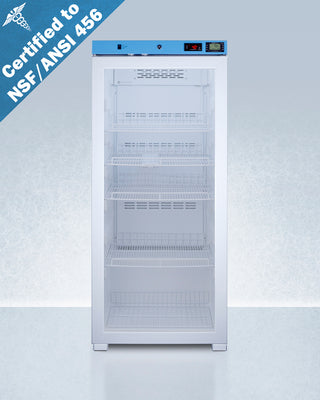

This unit ships with a left-hand door swing (for a right-hand version, see model ACR1012G).This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR1012GNSF456).
Features:
- EQTemp Medical Refrigerator
- Temperature Range: 2º to 8ºC
- External temperature readout
- Large capacity
- High/low temperature alarm
- Buffered temperature probe
- Access port
- Factory installed lock
- Automatic defrost
- Open door alarm
- Magnetic door gasket
- Fully finished white cabinet
- Digital thermostat
- Pocket handle
- Self-closing door
- Temperature memory function
- Foamed-in-place cabinet
- LED lighting
- Flat door liner
- Fixed center shelf
- Hospital grade cord with 'green dot' plug
- Internal fan
- Left hand door swing
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 54.0" (137 cm) |
| Height of Cabinet | 53.13" (135 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 29.0" (74 cm) |
| Depth | 28.33" (72 cm) |
| Depth with door at 90° | 50.25" (128 cm) |
| Capacity | 9.88 cu.ft. (280 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 143.3 lbs. (65 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101107639 |
|
Refrigerator Features
|
|
| Door Swing | LHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 55.0oz. |
| High Side PSI | 0.85 |
| Low Side PSI | 1.45 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2º to 8ºC |
| Sound Level | 37.2 dB |
|
Dimensions
|
|
| Interior Height | 44.63" (113 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 21.5" (55 cm) |
| Compressor Step Height | 9.0" (23 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 8.0" (20 cm) |
