Summit ACR1012GNSF456 24" Wide Upright Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard 9.88 cu.ft.
EQTemp introduces a new series of affordable, specialty medical refrigeration solutions for healthcare facilities seeking specialized cold storage.

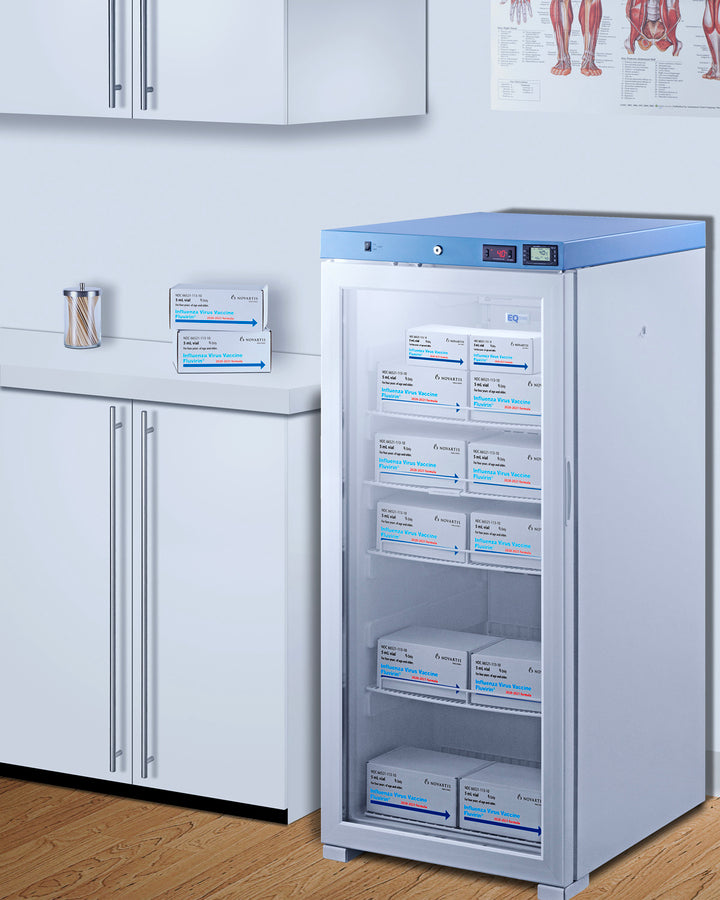

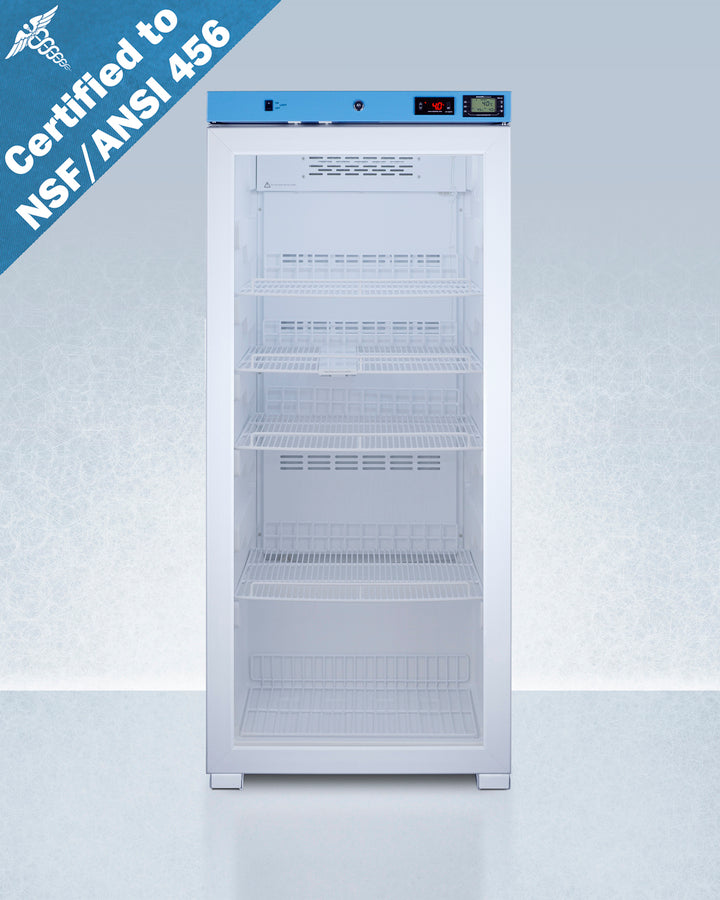

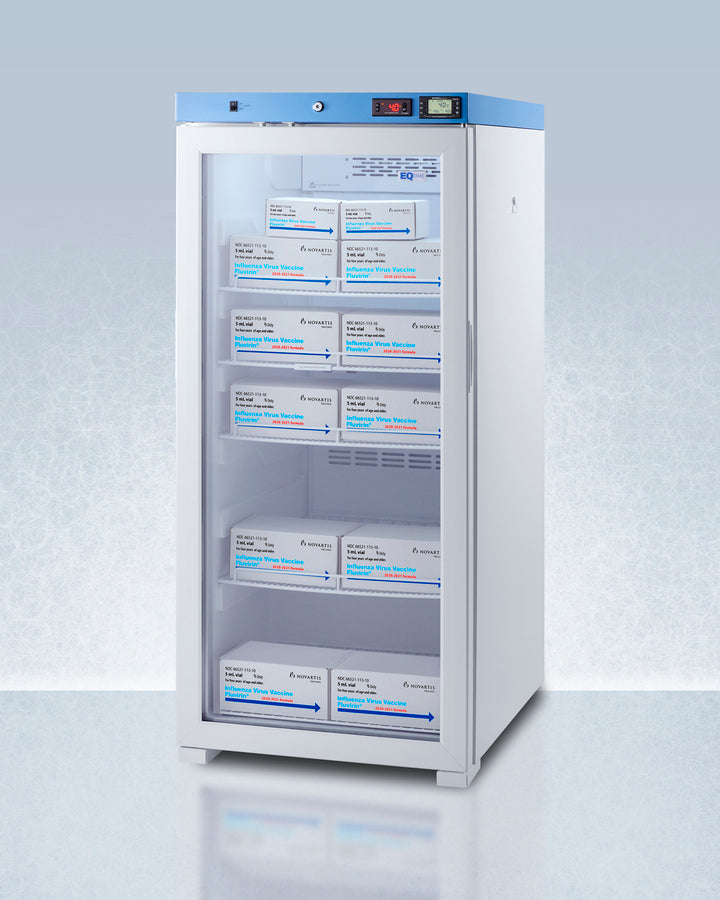

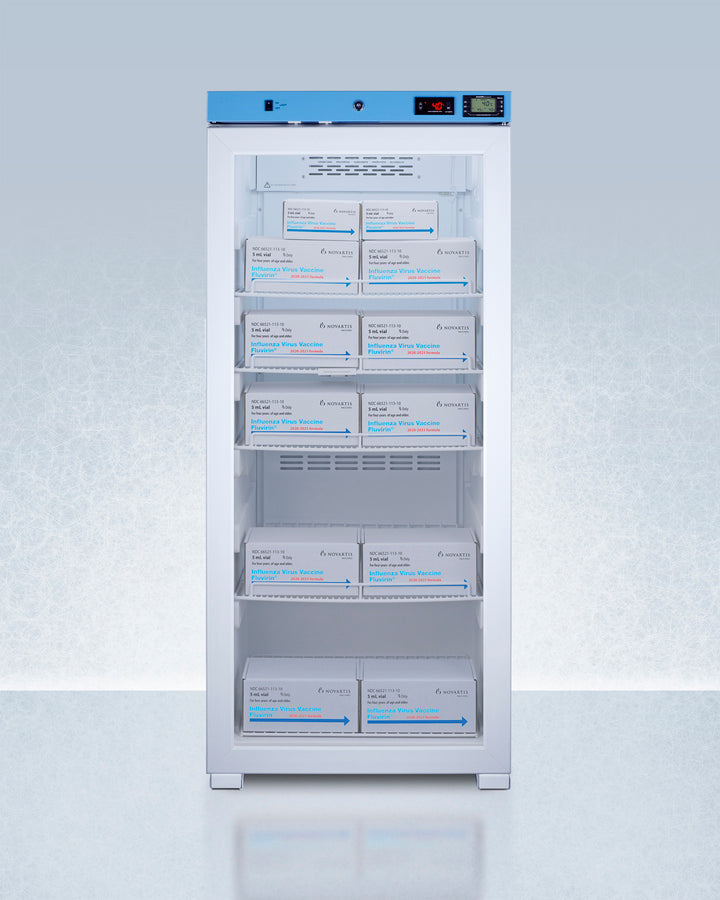

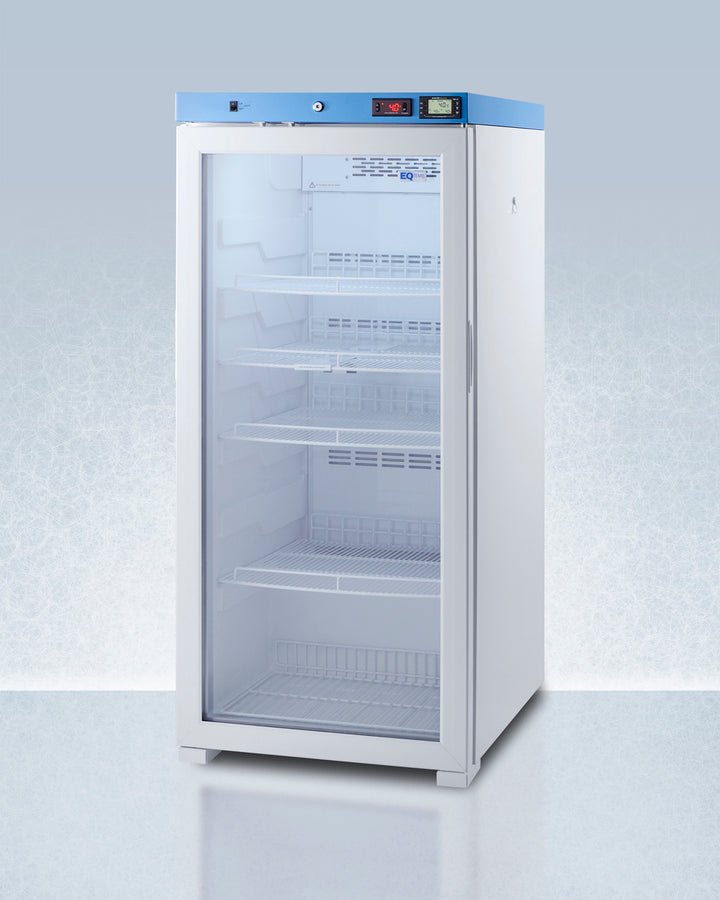

Model ACR1012GNSF456 is an upright 9.88 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

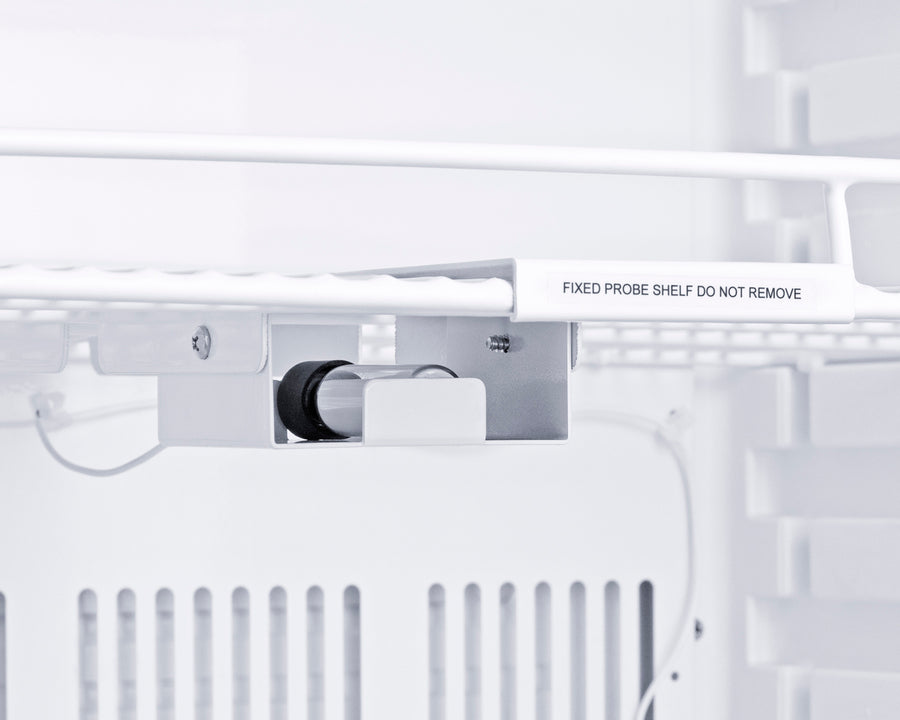

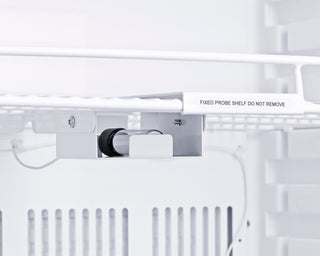

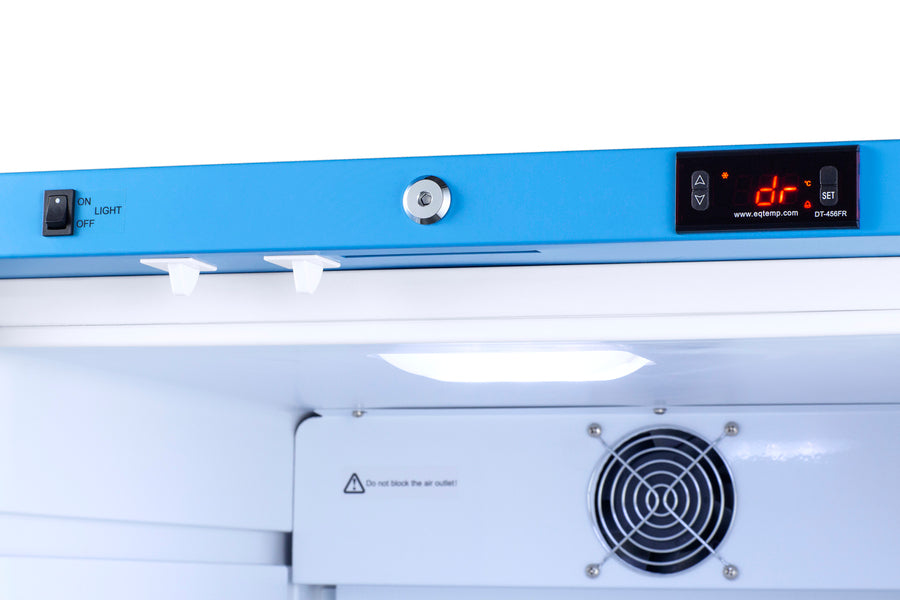

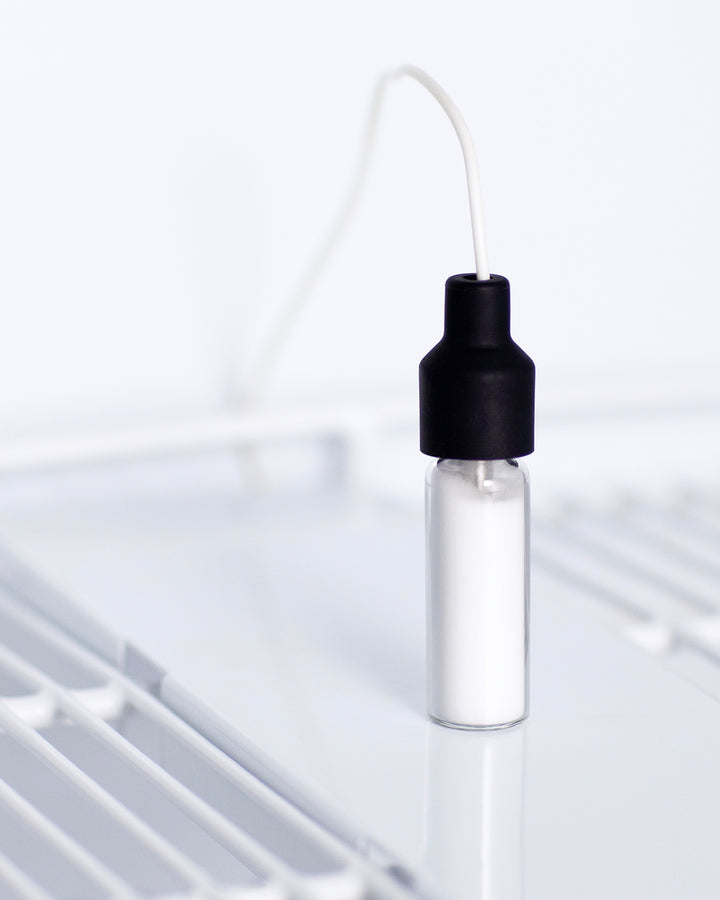

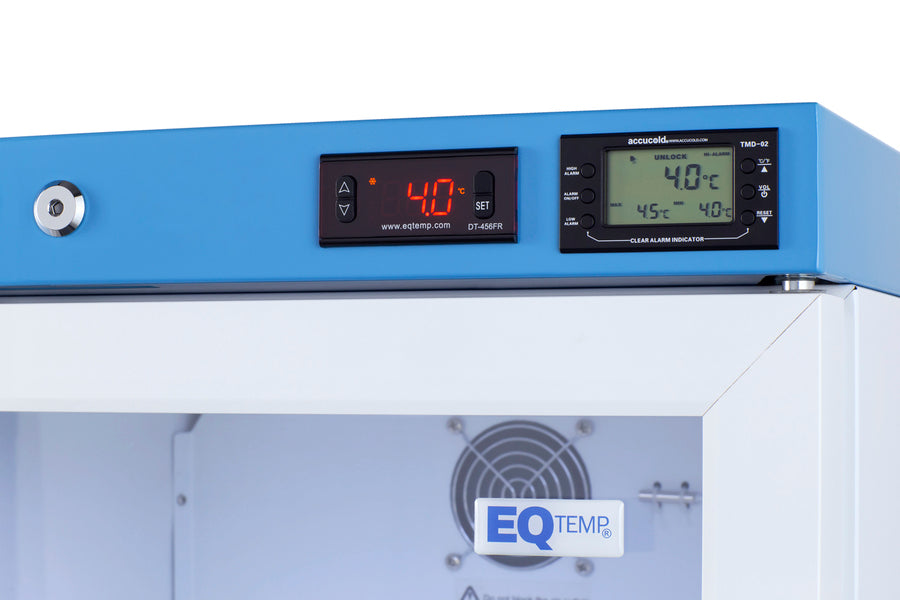

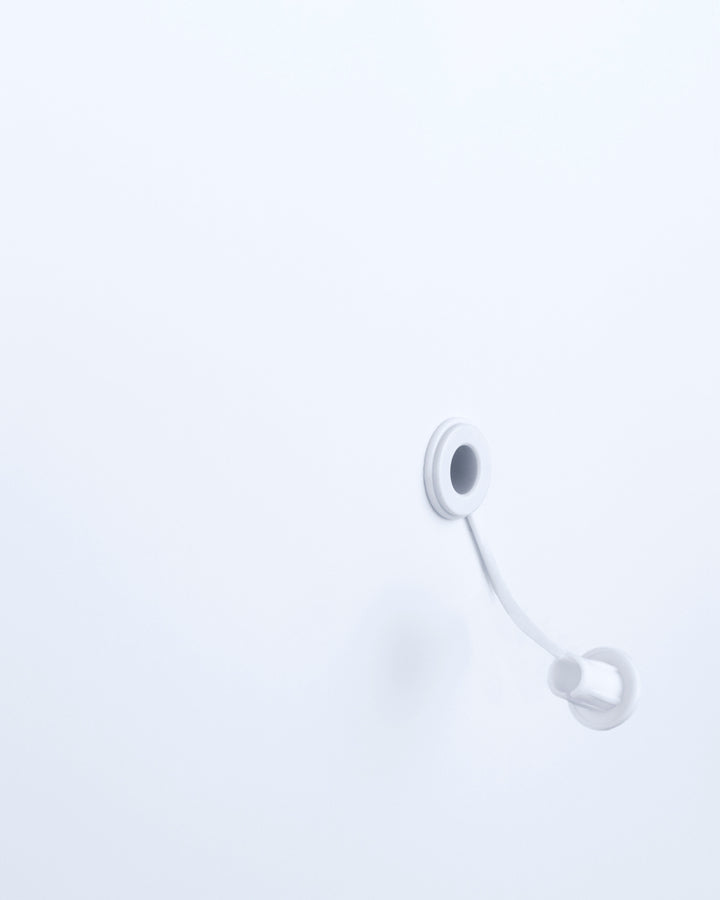

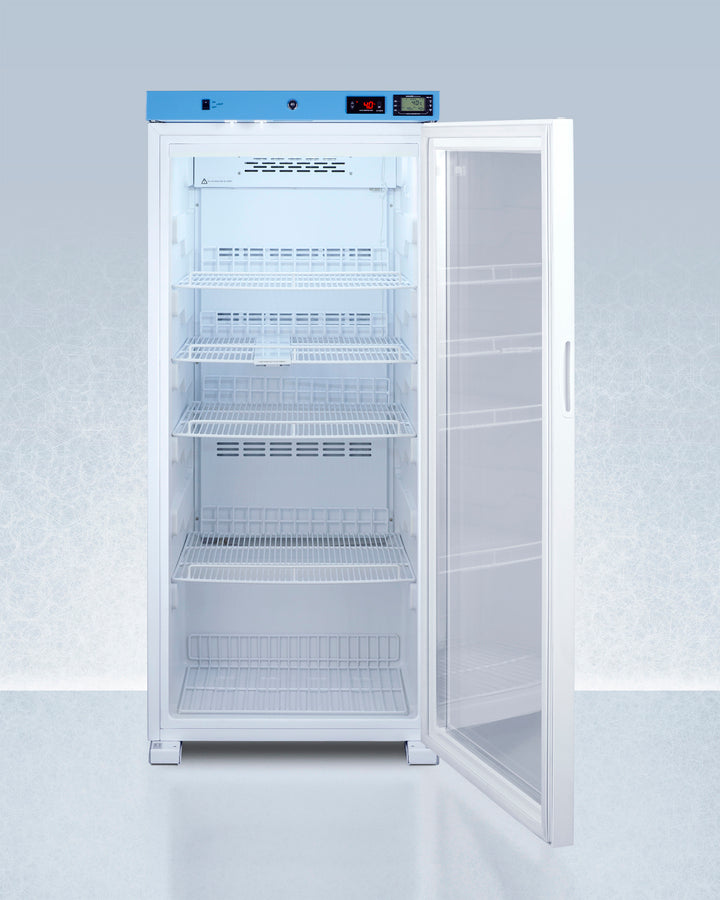

The ACR1012GNSF456 includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe and additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings.
EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint. Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage.
Features:
- EQTemp Medical Refrigerator
- Certified to NSF/ANSI 456 Vaccine Storage Standard
- Certificate of calibration included
- Large capacity
- Temperature Range: 2º to 8ºC
- Buffered temperature probe
- High/low temperature alarm
- External temperature readout
- Access port
- Fully finished white cabinet
- Magnetic door gasket
- Digital thermostat
- Open door alarm
- Factory installed lock
- Pocket handle
- Self-closing door
- Temperature memory function
- Foamed-in-place cabinet
- LED lighting
- Flat door liner
- Fixed center shelf
- Hospital grade cord with 'green dot' plug
- Internal fan
- Automatic defrost
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 54.0" (137 cm) |
| Height of Cabinet | 53.13" (135 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.33" (59 cm) |
| Width with Door Open | 23.88" (61 cm) |
| Nominal Depth | 29.0" (74 cm) |
| Depth | 28.38" (72 cm) |
| Depth with door at 90° | 50.25" (128 cm) |
| Capacity | 9.88 cu.ft. (280 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S to NSF 456 |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 143.3 lbs. (65 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101083162 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 55.0oz. |
| High Side PSI | 0.85 |
| Low Side PSI | 1.45 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2º to 8ºC |
| Sound Level | 37.2 dB |
|
Dimensions
|
|
| Interior Height | 44.63" (113 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 21.5" (55 cm) |
| Compressor Step Height | 9.0" (23 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 8.0" (20 cm) |
