Summit ACR1601WLHD 24" Wide Upright Medical Refrigerator Automatic Defrost15.53 cu.ft.
EQTemp introduces a new series of affordable, specialty medical refrigeration solutions for healthcare facilities seeking specialized cold storage.

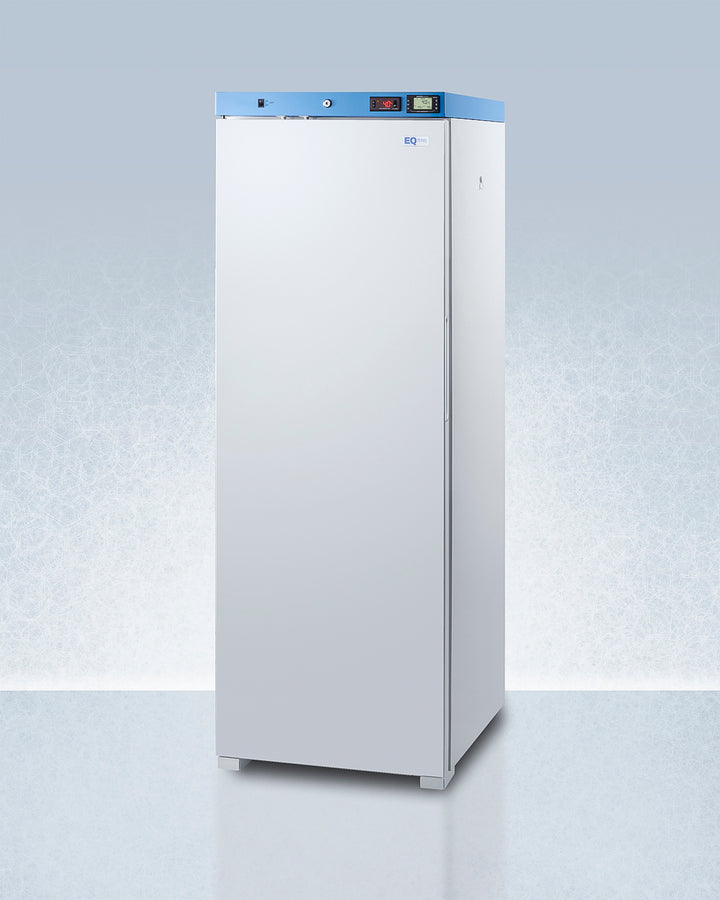

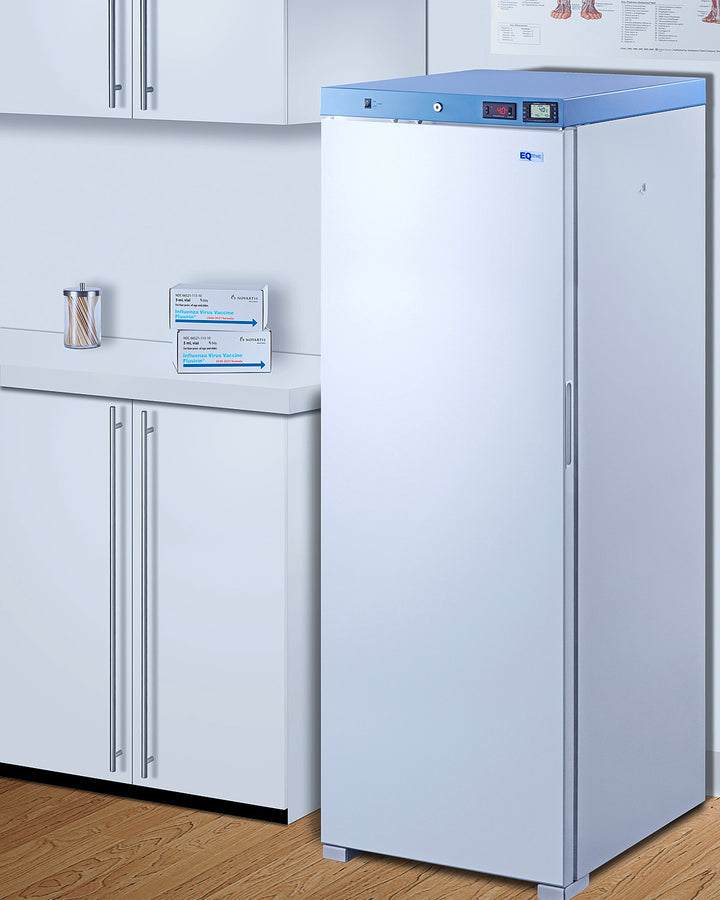

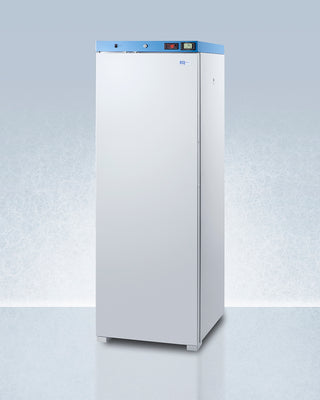

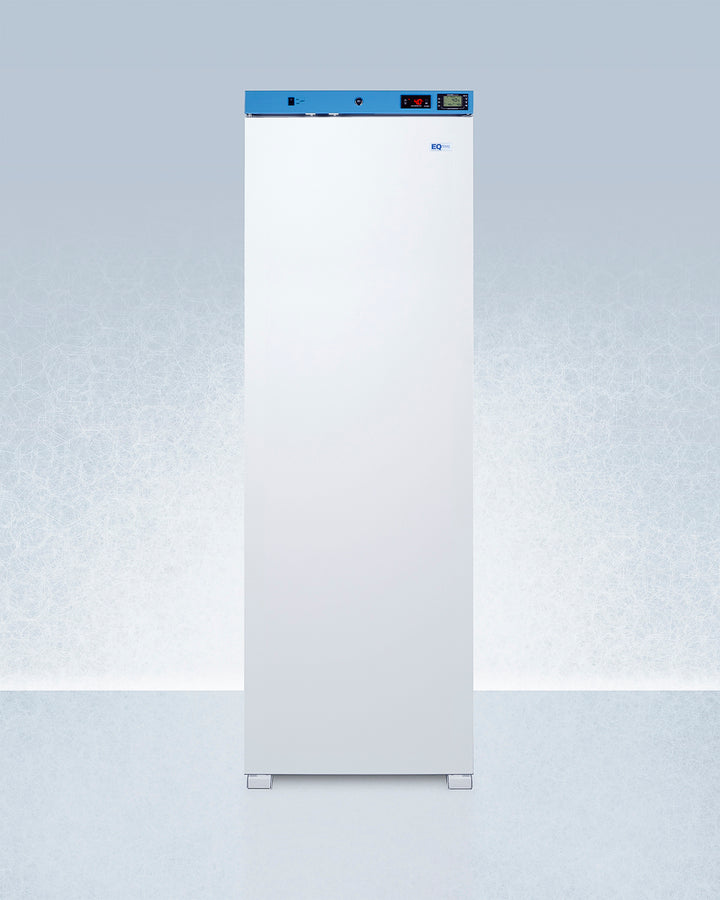

Model ACR1601W is an upright 15.53 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.

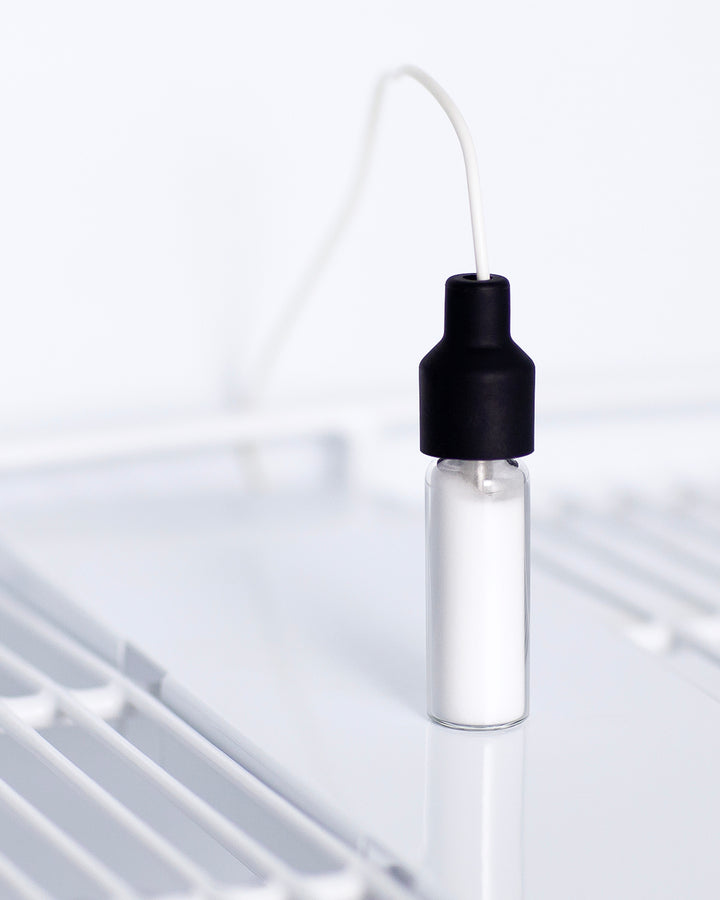

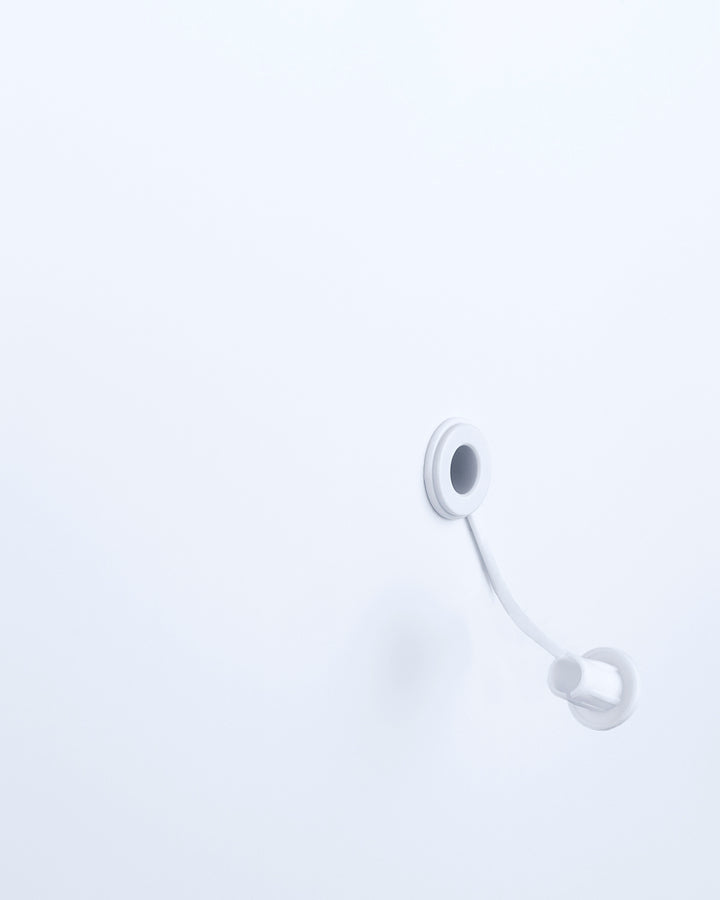

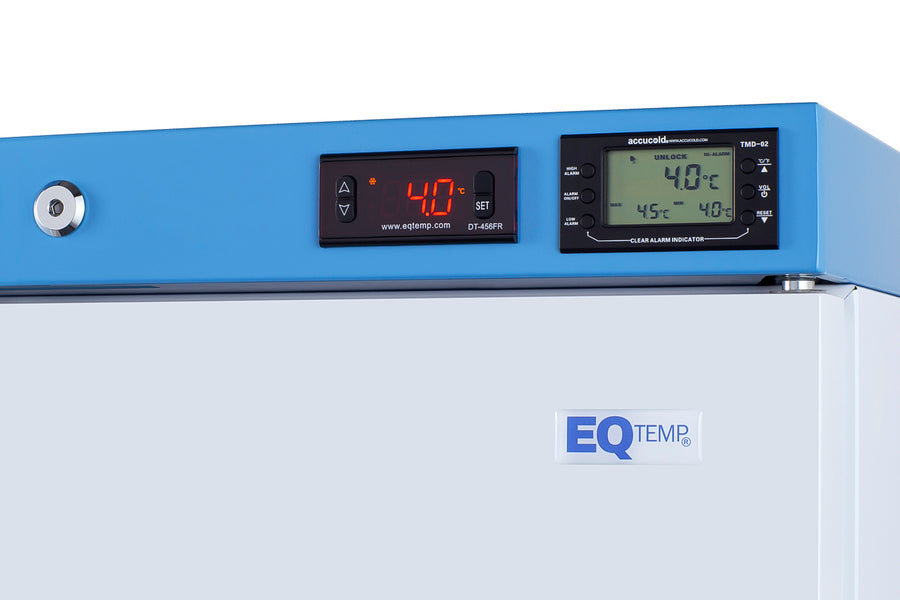

The ACR1601W includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.

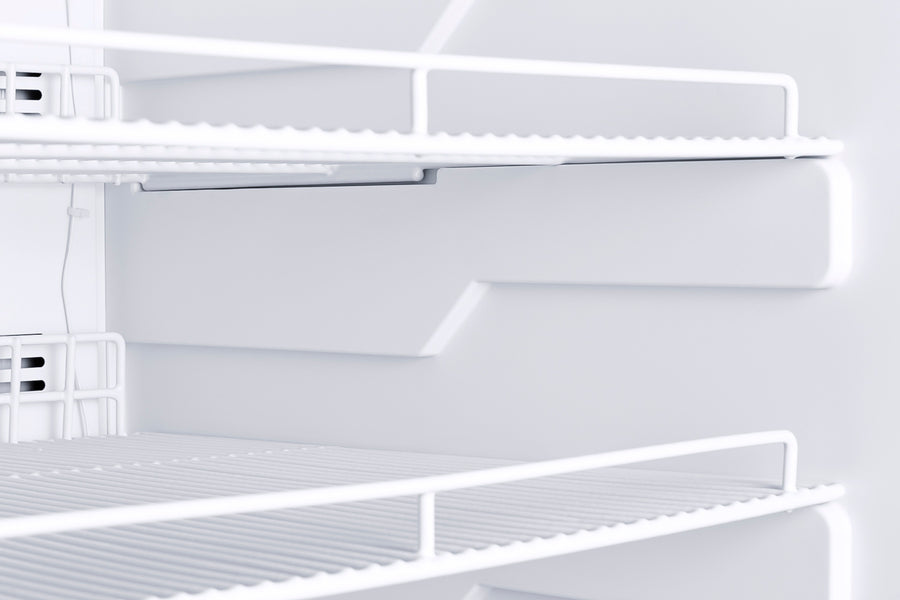

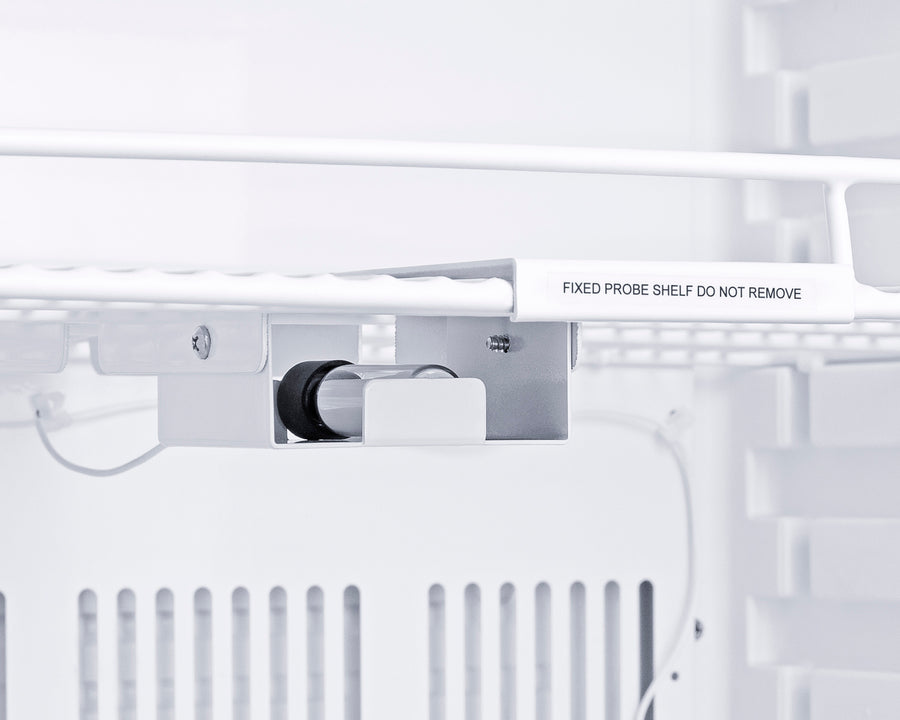

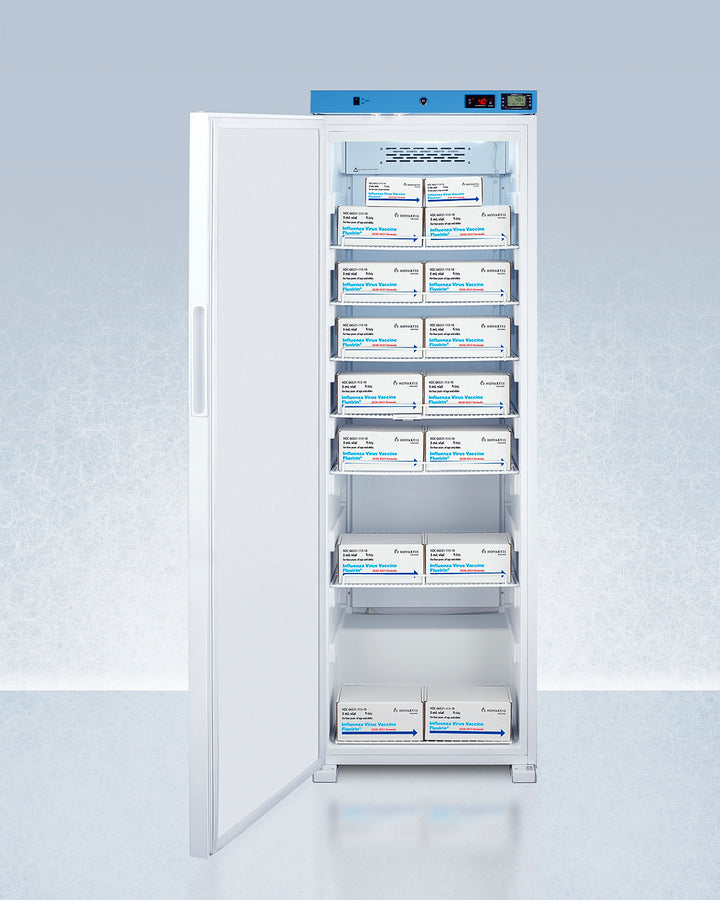

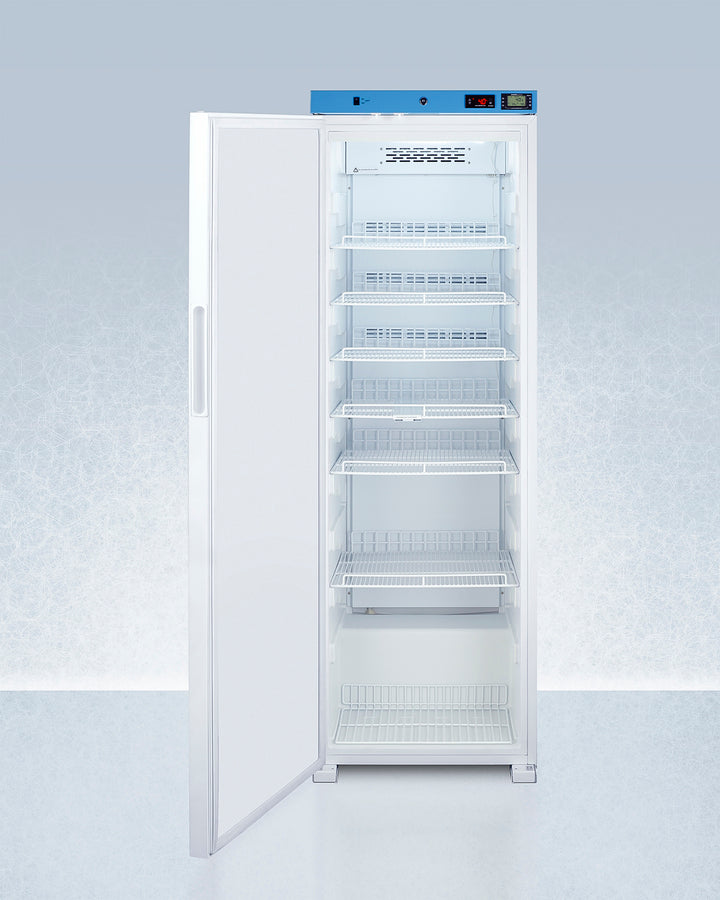

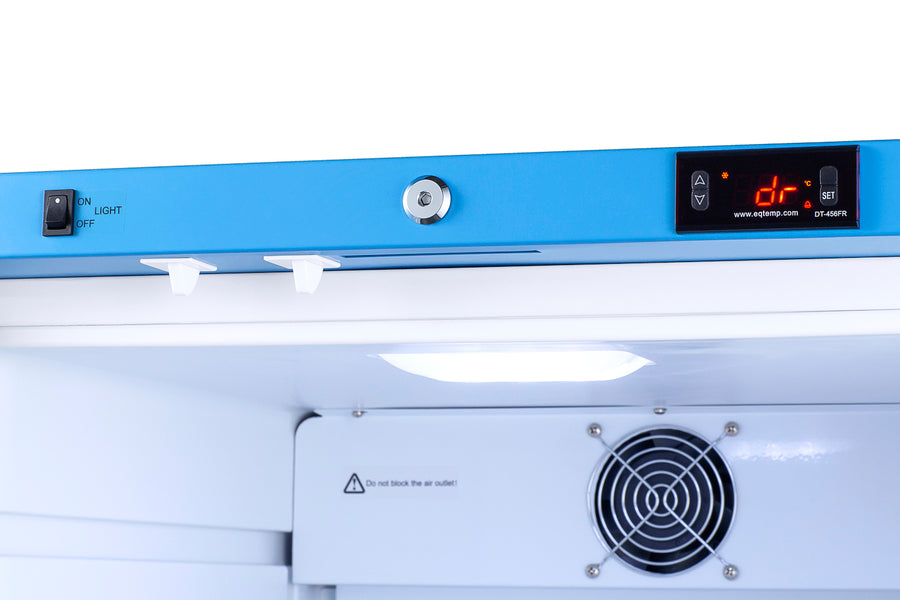

The interior includes one wire shelf in the center to hold the temperature probe, as well as four additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.
This unit ships with a left-hand door swing (for a right-hand version, see model ACR1011W). This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR1601WNSF456).
Features:
- EQTemp Medical Refrigerator
- Buffered temperature probe
- High/low temperature alarm
- External temperature readout
- Large capacity
- Temperature Range: 2º to 8ºC
- Fully finished white cabinet
- Magnetic door gasket
- Digital thermostat
- Open door alarm
- Pocket handle
- Self-closing door
- Temperature memory function
- Foamed-in-place cabinet
- LED lighting
- Flat door liner
- Fixed center shelf
- Hospital grade cord with 'green dot' plug
- Internal fan
- Automatic defrost
- Factory installed lock
- Access port
- Left hand door swing
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 77.0" (196 cm) |
| Height of Cabinet | 76.75" (195 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Width with Door Open | 23.63" (60 cm) |
| Nominal Depth | 29.0" (74 cm) |
| Depth | 28.13" (71 cm) |
| Depth with door at 90° | 28.38" (72 cm) |
| Capacity | 15.53 cu.ft. (440 L) |
| Defrost Type | Automatic |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 143.0 lbs. (65 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101107585 |
|
Refrigerator Features
|
|
| Door Swing | LHD |
| Reversible | Factory Reversible |
| Height Adjustable | No |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 2.0oz. |
| High Side PSI | 1.45 |
| Low Side PSI | 0.85 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2º to 8ºC |
| Sound Level | 35.3 dB |
|
Dimensions
|
|
| Interior Height | 68.25" (173 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 21.5" (55 cm) |
| Compressor Step Height | 9.0" (23 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 8.0" (20 cm) |
