Summit ACR52GNSF456 24" Wide Built-In Medical Refrigerator 3.88 cu.ft.
Summit 24" Wide Built-In Medical Refrigerator, Certified to NSF/ANSI 456 Vaccine Storage Standard 3.88 cu.ft.

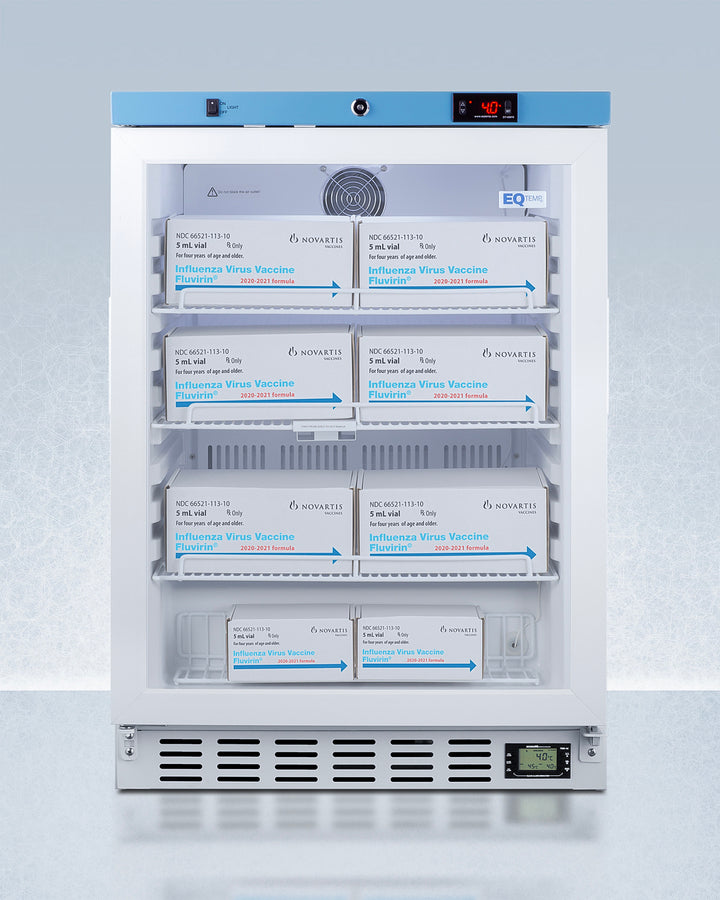

EQTemp introduces a new series of NSF/ANSI 456 certified medical refrigeration designed to store a variety of materials in healthcare facilities.

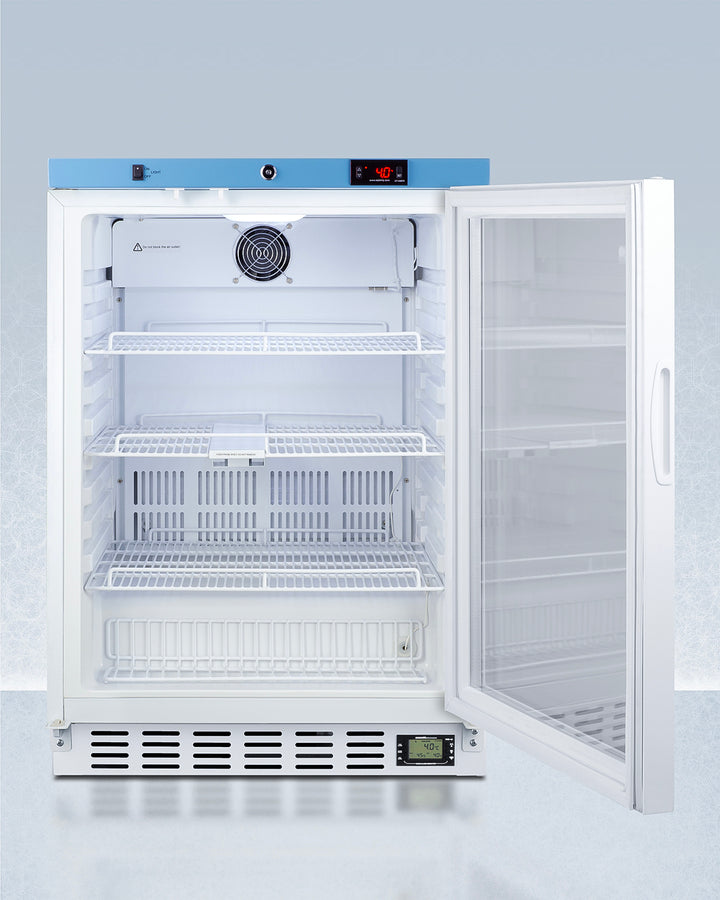

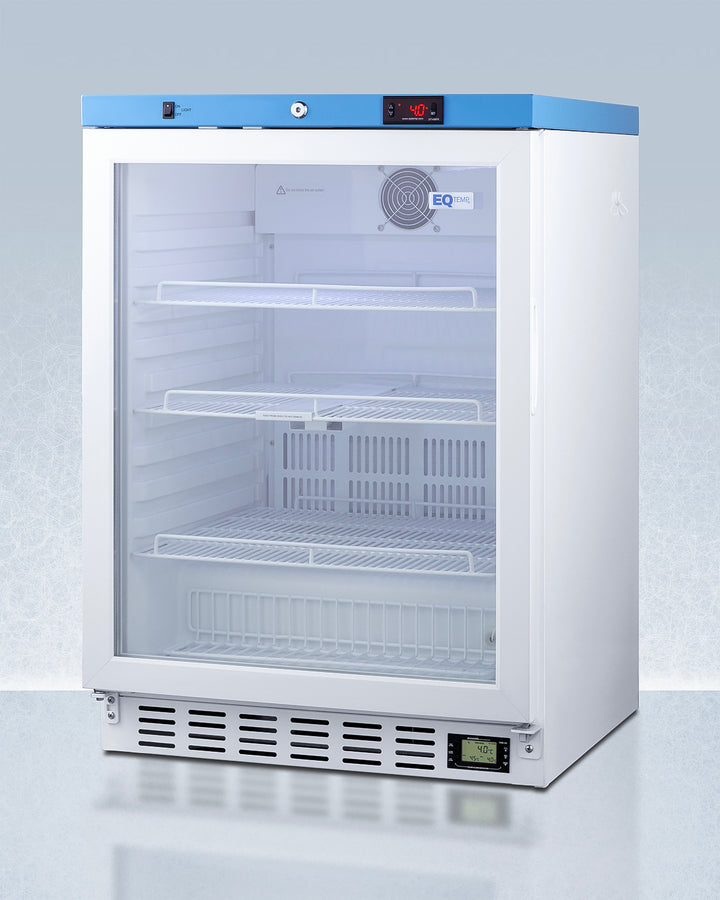

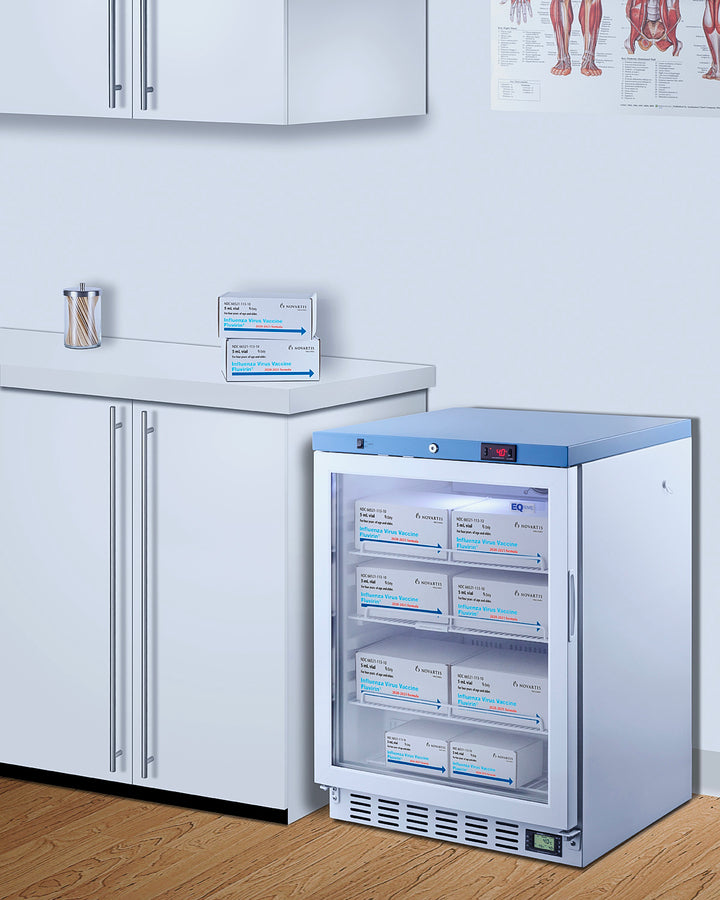

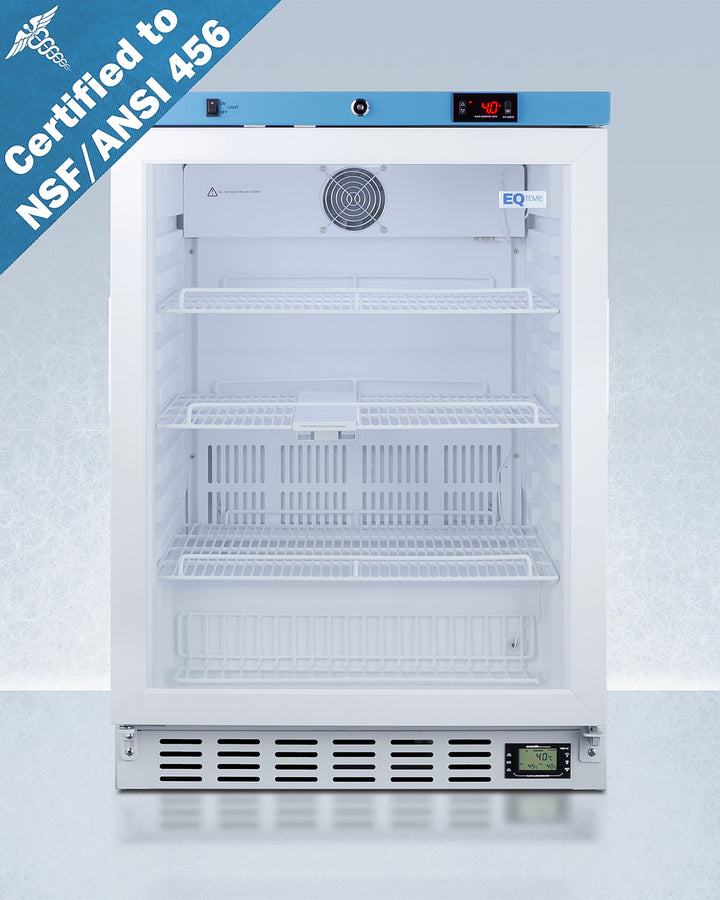

Model ACR52GNSF456 is an upright 3.88 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The glass door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas. This unit features a front-breathing design for safe built-in installation under counters. The fully finished cabinet also allows freestanding use.

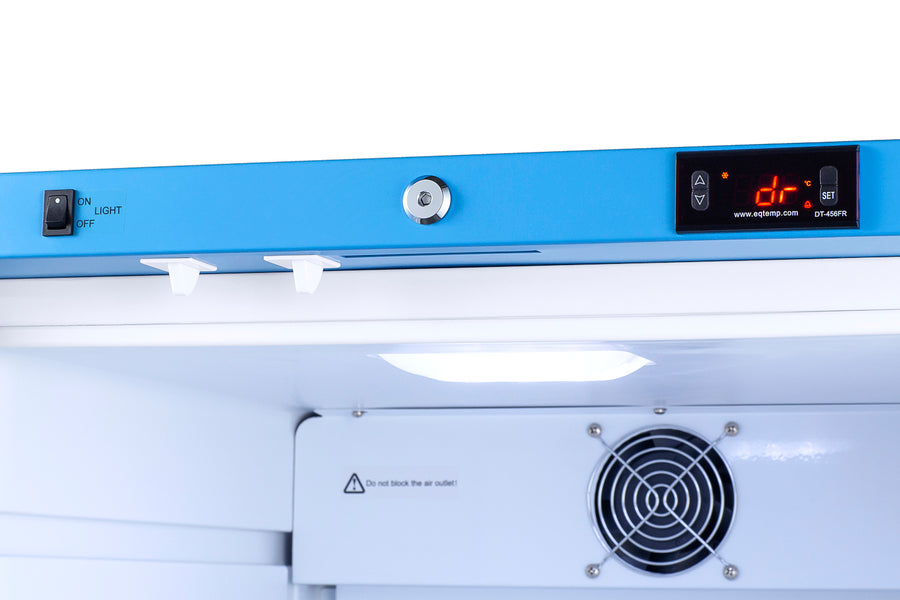

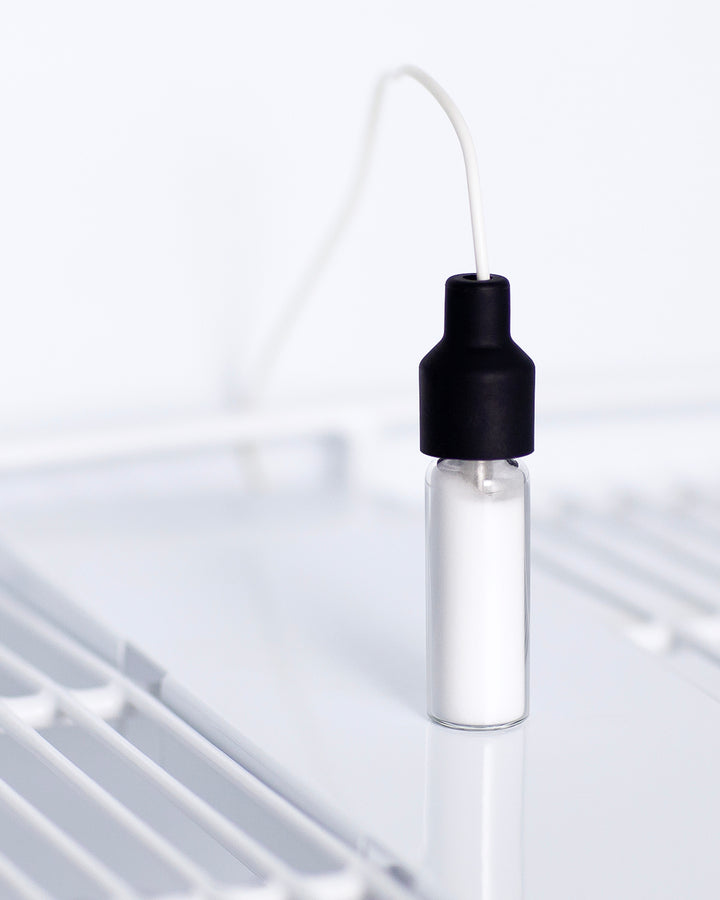

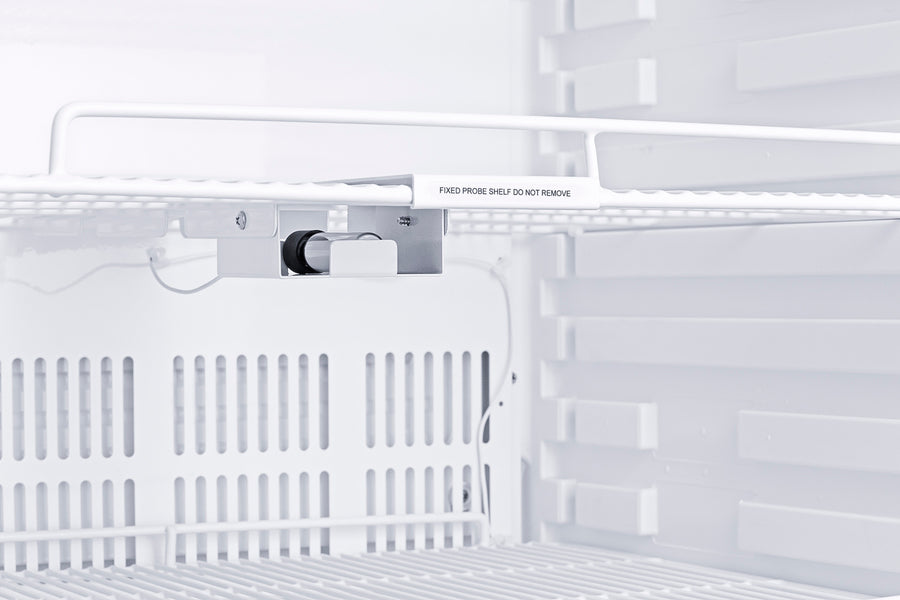

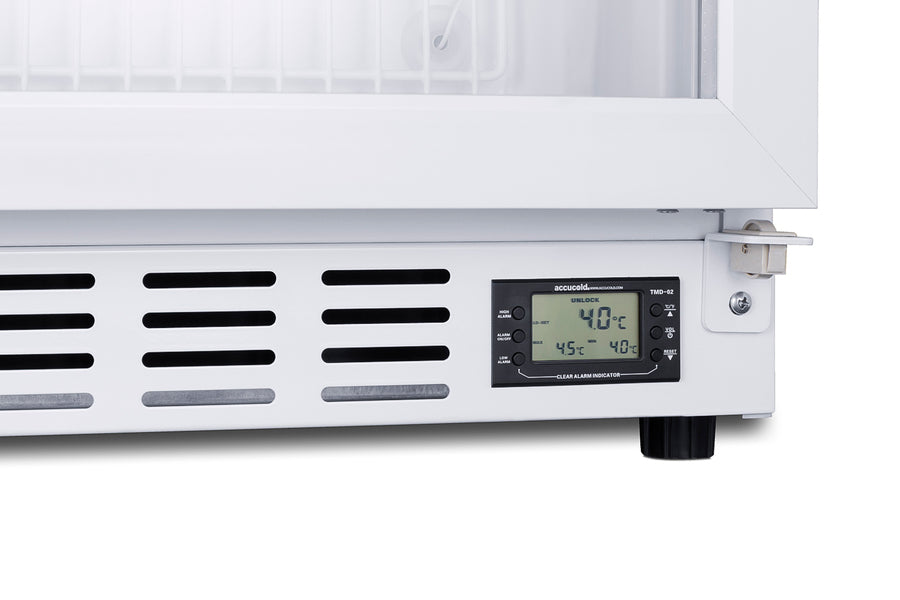

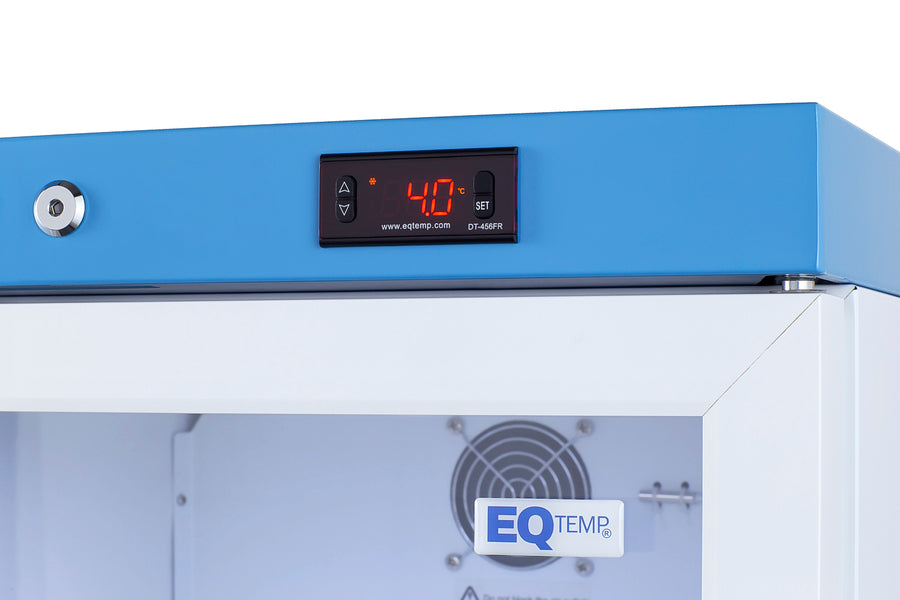

The ACR52GNSF456 includes an external readout of the interior temperature, as well as the high/low temperature as required for data records. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy and calibrated to NIST standards in our in-house ISO/IEC 17025:2017 certified laboratory. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred. The interior includes one wire shelf in the center to hold the temperature probe, as well as additional adjustable shelves to accommodate different sizes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance and an internal fan ensures powerful temperature recovery after door openings.
EQTemp's series of ACR refrigeration is certified to the NSF/ANSI 456 Vaccine Storage Standard. All models feature hydrocarbon refrigerant for a greener footprint.
Features:
- EQTemp Medical Refrigerator
- Certificate of calibration included
- Certified to NSF/ANSI 456 Vaccine Storage Standard
- Temperature Range: 2º to 8ºC
- External temperature readout
- Digital thermostat
- High/low temperature alarm
- Built-In capable
- Buffered temperature probe
- Access port
- Factory installed lock
- Automatic defrost
- Internal fan
- Temperature memory function
- Hospital grade cord with 'green dot' plug
- Fixed center shelf

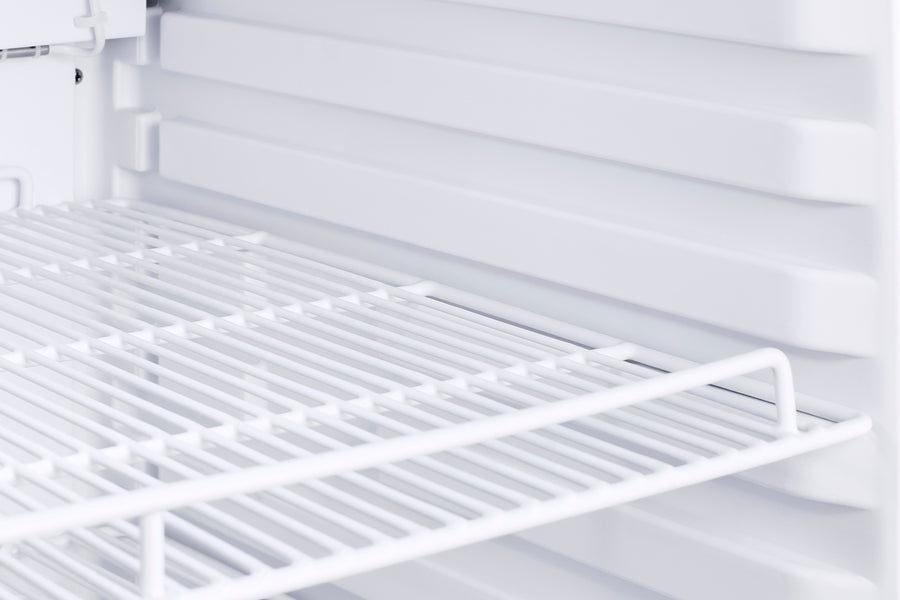

- Adjustable wire shelving
- Foamed-in-place cabinet
- Flat door liner
- LED lighting
- Self-closing door
- Pocket handle
- Open door alarm
- Magnetic door
- Fully finished white cabinet
- 100% CFC free
- CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.0" (86 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.5" (60 cm) |
| Width with Door Open | 23.75" (60 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 21.75" (55 cm) |
| Depth with door at 90° | 43.75" (111 cm) |
| Capacity | 3.88 cu.ft. (110 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S to NSF 456 |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 91.5 lbs. (42 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101083155 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 1.45 |
| Low Side PSI | 0.85 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2º to 8ºC |
| Sound Level | 42 dB |
|
Dimensions
|
|
| Interior Height | 25.88" (66 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 16.5" (42 cm) |
| Compressor Step Height | 4.0" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 11.5" (29 cm) |
