Summit ADFD243PNR 24" Wide 2-Drawer All-Freezer, ADA Compliant, Panel-Ready Drawers (Panels Not Included), Indoor/Outdoor Use
Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

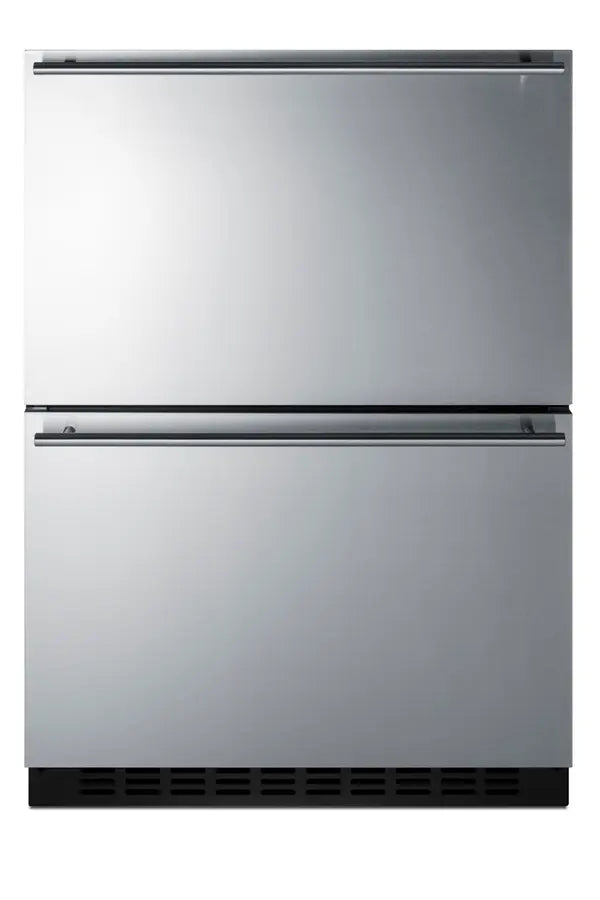

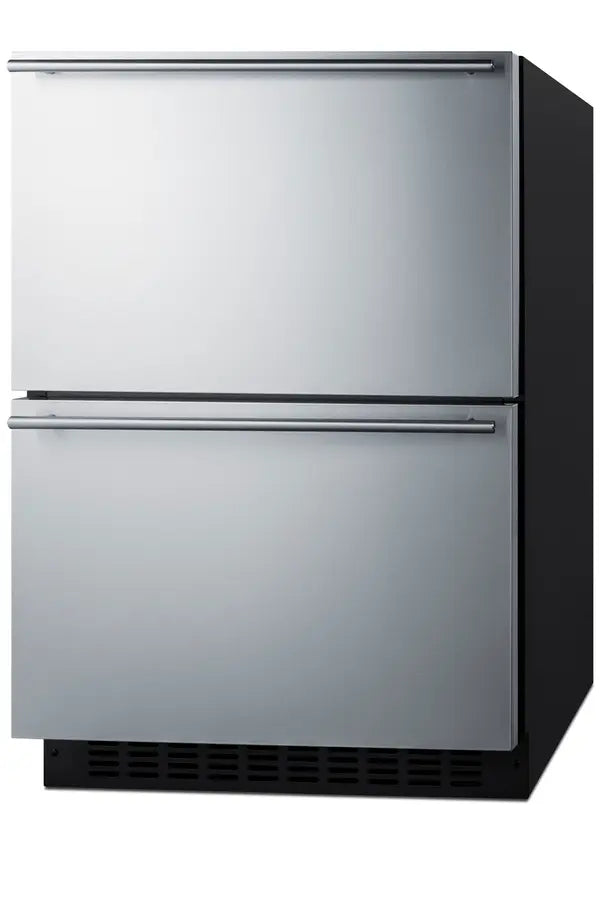

Sized at just under 24" wide and 32" high, model ADFD243PNR is a 2-drawer all-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer fronts are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces.

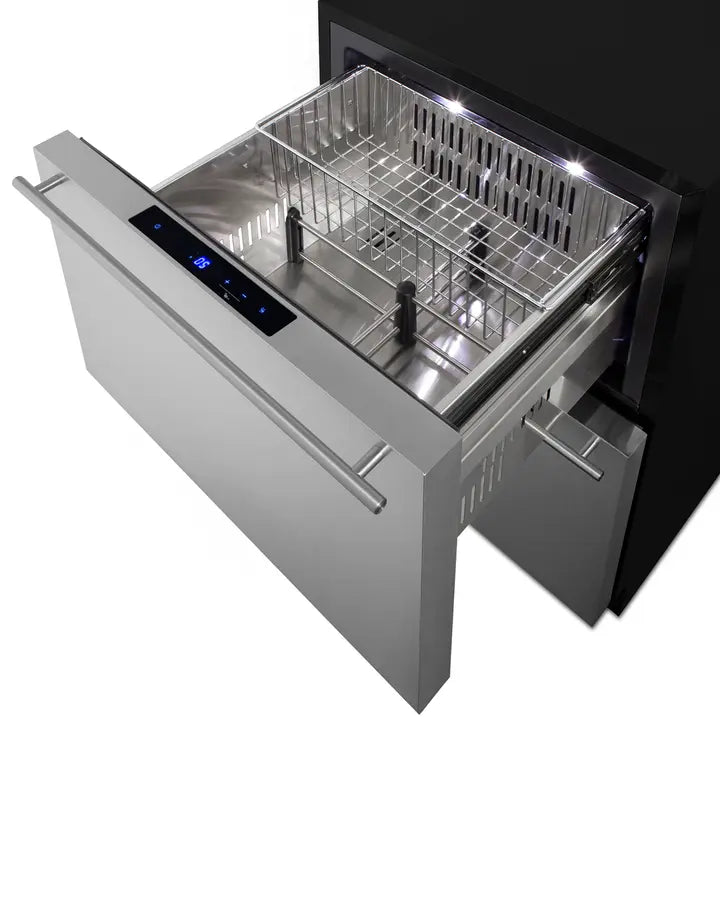

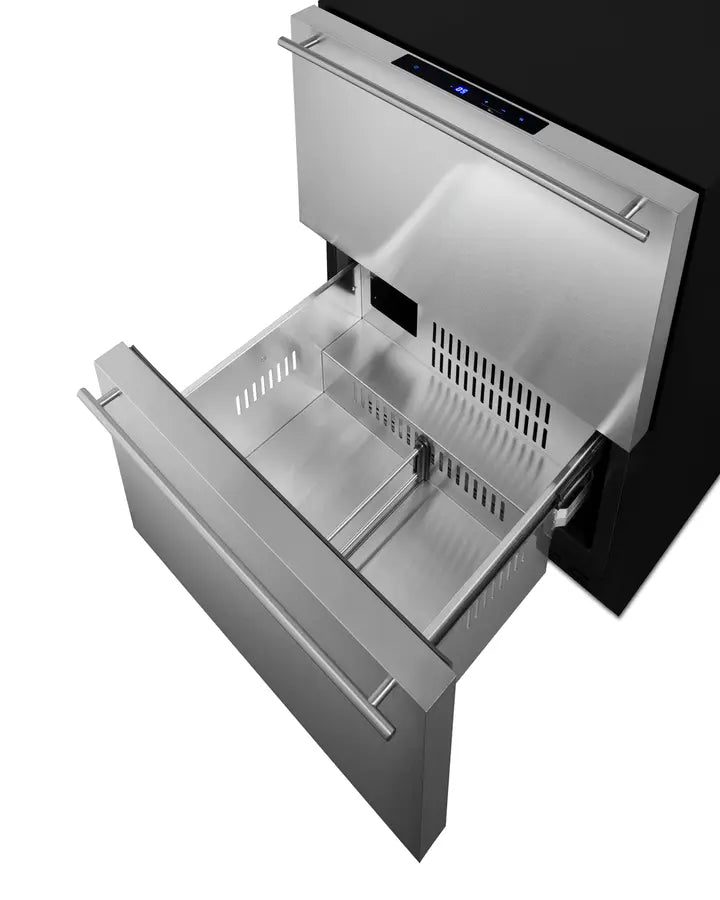

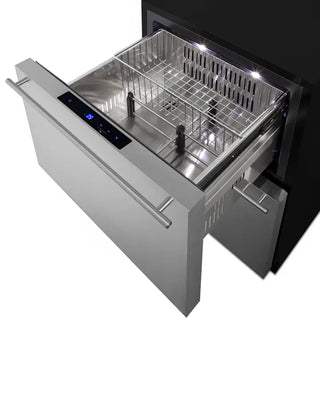

Inside, the ADFD243PNR has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ADFD243PNR is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241PNR) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244PNR). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.
Features:
- 24" Wide 2-Drawer All-Freezer
- ADA compliant design
- Panel-ready drawer fronts
- Built-in capable
- Indoor/Outdoor compatible
- Stainless steel drawers
- Professional handles
- Frost-free operation
- Digital thermostat
- LED lighting
- Internal fan
- Drawer dividers
- Sliding basket
- Temperature alarm
- Open drawer alarm
- Sabbath Mode
- SuperFreezer function
- Child lock
- Temperature Memory Function
- Right angle plug
- Sealed back
- Fully finished black exterior cabinet
- Anti-tip bracket
- Commercially approved
- Matching refrigerator
- 100% CFC free
- CARB Compliant
Specifications:
| Overview | |
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 23.88" (61 cm) |
| Depth with door at 90° | 34.25" (87 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 395.0 kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088204 |
| Freezer | |
|---|---|
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Interior Drawers | Yes |
| Drawers Qty | 2 |
| Interior Height - Drawer 1 | 8.0" (20 cm) |
| Interior Width - Drawer 1 | 17.0" (43 cm) |
| Interior Depth - Drawer 1 | 14.5" (37 cm) |
| Interior Height - Drawer 2 | 8.0" (20 cm) |
| Interior Width - Drawer 2 | 17.0" (43 cm) |
| Interior Depth - Drawer 2 | 14.5" (37 cm) |
| Compressor Step Height | 4.0" (10 cm) |
| Compressor Step Width | 17.0" (43 cm) |
| Compressor Step Depth | 3.5" (9 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
