Summit AL57GPNR 24" Wide Built-In Beverage Center, ADA Compliant (Panel Not Included), 4.63 cu.ft., Frost-Free Operation
Summit's ADA compliant line of 24" wide built-in refrigerators brings quality and style to settings with space restraints.

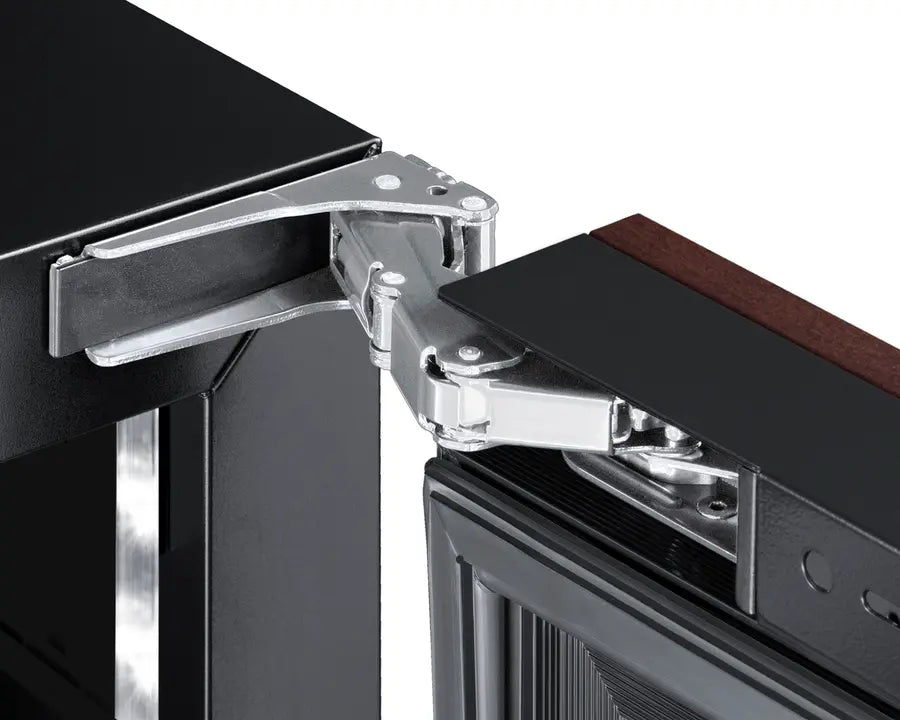

Model AL57GPNR is a 32" high beverage center designed for built-in or freestanding use under lower ADA compliant counters. The reversible glass door features a seamless stainless steel trim and two included brackets that let you customize the look to best match adjacent cabinetry (recommended panel dimensions: 28.34" H x 23.4" W with a 3 1/4" H x 3 1/4" W frame; panel thickness: 3/4"). The European style fully articulating hinge ensures the door opens in its own radius. A factory-installed lock offers additional security, while the sealed rear and right angle plug provide added space savings.

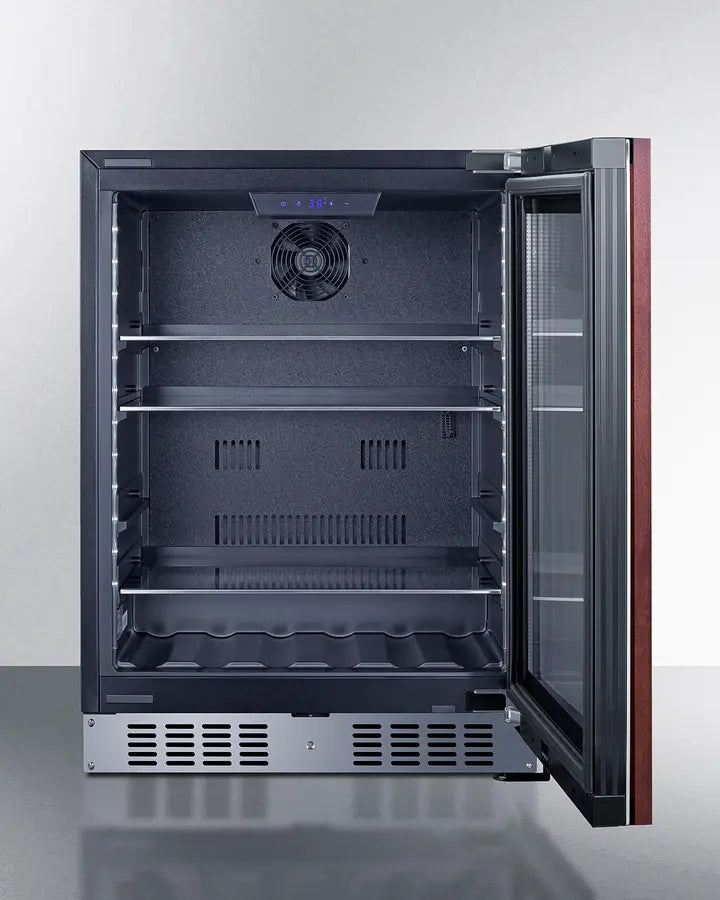

Inside, the AL57GPNR utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant settings.

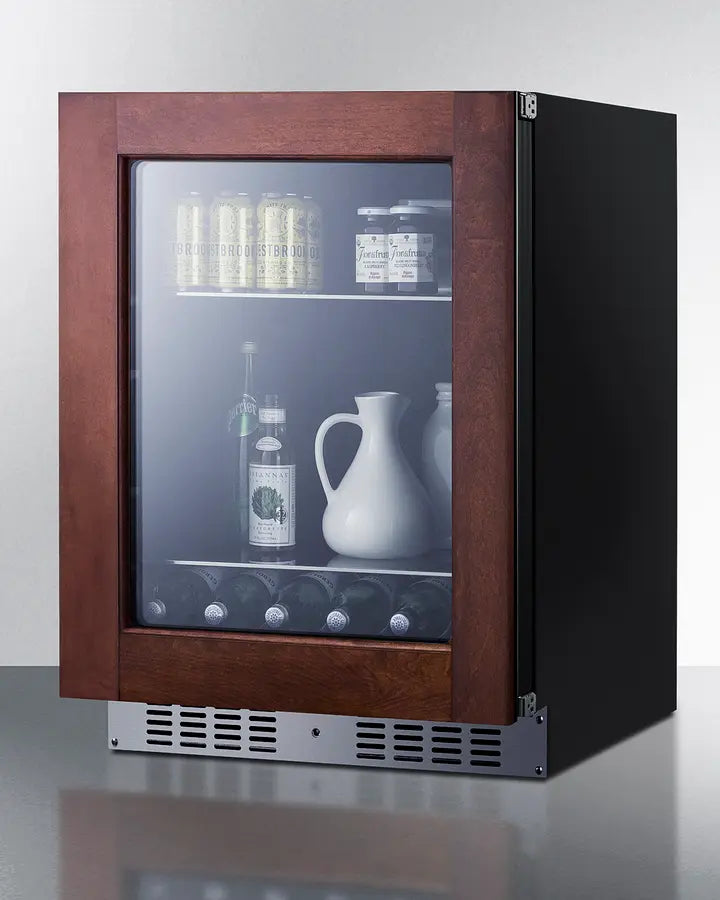

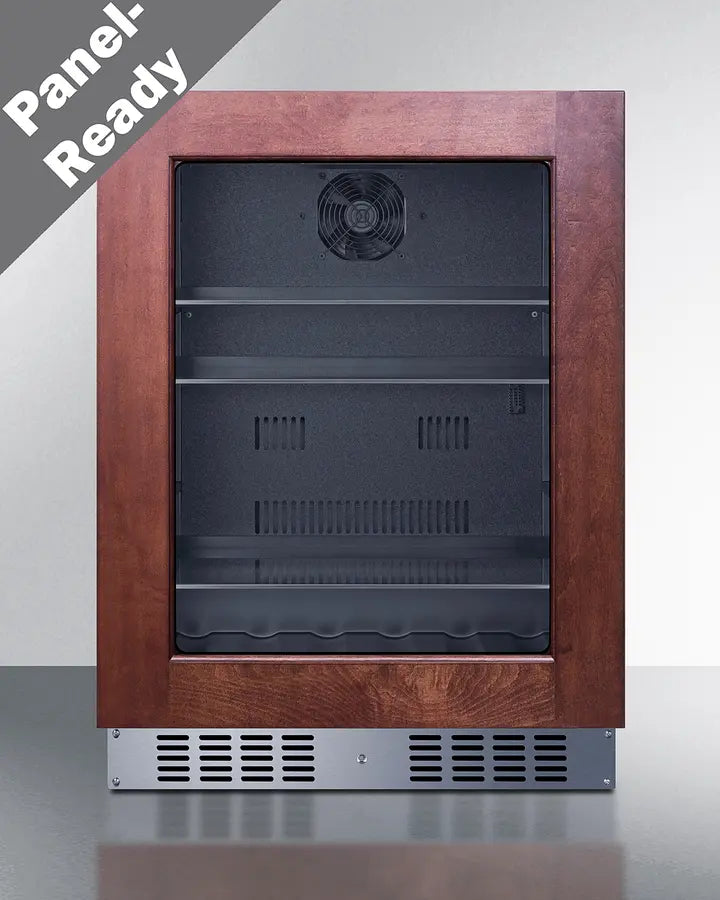

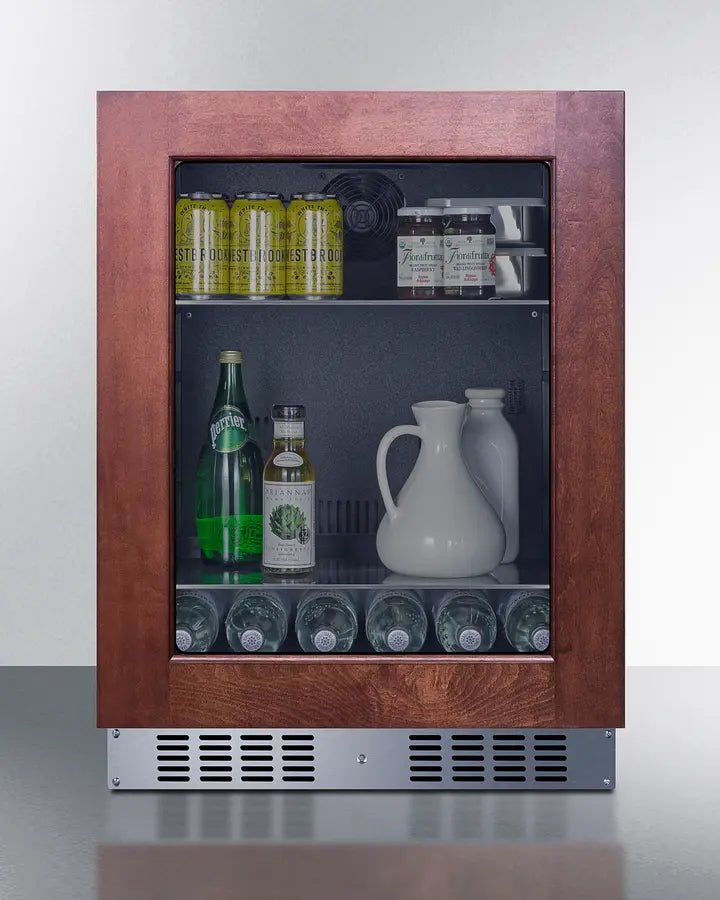

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.
Features:
• 24" Wide Undercounter Beverage Center
• ADA compliant design
• Built-in capable
• Panel-ready door trim
• Stainless steel door trim
• Double pane tempered glass door
• Factory installed lock
• Frost-free operation
• Digital thermostat
• Recessed LED light
• Adjustable glass shelves
• Bottle slots
• Internal fan
• Open door alarm
• High temperature alarm
• Sabbath mode setting
• Temperature Memory Function
• Sealed back
• Right angle plug
• Fully finished black cabinet
• 100% CFC Free
• CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.75" (58 cm) |
| Depth with door at 90° | 46.0" (117 cm) |
| Capacity | 4.63 cu.ft. (131 L) |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 290.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065922 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.6 dB |
|
Dimensions
|
|
| Interior Height | 24.38" (62 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
