Summit ALFZ37BCSS 21" Wide Built-In All-Freezer, ADA Compliant, Stainless Steel with Professional Towel Bar Handle, Manual Defrost, 2.68 cu.ft.
Summit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.
The ALFZ37BCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

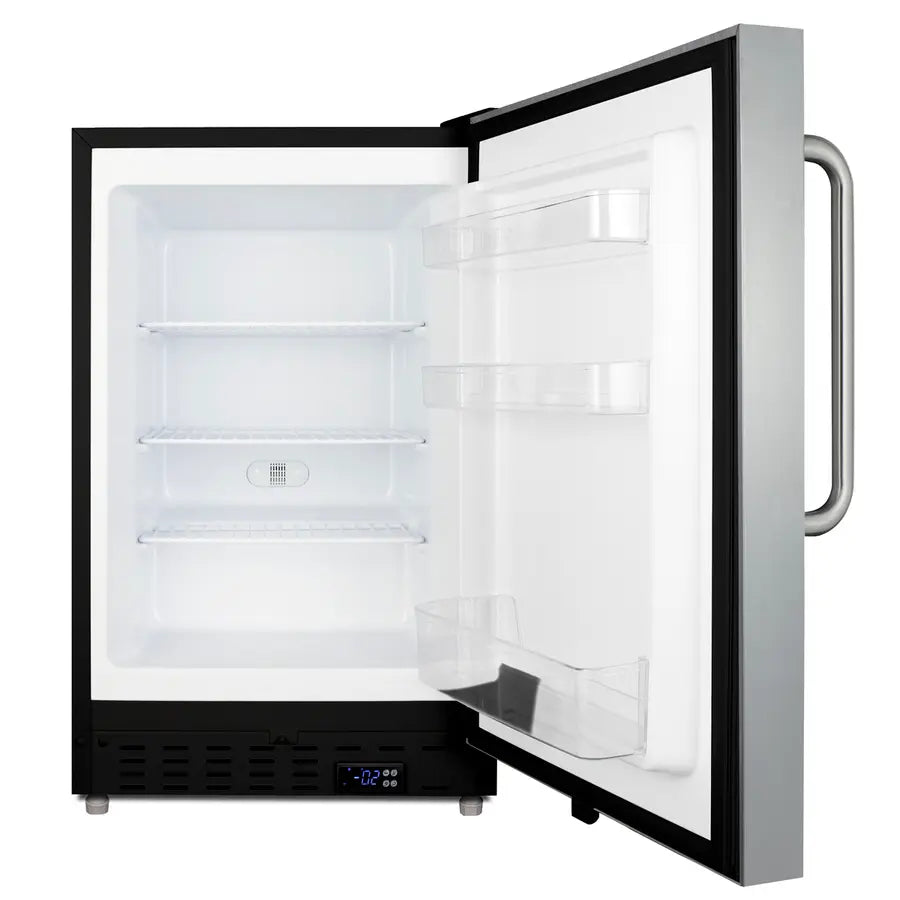

Inside, the ALFZ37BCSS features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.
Sized at just 21" wide, the ALFZ37BCSS is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47BCSS all-refrigerator. Additional choices are available with a black cabinet and panel-ready exterior finishes.
Features:
- 21" Wide Built-In All-Freezer
- ADA compliant design
- Built-in capable
- Stainless steel construction
- Professional towel bar handle
- User-reversible door
- Digital thermostat
- LED lighting
- Adjustable wire shelves
- Door storage racks
- Temperature alarm
- Open door alarm
- Sealed back
- Right-angle plug
- Manual defrost
- Matching all-refrigerator
- 100% CFC free
- CARB Compliant
Specifications:
| Overview | |
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.88" (53 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 266.0 kWh/year |
| Amps | 0.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076591 |
| Freezer | |
|---|---|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Full Door Shelves | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.83 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Wheels | 2 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -13 to 5ºF |
| Sound Level | 33.1 dB |
Available Upgrades Exterior DL2B – Factory installed NIST calibrated digital data logger (DDL) CAS3 – 3" casters Alarm/Thermometer – Factory-installed alarm with external temperature readout
Handle TBC – Copper Towel Bar Handle
Lock L-SideLock KEYPAD – Battery-powered keypad door lock AC Keypad – AC powered keypad lock
General Information:
- Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from vendor. Not cancellable, not returnable once processed.
- Shipping: Heavy item – freight charges may apply. Calculated at checkout.
- Installation Tips: Designed for built-in or freestanding installation under counters. Ensure proper ventilation. Test all functions before use.
- Cleaning: Wipe exterior and interior with mild soap/water or approved cleaner. Avoid abrasive materials.
- Permissible Ambient: Indoor use (also suitable for outdoor with proper protection).
- Applications: Kitchens, undercounter refrigeration, ADA compliant spaces, residential and light commercial settings. Volume discounts available – call or email for orders of 10+ units.
