Summit ALFZ37BFROST 20" Wide Drink Froster, ADA Compliant 2.68 cu.ft., Sub-Zero Drink Froster, Built-In Capable, Digital Thermostat Controls, Audible Security Alarms

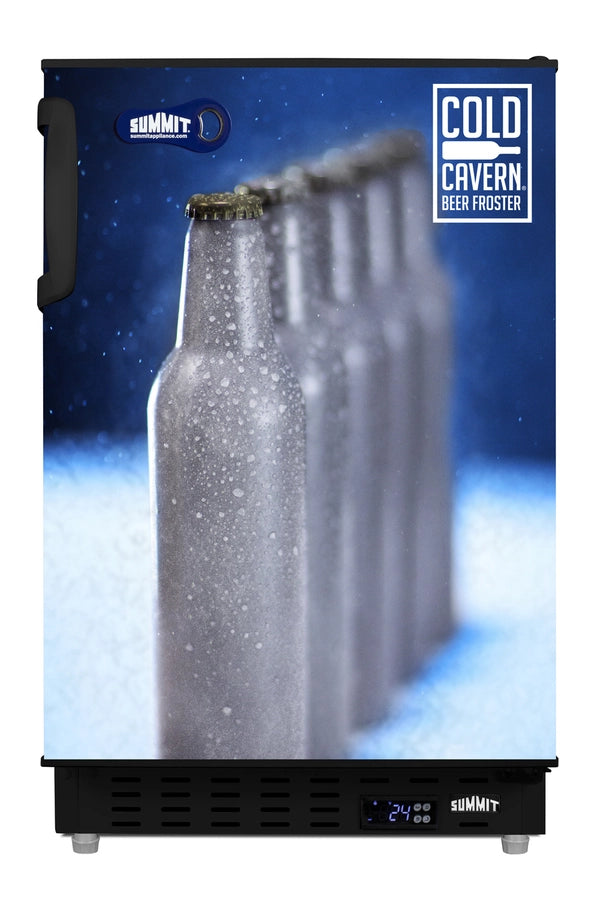

The Summit 20" Wide Drink Froster (Model ALFZ37BFROST) is an ADA-compliant undercounter freezer specially designed to store aluminum bottles and cans at an arctic serving temperature of 24°F. Featuring a compact 20-inch footprint and a 32-inch cabinet height, this 2.68 cu. ft. unit fits seamlessly under lower ADA-compliant counters for built-in or freestanding applications in home bars, lounges, and hospitality spaces.
Pre-set to 24°F, the ALFZ37BFROST creates a crisp, frosted bottle presentation for lighter beverages. The digital thermostat, integrated into the kickplate, allows precise temperature monitoring and adjustments in Fahrenheit or Celsius between +24°F and +35°F. Inside, static cooling and efficient manual defrost operation maintain consistent internal temperatures across three adjustable wire shelves and three removable door racks.
Engineered with a front-breathing design, a fully finished black cabinet, and a 3-inch thick reversible door for superior thermal efficiency, this unit delivers high-performance cooling. Additional safety and utility features include user-set high/low temperature alarms, an open-door alarm, a right-angle power plug, a removable magnetic bottle opener, and eco-friendly CARB-compliant R600a refrigerant.
Features
- ADA-Compliant Design: Sized at 32 inches high to fit beneath lower ADA-compliant counters.
- Sub-Zero Drink Froster: Pre-set to 24°F to keep aluminum cans and bottles at an arctic serving temperature.
- Built-In Capable: Front-breathing ventilation allows recessed undercounter installation or freestanding display.
- Cold Cavern Graphic Decal: Styled with Summit's exclusive Cold Cavern door decal on a fully finished black cabinet.

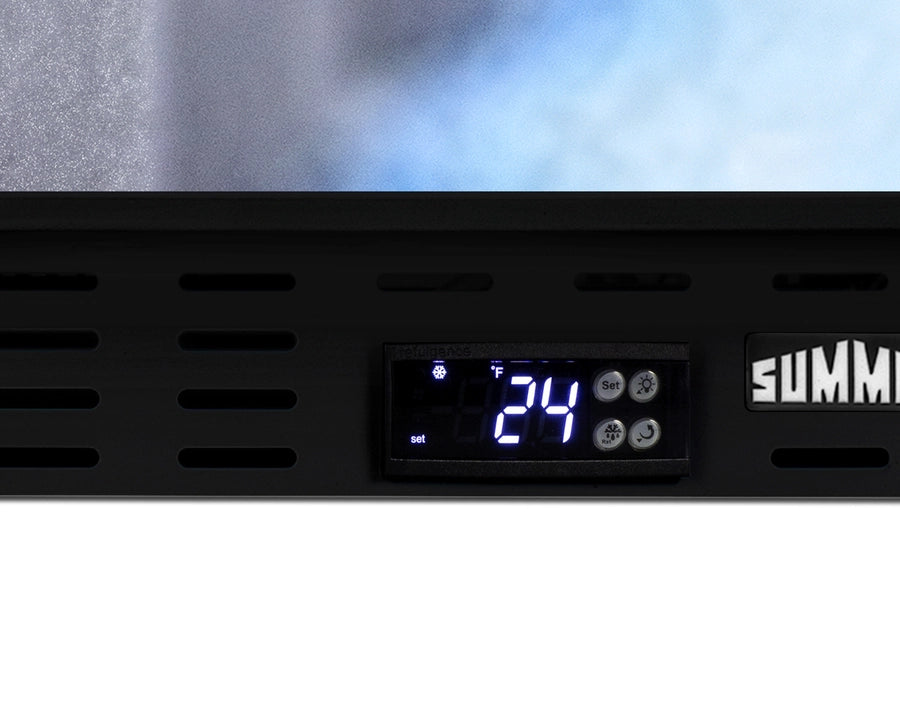

- Digital Thermostat Controls: Easy-to-read digital display located in the kickplate, switchable between Fahrenheit and Celsius.
- 3-Inch Thick Insulated Door: Extra-thick reversible door improves insulation efficiency and temperature retention.

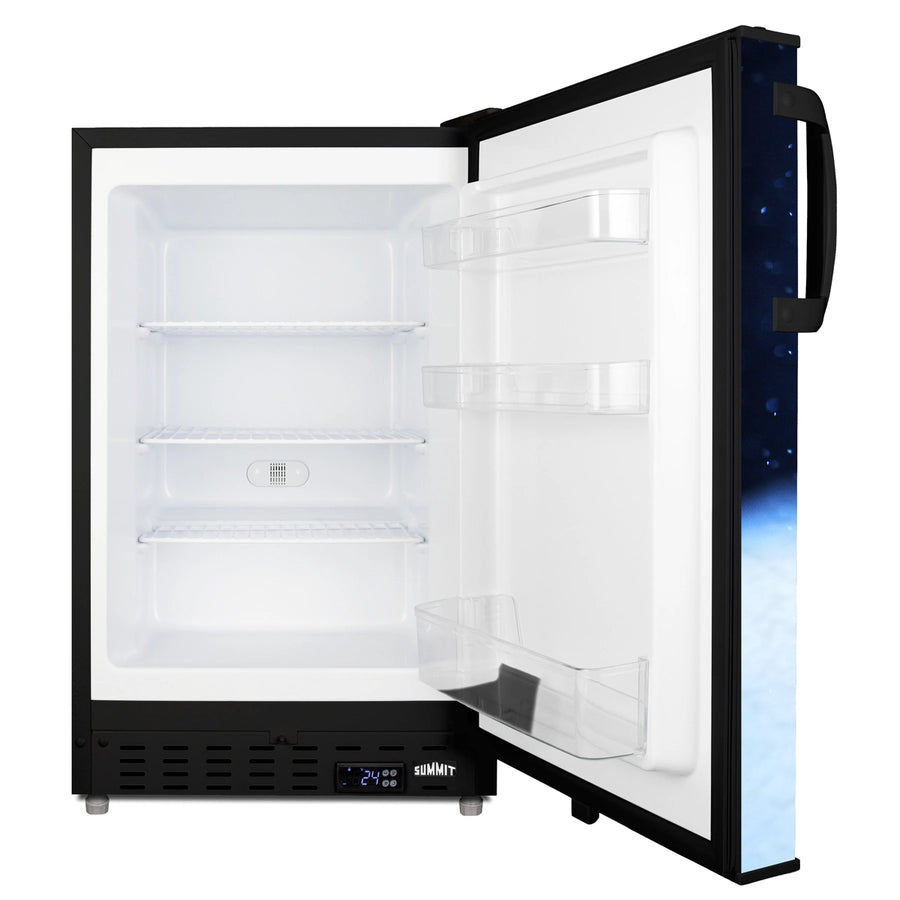

- Adjustable Storage Options: Includes 3 adjustable wire shelves and 3 removable door racks for flexible loading.
- Audible Security Alarms: User-configurable high/low temperature alarms and open-door alarm for peace of mind.
- Magnetic Bottle Opener: Includes a convenient removable magnetic bottle opener.
- Manual Defrost System: Provides exceptional temperature stability and energy-efficient performance.
- Eco-Friendly Cooling: CARB-compliant R600a hydrocarbon refrigerant with zero ozone depletion.
Specifications
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.88" (50 cm) |
| Width with Door Open | 20.88" (53 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Decal |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 266.0kWh/year |
| Amps | 0.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 85.0 lbs. (39 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077826 |
|
Freezer
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Full Door Shelves | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.83 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Wheels | 2 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | +24ºF to +35°F |
| Sound Level | 33.1 dBa |
