Summit ALFZ37BIF 21" Wide Built-In All-Freezer, ADA Compliant, Panel-Ready Door (Panels Not Included), Black Cabinet, Manual Defrost, 2.68 cu.ft.
Summit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

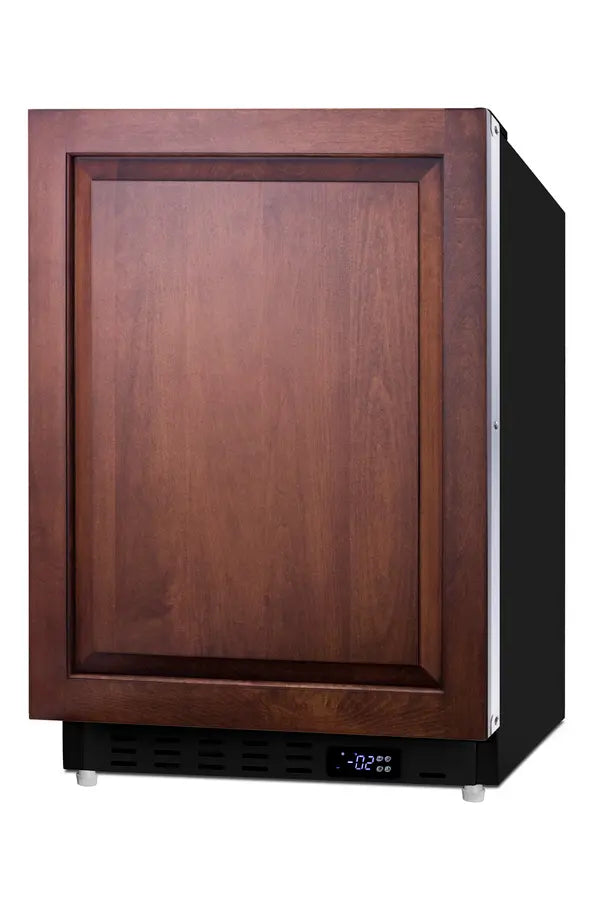

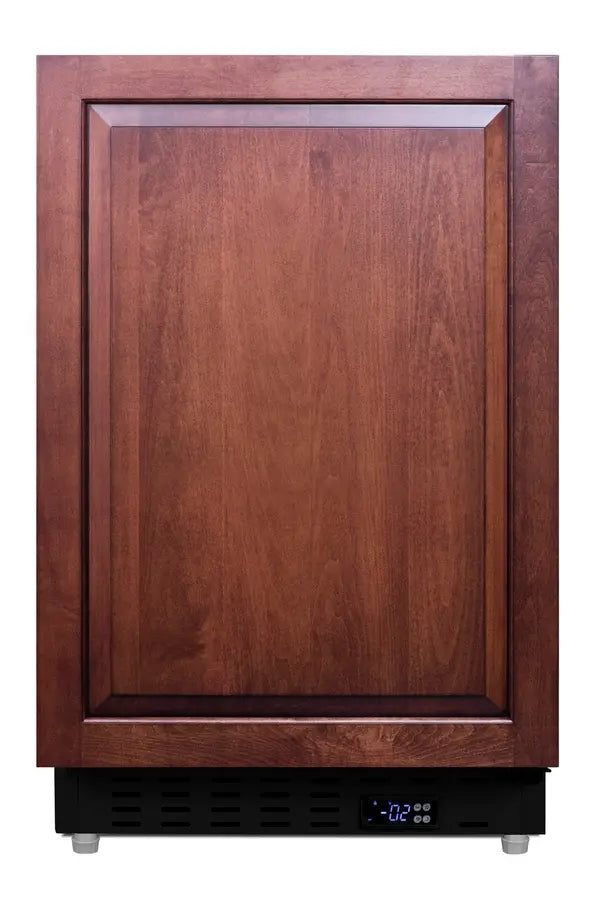

The ALFZ37BIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

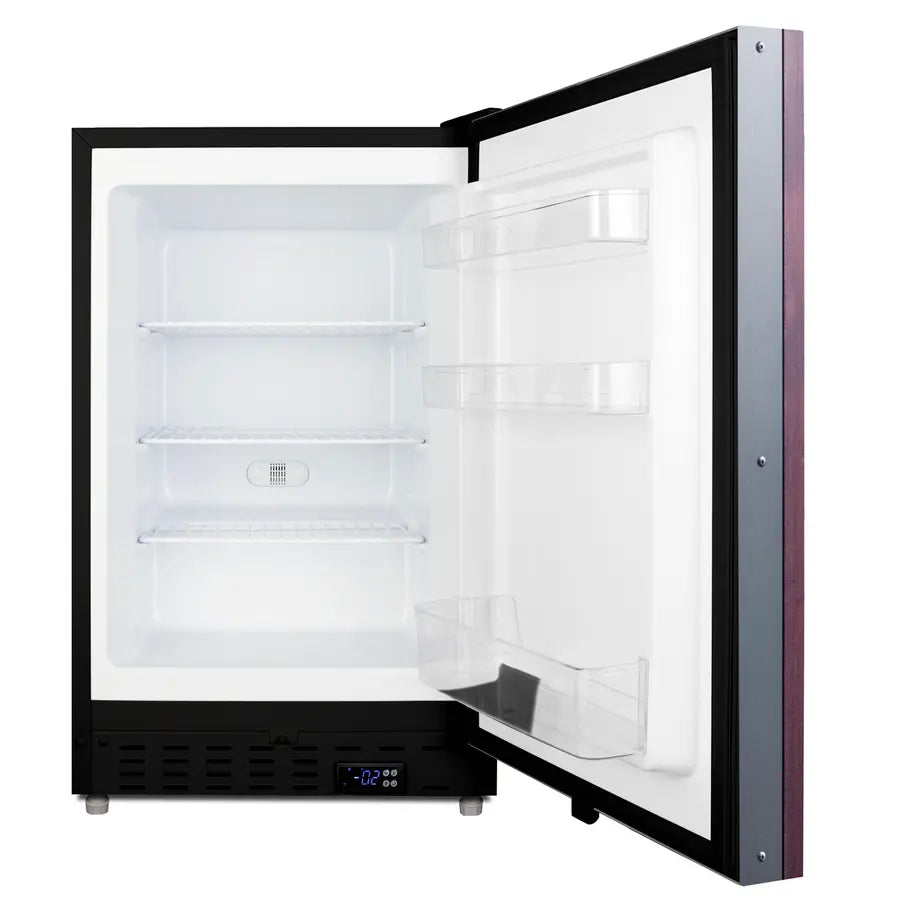

Inside, the ALFZ37BIF features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.
Sized at just 21" wide, the ALFZ37BIF is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47BIF all-refrigerator. Additional choices are available in complete stainless steel and black cabinet finishes.
Features:
- 21" Wide Built-In All-Freezer
- ADA compliant design
- Built-in capable
- Panel-ready door with integrated stainless steel frame
- User-reversible door
- Digital thermostat
- LED lighting
- Adjustable wire shelves
- Door storage racks
- Temperature alarm
- Open door alarm
- Sealed back
- Right-angle plug
- Manual defrost
- Matching all-refrigerator
- 100% CFC free
- CARB Compliant
Specifications:
| Overview | |
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.25" (51 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 266.0 kWh/year |
| Amps | 0.6 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101076607 |
| Freezer | |
|---|---|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Wire |
| Shelf Qty | 3 |
| Full Door Shelves | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.83 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Wheels | 2 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -13 to 5ºF |
| Sound Level | 33.1 dB |
