Summit ALFZ53IF 24" Wide Built-In All-Freezer, ADA Compliant, Panel-Ready Door (Panels Not Included), Frost-Free, Black Cabinet, 3.7 cu.ft.
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

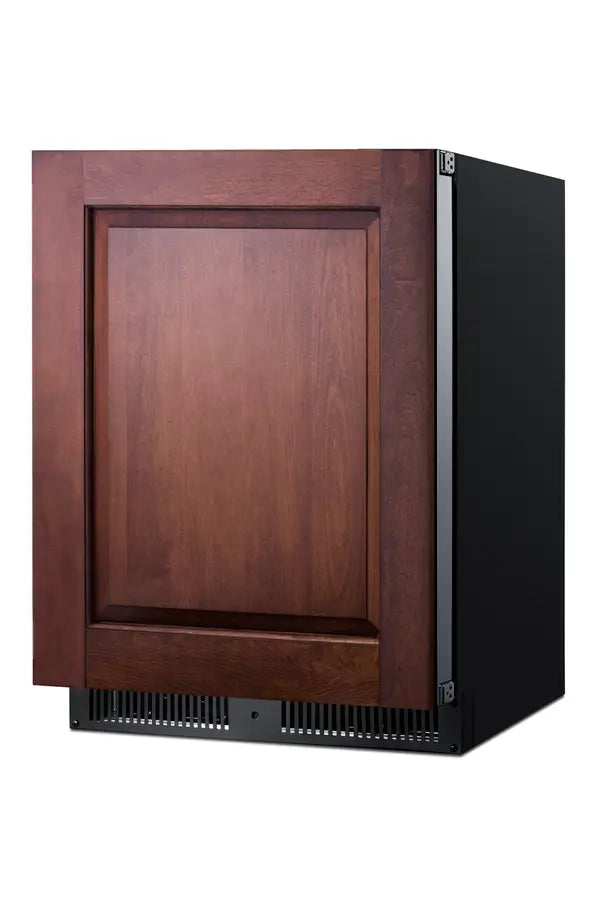

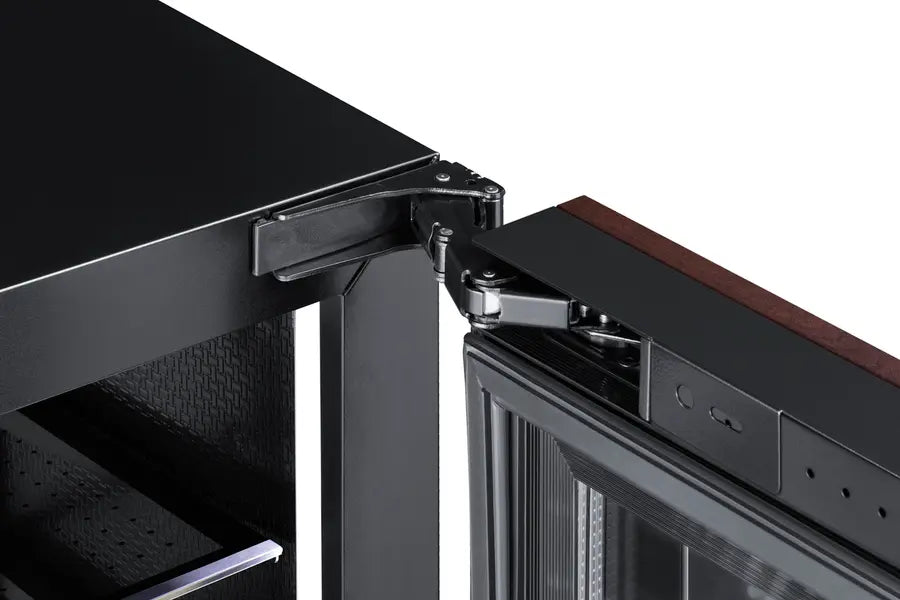

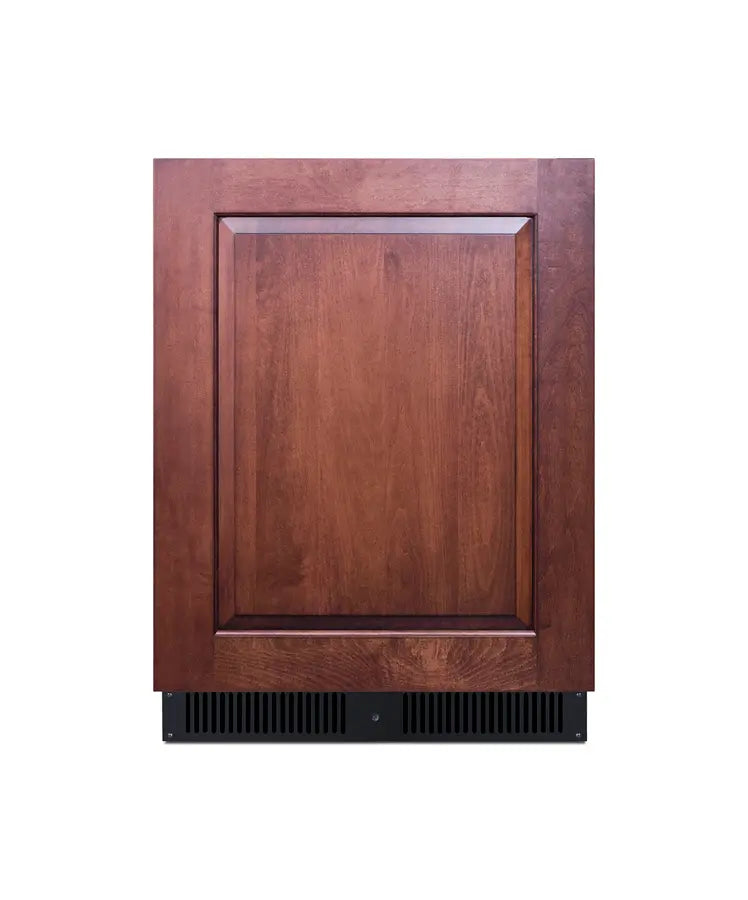

Model ALFZ53IF is a 24" wide all-freezer that can be paired with our AL54PNR all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate.

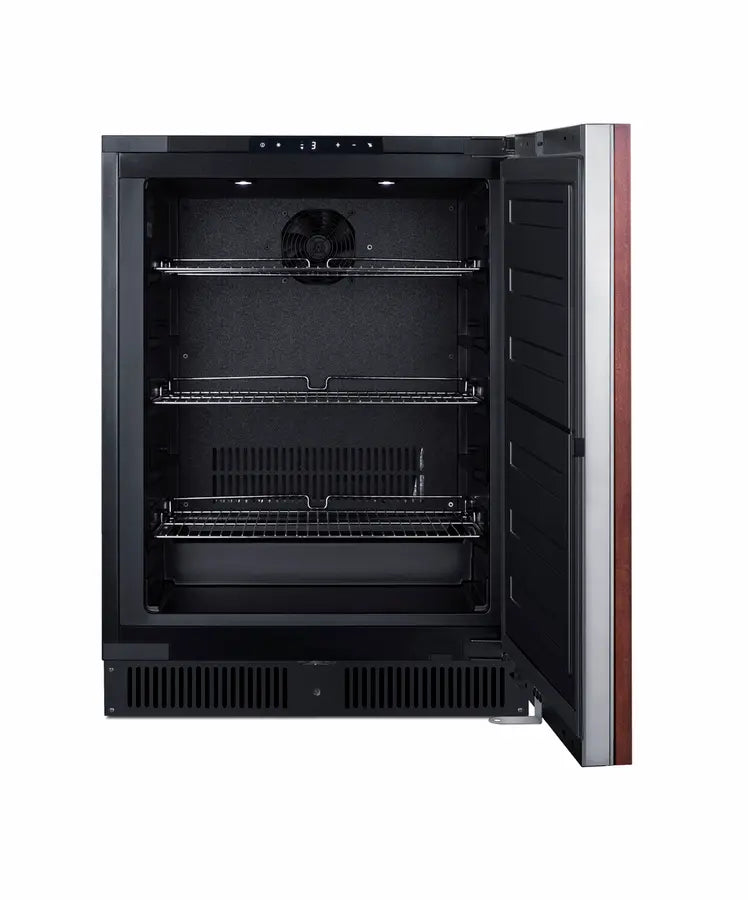

Inside, the ALFZ53IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management.
With its deluxe style and user-friendly features, this unit is the perfect choice for ADA compliant kitchens. It's a perfect match for our AL54PNR all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options.
Features:
- 24" Wide Built-In All-Freezer
- ADA compliant design
- Built-in capable
- Panel-ready door with 2-piece bracket kit
- Frost-free operation
- European-style fully articulating hinge
- User-reversible door
- Digital thermostat
- Factory installed lock (in kickplate)
- Adjustable chrome shelves
- Recessed LED lighting
- Interior and exterior fan
- Open door alarm
- High temperature alarm
- Sabbath Mode
- Right-angle plug
- Sealed back
- Fully finished black cabinet
- Matching panel-ready refrigerator available
- 100% CFC free
- CARB Compliant
Specifications:
| Overview | |
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 3.7 cu.ft. (105 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 345.0 kWh/year |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088037 |
| Freezer | |
|---|---|
| Door Swing | RHD |
| Reversible | Yes |
| Interior Height | 23.5" (60 cm) |
| Interior Width | 18.75" (48 cm) |
| Interior Depth | 15.5" (39 cm) |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.31 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs | 4 |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 18.75" (48 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Temperature Range | -11°F to 11°F |
| Sabbath Mode | Yes |
| Sound Level | 33.7 dB |
