Summit ALR15BSSPNR 15" Wide Built-In All-Refrigerator ADA Compliant, 2.2 cu.ft. (Panel Not Included), Custom Panel-Ready Door, Built-In Front-Breathing Cooling, Factory-Installed Keyed Lock
The Summit 15" Wide Built-In All-Refrigerator (Model ALR15BSSPNR) is an ADA-compliant undercounter refrigerator designed for seamless custom integration into residential, office, or commercial cabinetry. Featuring a 14.75-inch footprint, a fully finished black cabinet, and a 32-inch cabinet height, this 2.2 cu. ft. capacity unit fits perfectly beneath lower ADA-compliant counters.

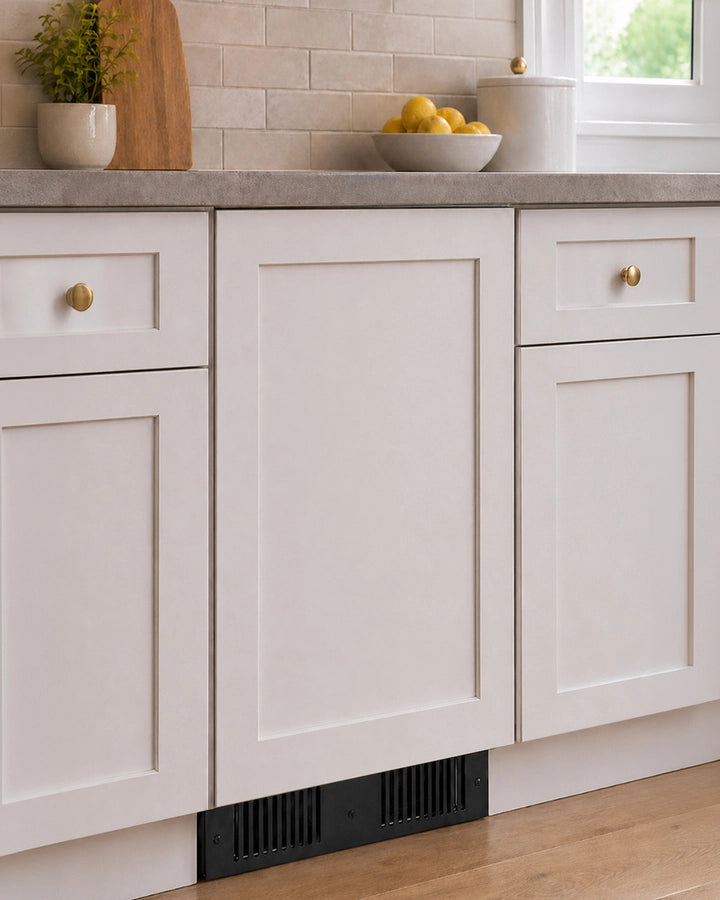

Equipped with a panel-ready door frame and fully articulating European-style hinges, the ALR15BSSPNR includes a two-piece bracket kit to attach custom overlay panels (panel size: 14 5/8" W x 28 3/8" H, minimum 3/4" thick, up to 10 lbs; handle provided by customer). Its front-breathing design permits fully recessed built-in installation flush with surrounding cabinets, while the fully finished black cabinet allows freestanding use. The user-reversible door swing adds maximum layout flexibility.

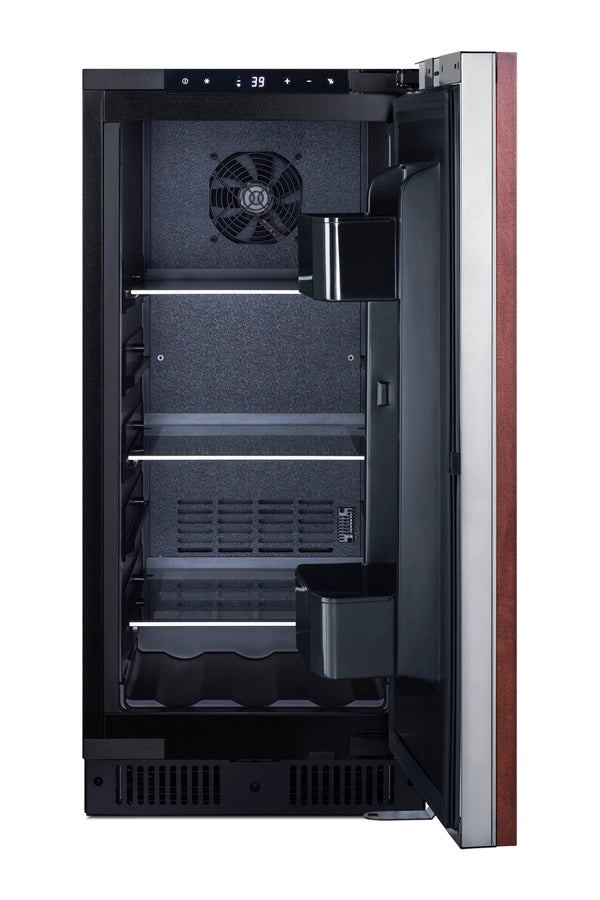

Inside, fan-forced cooling and frost-free operation provide precise temperature management (36°F to 43°F range) with minimal maintenance. Premium operational features include an electronic digital thermostat with Celsius/Fahrenheit readout, three adjustable spill-proof glass shelves, two door racks for tall bottle storage, recessed LED lighting, a factory-installed keyed lock, temperature memory, high/low temperature alarms, an open-door alarm, ultra-quiet sound operation at 32.6 dB, and STAR-K certified Sabbath mode (up to 96 hours).
Features:
- 15" Wide ADA Compliant All-Refrigerator
- 32" high all-refrigerator designed for built-in installation under ADA counters
- ADA Compliant
- Sized just under 32" high to fit under lower ADA compliant counters
- Built-in capable
- Make the best use of space by installing your appliance under the counter
- Panel-ready door

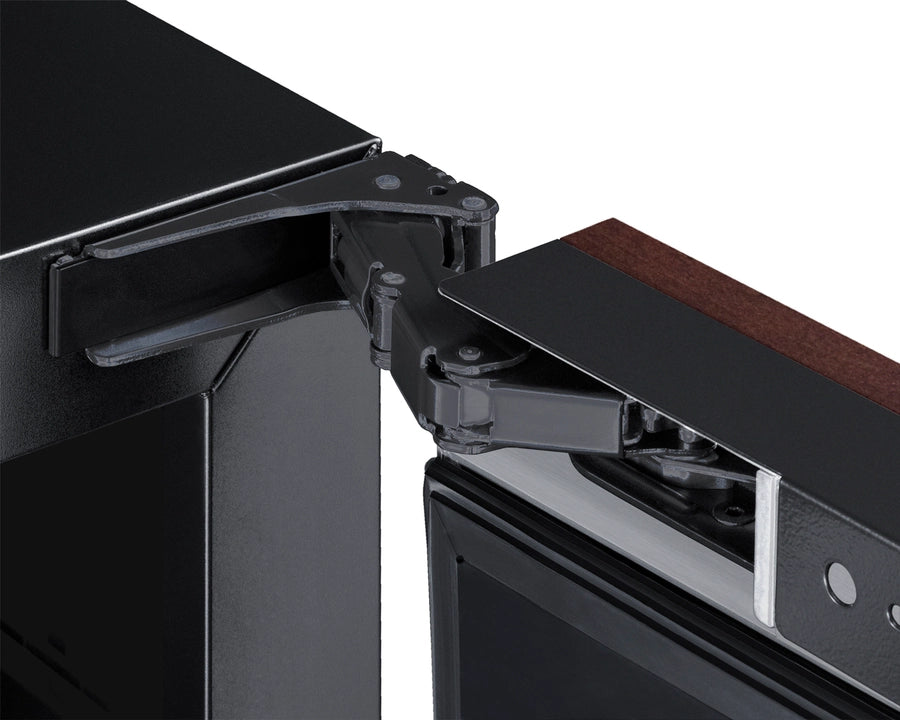

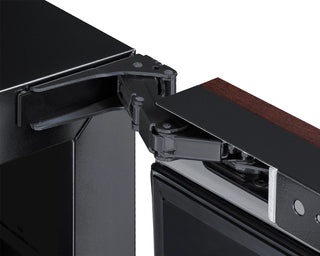

- European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 14 5/8" W x 28 3/8" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
- Digital thermostat
- Electronic controls for precise temperature management.
- Digital display
- Temperature readout can be shown in Celsius or Fahrenheit
- LED lighting
- Gentle illumination in an energy efficient design
- Frost-free operation
- No-frost operation ensures reduced maintenance
- Adjustable glass shelves
- Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Door storage
- Two racks offer the perfect storage solution for tall bottles and condiments
- Sabbath mode setting
- Optional setting lets you disable the lighting and alarm for up to 96 hours
- Open door alarm
- Alarm sounds if the door is left open for more than 60 seconds
- High temperature alarm
- Audible alarm sounds if the interior temperature rises out of set range
- Reversible door
- User-reversible door swing for added flexibility to best accommodate your setting
- Right angle cord
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Flush back
- Space saving design that is easy to clean
- Temperature memory function
- In the event of power loss, unit will return to its last settings when power is restored
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- STAR-K Certified
- Complies with kosher requirements for use during the Sabbath and Jewish holidays
Specifications:
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 14.75" (37 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Panel | 23.5" (60 cm) |
| Depth with door at 90° | 38.0" (97 cm) |
| Capacity | 2.2 cu.ft. (62 L) |
| Defrost Type | Frost-Free |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 240.0kWh/year |
| Amps | 1.0 |
| Plug Type | NEMA 5-15P (Right Angle) |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 60.0 lbs. (27 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101161464 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.78oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 32.6 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 10.5" (27 cm) |
| Interior Depth | 16.75" (43 cm) |
| Compressor Step Height | 3.5" (9 cm) |
| Compressor Step Width | 10.5" (27 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
