Summit ALRF48 20" Wide Built-In Refrigerator-Freezer, ADA Compliant, Manual Defrost, Adjustable Thermostat, Reversible Door White, 2.68 cu.ft.
Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

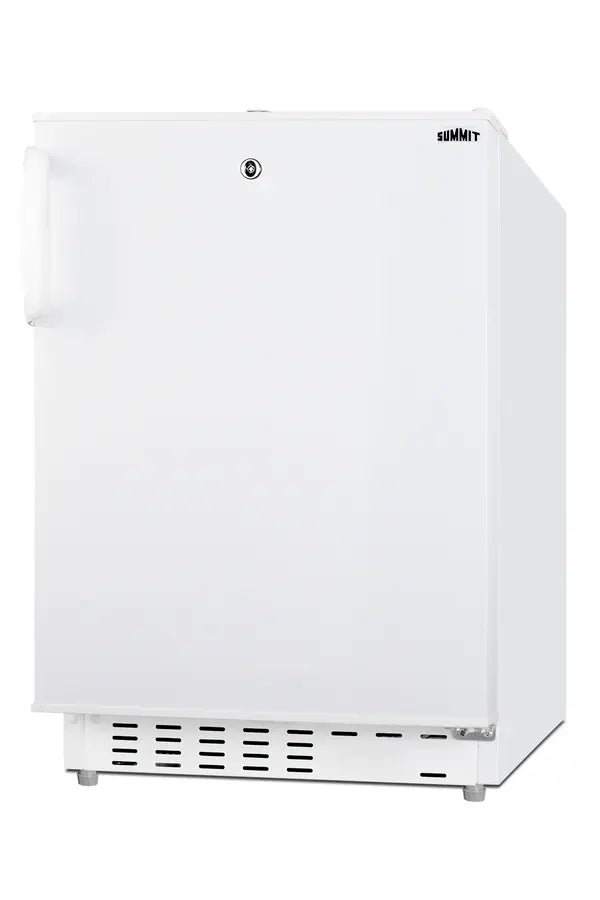

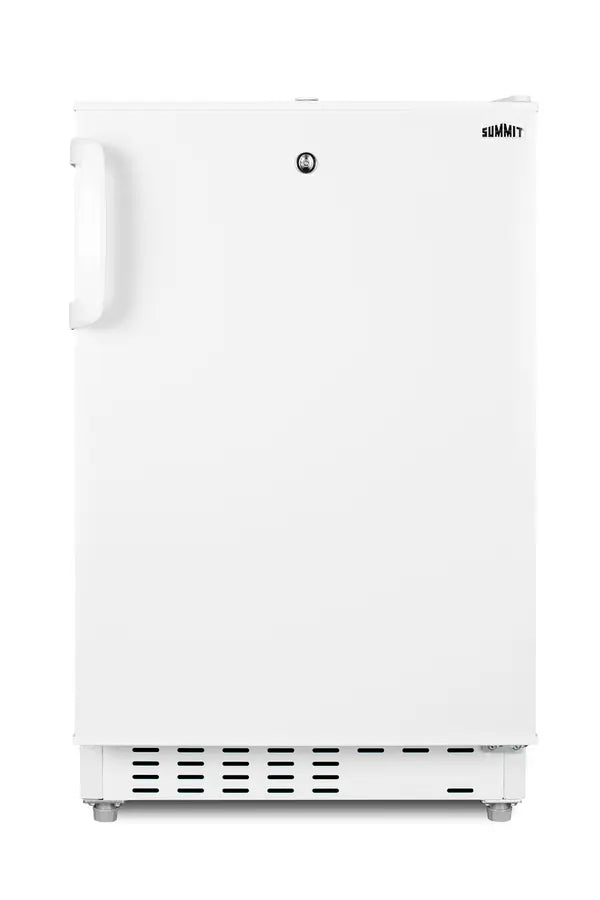

The ALRF48 is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

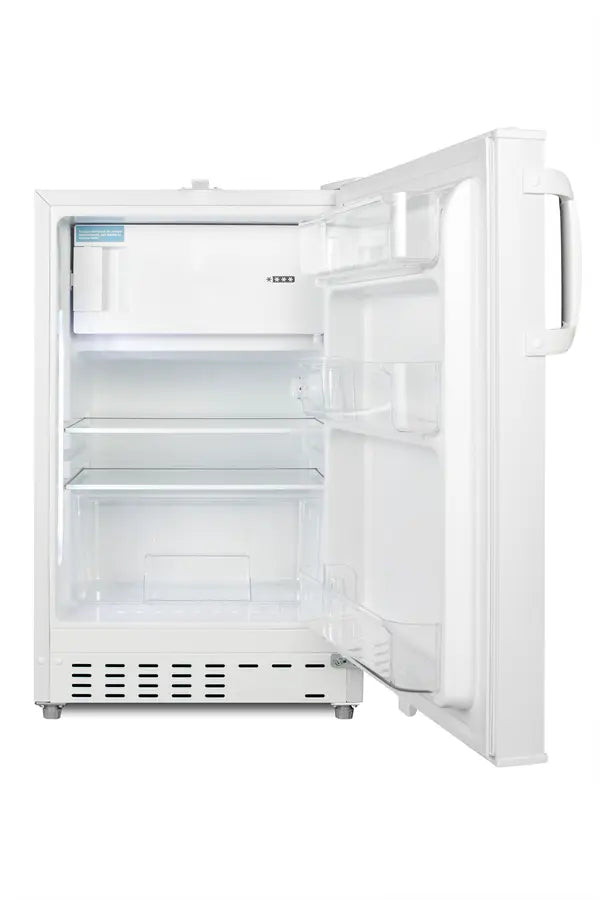

Inside, the ALRF48 features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.
With its compact size and convenient features, the ALRF48 is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.
Features:
- 20" Wide Built-In Refrigerator-Freezer
- ADA compliant design
- Built-in capable
- User-reversible door
- Dial thermostat
- LED interior light
- Adjustable glass shelves
- Fruit and vegetable crisper
- Door storage racks
- Compact freezer compartment
- Factory installed lock
- 3" thick door
- Sealed back
- Right-angle plug
- Fully finished white cabinet
- 100% CFC free
- CARB Compliant
Specifications:
| Overview | |
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Width with Door Open | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.38" (62 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.68 cu.ft. (76 L) |
| Defrost Type | Manual |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 259.0 kWh/year |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 65.0 lbs. (29 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063034 |
| Refrigerator-Freezer | |
|---|---|
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Interior Light | Yes |
| Refrigerator - Interior Height | 17.5" (44 cm) |
| Refrigerator - Interior Width | 16.25" (41 cm) |
| Refrigerator - Interior Depth | 17.0" (43 cm) |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 3 |
| Refrigerator - Full Door Shelves | 3 |
| Refrigerator - Temperature Range | 35-46º F |
| Freezer - Interior Height | 5.75" (15 cm) |
| Freezer - Interior Width | 16.25" (41 cm) |
| Freezer - Interior Depth | 11.25" (29 cm) |
| Thermostat Type | Dial |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Sound Level | 32.9 dB |
General Information:
- Condition: New – Made to order or in-stock availability varies (contact for current status). Drop ships directly from vendor. Not cancellable, not returnable once processed.
- Shipping: Heavy item – freight charges may apply. Calculated at checkout.
- Installation Tips: Designed for built-in or freestanding installation under counters. Ensure proper ventilation. Test all functions before use.
- Cleaning: Wipe exterior and interior with mild soap/water or approved cleaner. Avoid abrasive materials.
- Permissible Ambient: Indoor use.
- Applications: Kitchens, undercounter refrigeration, ADA compliant spaces, offices, dormitories, residential settings. Volume discounts available – call or email for orders of 10+ units.
