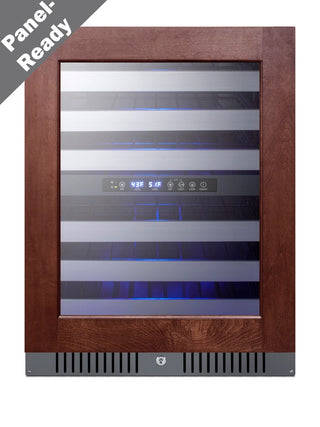

Summit ALWC532PNRLHD 24" Wide Built-In Dual Zone Beverage Center, ADA Compliant, Panel-Ready (46 Bottle Capacity)
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Typically 1-3 Business Days
Registered & Certified Medical Equipment
Need help?
Summit ALWC532PNRLHD 24" Wide Built-In Dual Zone Beverage Center, ADA Compliant, Panel-Ready (46 Bottle Capacity), Double Pane Tempered Glass Door, Recessed Blue LED Lighting, (Panel not Included), Left Hand Door
Summit's extensive selection of built-in undercounter wine cellars includes commercially approved ADA compliant choices that let you achieve a custom look ideal for any space.

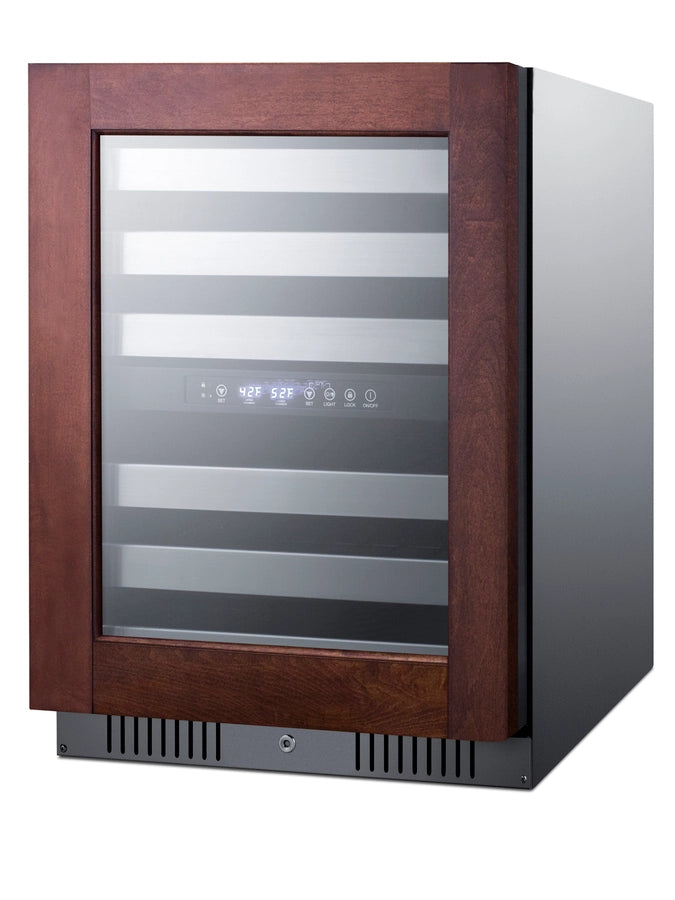

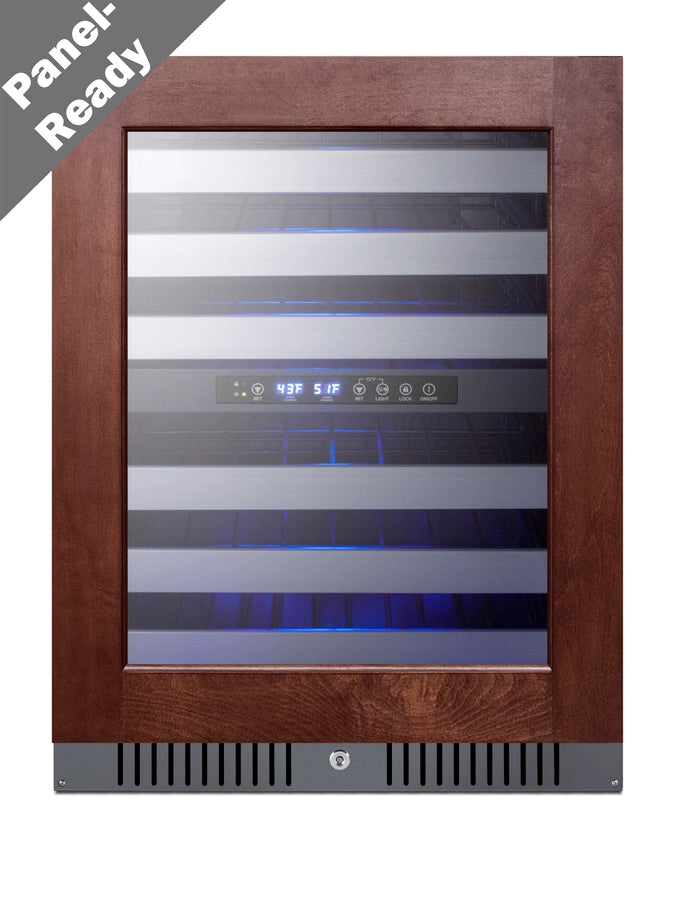

The ALWC532PNRLHD is a dual zone wine cellar sized for 24 inch spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

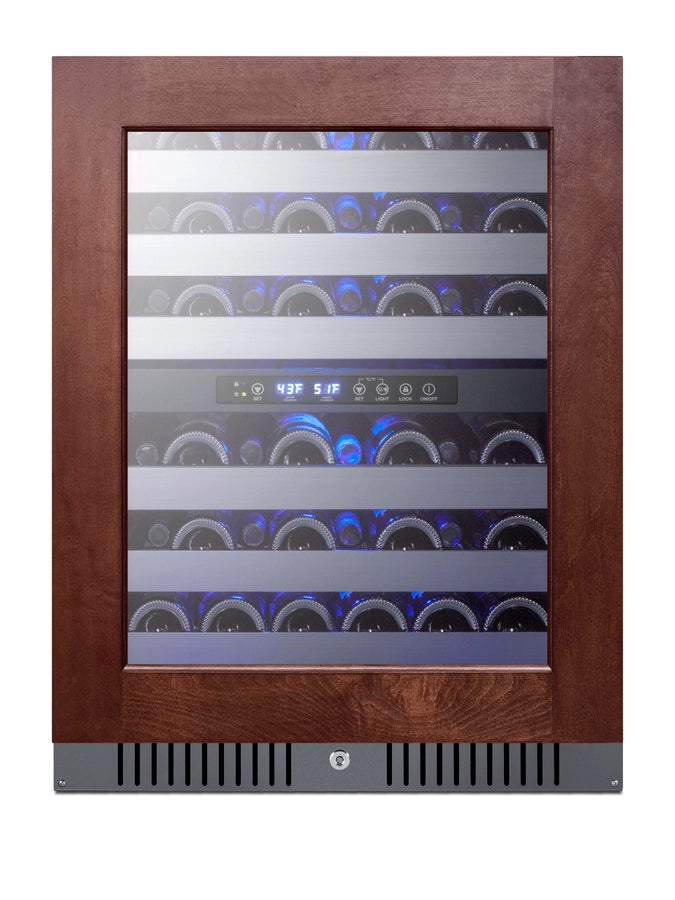

Inside, the ALWC532PNRLHD is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
Features:
- 24" Dual Zone Wine Cellar
- Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
- ADA compliant
- Sized just under 32" high for an easy fit under lower ADA compliant counters
- Commercially listed
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Built-in capable
- Front-breathing design allows this unit to be installed under counters
- Panel-ready door trim
- Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
- Flexible commercial grade shelving
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles

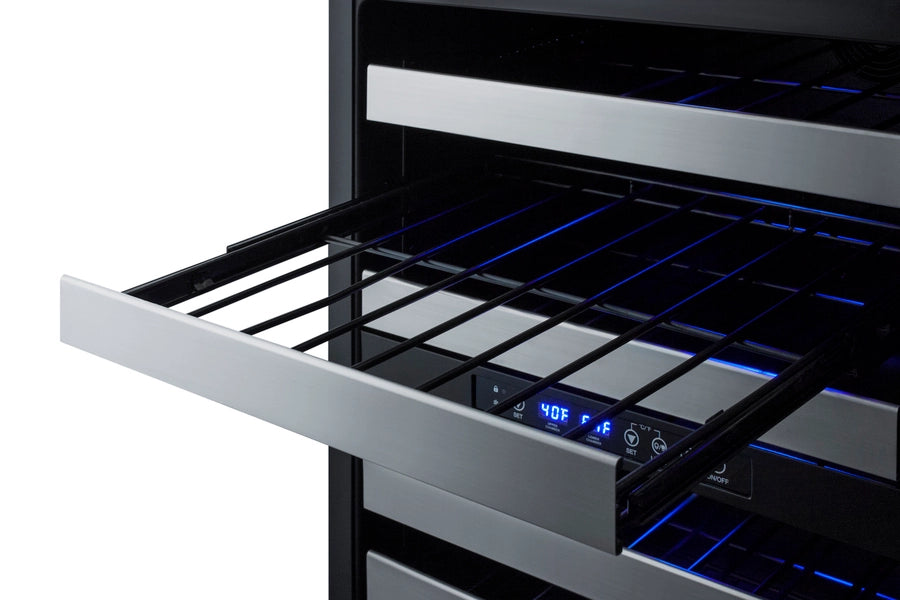

- Full-extension shelving
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Two temperature zones
- Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

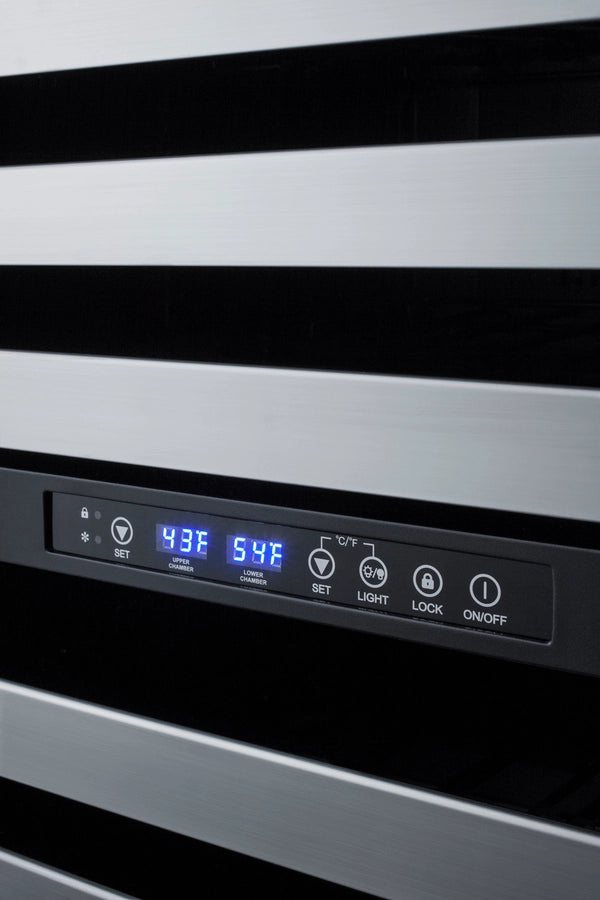

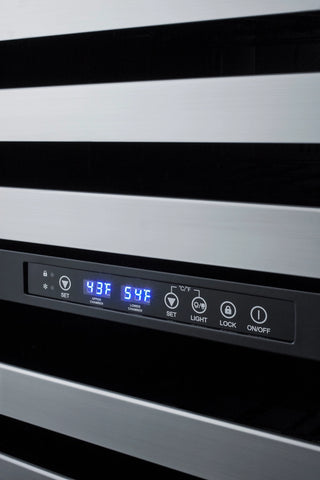

- Digital control panel
- Easy temperature management with electronic controls located inside
- Versatile readout
- Temperature viewable in Celsius or Fahrenheit
- Automatic defrost
- Reduced maintenance with auto defrost system
- Double pane tempered glass door
- Provides a full display of the interior, with two levels of glass for added protection
- Interior lighting
- Recessed LED lighting in both compartments brings striking blue illumination to your collection
- Factory installed lock
- Keyed lock for secure interior, with two keys included
- Fully articulating hinge
- Smoother opening and a better fit with an integrated European style door hinge
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Panel | 24.25" (62 cm) |
| Depth with door at 90° | 47.38" (120 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101092102 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
