Summit ACF48WADA 24" Wide Built-In All-Freezer, ADA Compliant, Frost-Free, 3.1 cu.ft.
Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

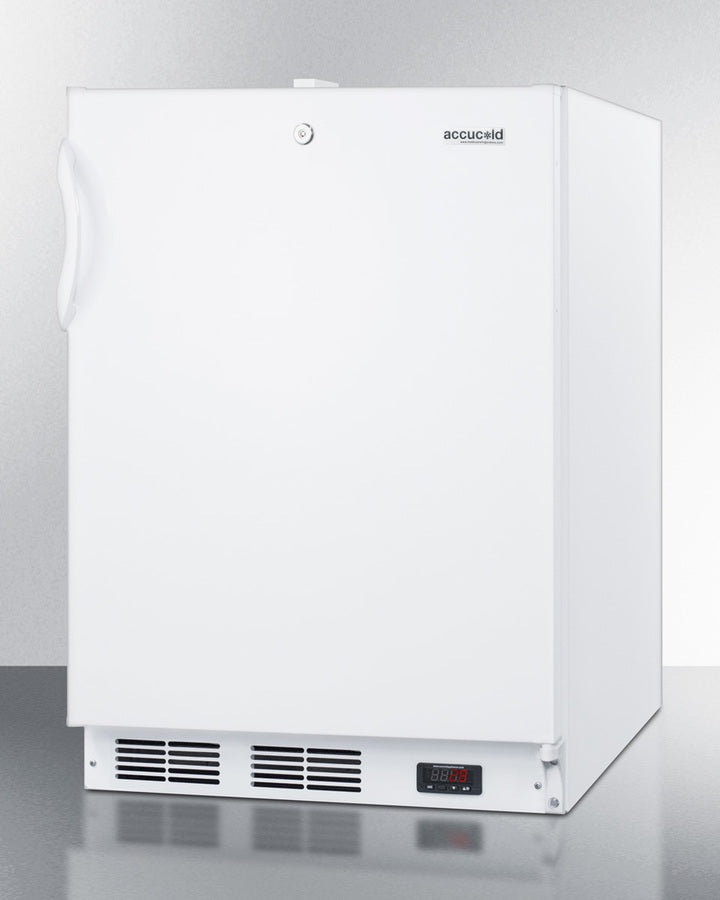

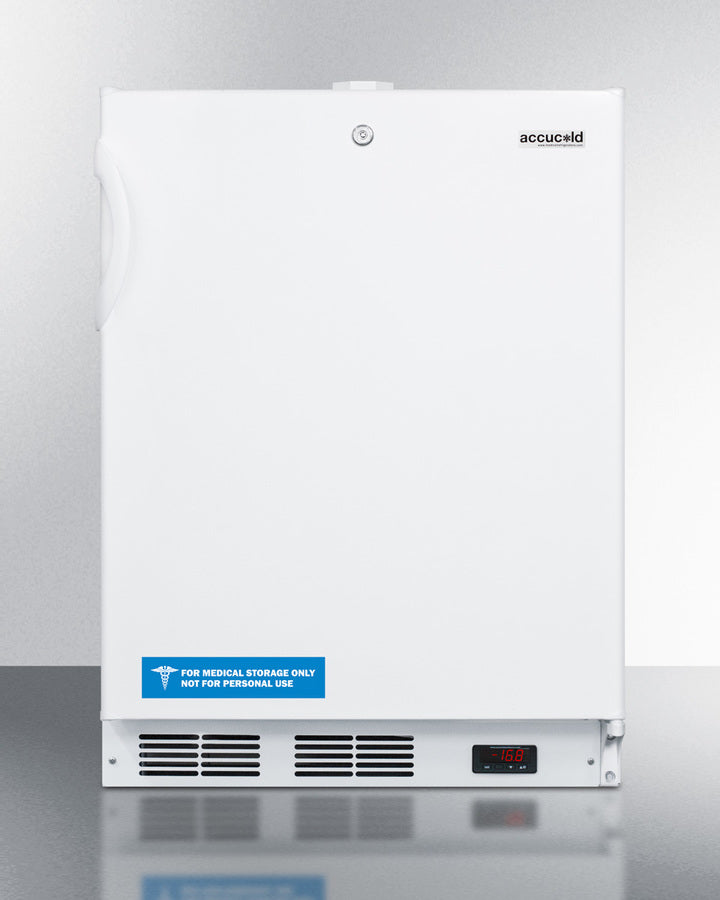

At 24" wide and 32" high, the ACF48WADA is ideally sized for various institutional settings following ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

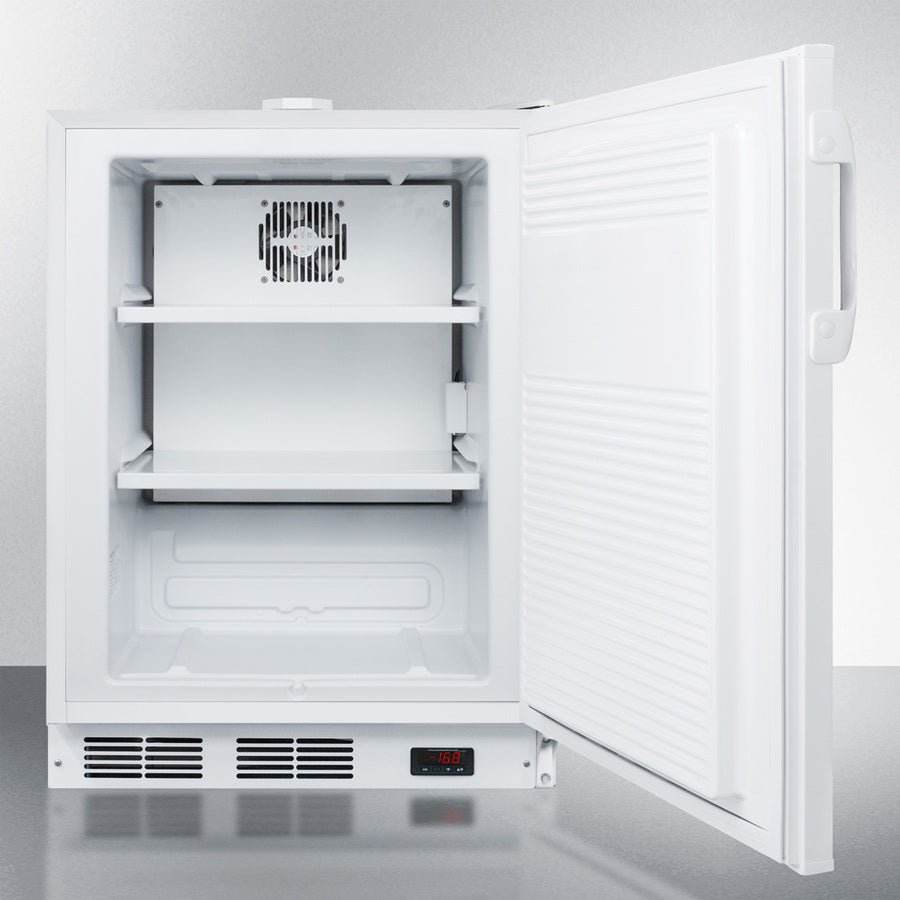

Full frost-free operation eliminates the need to defrost the interior, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.
Made in the USA, the ACF48WADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LWBIADA all-refrigerator.
Features:
- ADA Compliant
- 32 inch height is designed to fit under ADA compliant counters
- Built-in capable
- Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Slim undercounter dimensions
- Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Frost-free operation
- Low maintenance design ensures no frost buildup inside the unit
- Digital temperature control
- Electronic controls located in the exterior kickplate for precise temperature management
- Factory installed lock
- Keyed lock for added security, located towards the top of the door to ensure convenient access
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Removable shelves
- Includes two slide-out shelves made from durable steel
- Hospital grade cord
- Secure three-pronged cord for added unit safety
- Flat door liner
- Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Matching refrigerator available
- Pair with the FF7LBIADA to create a matching set
- Reversible door
- User-reversible door swing for added flexibility
- Foamed-in-place cabinet
- Quality design ensures efficiently insulated interior
- Fully finished white cabinet
- Allows the unit to be used freestanding
- Commercially approved
- Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- 100% CFC free
- Environmentally friendly design does not contain ozone-damaging chemicals
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 45.13" (115 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101051727 |
|
Freezer
|
|
|---|---|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Steel |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.2 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Temperature Range | -5 to 10ºF/-20 to -12ºC |
