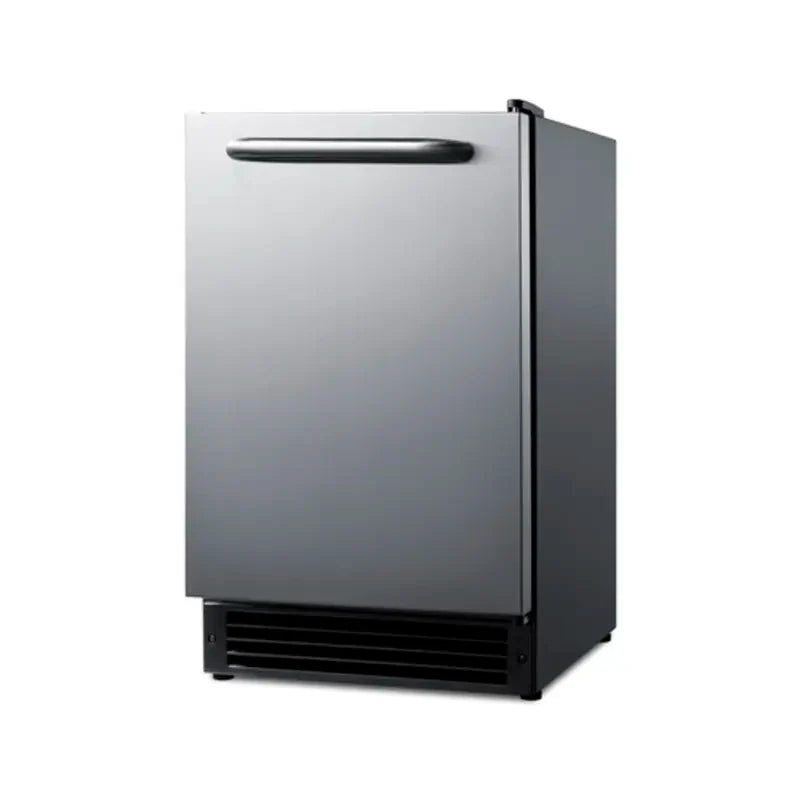

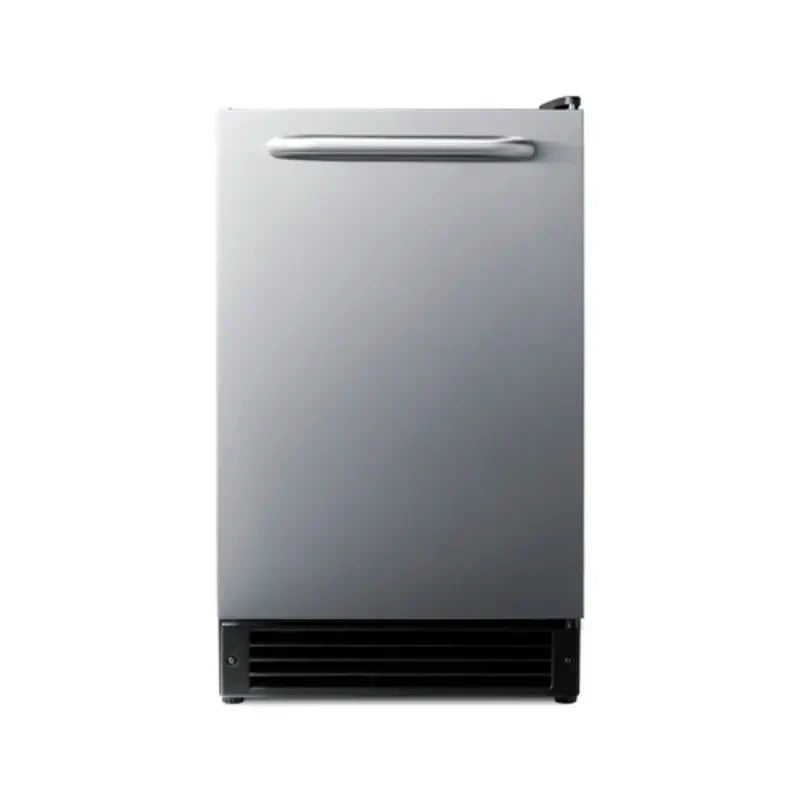

Summit BIM26 Drain-Free Built-In Icemaker, Compact 15" Undercounter Design with Crescent Ice Production and No Plumbing Required
The Summit BIM26 is a versatile drain-free icemaker engineered for built-in or freestanding installation in kitchens, home bars, break rooms, RVs, and marine galleys. With a compact 15" width and 25" height, it seamlessly integrates into kitchen islands and undercounter spaces while delivering consistent crescent-shaped ice production without the need for drain lines or pumps.
Featuring a front-breathing design and sealed back construction, the BIM26 allows for flush built-in mounting or standalone placement. The stainless steel reversible door with a horizontal towel bar handle provides a professional aesthetic, while the black cabinet finish complements a wide range of interior styles. Daily ice production reaches 15 lbs, with an internal storage capacity of 12 lbs, ensuring ample supply for residential and light commercial use.
Manual Defrost Cooling and Installation Flexibility

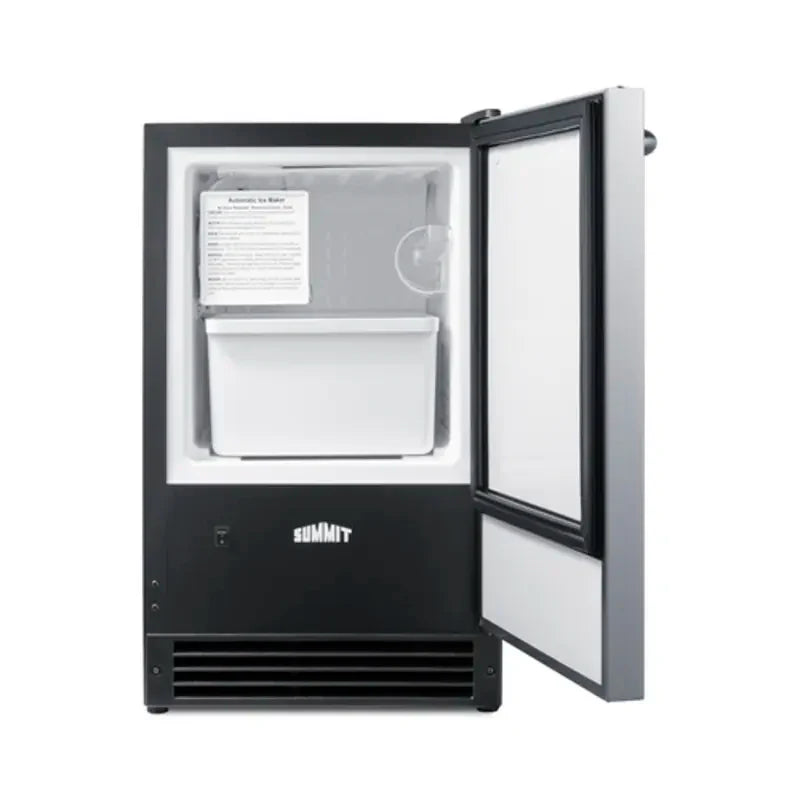

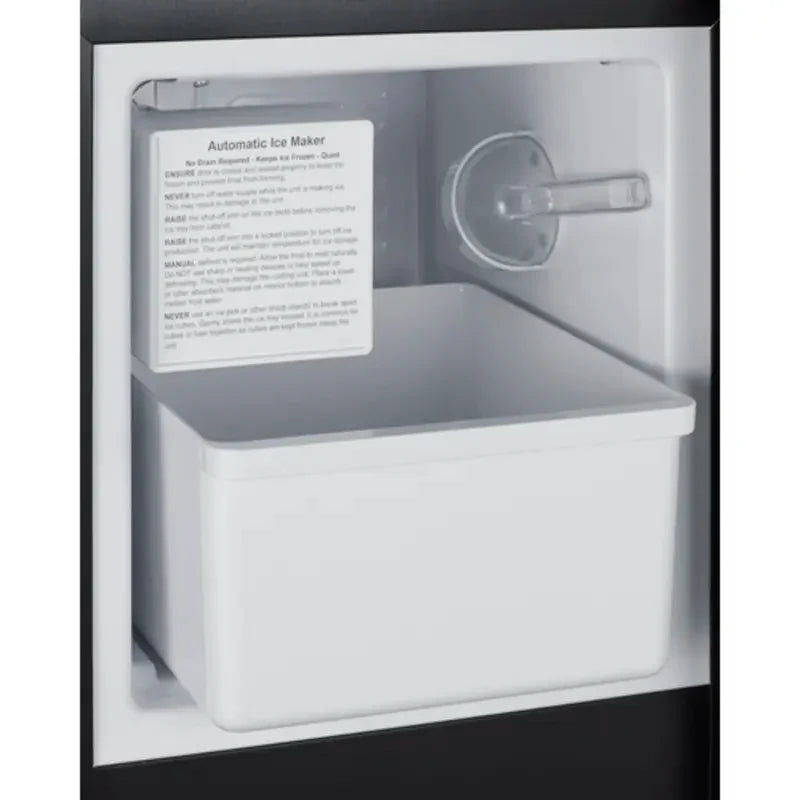

The BIM26 employs a static manual defrost cooling system that maintains ice in solid form for extended periods compared to automatic defrost models. Its drain-free operation eliminates the need for gravity or pump-assisted drainage, offering greater flexibility in unit placement. Summit includes a pre-installed 1/4" OD water supply connection hose, removable ice bucket, ice scoop, and scoop holder for immediate operation upon installation.
Features:
- No-Drain 15" Wide Icemaker — Built-in capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens
- Built-In Capable — Make the best use of space by installing your icemaker under the counter
- Large Capacity — Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs
- Drain-Free Design — Convenient design allows more flexibility in positioning the unit
- Manual Defrost — Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
- Reversible Door — User-reversible door swing for flexible placement
- Sealed Back — Space-saving design with easier cleanability
- Standard Water Hookup — Operates with a standard 1/4" OD water supply line
- Modern Handle — Horizontally mounted towel bar style handle in stainless steel
- Ice Scoop Included — Large ice scoop and holder included for your convenience
- Lasting Ice Cube Production — Crescent-shaped ice provides a harder and longer-lasting ice
- 100% CFC Free — Environmentally friendly design without ozone-damaging chemicals
Specifications:
| Nominal Height | 25.0" (64 cm) |
| Height of Cabinet | 24.5" (62 cm) |
| Height to Hinge Cap | 25.0" (64 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Width with Door Open | 15.13" (38 cm) |
| Nominal Depth | 17.0" (43 cm) |
| Depth | 16.75" (43 cm) |
| Depth with door at 90° | 32.25" (82 cm) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 50.0 lbs. (23 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101106601 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | No |
| Daily Ice Production | 15.0 lbs. (7 kg) |
| Ice Storage Capacity | 12.0 lbs. (5 kg) |
| Ice Shape | Crescent |
| Size of Cube | 7/8" x 7/8" x 2-3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.69 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 12.25" (31 cm) |
| Interior Width | 11.0" (28 cm) |
| Interior Depth | 12.25" (31 cm) |
| Level Legs | 4 |
