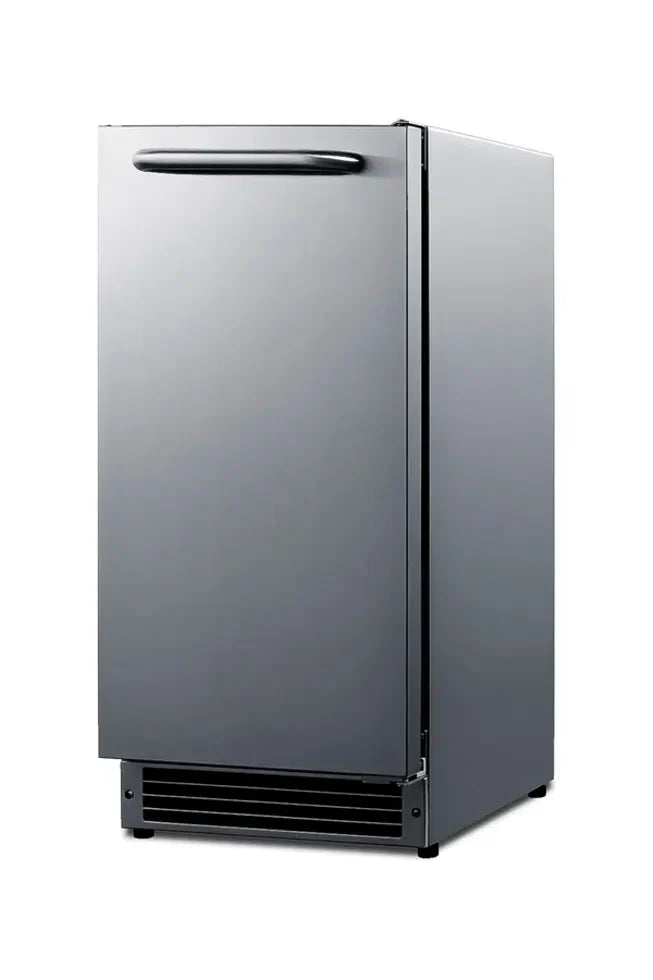

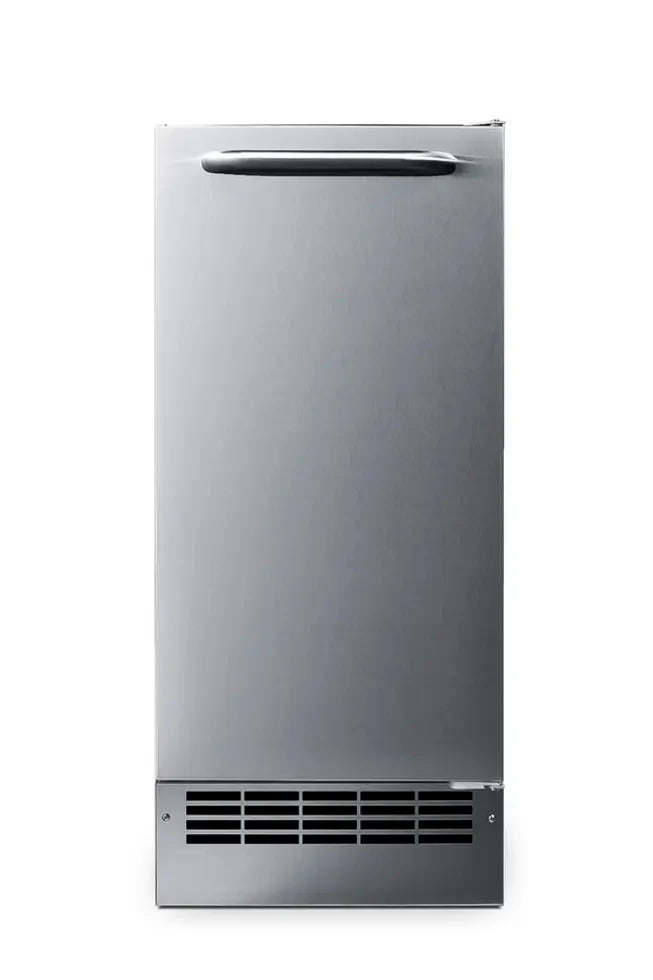

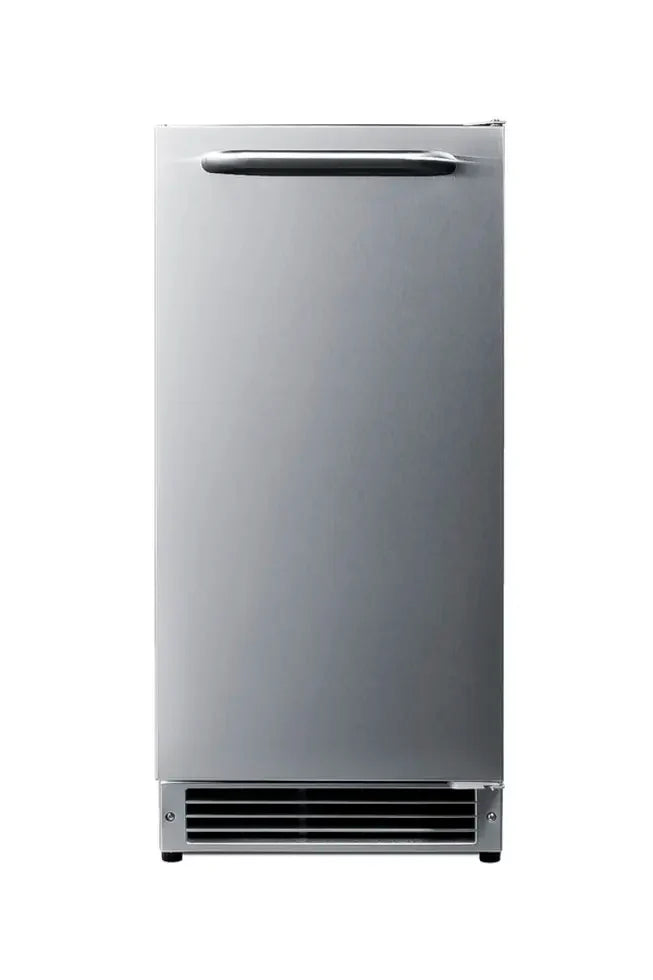

Summit BIM26H32 ADA-Compliant Undercounter Icemaker, 15" Wide, No-Drain Design with 304-Grade Stainless Steel Construction
The Summit BIM26H32 is a compact 15" wide undercounter icemaker engineered for both built-in and freestanding installation. With a front-breathing design and fully finished 304-grade stainless steel cabinet, this unit delivers professional-grade ice production in residential and commercial settings. The no-drain design eliminates the need for a floor drain or pump, providing exceptional placement flexibility indoors or outdoors.
Designed to fit beneath ADA-compliant counters at 31.75" height, the BIM26H32 can be adjusted to 34" with the included taller kickplate for seamless integration. The user-reversible, stainless steel door features a horizontal handle for a sleek, modern aesthetic, while the sealed back allows for more flush installation against walls.
Ice Production and Storage

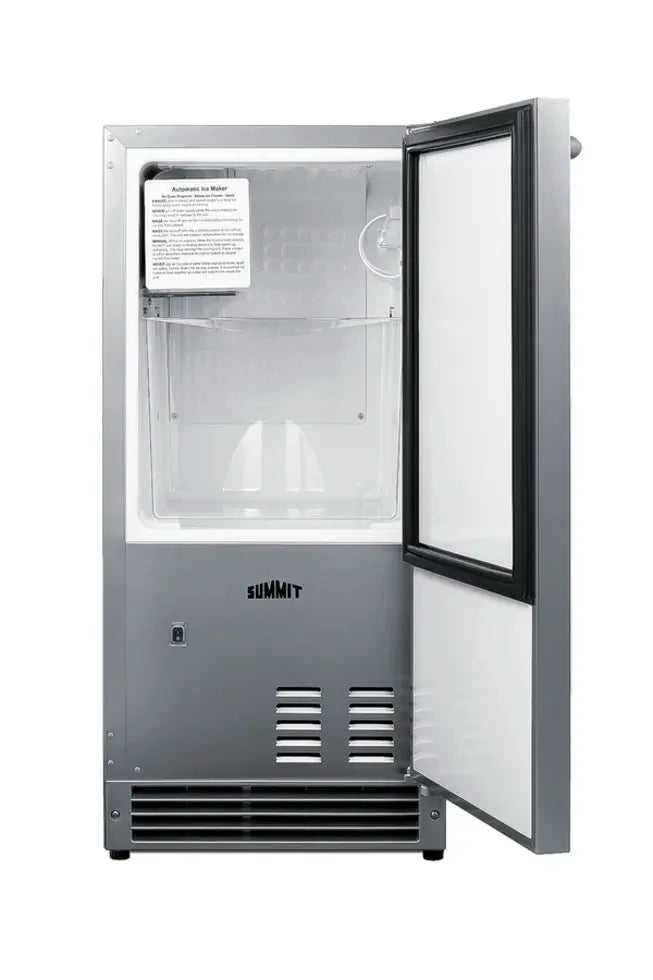

This icemaker produces up to 25 lbs of crescent-shaped ice daily and stores 22 lbs at a time. The static manual defrost cooling system maintains ice in solid form for extended periods compared to automatic defrost systems. Summit includes a pre-installed connection hose, removable ice bucket, ice scoop, and scoop holder for immediate use. An optional rear-mounted water filter is also included.
Features:
- 15" Wide No-Drain Icemaker — No drain is required for more flexibility in placing the icemaker indoors or outside
- ADA compliant — 31.75" height allows installation under lower ADA-compliant counters

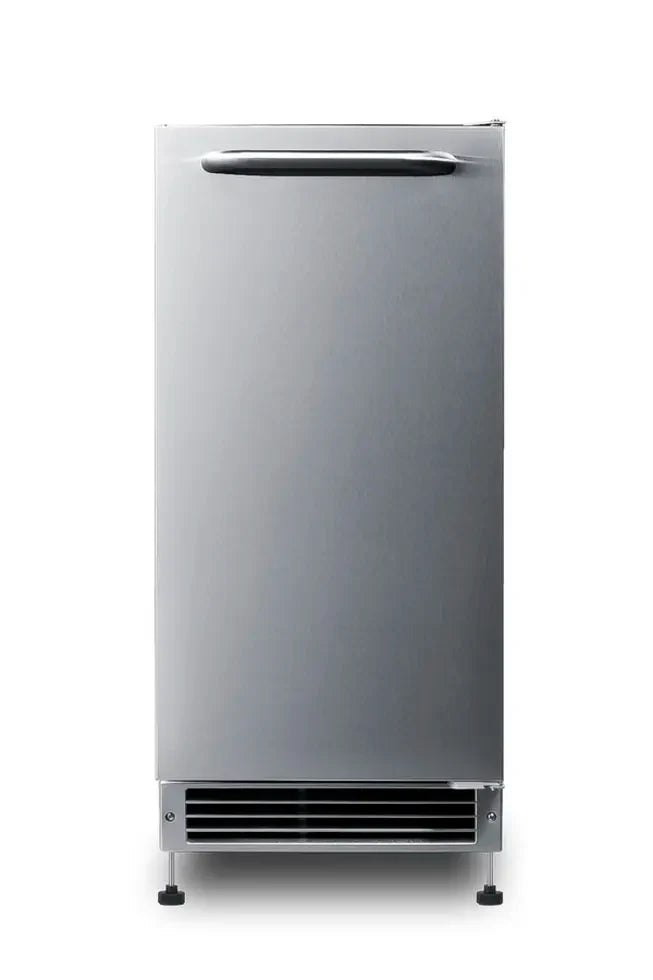

- Adjustable Height — This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
- Large capacity — Produces and stores more than 20 lbs of ice per day cycle
- Drain-free design — Convenient design allows more flexibility in positioning the unit
- Manual defrost — Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
- Stainless steel exterior — 304-grade stainless steel allows the icemaker to be used freestanding
- Built-In capable — Make the best use of space by installing your ice maker under the counter
- Reversible door — User-reversible door swing for flexible placement
- Standard water hookup — Operates with a standard 1/4" OD water supply line
- Filter included — Water filter is included for optional use
- Ice scoop included — Large ice scoop and holder included for your convenience
Specifications:
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Nominal Width | 15.0" (38 cm) |
| Width | 14.88" (38 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 19.38" (49 cm) |
| Depth with Handle | 21.38" (54 cm) |
| Depth with door at 90° | 33.63" (85 cm) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 61.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101103525 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
