Summit SDR24 24" Commercial-Grade Single Drawer Refrigerator, NSF-7 Approved with Frost-Free Operation and Panel-Ready Design, 2.0 cu.ft.
The Summit Appliance SDR24 is a 24" single drawer all-refrigerator engineered for both commercial and residential applications. Certified to NSF-7 and UL-471 standards, this unit is ETL-S listed for use in foodservice environments, hotel spaces, and home kitchens. Its compact 2.0 cu.ft. capacity, front-breathing design, and built-in capability make it ideal for standard cutout installations while the fully finished black cabinet allows freestanding placement when needed.

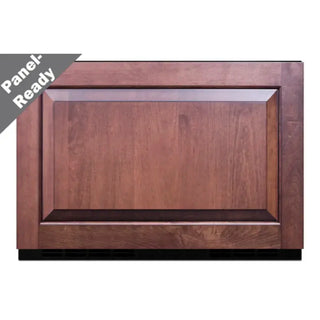

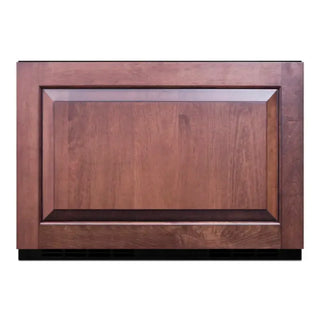

Constructed with 304 grade stainless steel inside and out, the SDR24 features a panel-ready drawer front that accepts custom overlay panels (15.6" H x 23.4" W at 3/4" maximum thickness) to match existing cabinetry. The sealed rear design eliminates exposed coils, and a right angle plug facilitates tight installations. Frost-free operation with fan-forced cooling ensures even temperature distribution and minimal user maintenance, while digital controls with LED display allow precise temperature management in Celsius or Fahrenheit.

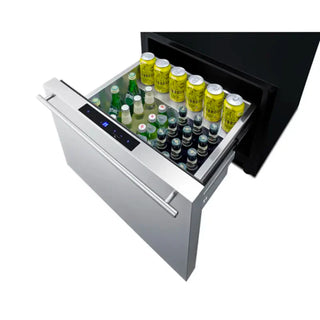

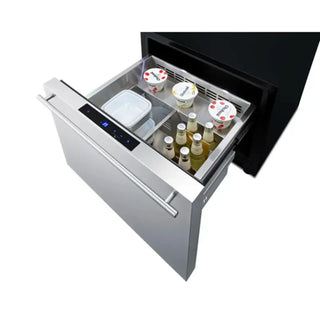

The drawer interior includes two removable dividers for flexible organization into one, two, or three zones, plus a half-sized glass shelf. LED lighting illuminates stored contents, and the child lock disables controls after two minutes of inactivity. Audible alarms alert users to high-temperature fluctuations and open drawer conditions. Additional features include temporary memory function for power loss recovery and Sabbath Mode for disabling electrical functions during religious observance. A polycarbonate strip protects the control panel for outdoor kitchen installations.
Features:
- 24" wide single drawer refrigerator - 2 cu.ft. all-refrigerator in a single drawer style
- Commercially approved - ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

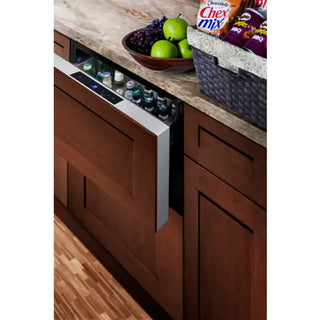

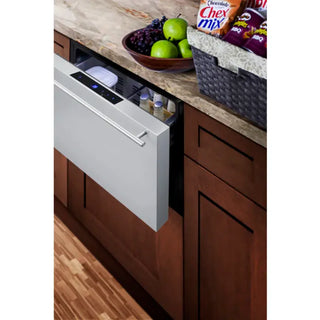

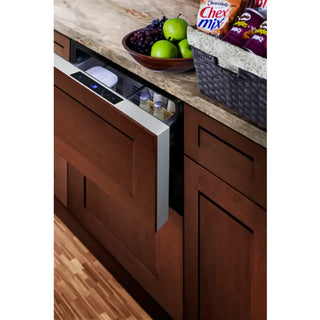

- Built-in capable - Front-breathing design allows you to build the drawer into cabinetry
- Panel-ready drawer front - Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)
- 304 grade stainless steel drawer - Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Frost-free operation - Minimum user maintenance with a fully no-frost operation system

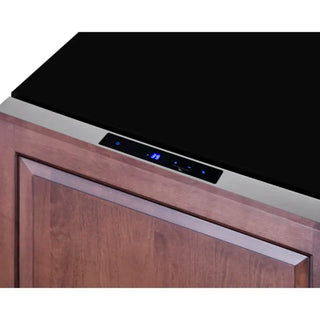

- Digital thermostat - Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- LED lighting - Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Internal fan - Fan-forced cooling ensures the unit is evenly cooled
- Temperature alarm - High temperature alarm sounds if the unit's interior goes out of the recommended range
- Sabbath Mode - Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- 100% CFC free - Environmentally friendly design without ozone-damaging chemicals
Specifications:
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.75" (45 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.0" (56 cm) |
| Depth with Handle | 23.5" (60 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 2.0 cu.ft. (57 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 265.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 62.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086590 |
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 32.6 dB |
| Interior Height | 13.0" (33 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.75" (45 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
