Summit AR5BIF 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included), 5.5 cu.ft., Automatic Defrost
SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations.

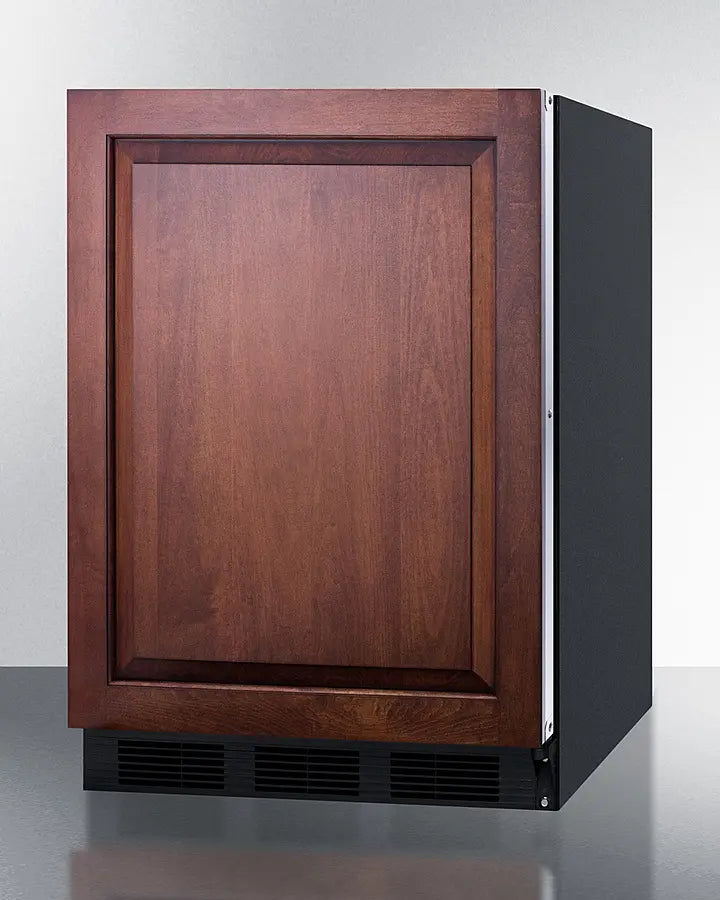

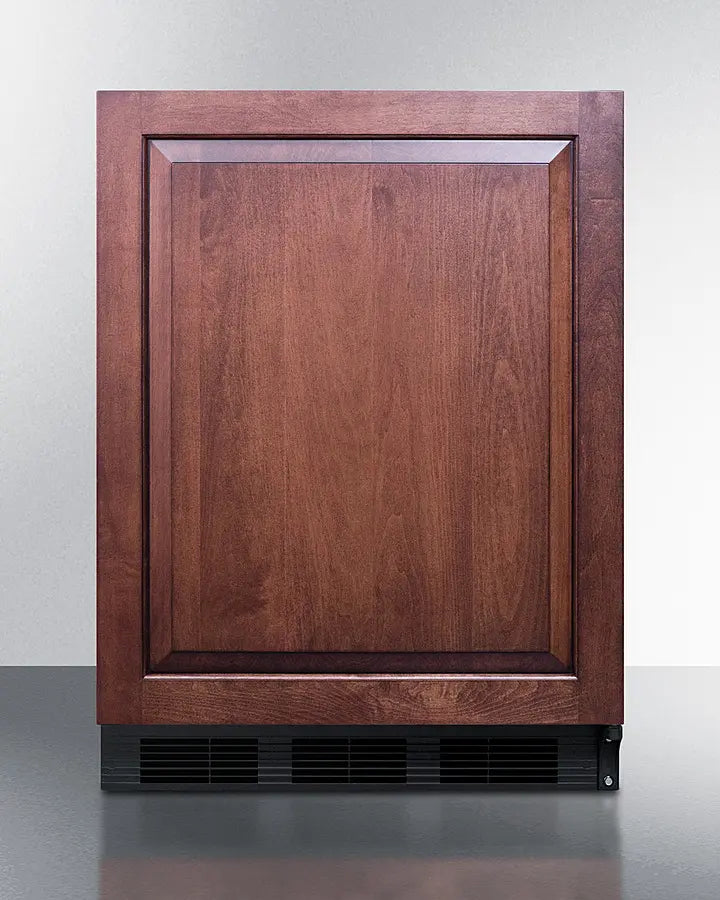

Sized with a 24” footprint and 32” height, the AR5BIF is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish. The door includes an integrated stainless steel frame designed to accept full overlay panels, allowing you to create a custom look that blends into your own cabinetry. Customers provide their own handle. Panels should be sized at 23 5/16" W x 28 1/4" H and at least 3/4" thick.

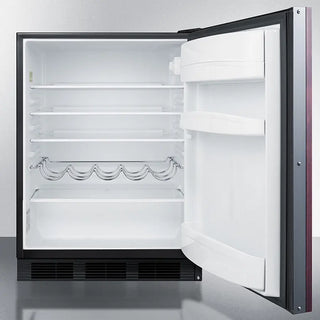

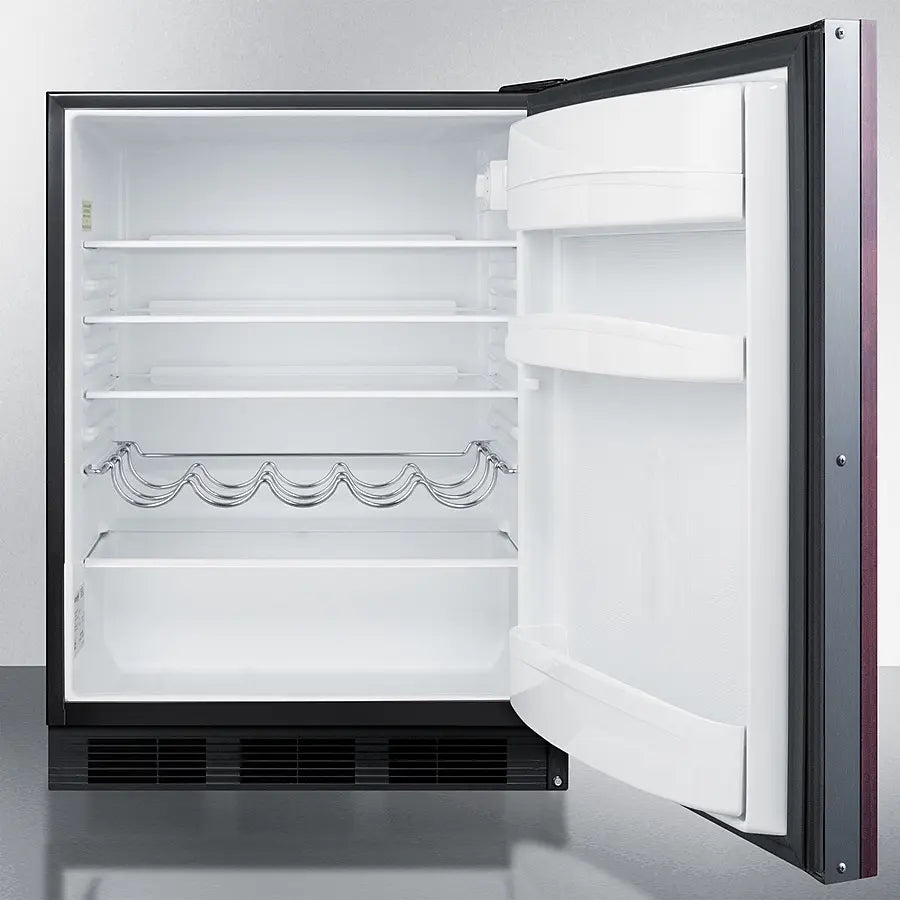

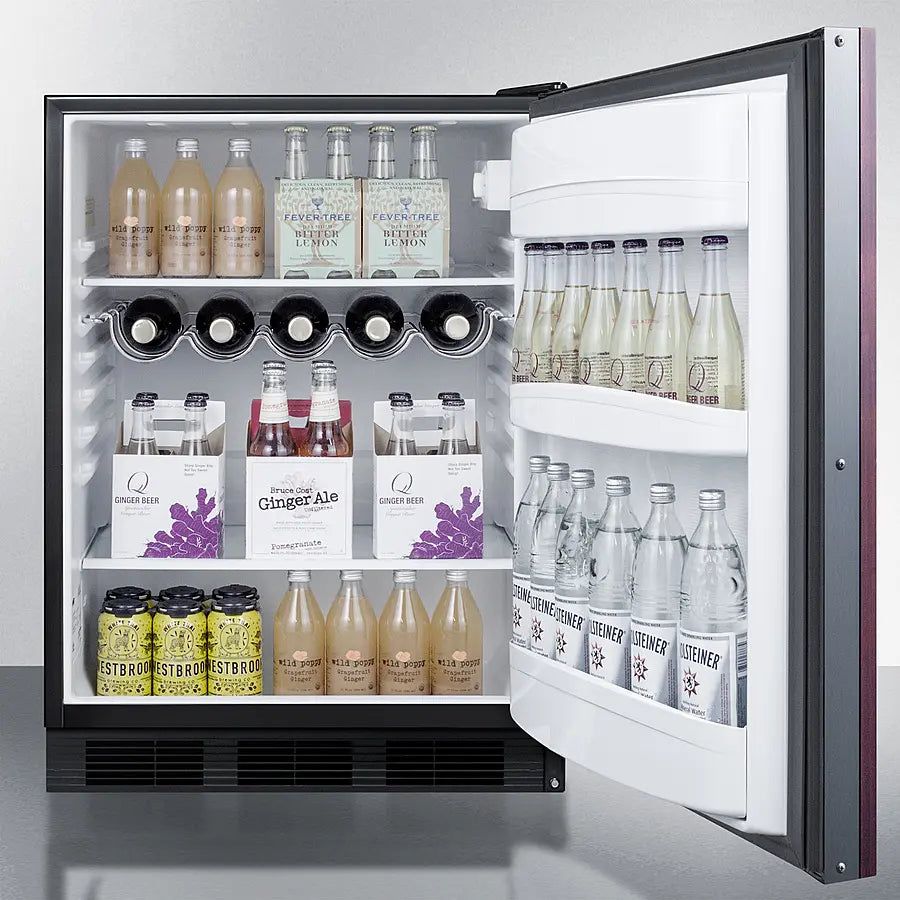

Inside, the AR5BIF utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BIF features Summit's intuitive dial thermostat for easy temperature management.
Designed and constructed in Europe, the AR5BIF brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height.
Features:
• ADA compliant
• Slim undercounter dimensions
• Built-in capable
• Panel-ready door
• Automatic defrost
• Adjustable glass shelves
• Door shelves
• Wine shelf
• Interior light
• One piece interior liner
• Hidden evaporator
• Adjustable thermostat
• CARB Compliant
• Fully finished black cabinet
• 100% CFC free
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.25" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 307.0kWh/year |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101068787 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Full Door Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Wine Bottle Shelves | Yes |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Interior Light | Yes |
|
Dimensions
|
|
| Interior Height | 26.25" (67 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
