- Capacity
- 3.25 cu.ft. (92 L)
- Temperature
- 2°C to 22°C
- Door
- Glass, right hinge
- Size (W × D × H)
- 23.38" × 17.75" × 32.0"
- Capacity
- 3.25 cu.ft. (92 L)
- Temperature
- 2°C to 22°C
- Door
- Glass, right hinge
- Size (W × D × H)
- 23.38" × 17.75" × 32.0"
Overview
From the manufacturer
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

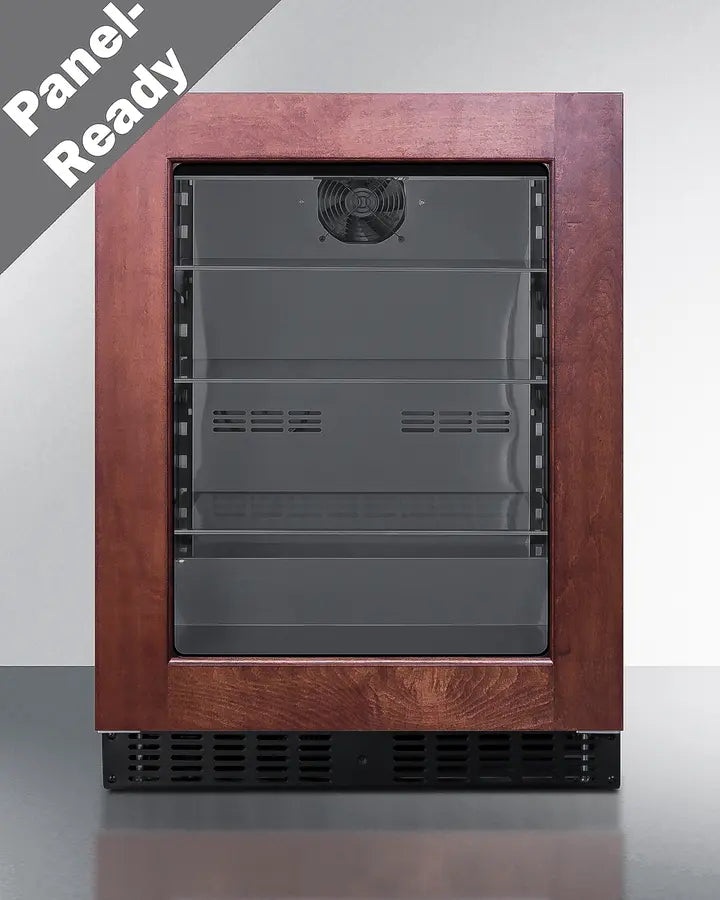

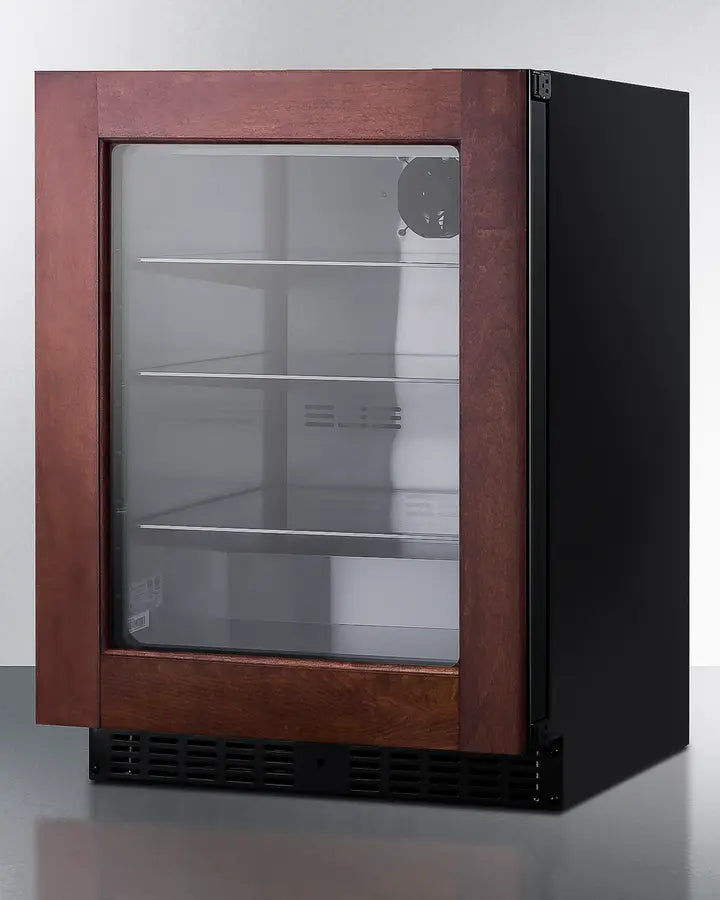

Model ASDG2411PNR is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your stored items.
Inside, the ASDG2411PNR features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.
• 24" wide beverage center
• Less than 18" deep
• ADA compliant design
• Adjustable height
• Built-in capable
• Panel-ready door
• Double pane tempered glass door
• Seamless stainless steel door trim
• Stainless steel interior
• Factory installed lock
• Digital thermostat
• Dimmable LED lighting
• Frost-free operation
• Internal fan
• Cantilevered shelving
• Open door alarm
• High temperature alarm
• Sabbath mode setting
• Temperature Memory Function
• Right angle plug
• Sealed back
• Fully articulating European style hinge
• Reversible door
• Fully finished black cabinet
• 100% CFC Free
• CARB Compliant
Specifications
Manufacturer data. Imperial with metric in brackets.
Overview
- Nominal Height
- 32.0" (81 cm)
- Height of Cabinet
- 32.0" (81 cm)
- Nominal Width
- 24.0" (61 cm)
- Width
- 23.38" (59 cm)
- Nominal Depth
- 18.0" (46 cm)
- Depth
- 17.75" (45 cm)
- Depth with door at 90°
- 39.88" (101 cm)
- Capacity
- 3.25 cu.ft. (92 L)
- Defrost Type
- Frost-Free
- Door
- Glass/Panel-Ready Frame
- Cabinet
- Black
- US Electrical Safety
- ETL
- Canadian Electrical Safety
- ETL-C
- Energy Usage/Year
- 285.0kWh/year
- Amps
- 1.0
- Voltage/Frequency
- 115 V AC/60 Hz
- Weight
- 120.0 lbs. (54 kg)
- Parts & Labor Warranty
- 1 Year
- Compressor Warranty
- 5 Years
- UPC
- 761101104188
Refrigerator Features
- Sabbath Mode
- Yes
- Door Swing
- RHD
- Reversible
- Yes
- Height Adjustable
- Yes
- Shelf Type
- Glass
- Shelf Qty
- 3
- Adjustable Shelves
- Yes
- Thermostat Type
- Digital
- Fan Type
- Interior and Exterior
- Refrigerant Type
- R600a
- Refrigerant Amount
- 1.38oz.
- High Side PSI
- 270.0
- Low Side PSI
- 105.0
- Level Legs Qty
- 4
- Interior Light
- Yes
- Temperature Range
- 36 to 43ºF
- Sound Level
- 33.1 dB
Dimensions
- Interior Height
- 24.5" (62 cm)
- Interior Width
- 19.5" (50 cm)
- Interior Depth
- 12.25" (31 cm)
- Compressor Step Height
- 3.75" (10 cm)
- Compressor Step Width
- 19.5" (50 cm)
- Compressor Step Depth
- 4.5" (11 cm)
Documents
Files from the manufacturer
Shipping & returns
Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.
View the return policy for this itemWarranty
1 year labor & parts warranty. 5 years warranty on the compressor.
Optional CPS protection plans can be added before checkout.
