Summit ASDR2414PNR 24" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included), 3.1 cu.ft., Frost-Free
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

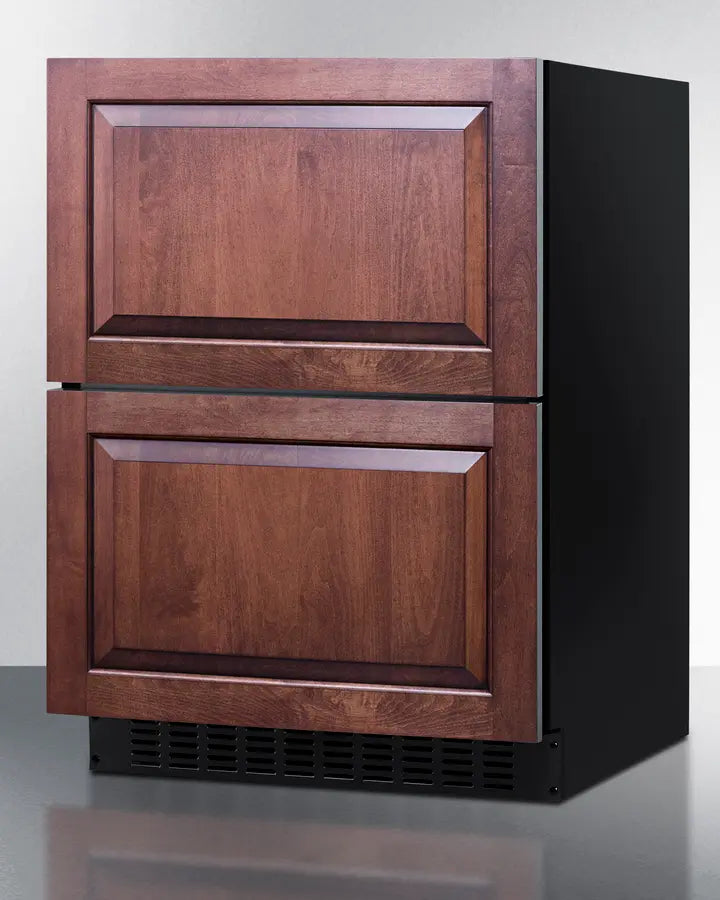

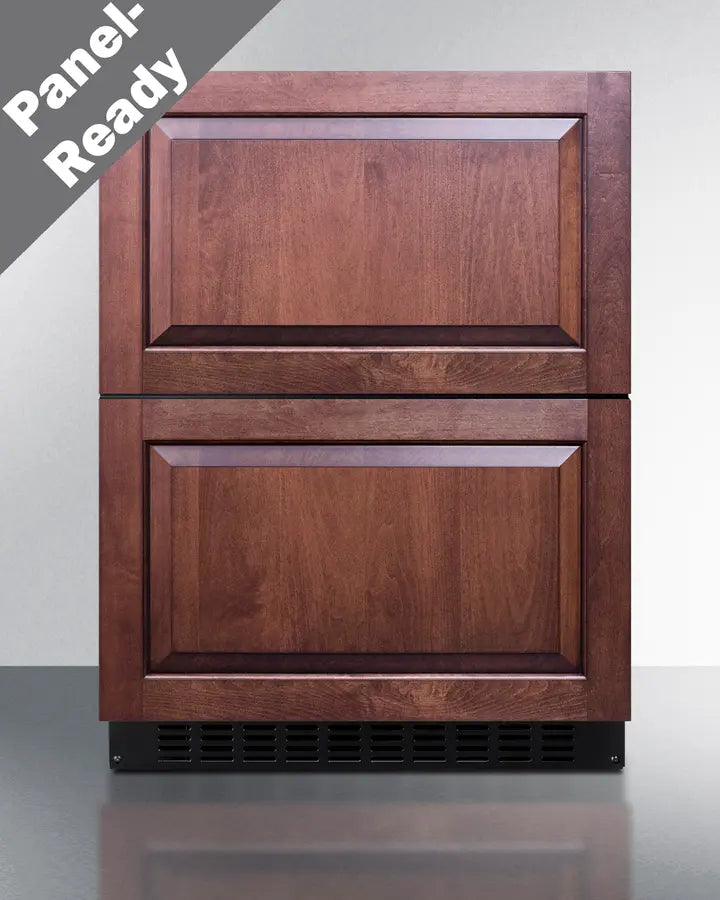

Model ASDR2414PNR is a 24" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included for optional use. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit.

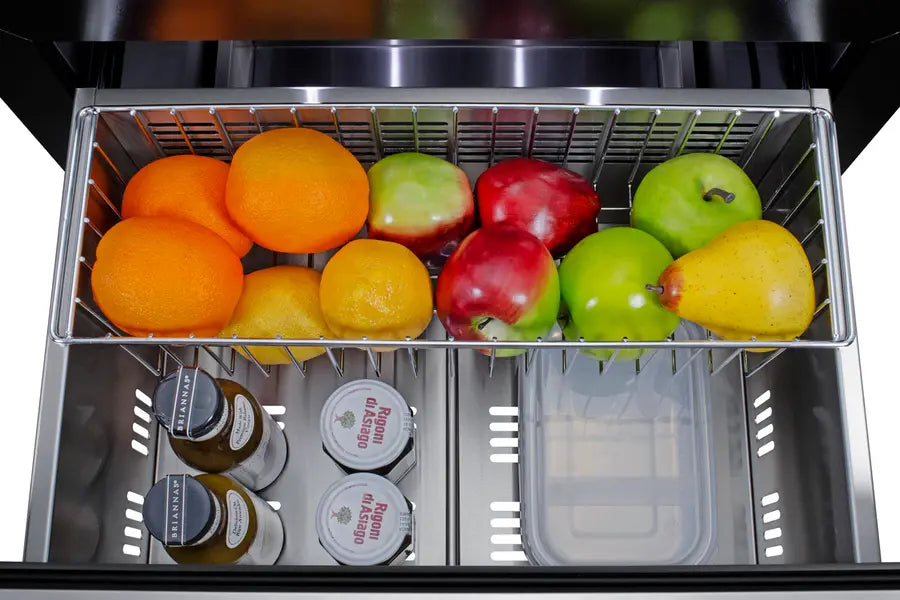

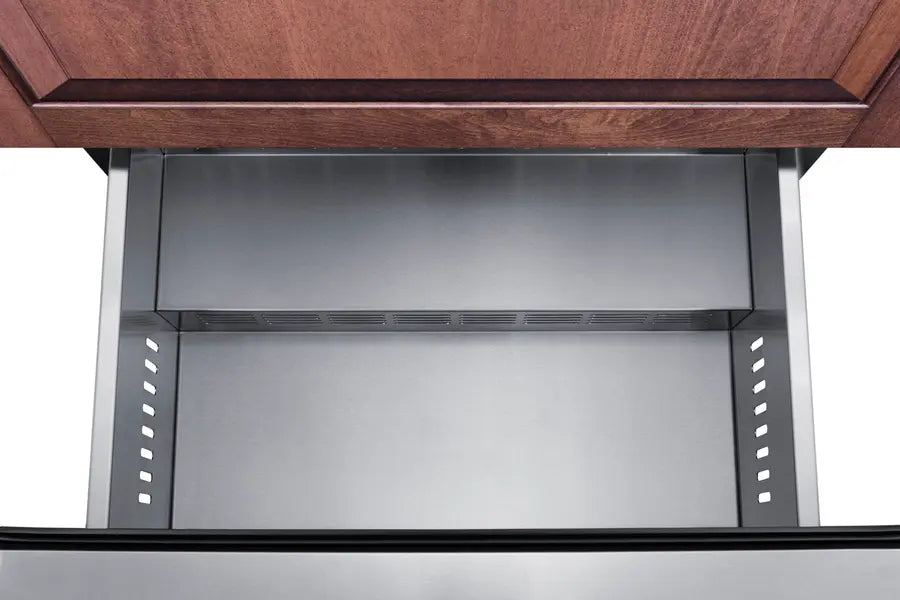

Inside, the ASDR2414PNR has a generous 3.1 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for easy organization. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
Features:
• 2-Drawer All-Refrigerator
• Panel-ready drawer fronts
• Stainless steel front finish
• Less than 18" deep
• ADA compliant design
• Adjustable height
• Built-in capable
• Stainless steel drawers
• Professional handles
• Frost-free
• Digital thermostat
• Interior lighting
• Fan-forced cooling
• Drawer dividers
• Temperature alarm
• Open drawer alarm
• Sabbath mode
• Child lock
• Temperature memory function
• Right-angle plug
• depth
• Sealed back
• Fully finished black exterior cabinet
• Anti-tip bracket
• Commercially approved
• 100% CFC free
• CARB Compliant
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 18.0" (46 cm) |
| Depth | 17.88" (45 cm) |
| Depth with door at 90° | 29.63" (75 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 285.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 106.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101088938 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 8.0" (20 cm) |
| Interior Width 1 | 17.63" (45 cm) |
| Interior Depth 1 | 11.25" (29 cm) |
| Interior Height 2 | 8.0" (20 cm) |
| Interior Width 2 | 17.63" (45 cm) |
| Interior Depth 2 | 11.25" (29 cm) |
|
Dimensions
|
|
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 17.63" (45 cm) |
| Compressor Step Depth | 4.75" (12 cm) |
