Summit CT661WIFADA 24" Wide Refrigerator-Freezer, ADA Compliant (Panel Not Included), 5.04 cu.ft., Cycle Defrost
Summit's Peak24 series of undercounter European-made refrigeration features energy efficient, ADA height choices that offer the largest capacity in the industry for recessed installation in 24" openings.

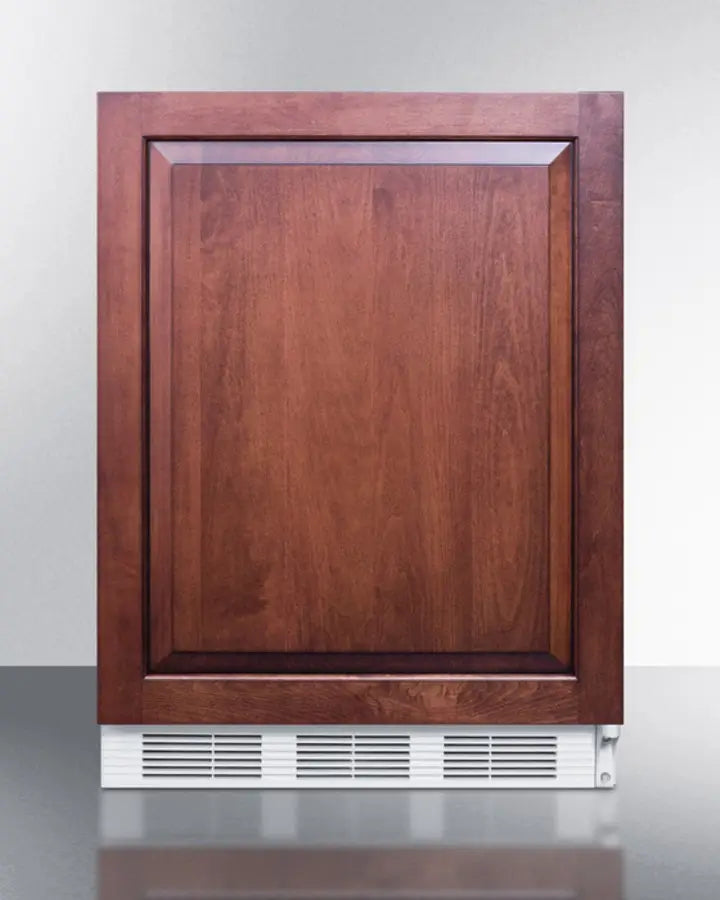

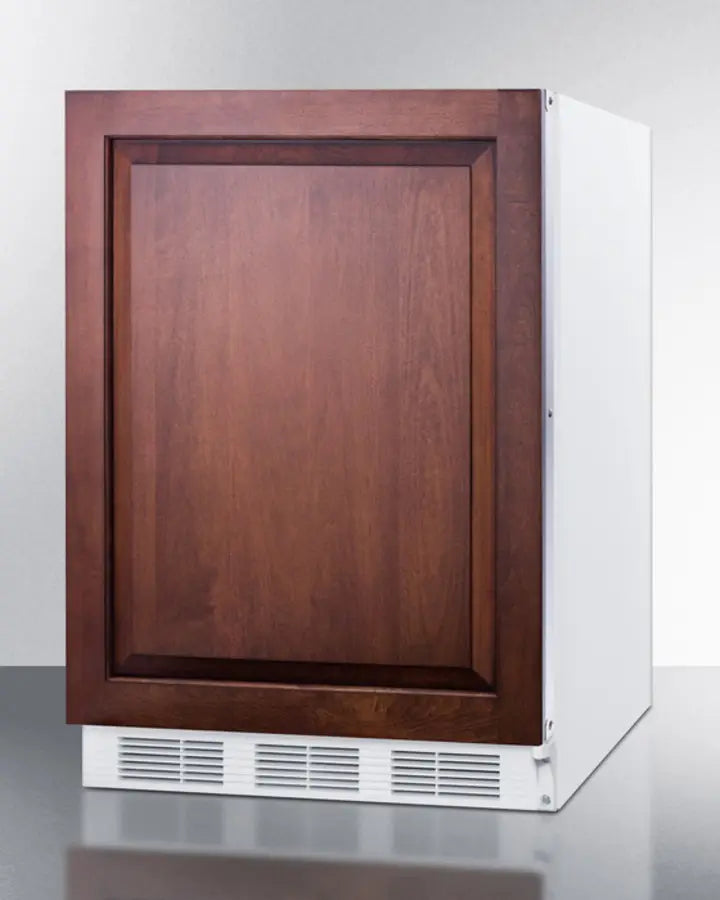

Sized with a 24” footprint, the ENERGY STAR certified CT661WIFADA refrigerator-freezer offer a generous 5 cu.ft. storage capacity, larger than many units in this size class. The 32” height allows use in settings complying with ADA guidelines for lower counter height. This unit comes in a white exterior finish. The integrated stainless steel door frame is designed to accept overlay panels (sized 23 5/16" W x 28 1/4" H), allowing you to customize the front to seamlessly match your own cabinetry style. Customers provide their own handle.

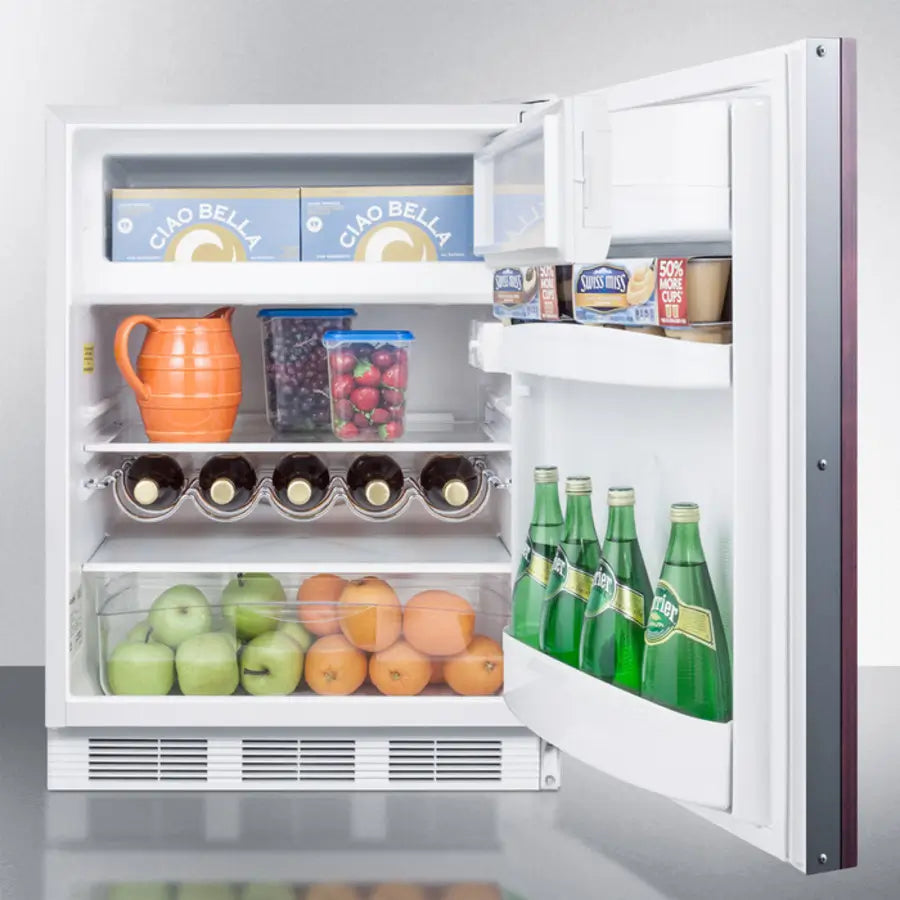

Inside, the CT661WIFADA features a dual evaporator to allow separated cooling of the fresh and frozen food sections. The refrigerated compartment utilizes low maintenance automatic defrost, while the interior freezer compartment is manual defrost to achieve lower storage temperatures ideal for ice cream and other frozen food. The deluxe interior includes adjustable glass shelves for spill-proof storage and easier cleaning, as well as a scalloped wine shelf to hold wine and champagne bottles safely in place. Door racks offer additional convenience for tall bottles and condiments and a clear crisper drawer ensures your produce is stored under the ideal conditions. This model includes automatic interior lighting and an adjustable dial thermostat.
The CT661WIFADA is UL listed for residential use. With its large capacity and user-friendly features, this unit is a convenient option for homes, offices, schools, and other settings in need of reliable cold storage.
Features:
• 24" Wide European Refrigerator-Freezer
• Peak24 Series
• ENERGY STAR certified
• ADA compliant
• Slim undercounter dimensions
• Panel-ready door
• Cycle defrost
• Dual evaporator
• Adjustable glass shelves
• Clear crisper drawer
• Door storage
• Wine shelf
• Interior light
• Hidden evaporator
• Adjustable thermostat
• CARB Compliant
• 100% CFC Free
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 45.38" (115 cm) |
| Capacity | 5.04 cu.ft. (143 L) |
| Defrost Type | Cycle |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year | 330.0kWh/year |
| Amps | 1.2 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101109008 |
|
Refrigerator-Freezer
|
|
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Wine Bottle Shelving | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 18.0" (46 cm) |
| Refrigerator - Interior Width | 21.0" (53 cm) |
| Refrigerator - Interior Depth | 18.0" (46 cm) |
| Refrigerator - Capacity | 4.5 cu.ft |
| Refrigerator - Shelf Type | Glass |
| Refrigerator - Shelf Qty | 2 |
| Refrigerator - Full Door Shelves | 3 |
| Freezer - Interior Height | 5.25" (13 cm) |
| Freezer - Interior Width | 19.0" (48 cm) |
| Freezer - Interior Depth | 11.5" (29 cm) |
| Freezer - Capacity | 0.6 cu.ft |
| Thermostat Type | Dial |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
