Summit SCR504SSTBADA 21" Wide ADA Height Built-In Commercial All-Refrigerator, 3.32 cu.ft. with Stainless Steel Wrapped Door, Digital Controls and NSF-7 Approval
Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.
Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

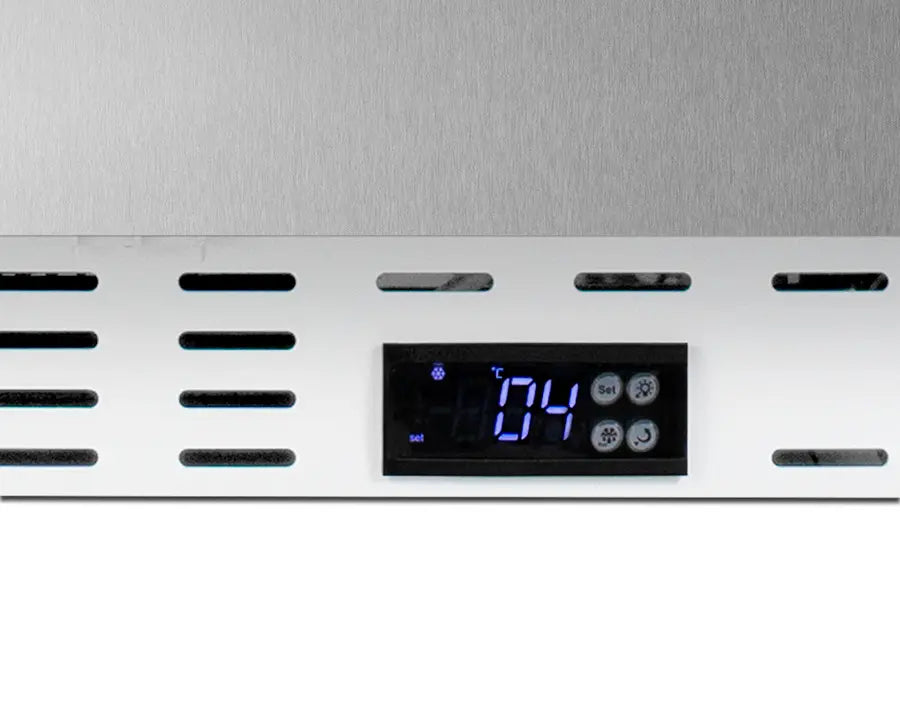

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.
Features:
- Commercially listed
- ETL-S listed to ANSI-NSF Standard 7 for commercial use
- ADA compliant design
- 32" height allows easy installation under lower ADA compliant counters
- Built-in capable
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Professional towel bar handle
- Curved handle in brushed stainless steel offer an easier grip and attractive style
- Factory-installed lock
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- Adjustable digital thermostat
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
- Adjustable wire shelves
- Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior
- 3" thick door
- Improved insulation for an efficient performance
- Temperature alarms
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open door alarm
- Audible alarm will sound if the door is left ajar for over a minute
- Hospital grade cord with 'green dot' plug
- Secure three-pronged cord offers a tighter fit in wall sockets
- Automatic defrost
- Reduced user maintenance with an auto defrost system
- Flat door liner
- Allows for the interior to accept deeper trays
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Reversible stainless steel door
- User-reversible stainless steel door for added flexibility to best accommodate your setting
- Sealed back
- Space-saving design that offers easier cleanability
- Interior light
- Front-located LED light ensures entire interior is lit when door opens
- Magnetic door gasket
- Quality door gaskets ensure a tight seal for energy savings and improved performance
- Matching all-freezer
- This unit can be paired with the SCF505SSTBADA all-freezer for a complete set
- Fully finished white cabinet
- Allows the unit to be freestanding
- Access port
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 3.32 cu.ft. (94 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 69.0 lbs. (31 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101086132 |
|
Refrigerator Features
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 2 to 8°C |
|
Dimensions
|
|
| Interior Height | 23.5" (60 cm) |
| Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) |
| Compressor Step Height | 6.25" (16 cm) |
| Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
