Summit SDR241OS 24" Wide Built-In Outdoor Drawer Refrigerator (Panel Not Included), 2.0 cu.ft. with Panel-Ready Drawer Front and Weatherproof Stainless Steel Construction
Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

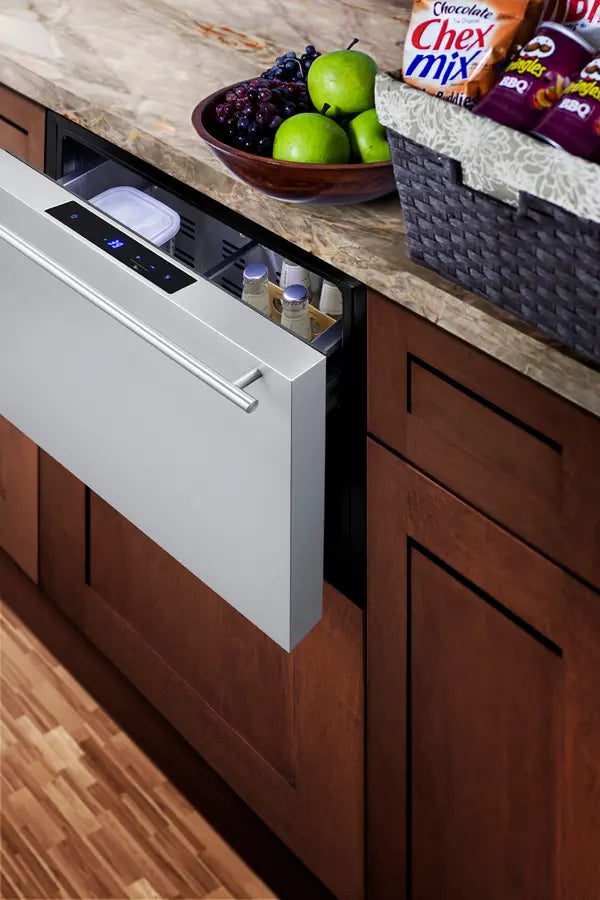

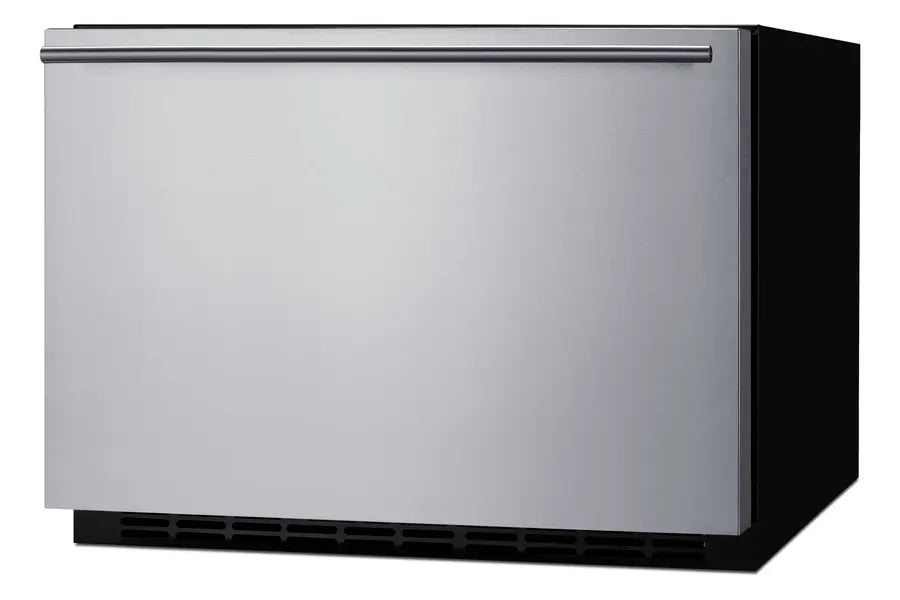

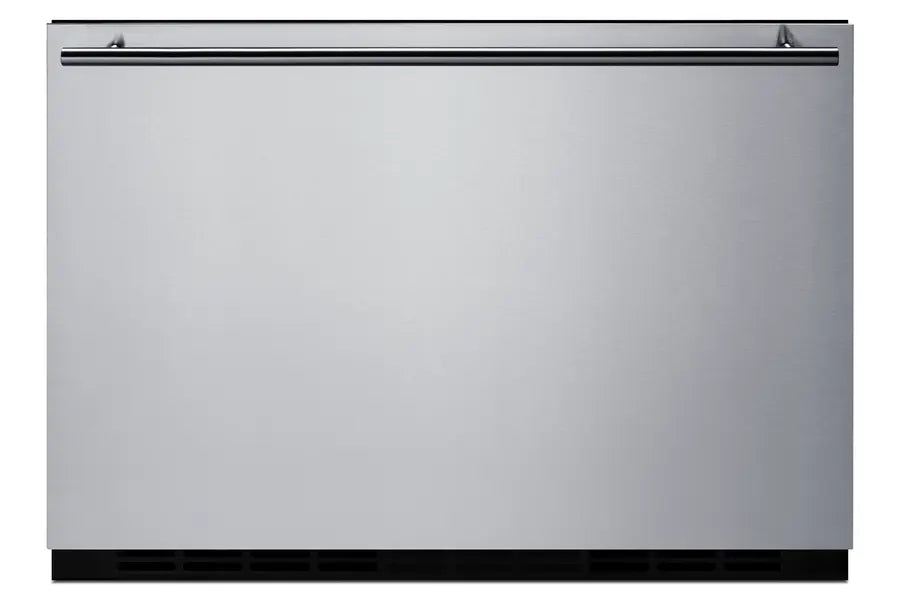

The SDR241OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness).

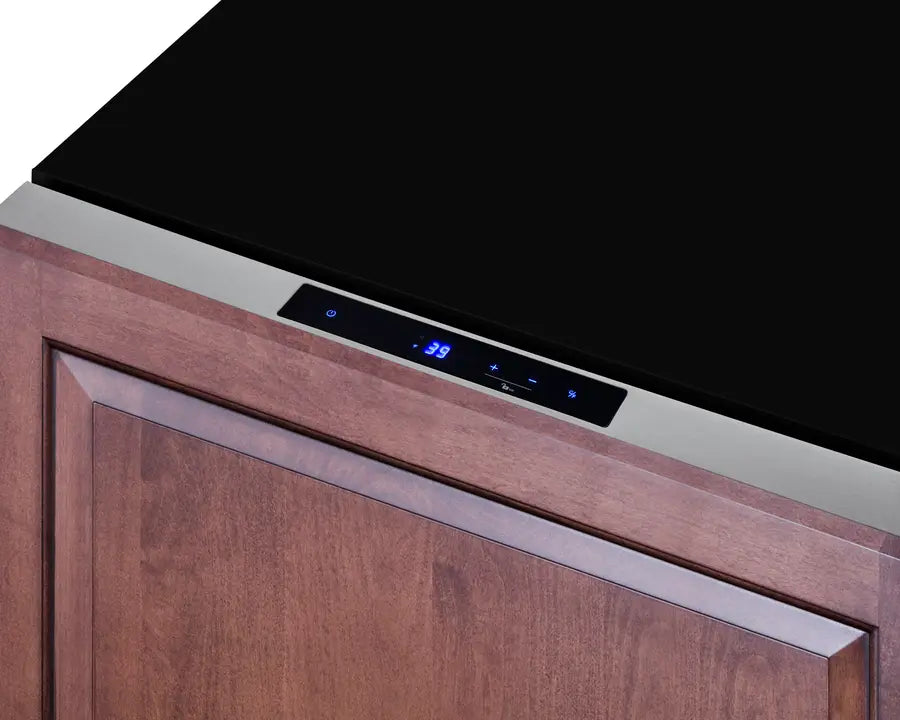

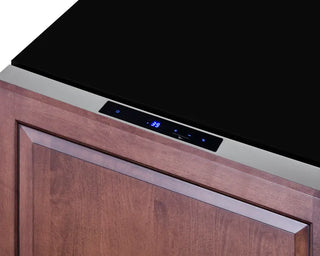

Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements.

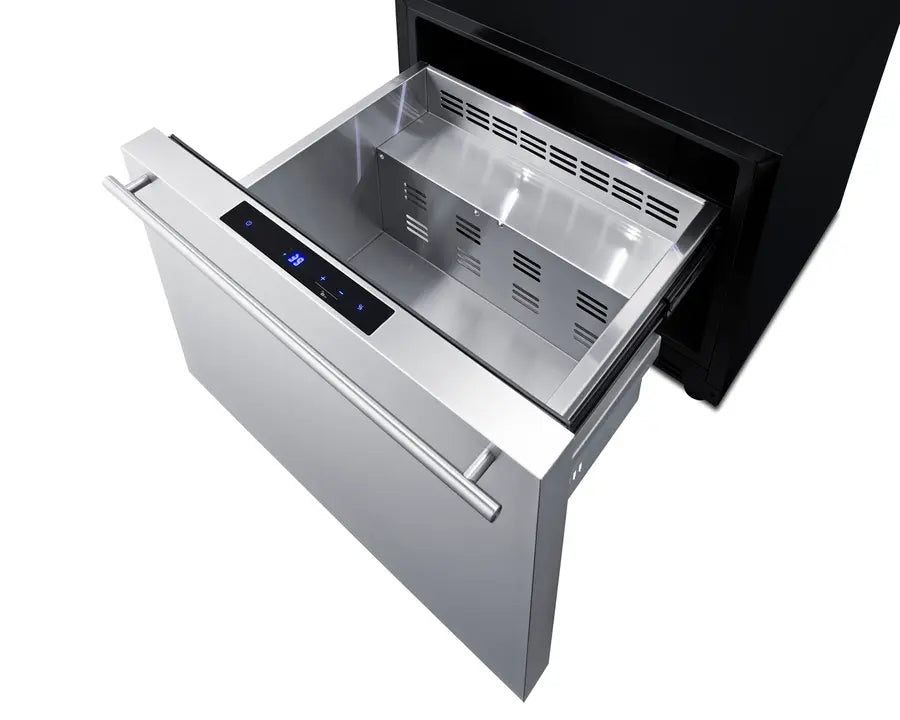

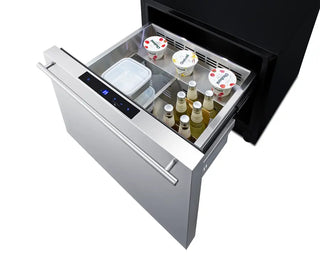

Inside, the SDR241OS offers a full 2 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.
Features:
- 24" wide single drawer refrigerator
- 2 cu.ft. all-refrigerator in a single drawer style to complete any indoor or outdoor kitchen space
- Weatherproof design for outdoor use
- Durable construction allows safe installation in outdoor kitchens
- Commercially approved
- ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
- Built-in capable
- Front-breathing design allows you to build the drawer into cabinetry

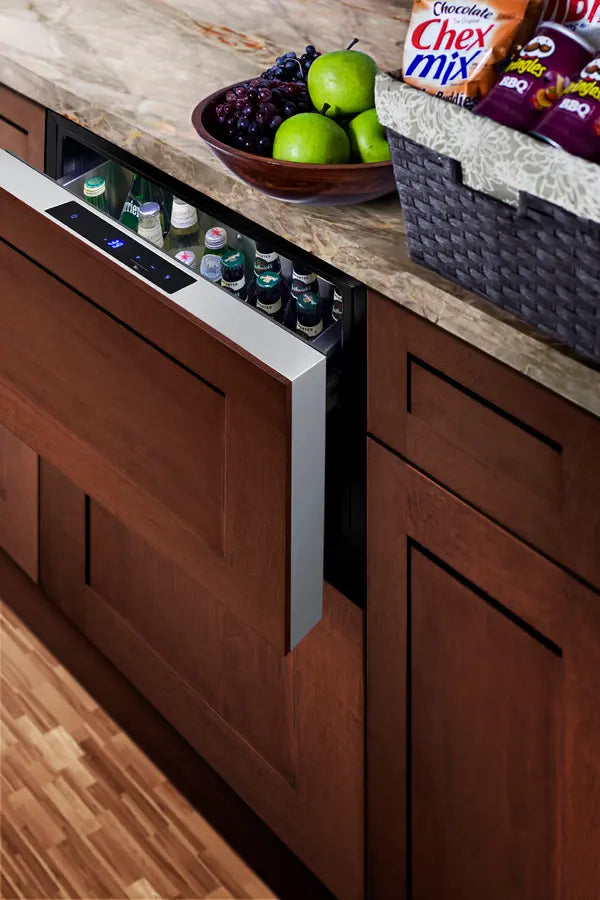

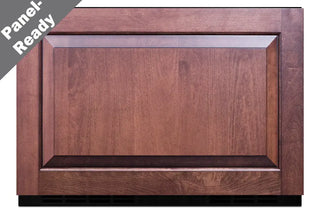

- Panel-ready drawer front

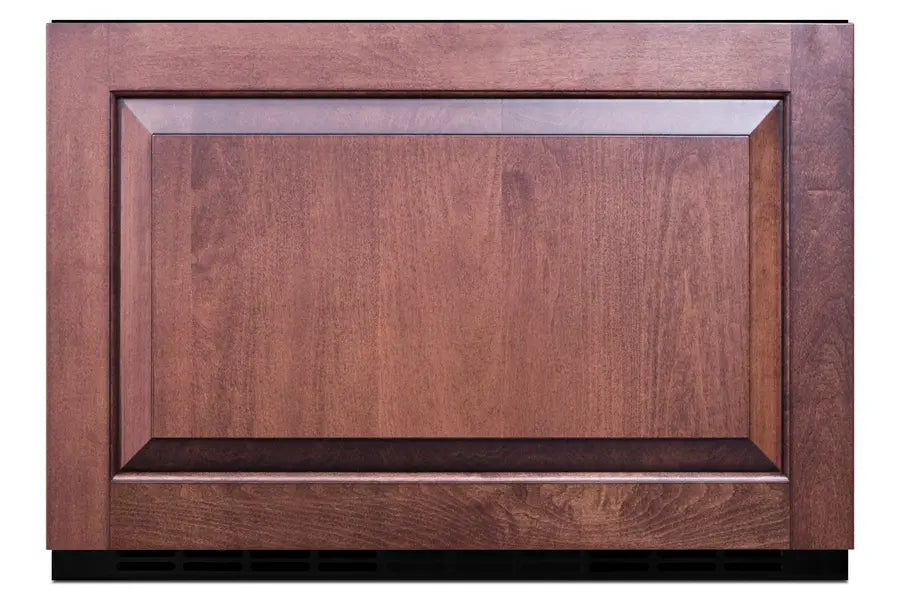

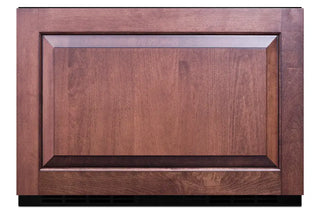

- Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)
- 304 grade stainless steel drawer
- Drawer front and interior constructed from stainless steel for added durability and easy cleanability
- Frost-free operation
- Minimum user maintenance with a fully no-frost operation system
- Digital thermostat
- Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit
- LED lighting
- Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior
- Drawer divider
- Removable divider makes it easy to organize stored items
- Glass shelf
- Includes one half-sized shelf that lets you create more separation as needed
- Internal fan
- Fan-forced cooling ensures the unit is evenly cooled
- Temperature Memory Function
- Unit will retain its last settings when power is restored in the event of power loss
- Professional handle
- A sleek stainless steel handle adds an elegant touch to any setting
- Temperature alarm
- High temperature alarm sounds if the unit's interior goes out of the recommended range
- Open drawer alarm
- Audible alarm will sound if the drawer is left open longer than one minute
- Sabbath Mode
- Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours
- Quiet operation
- Runs at under 33 dB for a quiet performance in any setting
- Child lock
- Disables digital controls after two minutes of activity for added safety
- Sealed back
- Space-saving design with no exposed coils for easier cleanability
- Right angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Fully finished black cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design without ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 18.0" (46 cm) |
| Height of Cabinet | 17.75" (45 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.0" (56 cm) |
| Depth with Handle | 23.5" (60 cm) |
| Depth with door at 90° | 37.88" (96 cm) |
| Capacity | 2.0 cu.ft. (57 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 265.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 62.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101089119 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Reversible | No |
| Shelf Type | Glass |
| Shelf Qty | 1 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.85oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 32.6 dB |
|
Dimensions
|
|
| Interior Height | 13.0" (33 cm) |
| Interior Width | 17.75" (45 cm) |
| Interior Depth | 15.5" (39 cm) |
| Compressor Step Height | 6.5" (17 cm) |
| Compressor Step Width | 17.75" (45 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
