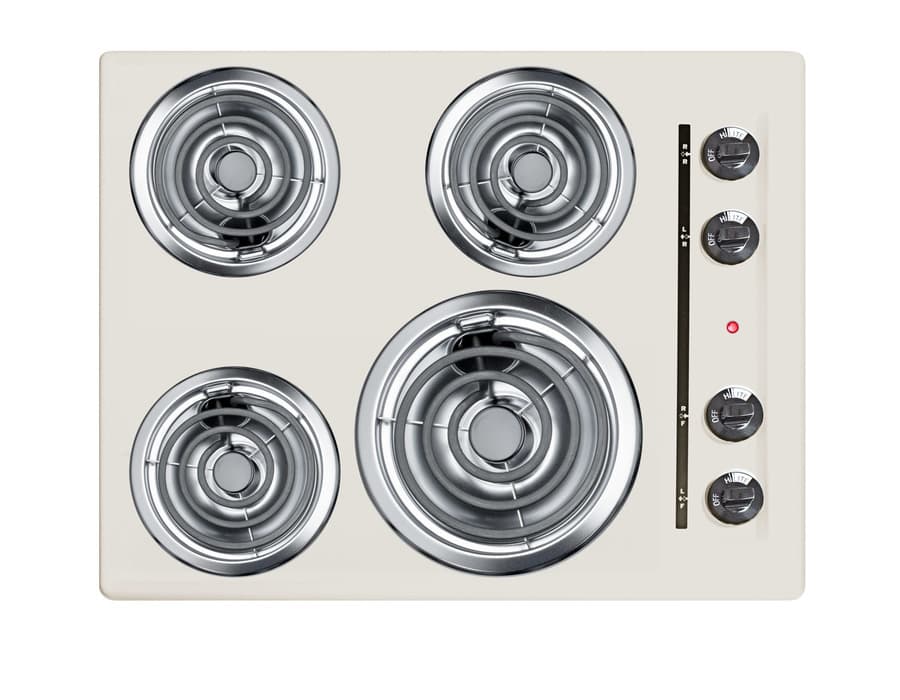

Summit SEL03 24" Wide 4-Burner Electric Coil Cooktop, Made in the USA, Classic Fit, Porcelain Cooking Surface, 8" Burner Three 6" Burners, Side Controls
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.
The SEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a retro bisque finish for a classic look, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.
Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.
The SEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
Features:
- Made in the USA
- Designed and constructed domestically
- Classic fit
- Fits 22 5/8" W x 18 5/8" D counter cutouts
- Porcelain cooking surface
- Bisque finish on scratch resistant top
- Coil elements
- Traditional design offers reliable heating and strong durability for everyday use
- Safety burners with low wattage outputs
- Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
- Chrome drip pans
- Each coil element includes a removable chrome pan to catch spills for easier cleanup
- 8" burner
- Larger element is ideal for heating wider pots and pans
- Three 6" burners
- Standard burners accommodate most heating needs
- Recessed top
- Curved design helps to contain spills on the surface
- Side controls
- Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
- Push-to-turn controls
- Knobs require a small amount of force for added safety
- 220-240V operation
- Professional installation required
- Cord not included
- Compatible with standard 40 amp 3 or 4-wire range cords
Specifications:
|
Overview
|
|
|---|---|
| Nominal Height | 4.0" (10 cm) |
| Height of Cabinet | 3.75" (10 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 24.0" (61 cm) |
| Nominal Depth | 20.0" (51 cm) |
| Depth | 20.0" (51 cm) |
| Cabinet | Bisque |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 27.0 lbs. (12 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101000763 |
|
Electric Cooktop
|
|
| Heating Type | Radiant |
| Surface | Painted |
| Element Type | Coils |
| Number of Elements | 4 |
| Controls | Dial |
| Countertop Cutout Width | 22.63" (57 cm) |
| Countertop Cutout Depth | 18.63" (47 cm) |
| Element #1 Size | 6.0" (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 8.0" (20 cm) |
| Element #2 Wattage | 950.0 |
| Element #3 Size | 6.0" (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 6.0" (15 cm) |
| Element #4 Wattage | 675.0 |
| Power Cord Included | No |
