Summit SPR3032DPNRADA 30" Wide ADA Height 2-Drawer All-Refrigerator (Panels Not Included), 5.42 cu.ft. with Stainless Steel Drawers and Panel-Ready Fronts for Custom Look
Summit is expanding its popular lineup of built-in undercounter ADA compliant refrigeration with new luxury choices for 30" wide spaces in residential or commercial kitchen indoor and outdoor spaces.
Model SPR3032DPNRADA is a 30" wide 2-drawer all-refrigerator sized just under 32" high for an easy fit under lower ADA compliant counters. It comes in a shallow depth just under 24" for added space savings. The drawer fronts are designed to accept overlay panels (sized at 29.5" x 13.78 at a 3/4" thickness) to allow you to create a custom look that best suits your kitchen design. We include a set of handles for optional use, and the drawer fronts are fully finished in stainless steel if you prefer that style. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The sealed back and right angle plug help to ensure an easy fit.

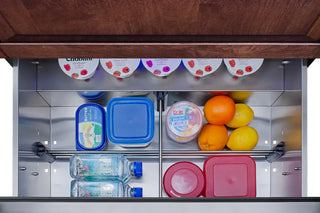

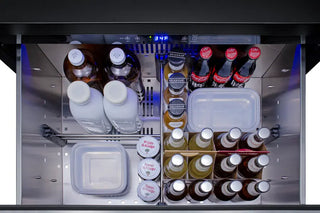

With a generous 5.42 cu.ft. interior capacity, the SPR3032DPNRADA is perfect for keeping a variety of items in easy reach. Each drawer includes a removable divider that lets you create four adjustable sections inside to help organize the interior. The intuitive digital control panel features a wide range from 34 to 65ºF, allowing you to adjust your storage conditions for standard food items or beverages better held at warmer temperature. The temperature display can be switched from Fahrenheit to Celsius for added convenience.
Both drawers feature LED lighting in a striking blue finish for elegant illumination. Frost-free operation minimizes maintenance and internal fans help to maintain an evenly cooled interior. Additional features include open drawer alarms, a child lock to prevent changes to the controls, an eco mode setting, and a 96 hour sabbath mode to disable certain features for periods of observance.
Features:
- 30" wide 2-drawer all-refrigerator
- Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

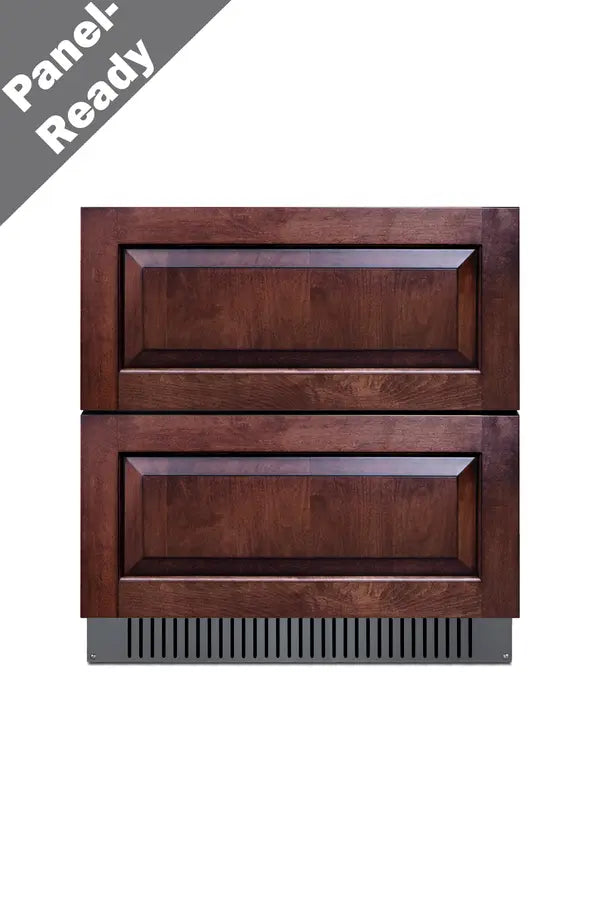

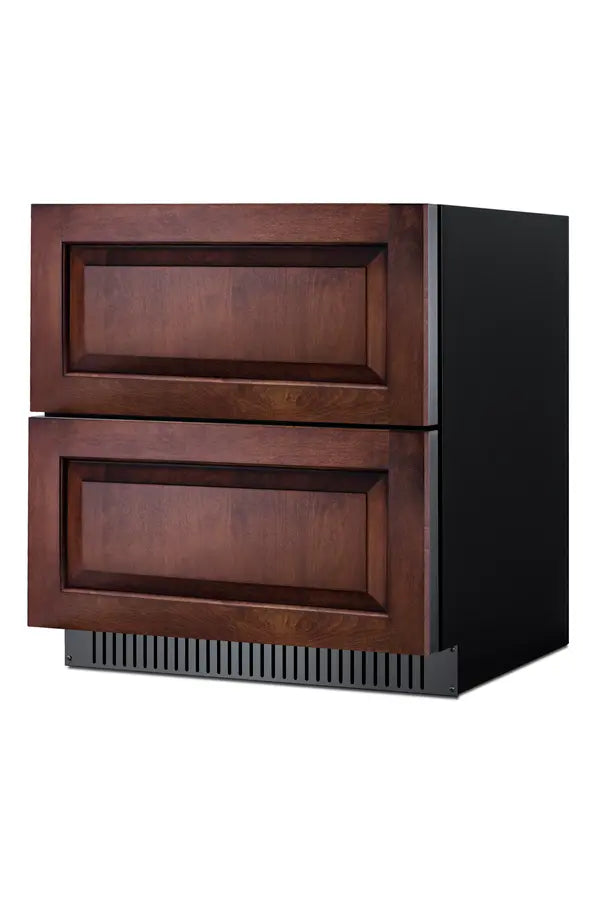

- Panel-ready drawer fronts
- Drawers can be customized with overlay panels (sized at 29.5" x 13.78" at 3/4" thick) to match or accent existing cabinetry
- ADA Compliant height
- 32" height allows easy installation under lower ADA compliant counters
- Less than 24" deep
- Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces
- Stainless steel drawers
- Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter
- Built-in capable
- Front-breathing design allows the unit to be built-in under counters
- Indoor/Outdoor compatible
- Durable, weatherproof construction designed to hold up to the elements
- Commercially approved
- ETL-S listed to NSF-7 standards allows use in commercial kitchens
- Professional handles
- Included for optional use, or add your own to better match your cabinetry finishes
- Frost-free
- No-frost operation for minimal user maintenance
- LED lighting

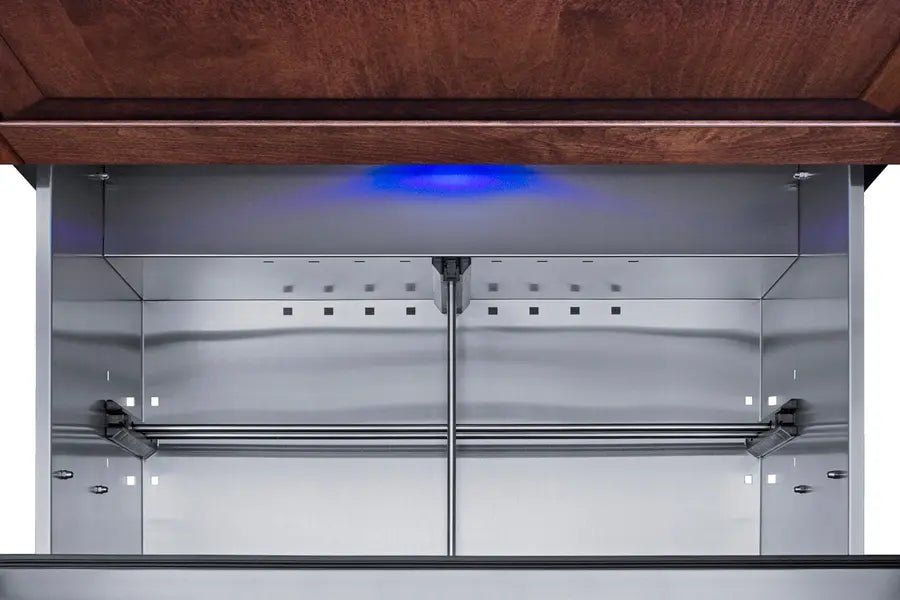

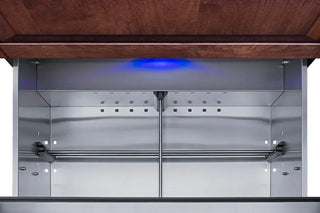

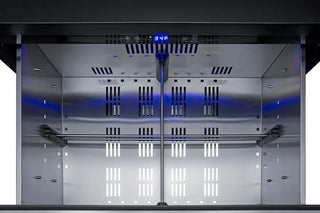

- Both drawers feature an LED strip that provides a stunning blue illumination over the interiors
- Digital thermostat

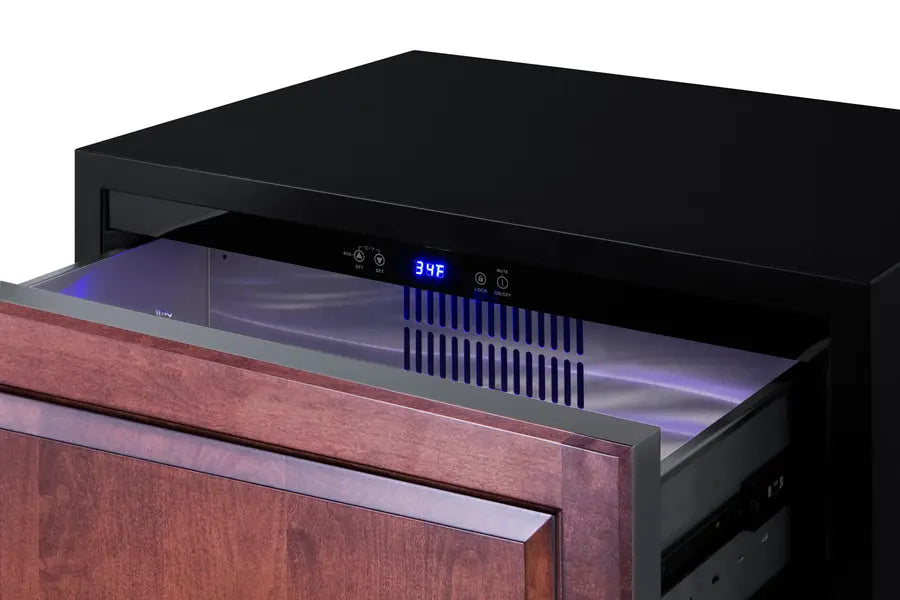

- Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
- Drawer dividers
- Each drawer includes a removable accessory that lets you divide your storage into four sections
- Open drawer alarm
- Audible alarm sounds if the drawers are left open for more than five minutes
- Sabbath mode
- Optional feature disables alarms, interior light, and displays for up to 96 hours
- Right-angle plug
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Sealed back
- Space-saving design with no exposed coils for easier cleanability
- Fan-forced cooling
- Provides for efficient, even cooling of the entire unit
- Anti-slam drawers
- Soft-close glides prevent drawers from slamming shut for additional durability and safety
- Anti-tip bracket
- Bracket (included) helps prevent tipping for added safety
- Fully finished cabinet
- Allows the unit to be used freestanding
- 100% CFC free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications:
|
Overview
|
|
|---|---|

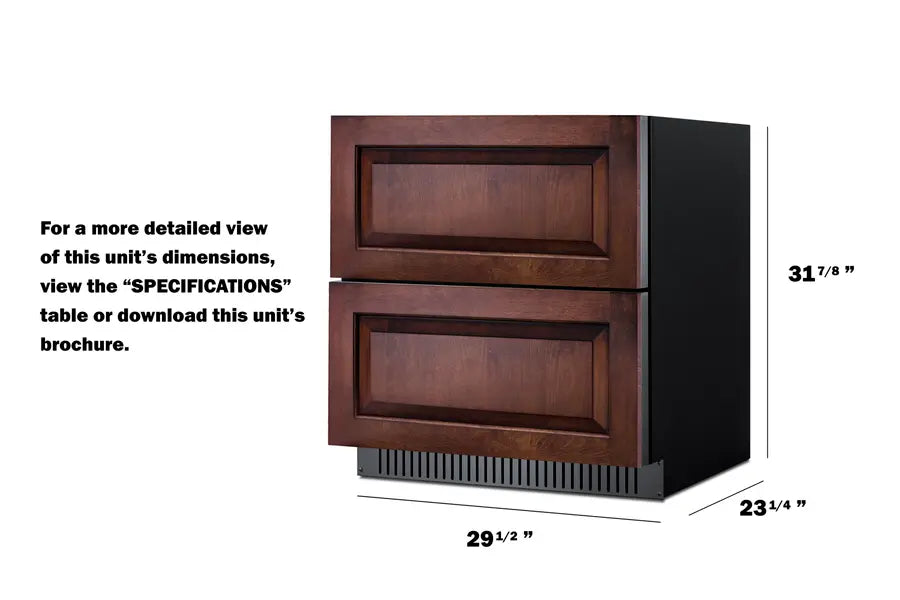

| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.88" (81 cm) |
| Nominal Width | 30.0" (76 cm) |
| Width | 29.5" (75 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 37.75" (96 cm) |
| Capacity | 5.42 cu.ft. (153 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel/Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 305.0kWh/year |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 126.0 lbs. (57 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101090191 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | Drawer |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Interior Drawers | Yes |
| Interior Drawers Qty | 2 |
| Temperature Range | 34 to 65ºF |
| Sound Level | 35.6 dB |
|
Drawer Dimensions
|
|
| Interior Height 1 | 9.88" (25 cm) |
| Interior Width 1 | 23.75" (60 cm) |
| Interior Depth 1 | 16.5" (42 cm) |
| Interior Height 2 | 8.75" (22 cm) |
| Interior Width 2 | 23.75" (60 cm) |
| Interior Depth 2 | 16.5" (42 cm) |
|
Dimensions
|
|
| Compressor Step Height | 5.0" (13 cm) |
| Compressor Step Width | 23.75" (60 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
