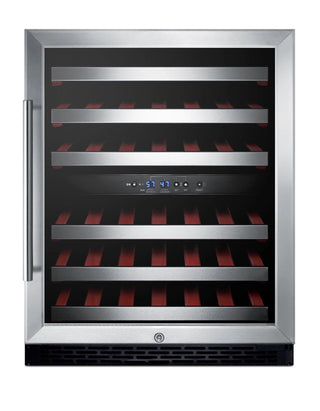

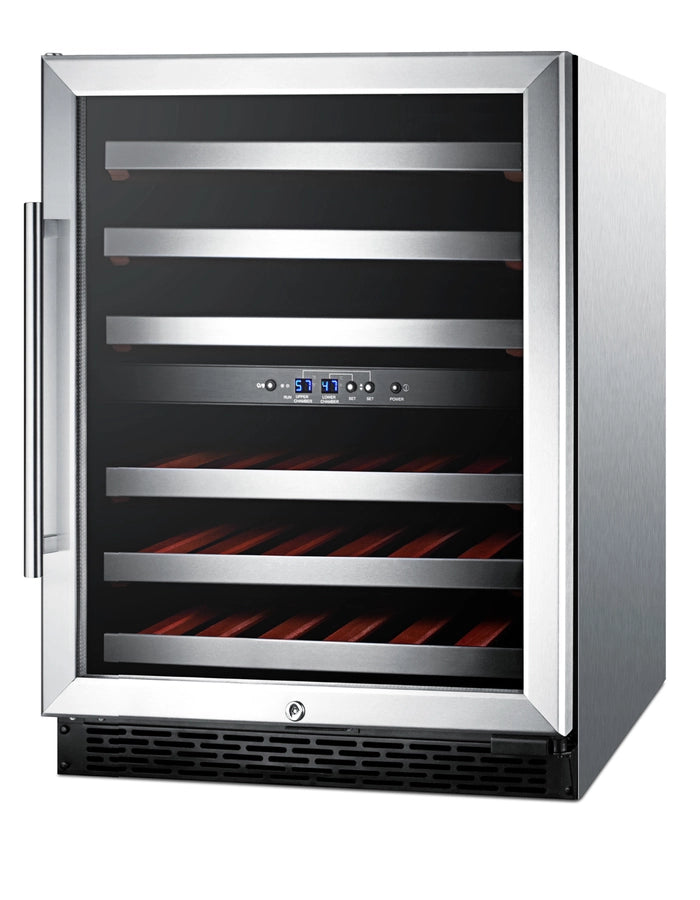

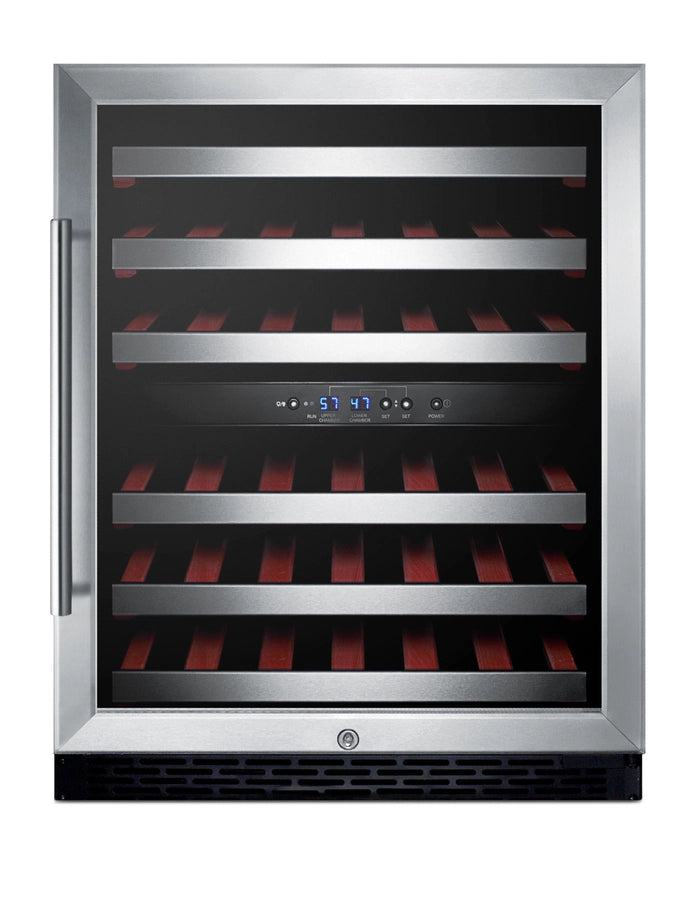

Summit SWC530BLBISTCSSADA 24" Wide ADA Compliant Built-In Dual-Zone 46-Bottle Beverage Cellar, 24" Undercounter Fit, Built-In or Freestanding Versatility, Factory-Installed Security Lock
Store your finest collection in the SWC530BLBISTCSSADA, an ADA compliant built-in wine cellar with advanced features and stunning design.

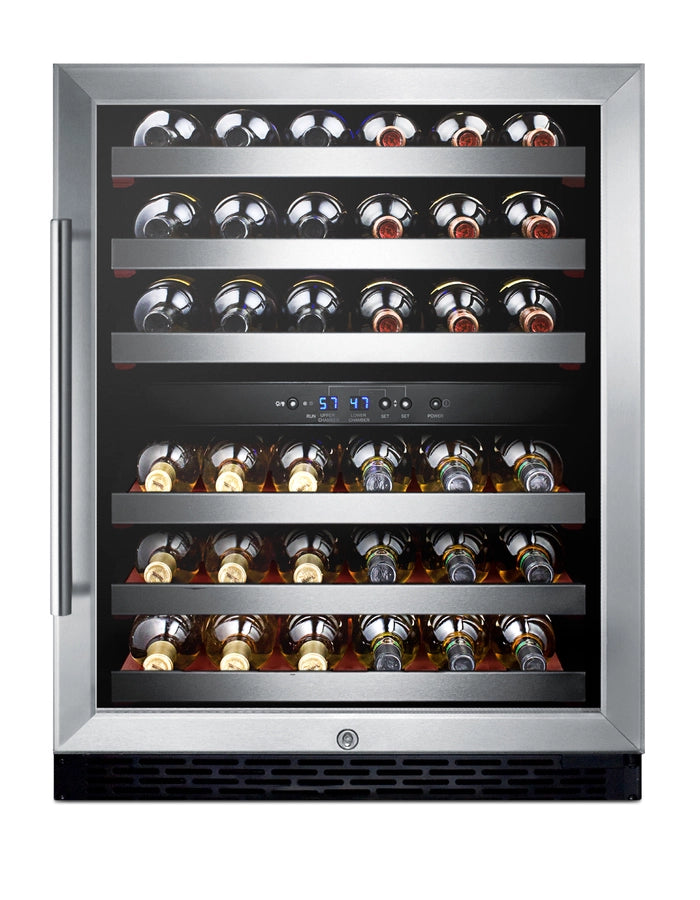

Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple.
At 32" high, the SWC530BLBISTCSSADA can be used built-in or freestanding under lower ADA compliant counters. The cabinet is fully wrapped in stainless steel, with a reversible glass door to best display your collection. A professional stainless steel door handle completes the look.
Features:
- ADA Compliant
- 32" height fits under lower ADA compliant counters
- Built-in capable
- Make the best use of space by installing your appliance under the counter
- Stainless steel cabinet
- Fully wrapped in 304 grade stainless steel
- Digital thermostats
- Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
- Two temperature zones
- Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
- Automatic defrost
- Reduced maintenance with auto defrost system
- Slide-out wooden shelving
- Ideal for holding your bottles, with an elegant touch of stainless steel trim
- Versatile shelving

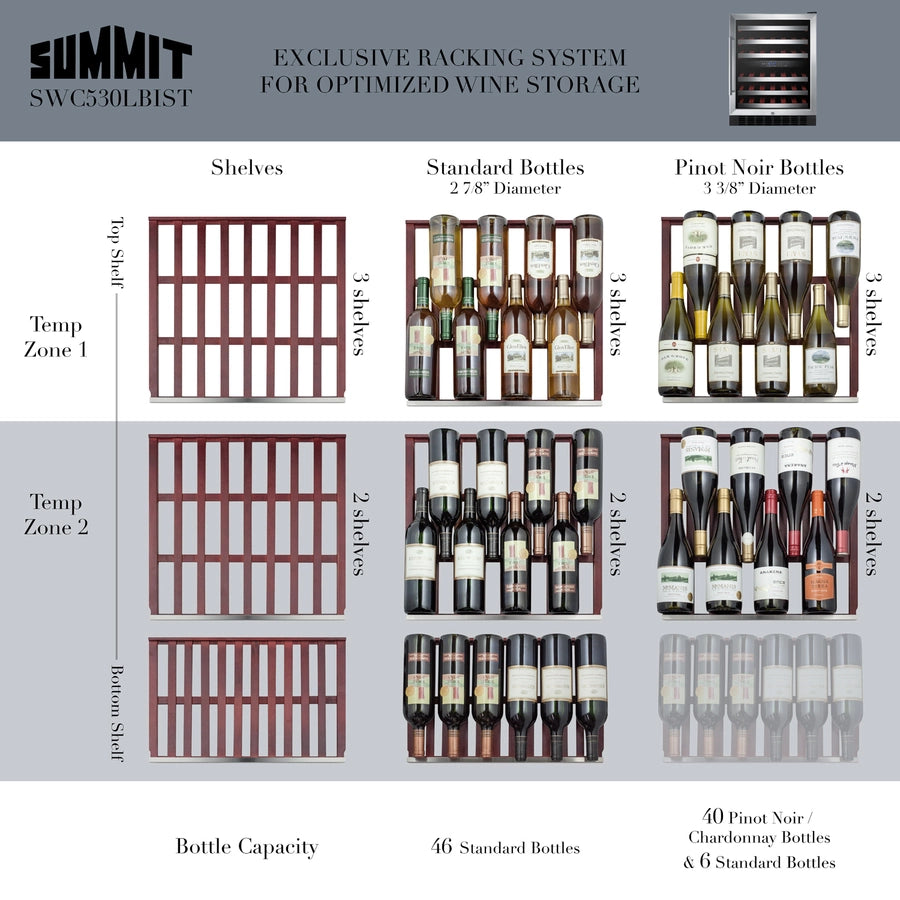

- Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
- Stainless steel door frame
- Classic trim for a refined look
- Glass door
- Provides a full display of your collection
- Interior light
- Illuminate your collection in style
- Factory installed lock
- Keyed lock for secure interior
- Reversible door
- User reversible door swing
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
Specifications :
|
Overview
|
|
|---|---|
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056425 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Sound Level | 34.3 dB |
