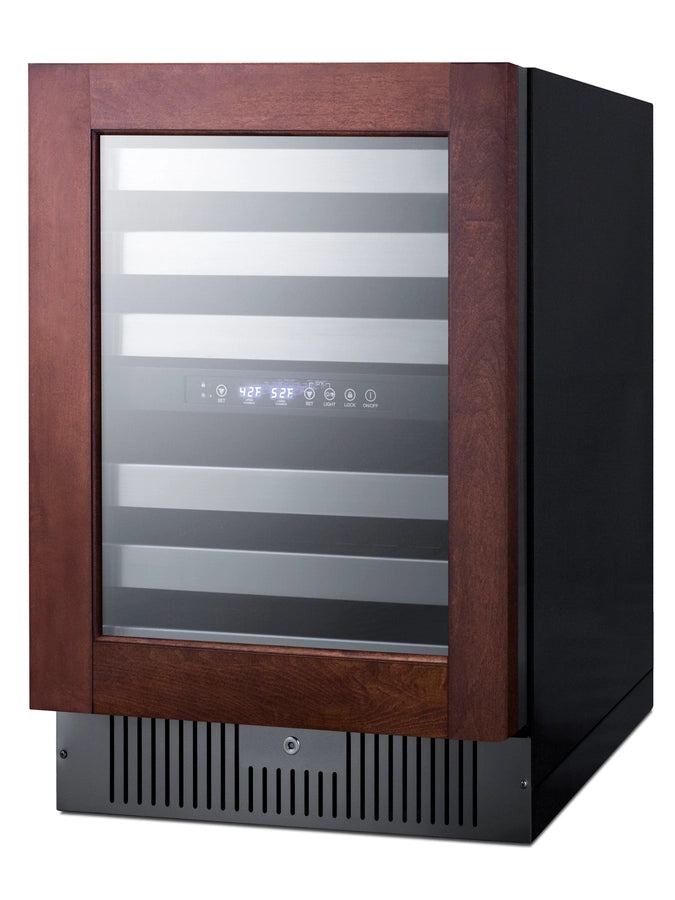

Summit SWC532BLBISTPNRLHD 24" Wide Panel-Ready Beverage Cellar Left-Hand Built-In Dual-Zone 46-Bottle, (Panel Not Included), Full-Extension Ball-Bearing Shelving, Factory-Installed Security Lock
Summit's extensive selection of built-in undercounter commercially approved wine cellars includes elegant choices that let you achieve a custom look ideal for any space.

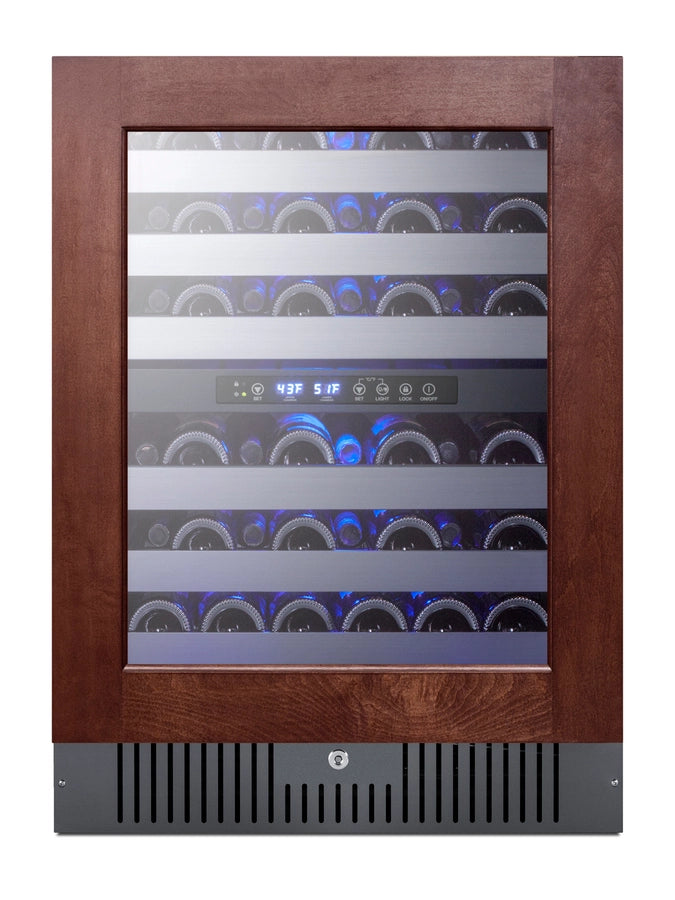

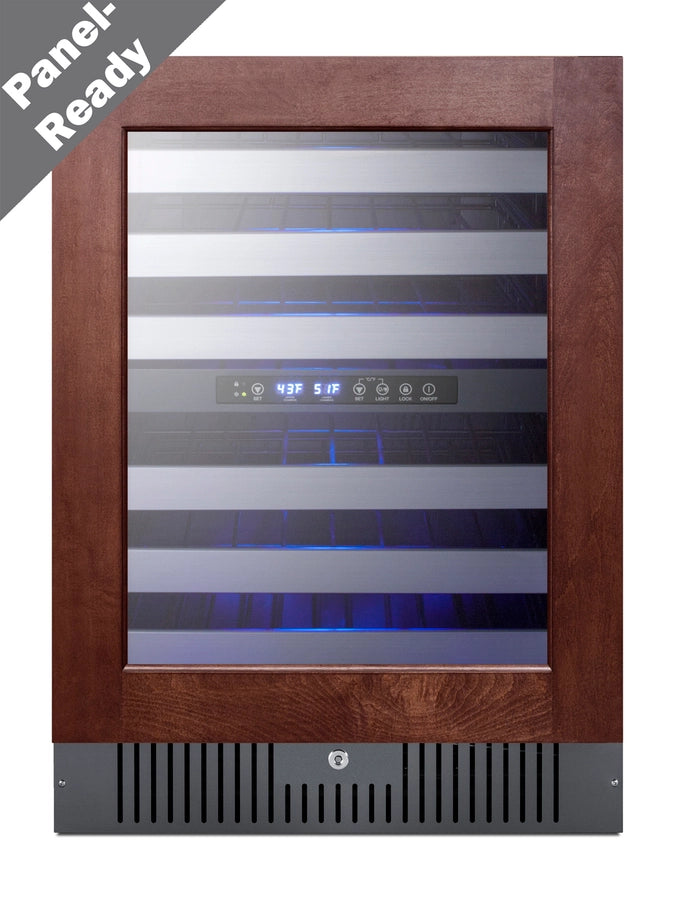

The SWC532BLBISTPNRLHD is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look.
Inside, the SWC532BLBISTPNRLHD is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.
This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the SWC532BLBISTPNRLHD makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.
Features:
- 24" Dual Zone Wine Cellar
- Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
- Built-in capable
- Front-breathing design allows this unit to be installed under counters
- Panel-ready door trim
- Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area

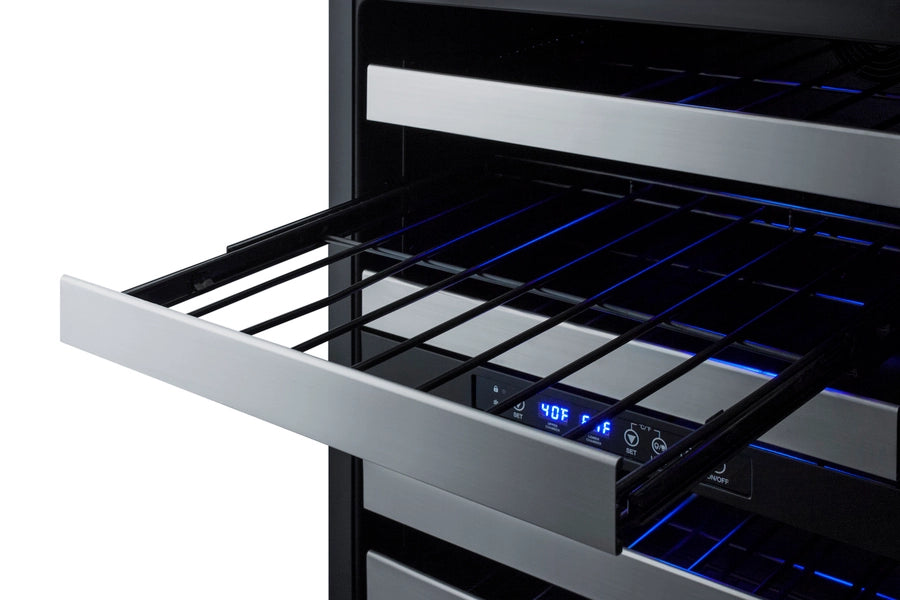

- Flexible commercial grade shelving
- Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles

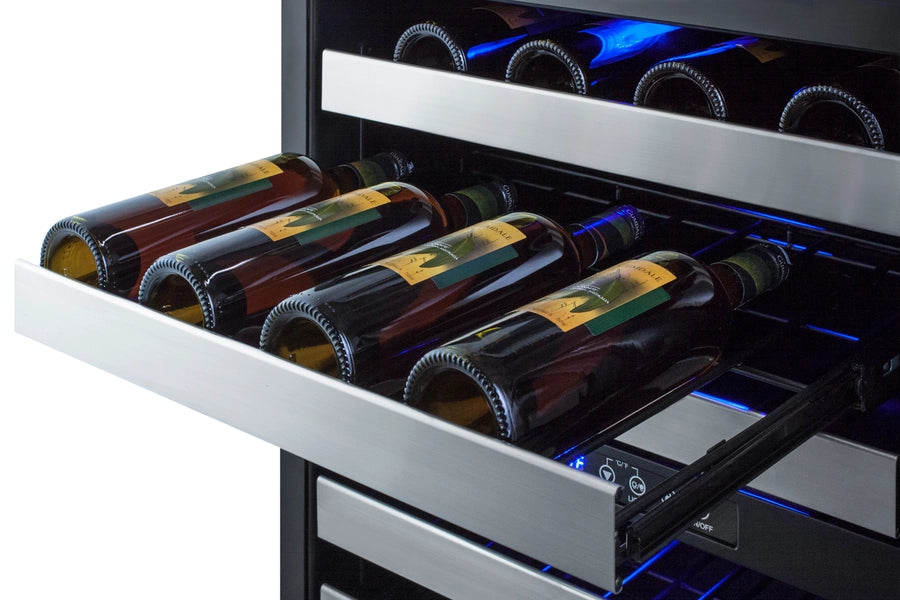

- Full-extension shelving
- Shelves move smoothly on ball-bearing glides for easier loading and unloading
- Two temperature zones
- Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

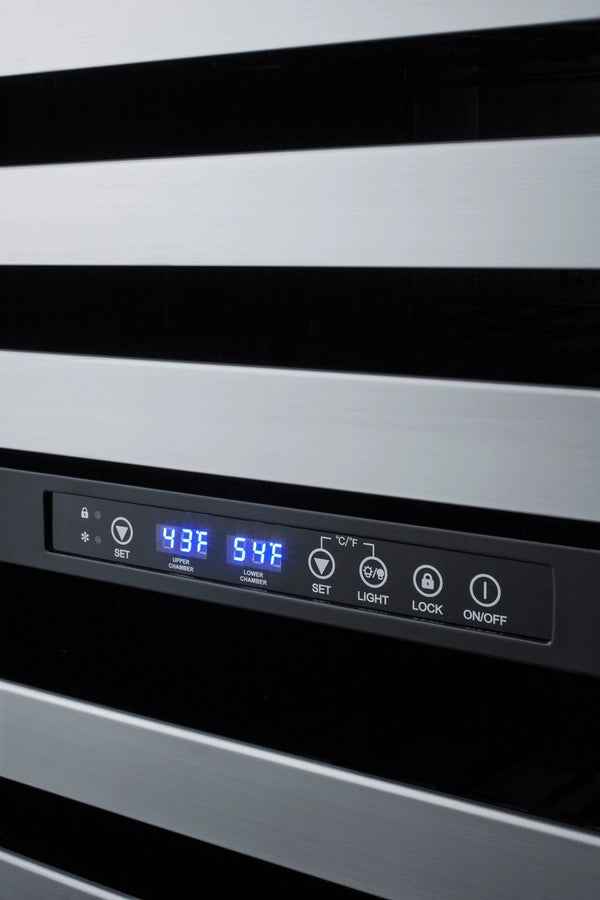

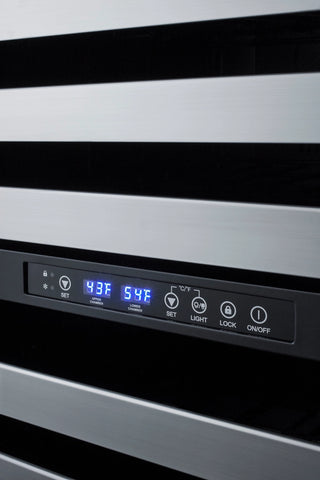

- Digital control panel
- Easy temperature management with electronic controls located inside
- Versatile readout
- Temperature viewable in Celsius or Fahrenheit
- Automatic defrost
- Reduced maintenance with auto defrost system
- Double pane tempered glass door
- Provides a full display of the interior, with two levels of glass for added protection
- Interior lighting
- Recessed LED lighting in both compartments brings striking blue illumination to your collection
- Factory installed lock
- Keyed lock for secure interior, with two keys included

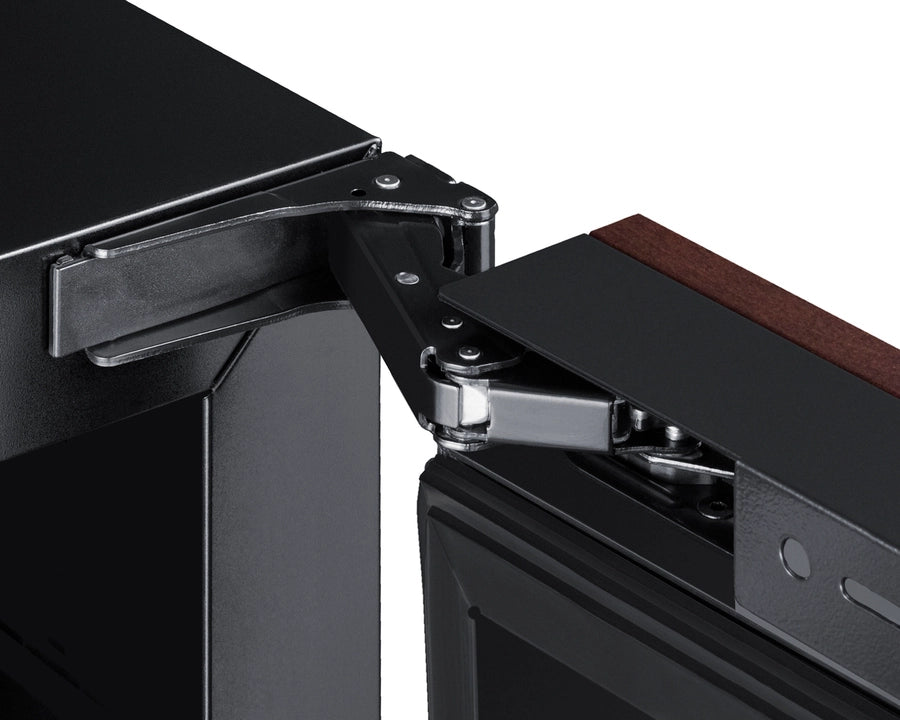

- Fully articulating hinge
- Smoother opening and a better fit with an integrated European style door hinge
- Fully finished black cabinet
- Allows the unit to be used freestanding
- Commercially listed
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- 100% CFC Free
- Environmentally friendly design with no ozone-damaging chemicals
- CARB Compliant
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Specifications :
|

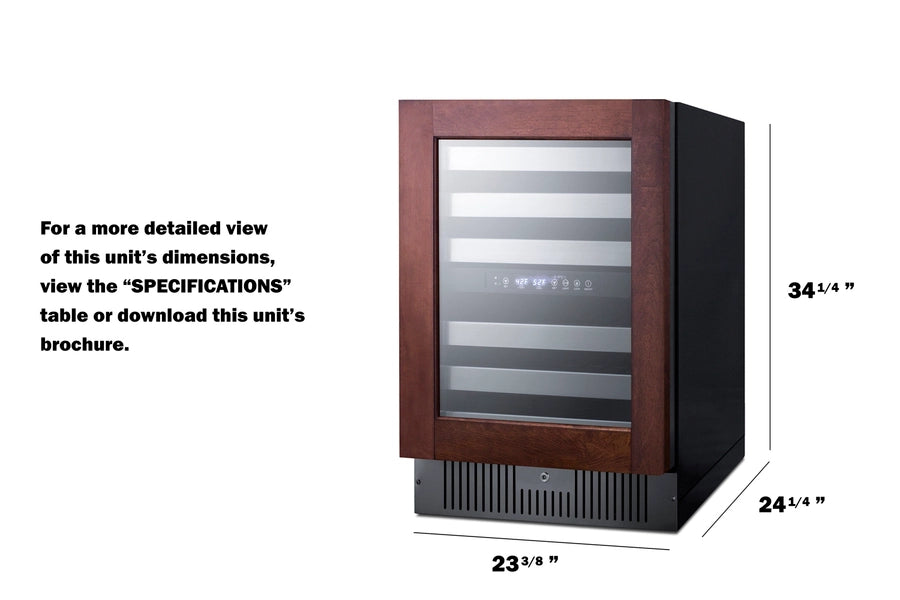

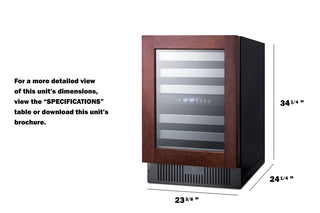

Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 34.25" (87 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Panel | 24.25" (62 cm) |
| Depth with door at 90° | 47.38" (120 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101101552 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | LHD |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
