Richmar DQSWD2 TheraTouch DX2 Shortwave Diathermy Unit with Scientific Dosage Control
Richmar DQSWD2 TheraTouch DX2 Shortwave Diathermy Unit with Scientific Dosage Control
Richmar DQSWD2 TheraTouch DX2 Professional Shortwave Diathermy System for Deep Tissue Heating, Pain Relief & Muscle Recovery with Continuous/Pulsed Modes & Auto-Tuning
Richmar’s TheraTouch DX2 Shortwave Diathermy introduces advanced electrotherapy for targeted deep heat therapy, treating conditions like muscle spasms, joint contractures, and chronic pain through continuous (100W average) and pulsed (200W peak) modalities. Featuring patented Scientific Dosage Control (SDC) with expanded Dose III options (Low, Moderate, High Heat) for precise thermal delivery within patient comfort, plus High Efficiency Auto-Tuning (H.E.A.T.) for real-time impedance adjustment and faster heating. The exclusive Microcirculation Indication protocol enhances tissue healing via subthermal pulsed energy, backed by clinical studies. With a robust 360° pivoting arm, dual treatment indicators, and 99 programmable protocols, it’s ideal for physical therapy clinics, sports medicine, and rehab centers. Evidence-based settings and anatomical guides ensure safe, efficient sessions; made in the USA with a 3-year warranty for clinical durability.
Features:
- Scientific Dosage Control (SDC) with 6 thermal levels: Dose I (Subthermal), II (Mild Heat), III (Low Heat), III SDC M/H (Moderate/High Heat), IV (Vigorous Heat) for customized therapy
- High Efficiency Auto-Tuning (H.E.A.T.) resonant technology adapts to patient impedance for optimal energy transfer and reduced treatment times
- Microcirculation Indication in Quick Link library promotes subthermal pulsed diathermy for enhanced vascular healing and recovery
- Dual-mode operation: Continuous for deep penetration (100W at 50Ω), Pulsed for sub-acute pain (200W peak at 50Ω, 20-400 μsec width, 10-800 Hz frequency)

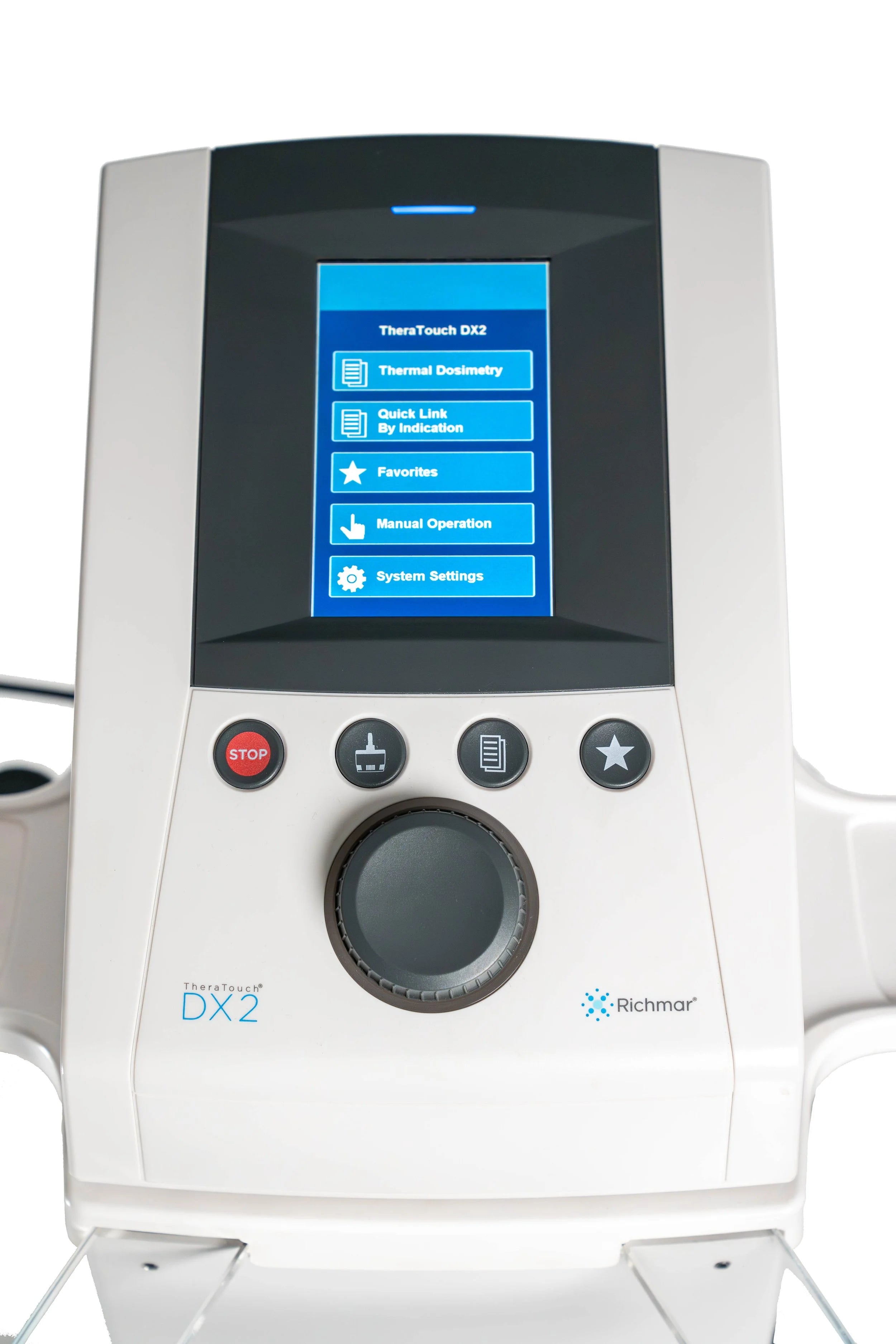

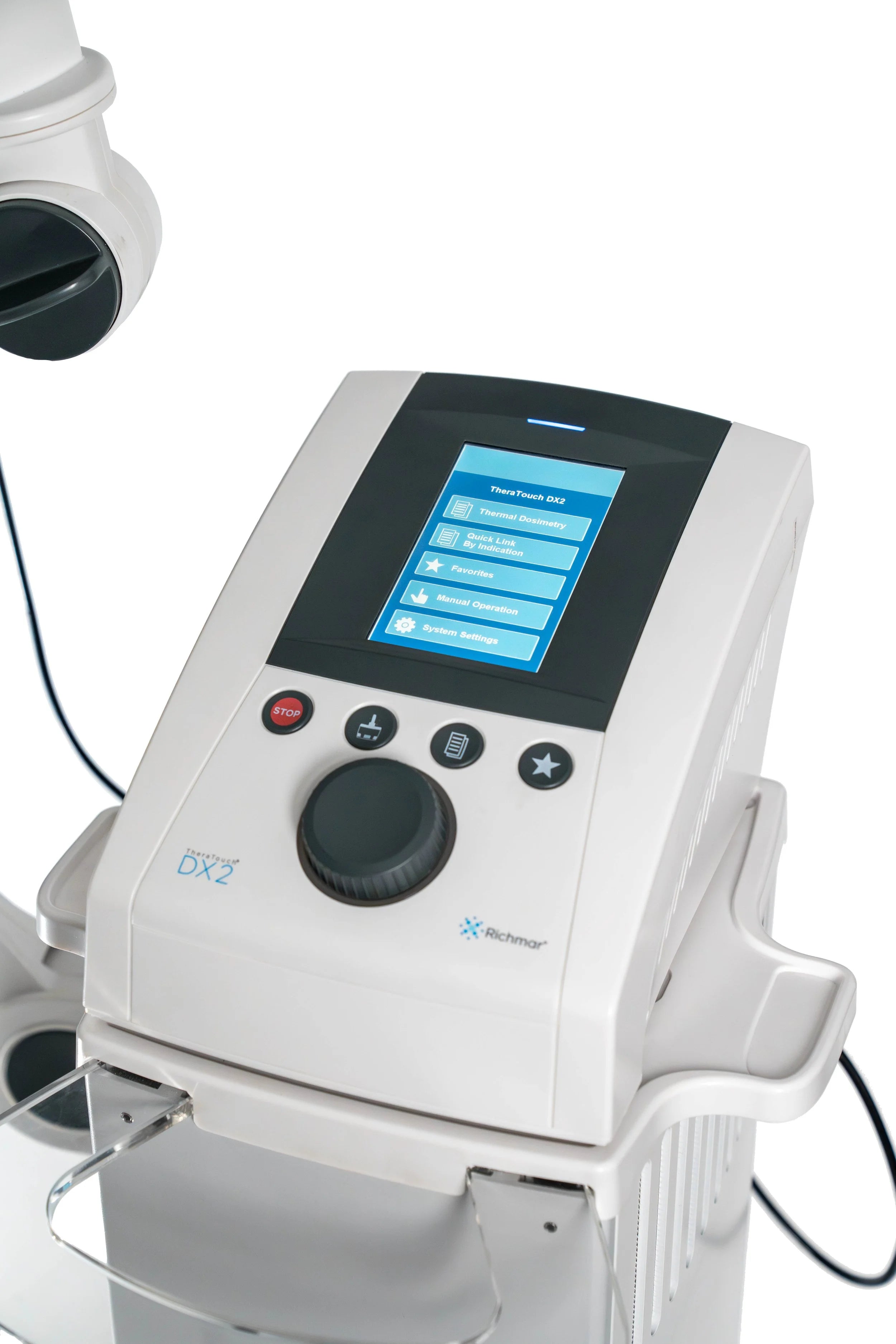

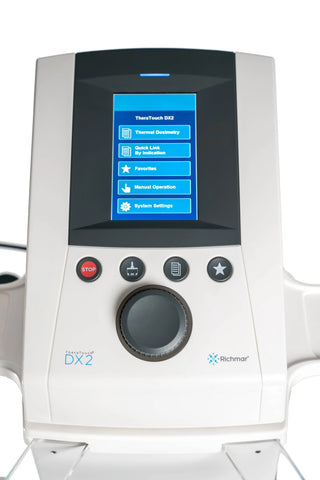

- User-friendly monochromatic touch screen with 270° pivoting interface, patient data cards (up to 14 sessions/10 protocols), and anatomical treatment guide

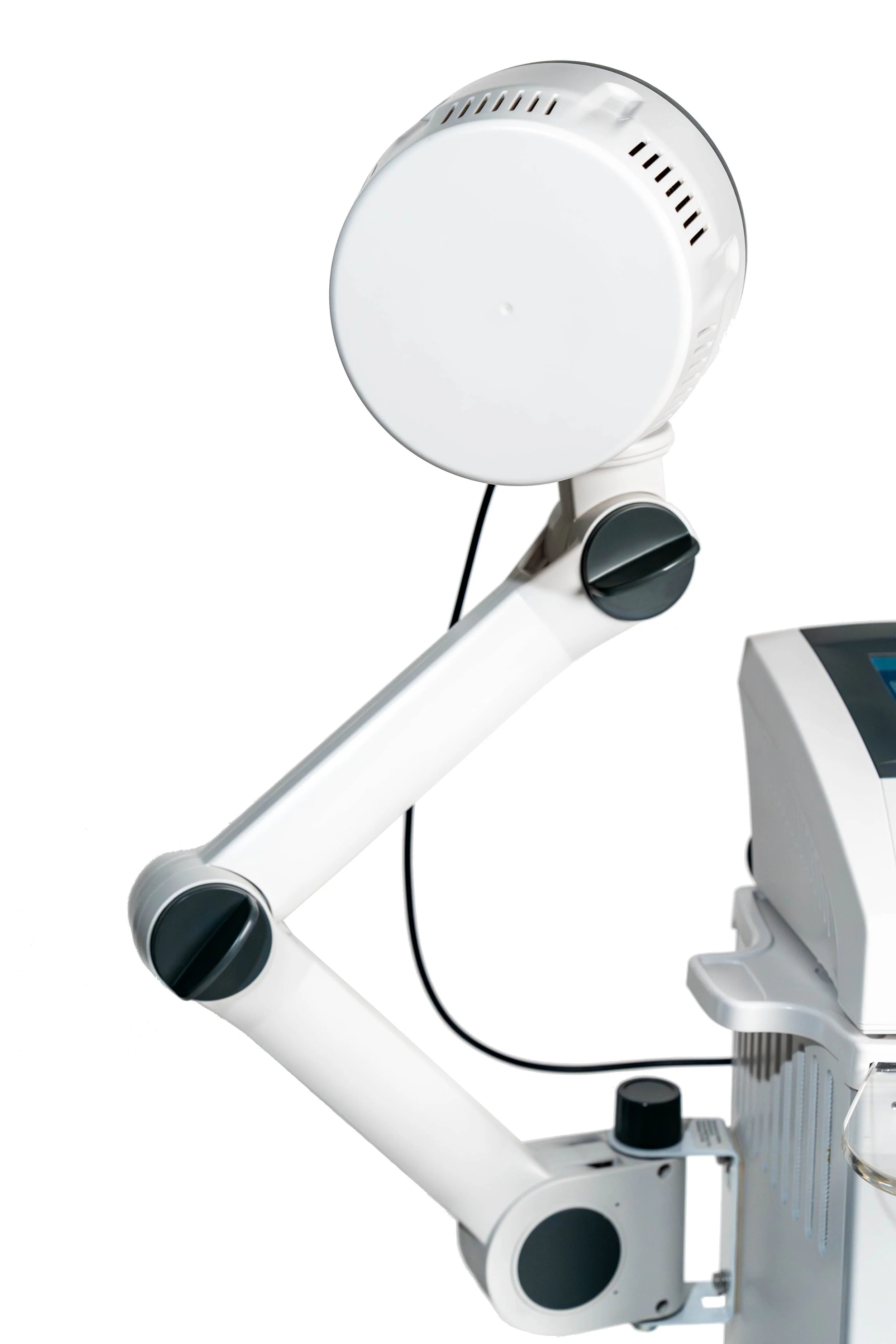

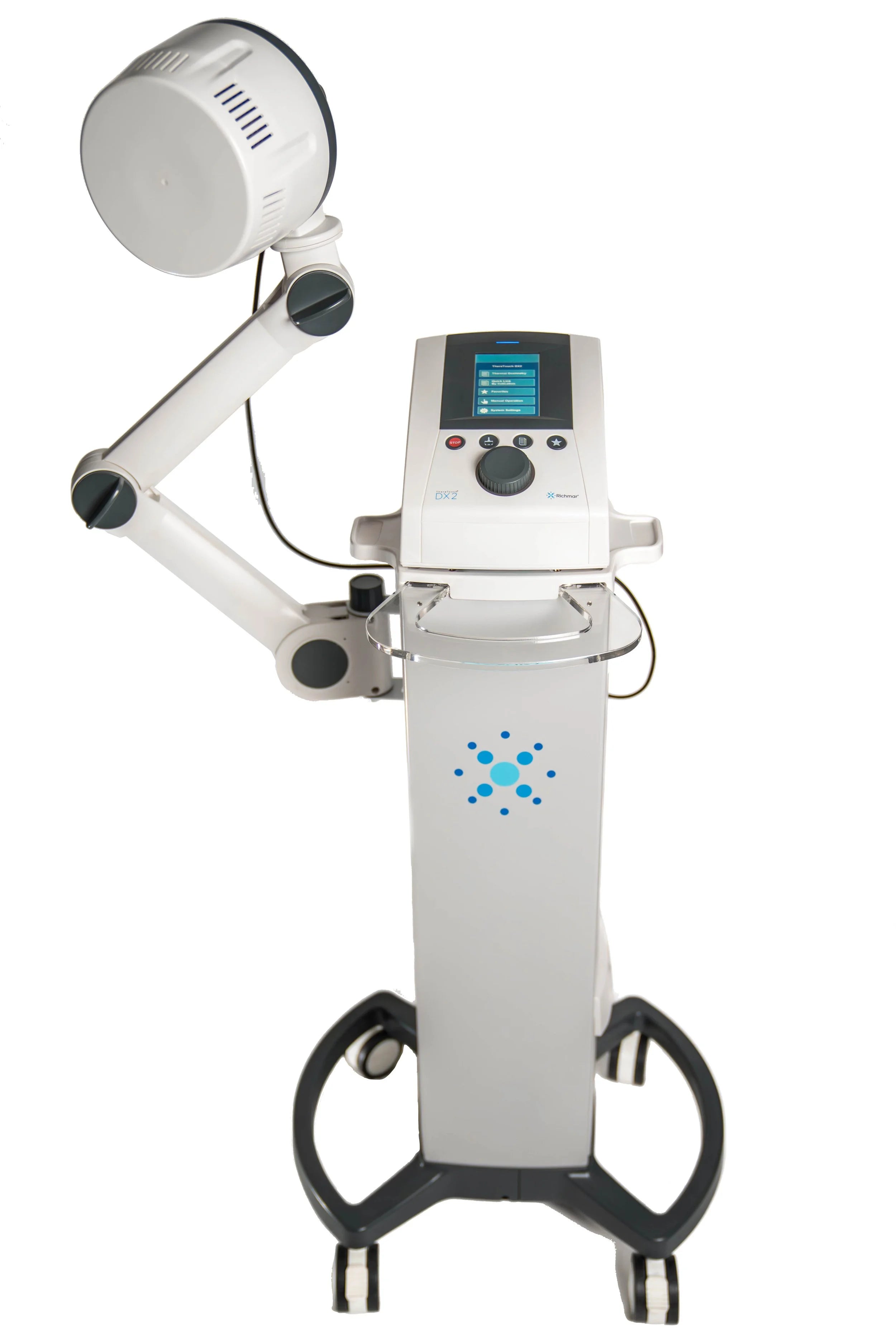

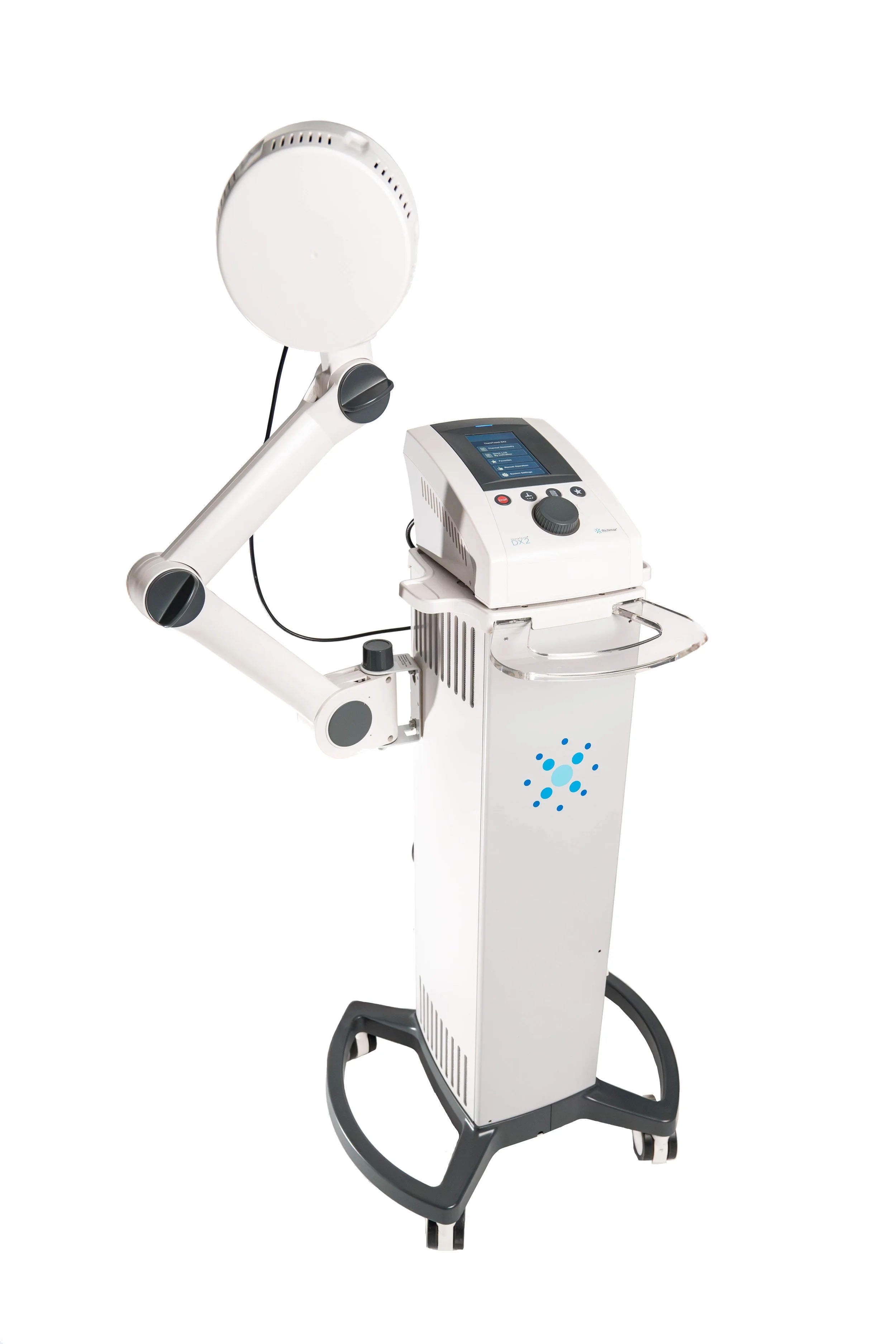

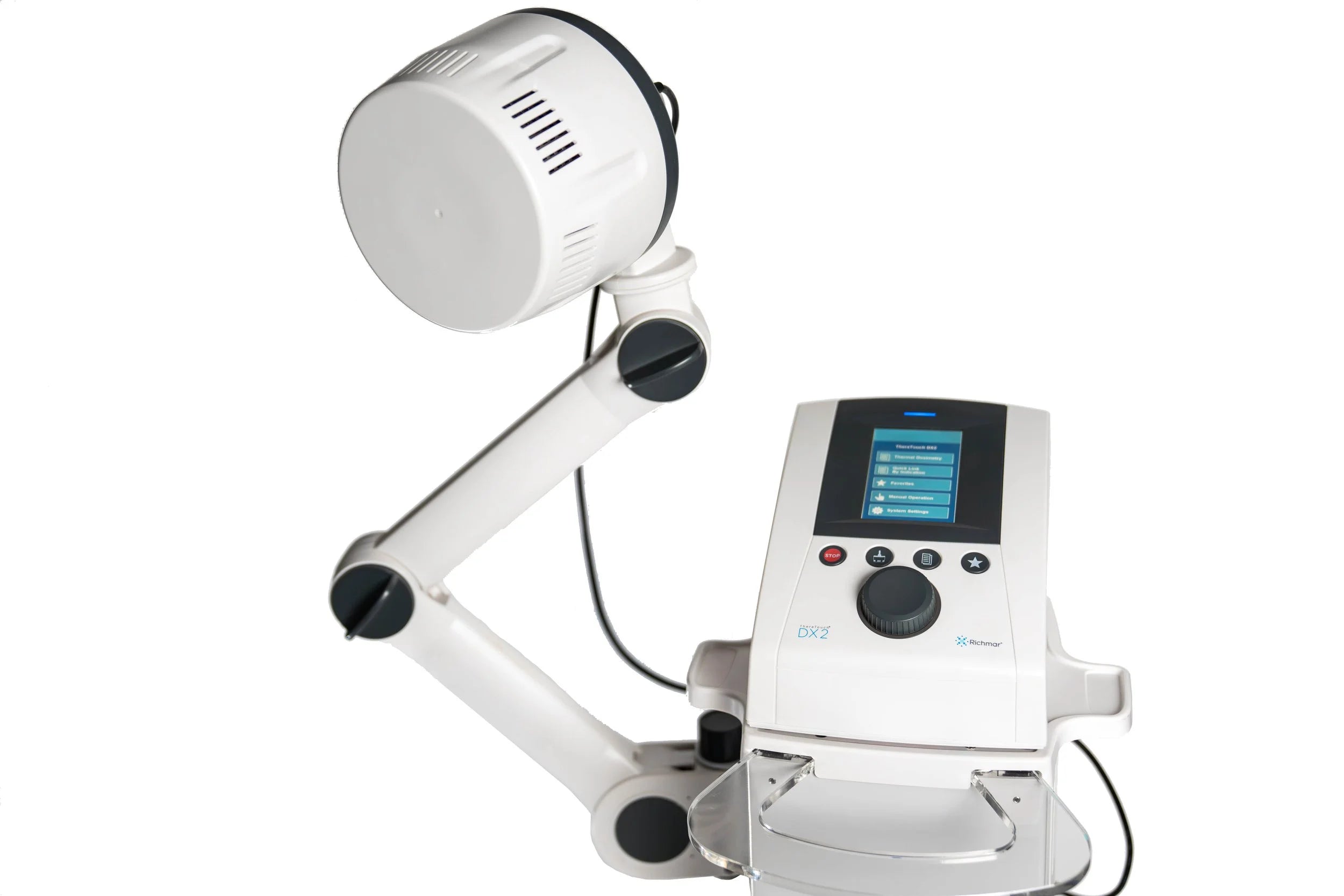

- Robust 360° pivoting arm with monode drum withstands clinical rigors; save up to 99 favorites for quick recall
- Evidence-based protocols for spasms, contractures, pain relief, and general musculoskeletal conditions
- Portable design (CLASS I, TYPE BF) with 100-240V global compatibility and 1-30 min timers
- Made in USA for FDA Class IIb compliance and reliable performance in PT/rehab workflows
Specifications:
| Specification | Details |
|---|---|
| Model | TheraTouch DX2 Shortwave Diathermy |
| Continuous Mode Output | 100W Average Power at 50Ω |
| Pulsed Mode Output | 200W Peak Power at 50Ω |
| Power Supply | 100-240 V ~, 50/60 Hz |
| Output Frequency | 27.12 MHz ± 0.6% |
| Power Increment | 0.5 W |
| Pulse Width | 20 - 400 μsec (20 μsec increments) |
| Pulse Frequencies | 10 - 800 Hz (10 Hz increments) |
| Treatment Duration | 1 - 30 min (1 min increments) |
| Dosage Modes | 6 Levels (I-IV + III SDC M/H) |
| Protocols | Up to 99 User-Defined + Evidence-Based |
| Electrical Class | CLASS I, TYPE BF |
| Regulatory Risk | Class IIb (MDD 93/42/EEC) |
| Dimensions | Approx. 12" x 10" x 8" (Unit) |
| Weight | 15 lbs |
| Warranty | 3-Year Limited |
| UPC Code | 092237620397 |
Contents:
| Description | Quantity |
|---|---|
| TheraTouch DX2 Diathermy Unit | 1 |
| Monode Drum & Pivoting Arm | 1 |
| Patient Data Cards | 1 set |
| Power Cord (Universal) | 1 |
| User Manual & Protocol Guide | 1 |
