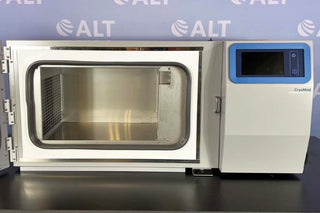

Thermo Scientific CryoMed TSCM48PA Controlled-Rate Freezer, CryoMed General Purpose 1.7 cu.ft. (48L) with 1 Solid Swing Door

Thermo Scientific CryoMed controlled-rate freezers (CRF) are engineered with precision reliability, premium sample protection, and robust data traceability in mind. Designed for advanced laboratory preparation needs, this system ensures the safe, gradual freezing of delicate biological materials before long-term cryogenic storage.

Model TSCM48PA is an elite, general-purpose controlled-rate cryogenic freezer configured with a 1.7 cu.ft. (48 Liter) chamber capacity. Built specifically for complex medical, clinical, and biobanking applications, it delivers a specialized operating temperature range spanning from -180°C up to +50°C. The single solid swing front-loading door features high-grade insulation to maintain strict environmental barriers during preparation workflows. Unlike traditional blast freezers, the CryoMed system utilizes a sophisticated air-handling infrastructure combined with a dedicated liquid nitrogen ($LN_2$) injection ring system. This combination achieves incredible temperature uniformity and precise, customized cooling rates to prevent intracellular ice crystallization across sensitive cell cultures, tissue samples, or genetic assets.

The exterior framework is engineered from rugged, powder-coated steel paired with a high-durability stainless steel interior cabinet. It features a built-in eye-level capacitive touchscreen interface that streamlines setting configurations, simplifies operation profiles, and displays live freezing runs cleanly. The integrated touchscreen UI automatically generates operational logs and records system events to effortlessly back 21 CFR Part 11 regulatory compliance structures. Complete with comprehensive PC interface software for remote operation, advanced tracking diagnostics, a preventative maintenance indicator for $LN_2$ solenoid replacements, and standard wireless alarms, this controlled-rate system delivers premier security directly to your medical workstation.

Features:

• Controlled-Rate Chamber Capacity
• High-precision cryogenic processing system optimized with a 1.7 cu.ft. (48 Liter) chamber capacity tailored for uniform preparation of high-value biological samples.
• Precise Liquid Nitrogen ($LN_2$) Ring
• Features an advanced air-handling and liquid nitrogen injection ring network that guarantees precise temperature control and uniform sub-zero drops.
• Extreme Cryogenic Range
• Delivers an incredibly wide temperature range spanning from -180°C up to +50°C, enabling customized, multi-step cooling ramp profiles.
• 21 CFR Part 11 Compliance Support
• The intuitive touchscreen user interface logs system access, user inputs, and environmental events to simplify compliance with strict digital record auditing requirements.
• PC Interface Remote Control
• Includes specialized PC interface software that enables full remote operation, simplified run review, and hassle-free custom freezing profile creation.
• Comprehensive Sensor & System Alarms
• Outfitted with standard protective alarms to instantly alert users of thermocouple failures, heater malfunctions, limit shifts, power failures, or run completions.
• Solenoid Preventative Maintenance Indicator
• Features an automated tracking alert that monitors usage thresholds and indicates when the liquid nitrogen ($LN_2$) solenoid requires replacement to minimize facility downtime.
• Multi-Format Remote Contacts
• Equipped with integrated remote alarm contacts to bridge the freezer directly into centralized facility monitoring frameworks and external alert grids.

Specifications:

• Model: TSCM48PA
• Chamber Capacity: 1.7 cu.ft. (48 Liters)
• Door Type / Style: 1 Solid Swing Door (Front Loading)
• Temperature Range: -180°C to +50°C
• Intended Use: Controlled-Rate Cryogenic Processing / Sample Preparation
• Application: Ultra-Low Controlled-Rate Freezer
• Cooling Infrastructure: Air-Handling Assembly with Liquid Nitrogen ($LN_2$) Injection Ring
• Cabinet Interior Material: Stainless Steel
• Exterior Finish: Powder-Coated Steel
• User Interface: Integrated Touchscreen LCD Display with Printer Interface
• Regulatory Compliance: Built to support 21 CFR Part 11 requirements; cULus Certified
• Electrical Requirements: 120V / 60Hz (12.0A)
• Plug Type: NEMA 5-15P
• UNSPSC Code: 41123304
• Warranty: Varies by region (contact manufacturer or local distributor for specific details)
• Product Weight: 191 lbs (86.6 kg)
• Shipping Weight: 245 lbs (111.1 kg)

Dimensions:

• Width: 21-7/10" (55.1 cm)
• Depth: 24-3/10" (61.0 cm)
• Height: 49-1/3" (125.2 cm)
