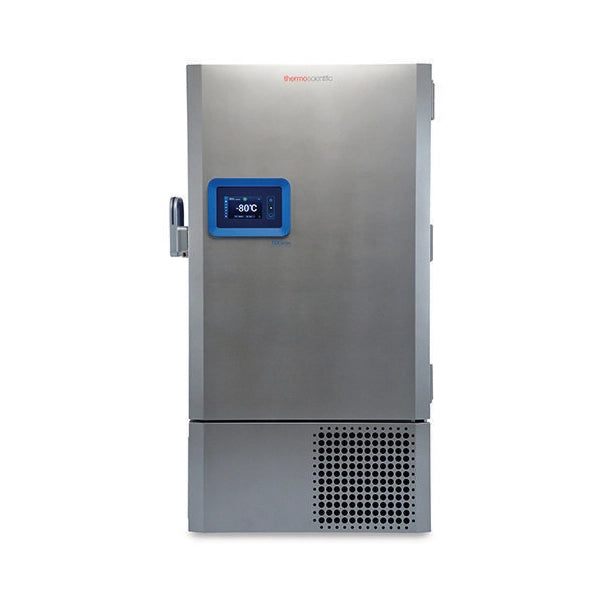

Thermo Scientific TSX60086LA High-Performance Upright Ultra-Low Temperature Freezer, TSX Universal Series General Purpose 28.8 cu.ft.

Thermo Scientific™ TSX Universal Series ultra-low temperature (ULT) upright freezers are purpose-built to deliver premier sample protection, exceptional thermal uniformity, and advanced digital security for intensive clinical, medical, and scientific research environments.

Model TSX60086LA features a large 28.8 cu.ft. interior capacity, engineered to operate reliably within a precise sub-zero thermal range between -40°C and -86°C. Built with advanced Vacuum Insulation Panels (VIP) combined with water-blown polyurethane foam insulation (SNAP-compliant), this structure provides excellent cabinet wall thermal resistance while expanding the usable internal storage footprint. The triple-door configuration—comprising 1 rugged outer swing door and 2 independent insulated inner doors—works alongside a manual defrost system to drastically mitigate cold air loss during access, shielding volatile biological compounds from critical cyclical heat spikes.

The inner layout accommodates a high-density payload of up to 600 standard 2-inch laboratory sample boxes across 4 heavy-duty cold-rolled steel shelves (3 adjustable and 1 fixed). For seamless operational tracking, the front panel features an intuitive, high-visibility touchscreen LCD interface displaying temperature parameters, system events, and diagnostic logs. Security protocols are fully managed via multi-layered authorization barriers, featuring an embedded standard key lock, a physical padlock loop, and setpoint/settings security overrides, with optional NFC key card integration. Outfitted with wireless audible and visual high/low temperature alarms, this scratch-resistant painted steel freezer introduces commercial-grade cold-chain stability directly to your facility layout.

Features:

• High-Density 600 Box Storage Capacity High-performance upright layout offering an optimized 28.8 cu.ft. interior framework engineered to hold up to 600 standard 2-inch laboratory sample boxes efficiently.
• Vacuum Insulation Panels (VIP) Utilizes advanced VIP engineering combined with eco-safe, water-blown polyurethane foam to maximize interior space while maintaining an ultra-tight thermal envelope.
• Advanced Triple-Door Isolation Barrier Features 1 primary solid outer swing door and 2 insulated inner doors, enabling clinical personnel to access specific shelf rows without exposing the remaining inventory to ambient room heat.

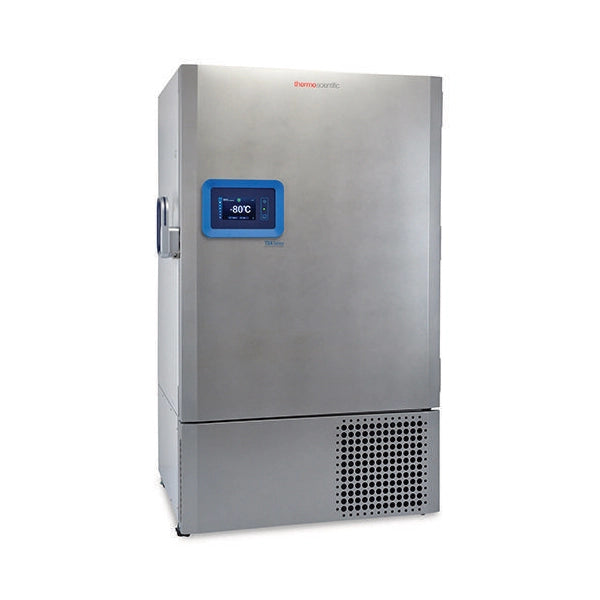

• Touchscreen LCD Display Includes a front-mounted digital touchscreen interface for high-visibility real-time monitoring of internal temperatures, system metrics, and technical alarms.
• Flexible Interior Layout Configured with 4 durable painted steel shelves—3 easily adjustable and 1 fixed—allowing lab managers to customize the cabinet setup for varying sample heights.
• Comprehensive Access & Settings Security Maintains strict asset control through standard key locks, an integrated padlock loop, parameter setpoint protection, and optional NFC key card authentication slots.
• Advanced Wireless Alarm Network Equipped with built-in wireless transmitter systems managing both audible and visual high and low temperature breach indicators for immediate notification.
• Scratch-Resistant Painted Steel Constructed with an industrial-grade, scratch-resistant painted steel exterior shell designed to withstand rigorous daily cleaning and heavy laboratory wear.

Specifications:

• Model: TSX60086LA
• Capacity: 28.8 cu.ft. (Holds up to 600 standard 2-inch storage boxes)
• Defrost Type: Manual Defrost
• Door Configuration: 1 Solid Outer Door & 2 Insulated Inner Doors (3 Doors Total)
• Number of Shelves: 4 Shelves (3 Adjustable, 1 Fixed)
• Shelf / Body Material: Scratch-resistant Painted Steel
• Temperature Range: -40°C to -86°C
• Insulation Core: Vacuum Insulation Panels (VIP) + Water-Blown Polyurethane Foam (SNAP-Compliant)
• Display Interface: Touchscreen LCD Display
• Security Modes: Standard Key Lock, Padlock Loop, Setpoint/Settings Protection (Optional NFC Access)
• Alarm Systems: Wireless Audible and Visual High and Low Temperature Alarms
• Intended Use: Clinical, General Purpose Medical, and High-Capacity Biological Asset Protection
• Application: Ultra-Low Upright Laboratory Freezer
• Shipping Weight: ~855 lbs (387.8 kg)
• UNSPSC Code: 41103011

Dimensions:

• Width: 37-3/5" (95.5 cm)
• Depth: 39-3/5" (100.6 cm)
• Height: 78" (198.1 cm)
