Overview
From the manufacturer
Quick Ship Walk-in Hoods provide an off-the-shelf, economical solution for fume control around large equipment or for creating a compact negative-pressure “dirty room” inside your facility. Unlike typical industry lead times of 4–6 weeks or more, these systems are ready to ship in as little as 5 business days.

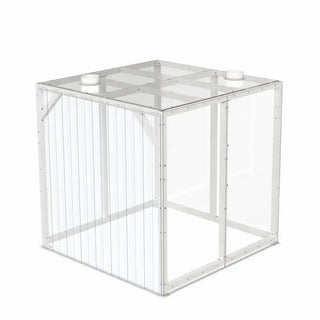

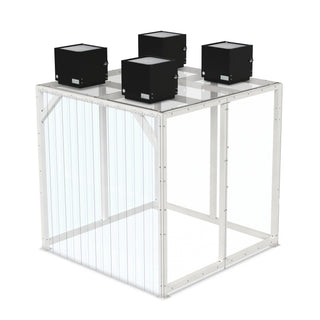

Each hood creates an enclosed 8’ x 8’ x 8’ negative-pressure work area that helps isolate fumes and airborne particulate from the rest of the room. Choose a ductless configuration with 1 to 4 attached air cleaners, or a ducted configuration with 1 to 4 exhaust collars for connection to external ductwork and blower systems.
Built with a heavy-duty powder-coated steel frame and available with hard wall polycarbonate panels or anti-static vinyl strip curtains, the Sentry Air Systems 8’ x 8’ x 8’ Quick Ship Walk-in Hood is an easy-to-deploy containment solution for industrial and laboratory applications.
Features
Key features
- Quick Ship Availability: Rapid dispatch and minimized lead times to get your laboratory up and running without delay.
- Spacious Walk-In Design: Floor-mounted enclosure designed to accommodate large, tall, or heavy equipment directly inside the hood.
- Heavy-Duty Construction: Built with high-grade, chemical-resistant materials to ensure durability and long-term performance in harsh lab environments.
- Superior Airflow Management: Designed to efficiently capture and exhaust hazardous fumes, vapors, and chemical particulates, ensuring maximum operator safety.
- Ergonomic Access: Wide-opening sliding sash/doors for seamless loading, monitoring, and operation of complex laboratory setups.
- Built-in Utility Ports: Convenient pass-through ports for electrical lines, liquid supply, and instrumentation.
- Easy Assembly & Maintenance: Modular structure designed for straightforward installation and effortless routine servicing.
Specifications
Manufacturer data. Imperial with metric in brackets.
- Model
- Sentry Air Systems 8’ x 8’ x 8’ Quick Ship Walk-in Hood
- Dimensions
- 8’ Wide x 8’ Deep x 8’ Tall
- Frame Material
- 3” x 3” Powder-coated steel structural tubing
- Wall Material Options
- Hard walls (1/4” clear twinwall polycarbonate) OR Clear anti-static vinyl curtains
- Weight
- • Steel tubing: 3.29 lbs/ft • Twinwall Polycarbonate: 0.94 lbs/sq ft
- Airflow Options
- • Model 300 (SS-300-MS): Up to 350 CFM per unit • Model 400 (SS-400-MS): Up to 700 CFM per unit • Model 450 (SS-450-MS): Up to 900 CFM per unit
- Main Filter Options
- HEPA, ASHRAE, Activated Carbon, or specialty-blended media (Acid Gas, Mercury, Aldehyde, Ammonia)
- Ductless Air Cleaner Quantity
- Choice of 1, 2, 3, or 4 air cleaner(s)
- Ducted Exhaust Collar Quantity
- Choice of 1, 2, 3, or 4 exhaust collar(s)
- Exhaust Collar Diameter
- Varies by selected system configuration
- Warranty
- Limited 2-year warranty from date of shipment (covers defects in materials or workmanship)
- US Patents
- #5,843,197 / #8,353,745
