- Frame Material
- Q235 + 45 Steel
- Weight Capacity
- 330 lbs (150 kg)
- Net Weight
- 38.5 kg (84.9 lbs)
- Gross Weight
- 44 kg (97 lbs)
- Frame Material
- Q235 + 45 Steel
- Weight Capacity
- 330 lbs (150 kg)
- Net Weight
- 38.5 kg (84.9 lbs)
- Gross Weight
- 44 kg (97 lbs)
Overview
From the manufacturer

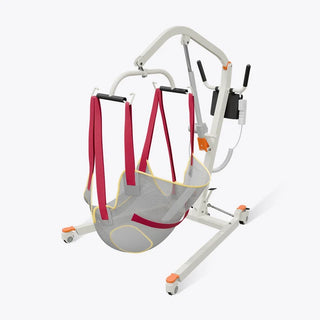

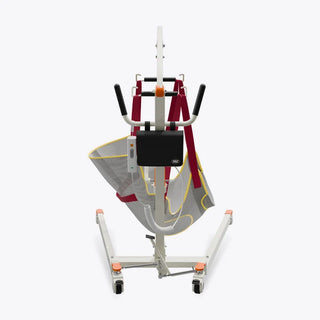

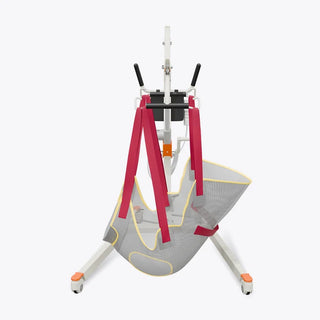

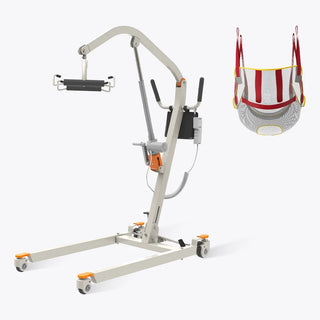

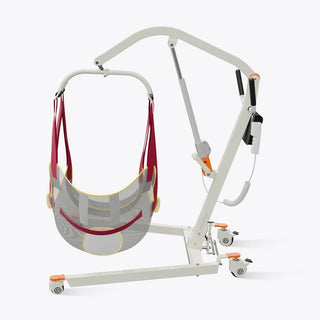

The VOCIC AY05 Electric Transfer Hoyer Lift is built using Q235 and #45 structural steel to provide safe and steady transfer assistance for individuals with limited mobility. Powered by a 120W 24V motor delivering 6000N of thrust, this lift operates smoothly with a low noise rating of ≤65 dB and integrated soft start and stop functionality. Its rechargeable 22.2V / 2.6Ah lithium battery supports approximately 40 lifting cycles per full charge at maximum load without requiring an external power supply or separate battery controller.
Featuring a lifting range from 75 cm to 155 cm, the unit provides floor lift and transfer support to assist caregivers in safely recovering individuals following a fall. The adjustable base spreads from 62 cm to 97 cm to navigate around furniture, wheel chairs, and seating frames. Complete with an emergency stop button, low-battery alert, manual descent mechanism, and a machine-washable mesh sling, this system ensures efficient daily transfers.
Features
Key features
- Rechargeable All-in-One Control System: No external power supply or separate battery controller required.
- Floor Lift & Transfer Support: Helps caregivers safely lift users from the floor after a fall.
- Adjustable Comfort Sling: Multi-support mesh sling fits different body types and is machine washable.
- Smooth & Secure Mobility: Silent 4-wheel design with rear brakes for flexible movement and stable positioning.
- Smart & Simple Operation: Easy setup with emergency stop, low-battery alert, manual lift option, and storage bag.
Specifications
Manufacturer data. Imperial with metric in brackets.
- Specification
- Details
- Frame Material
- Q235 + 45 Steel
- Weight Capacity
- 330 lbs (150 kg)
- Net Weight
- 38.5 kg (84.9 lbs)
- Gross Weight
- 44 kg (97 lbs)

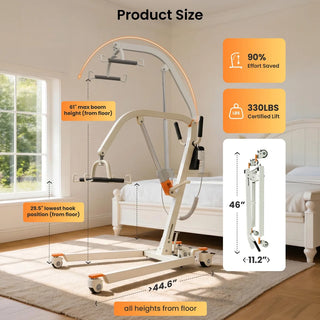

- Lifting Range
- 75–155 cm (29.5–61 in)
- Front Caster Height
- 13 cm (5.1 in)
- Rear Caster Height
- 15.5 cm (6.1 in)
- Base Length
- 113.5 cm (44.7 in)
- Base Width
- 62 cm (24.4 in)
- Adjustable Base Width
- 62–97 cm (24.4–38.2 in)
- Caster Size
- 3” Front Wheels + 4" Rear Wheels
- Noise Level
- ≤65 dB
- Battery Capacity
- Approx. 40 lifting cycles per full charge (at maximum load)
- Motor
- 120W, 24V, 6000N
- Battery Type
- Rechargeable Lithium Battery, 22.2V / 2.6Ah
- Overcharge Protection
- Supported
- Emergency Stop Function
- Push-button emergency stop; stops immediately when released
- Soft Start & Stop Supported
- yes
- Manual Lowering Function
- Manual descent via handle-operated release mechanism
- Package Dimensions
- 120 × 69.5 × 29.5 cm (47.2 × 27.4 × 11.6 in)
Shipping & returns
Ships by freight or parcel depending on size. The shipping cost is calculated and confirmed at checkout.
View the return policy for this itemWarranty
1 year labor & parts warranty.
Optional CPS protection plans can be added before checkout.
