| Overview | |
|---|---|
| Product Name | VWR Plus Series Glass Door Laboratory Refrigerator / Freezer Combo |
| VWR Catalog No | 76580-178 |
| Supplier | VWR International |
| Total Capacity | 12 cu. ft. (340 L) — [10.5 cu. ft. Refrigerator / 1.7 cu. ft. Freezer] |
| Door Type | 2 swing doors (Glass door refrigerator / Solid door freezer) |
| Defrost System | Cycle defrost (Refrigerator) / Manual defrost (Freezer) |
| Shelves | Refrigerator: 6 adjustable shelves; Freezer: 2 adjustable shelves |
| Control System | Independent microprocessor controllers with digital temperature displays for each compartment |
| Security | Keyed door locks |
| Alarms | Audible and visual high and low temperature alarm systems |
| Probe Access | Integrated probe access port |
| Cabinet Material | White powder-coated exterior |
| Lighting | Interior LED lighting |
| General Warranty | Two-year parts and labor warranty |
| Compressor Warranty | Three-year additional compressor parts warranty |
| Certifications & Compliance | UL/C-UL Listed, Environmentally Preferable (Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Dimensions (W x D x H) | 23.625" W x 26.50" D x 80.25" H (600 x 673 x 2038 mm) |
| Refrigerator Interior Dimensions (W x D x H) | 19.875" W x 18.375" D x 53.50" H (505 x 467 x 1359 mm) |
| Freezer Interior Dimensions (W x D x H) | 17.75" W x 16.00" D x 13.875" H (451 x 406 x 353 mm) |
| Product Net Weight | 131 kg (289 lbs.) |
| Shipping Weight | 155 kg (320 lbs.) |
| Performance & Electrical Details | |
| Refrigerator Temperature Range | 1°C to 10°C |
| Freezer Temperature Range | -15°C to -25°C |
| Compressor Power | 1/3 HP (Refrigerator) / 1/8 HP (Freezer) |
| Refrigerant | Natural Hydrocarbon refrigerant (R600a) |
| Electrical Requirements | 115 V / 60 Hz, 2.3 Amps (Refrigerator) and 1.0 Amp (Freezer) |
New
VWR 76580-178 Plus Series Glass Door Laboratory Refrigerator and Freezer Combo Unit Digital Display, 12 cu. ft.
by
VWR
SKU: 76580-178
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR Plus Series Glass Door Laboratory Refrigerator and Freezer Combo Unit Digital Display, Dual-Chamber Hybrid Door Setup, Dual Defrost Configuration, 12 cu. ft.

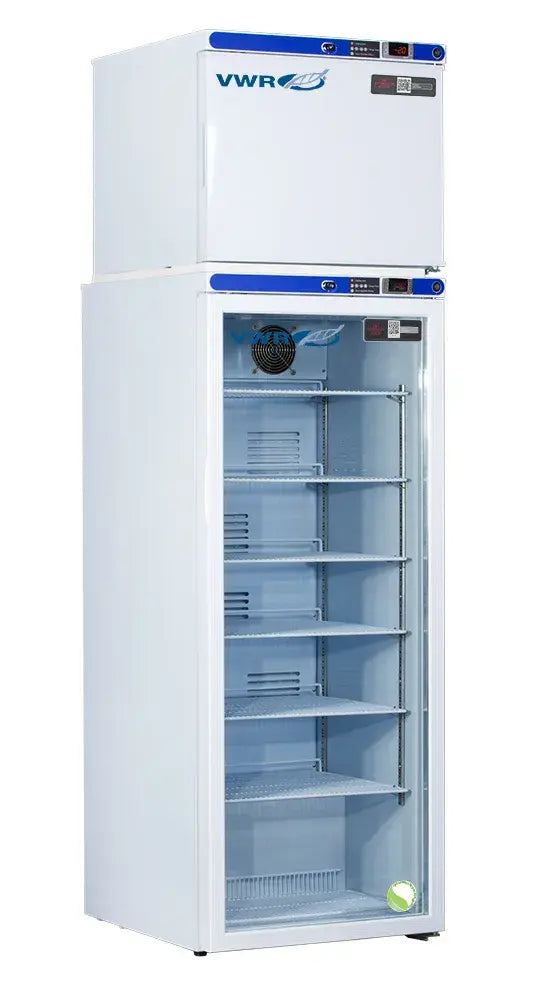

The VWR Plus Series Glass Door Laboratory Refrigerator and Freezer Combination Unit (Catalog No: 76580-178), supplied by VWR International, is a dual-temperature cold storage system designed for clinical, pharmaceutical, and research laboratory environments requiring immediate sample visibility and precise thermal stability. Featuring a total capacity of 12 cu. ft. (340 L / 10.5 cu. ft. Refrigerator and 1.7 cu. ft. Freezer), this multi-functional unit combines a glass-door refrigerator compartment with a solid-door freezer section in a compact upright footprint.
Thermal performance is controlled via independent Microprocessor Temperature Controllers with Digital Temperature Displays for each compartment. The upper refrigerator section maintains an adjustable operating temperature range of 1°C to 10°C paired with an automated cycle defrost system, while the lower freezer section operates between -15°C and -25°C with manual defrosting to protect temperature-sensitive samples from thermal cycling.
System integrity and sample security are monitored through audible and visual high/low temperature alarms and integrated probe access for temperature validation.
The unit features two exterior swing doors: a glass door for the refrigerator compartment providing clear product visibility without opening the cabinet, and a solid swing door for the freezer section. The cabinet is constructed with a white powder-coated exterior and comes equipped with keyed door locks, six adjustable shelves for the refrigerator compartment, and two adjustable shelves for the freezer section. Powered by natural, eco-friendly hydrocarbon refrigerants (R600a), this unit is UL/C-UL listed and backed by a 2-year parts and labor warranty plus an additional 3-year compressor parts warranty.
Features:
- Dual-Chamber Hybrid Door Setup: Features a glass swing door for the refrigerator section (10.5 cu. ft.) for rapid visual monitoring and a solid swing door for the freezer compartment (1.7 cu. ft.).
- Independent Microprocessor Controllers: Equipped with separate microprocessor controllers and digital temperature displays for precise thermal management of both chambers.
- Dual Defrost Configuration: Utilizes an automated cycle defrost system for the refrigerator compartment and manual defrost for the freezer compartment.
- Comprehensive Alarm Safeguards: Includes audible and visual high/low temperature alarm systems to ensure continuous sample safety.
- Flexible Interior Shelving: Includes 6 adjustable shelves in the refrigerator chamber and 2 adjustable shelves in the freezer section.
- Keyed Access & Security: Equipped with keyed door locks for physical inventory protection and restricted access.
- Eco-Friendly Hydrocarbon Refrigerant: Powered by natural hydrocarbon refrigerant (R600a) for environmental sustainability and high operational energy efficiency.
- UL Listed & Extended Warranty: UL/C-UL listed design backed by a 2-year manufacturer parts and labor warranty plus an additional 3-year compressor parts warranty.
Specifications:
