| Overview | |
|---|---|
| Product Name | GDM-23-HC-LD VWR WHT CHROMO 1P1D |
| VWR Catalog No | 10791-614 |
| Manufacturer | True Refrigeration |
| Capacity | 651 L (23 cu. ft.) |
| Door Type | 1 self-closing "Low-E" double-pane thermal glass swing door |
| Shelves | 4 adjustable PVC-coated wire shelves (22 9/16" L x 23 1/4" D) |
| Access Ports | 1 access port |
| Internal Convenience Outlets | 1 grounded duplex outlet with cover |
| Interface & Controls | LAE electronic controller with exterior digital display and alarm functions |
| Lighting | Safety-shielded interior LED lighting |
| Mounting | Frame rail fitted with leg levelers (optional castors or legs available) |
| General Warranty | Three-year parts and labor warranty |
| Compressor Warranty | Two-year additional compressor warranty |
| Certifications | cULus Listed, NSF Certified, Environmentally Preferable (Safer Human & Environmental Health, Energy Efficient) |
| Physical Dimensions & Weight | |
| Exterior Width | 27" (686 mm) |
| Exterior Depth | 29.875" (759 mm) *Depth includes door frame details |
| Exterior Height | 78.625" (1998 mm) |
| Crated Weight | 161 kg (355 lbs.) |
| Performance & Electrical Details | |
| Operating Temperature Range | 2°C to 8°C (35.6°F to 46.4°F) |
| Compressor Power | 1/3 HP |
| Refrigerant | Environmentally friendly natural R290 Hydrocarbon refrigerant |
| Electrical Requirements | 115V / 60 Hz / 1 Phase, 5.4 Amps (Rated 2.4 A) |
| Power Plug | NEMA 5-15P plug with 9 ft. (2.74 m) cord |
New

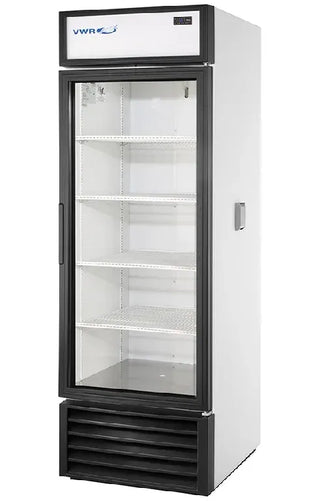

VWR GDM-23-HC-LD VWR WHT CHROMO 1P1D Basic Chromatography Glass Door Refrigerator Natural Refrigerant White, 23 cu. ft.
SKU: GDM-23-HC-LD VWR WHT CHROMO 1P1D
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
Fast & Reliable Shipping
Typically 1-3 Business Days
Regulatory Compliant
Registered & Certified Medical Equipment
Support
Need help?
VWR GDM-23-HC-LD VWR WHT CHROMO 1P1D Basic Chromatography Glass Door Refrigerator, Natural Refrigerant White, 23 cu. ft., Chromatography Ready, Durable White Vinyl Exterior
The VWR Basic Chromatography Glass Door Refrigerator (Catalog No: 10791-614 / Model: GDM-23-HC-LD VWR WHT CHROMO 1P1D), manufactured by True Refrigeration, is specifically designed for sensitive chromatography applications, research labs, and clinical environments. Combining an environmentally friendly natural refrigerant system with high internal visibility and precise thermal stability, this 23 cubic foot (651 L) white upright cabinet provides superior performance for laboratory workflows.
Built for durability and hygiene, the cabinet exterior is constructed with non-peel, non-chip white laminated vinyl, while the interior features an NSF-approved white aluminum liner paired with a heavy-duty stainless steel floor. The structure is insulated using foamed-in-place Ecomate, a high-density polyurethane insulation with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). A black powder-coated steel frame rail with built-in levelers ensures high stability and long-term corrosion protection.
The unit is equipped with a "Low-E" double-pane thermal insulated glass door framed in extruded aluminum, providing maximum energy efficiency while protecting against ambient temperature heat transfer. The door features a positive seal, self-closing torsion closure system, an integrated 12" handle, and a tool-free removable magnetic door gasket. Safety-shielded LED interior lighting provides clear, even illumination throughout the cabinet interior.
Tailored for laboratory and chromatography setups, this configuration (full shelf version) comes standard with one factory-installed access port for instrumentation wires/tubing, as well as an internal grounded duplex electrical outlet with cover. The interior includes four adjustable, heavy-duty PVC-coated wire shelves supported by interior pilasters adjustable in 1/2" increments. A convenient clean-out drain is built directly into the cabinet floor for easy maintenance.
Thermal performance is driven by an eco-friendly, self-contained capillary tube refrigeration system using natural R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Driven by a 1/3 HP compressor mounted at the bottom of the cabinet, the system maintains a stable operating temperature range of 2°C to 8°C (35.6°F to 46.4°F) with rapid recovery. An LAE electronic controller with an exterior digital display and alarm function allows precise temperature monitoring and system alerts.
Features:
- Eco-Friendly Natural Refrigerant: Utilizes R290 hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for exceptional energy efficiency and minimal environmental impact.
- Chromatography Ready: Equipped with one standard access port and an internal grounded duplex electrical outlet for seamless instrument integration.
- Durable White Vinyl Exterior: Non-peel or chip white laminated vinyl finish provides a permanent, professional lab aesthetic.
- Low-E Thermal Glass Door: Energy-efficient double-pane glass door keeps contents fully visible while protecting against ambient thermal gain.
- LAE Electronic Controller: Features an exterior digital display and alarm functions for continuous temperature monitoring and sample protection.
- Energy-Efficient LED Lighting: Safety-shielded interior LED lighting delivers even illumination across all shelf levels.
- Bottom-Mounted Compressor: 1/3 HP condensing unit runs cooler and cleaner while elevating the lowest shelf to a comfortable "no-stoop" level.
- Heavy-Duty Adjustable Shelving: Includes four white PVC-coated wire shelves adjustable in 1/2" increments with chrome-plated shelf clips.
- Hygienic Interior: NSF-approved white aluminum liner with a stainless steel floor and a built-in cabinet clean-out drain for easy washing.
- Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.
Specifications:
