VWR GDM-23-HC-LD VWR WHT/SS CHROMO 1P1D Basic Chromatography Glass Door Refrigerator without Mast, Natural Refrigerant White Swing Door, 23 cu. ft.

VWR GDM-23-HC-LD VWR WHT/SS CHROMO 1P1D Basic Chromatography Glass Door Refrigerator without Mast, Full-Shelf Internal Layout, Natural Refrigerant White Swing Door, 23 cu. ft.

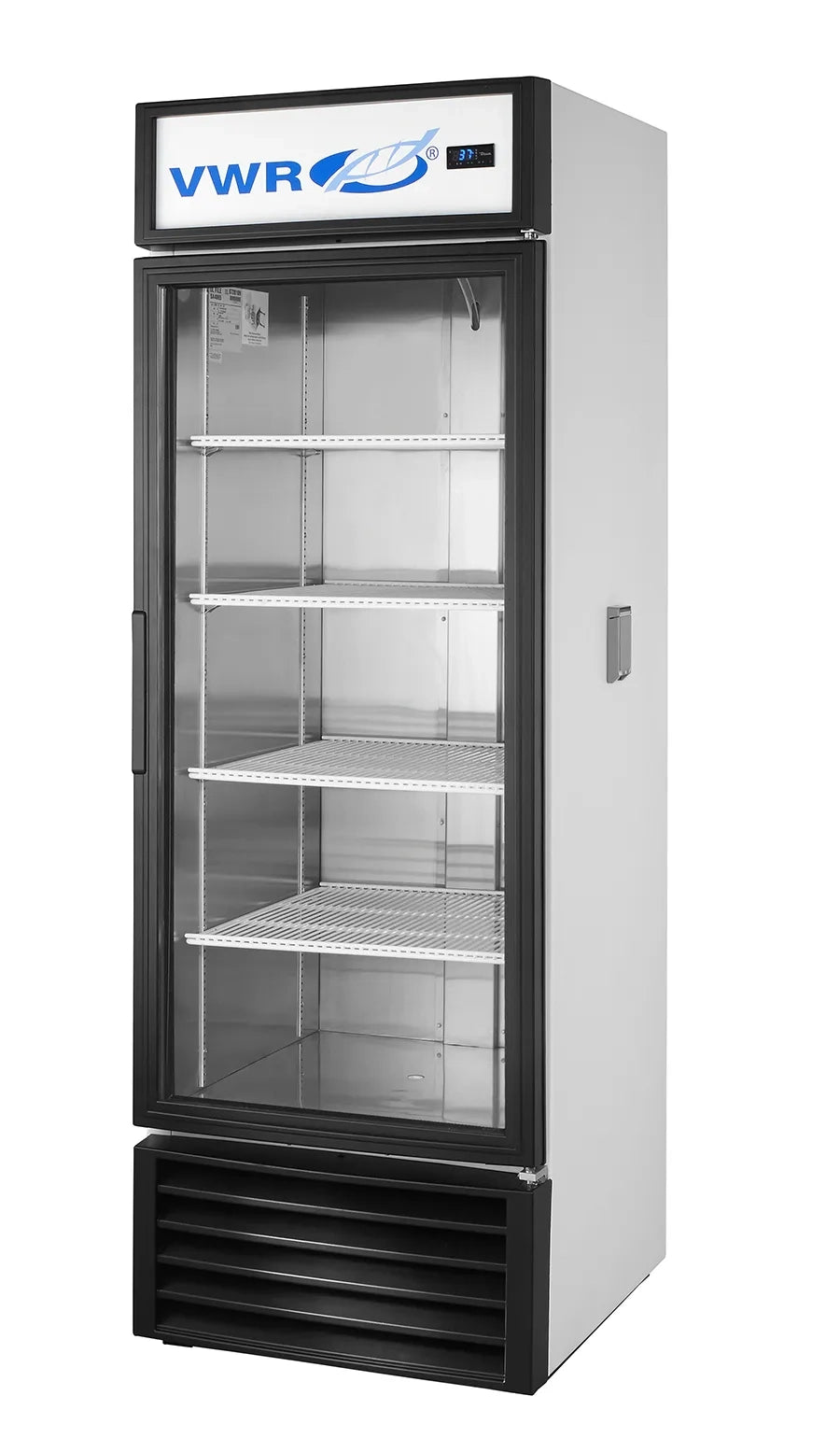

The VWR Basic Chromatography Glass Door Refrigerator (Catalog No: 10018-858 / Model: GDM-23-HC-LD VWR WHT/SS CHROMO 1P1D), manufactured by True Refrigeration, is a compact yet high-performance laboratory refrigerator designed for general chromatography and research applications requiring full shelf storage. Featuring a single glass swing door, high-tensile stainless steel interior, and an environmentally friendly natural refrigerant system, this 23 cubic foot (651 L) upright cabinet delivers maximum thermal stability, sample protection, and durability in a space-saving footprint.

Engineered for demanding laboratory environments, the exterior features a non-peel, non-chip white laminated vinyl finish paired with a premium stainless steel interior liner and floor for maximum dent, scratch, and corrosion resistance. The complete structure is insulated with foamed-in-place high-density polyurethane insulation with zero Ozone Depletion Potential (ODP) and zero Global Warming Potential (GWP). A black powder-coated, heavy-duty welded steel frame rail equipped with leg levelers provides robust structural support and corrosion protection.

The cabinet is fitted with a single "Low-E" double-pane thermal insulated glass swing door set in an extruded aluminum frame. The door utilizes a positive-seal torsion closure system for smooth, self-closing action, maintaining precise internal conditions during frequent use. It features an integrated 12" (305 mm) handle and a tool-free removable magnetic gasket for effortless cleaning. Safety-shielded interior LED lighting provides clear, uniform illumination throughout the entire space.

Configured for full-shelf chromatography workflows, this 23 cu. ft. model comes standard with one access port for monitoring cables or tubing and an internal grounded duplex electrical outlet with a protective cover. Unlike mast-equipped models, this unit optimizes usable volume by offering four full-size adjustable, heavy-duty PVC-coated white wire shelves supported by interior pilasters adjustable in 1/2" increments. A built-in floor clean-out drain simplifies washing and routine maintenance.

Thermal control is powered by a factory-engineered, self-contained capillary tube refrigeration system running on eco-friendly R290 hydrocarbon refrigerant (0 ODP, 3 GWP). Driven by a 1/3 HP compressor paired with an extra-large evaporator coil and sealed, self-lubricating fan motors, the system generates high-volume, low-velocity airflow for rapid temperature pull-down and recovery. An electronic temperature controller with an exterior digital display and alarm function keeps cabinet conditions consistently within 2°C to 8°C (35.6°F to 46.4°F).

Features:

• Full-Shelf Internal Layout: Configured with 4 full-size shelves without an internal mast, maximizing usable storage capacity within a compact footprint.
• Premium Stainless Steel Interior: High-tensile stainless steel interior liner and floor provide superior resistance to scratches, dents, and harsh laboratory chemicals.
• Low-E Thermal Glass Swing Door: Self-closing double-pane thermal glass door with an extruded aluminum frame and positive-seal torsion closure system.
• Essential Chromatography Setup: Factory-equipped with one standard access port and an internal grounded duplex electrical outlet with cover.
• Eco-Friendly Natural Refrigerant: Utilizes R290 hydrocarbon refrigerant with zero (0) ODP and three (3) GWP for energy efficiency and environmental compliance.
• Durable White Vinyl Exterior: Non-peel or chip white laminated vinyl finish maintains a permanent, professional lab aesthetic.
• Electronic Temperature Control: Exterior digital display and alarm function allow continuous temperature tracking and immediate safety alerts.
• High-Volume Airflow System: Sealed, self-lubricating fan motor with extra-large evaporator coil delivers rapid temperature recovery and uniform cooling.
• Safety-Shielded LED Lighting: Interior LED lighting ensures even, energy-efficient illumination across all shelf levels.
• Solid Warranty Coverage: Backed by a 3-year parts and labor warranty with an additional 2-year warranty on the compressor.

Specifications:
